Casesmontech

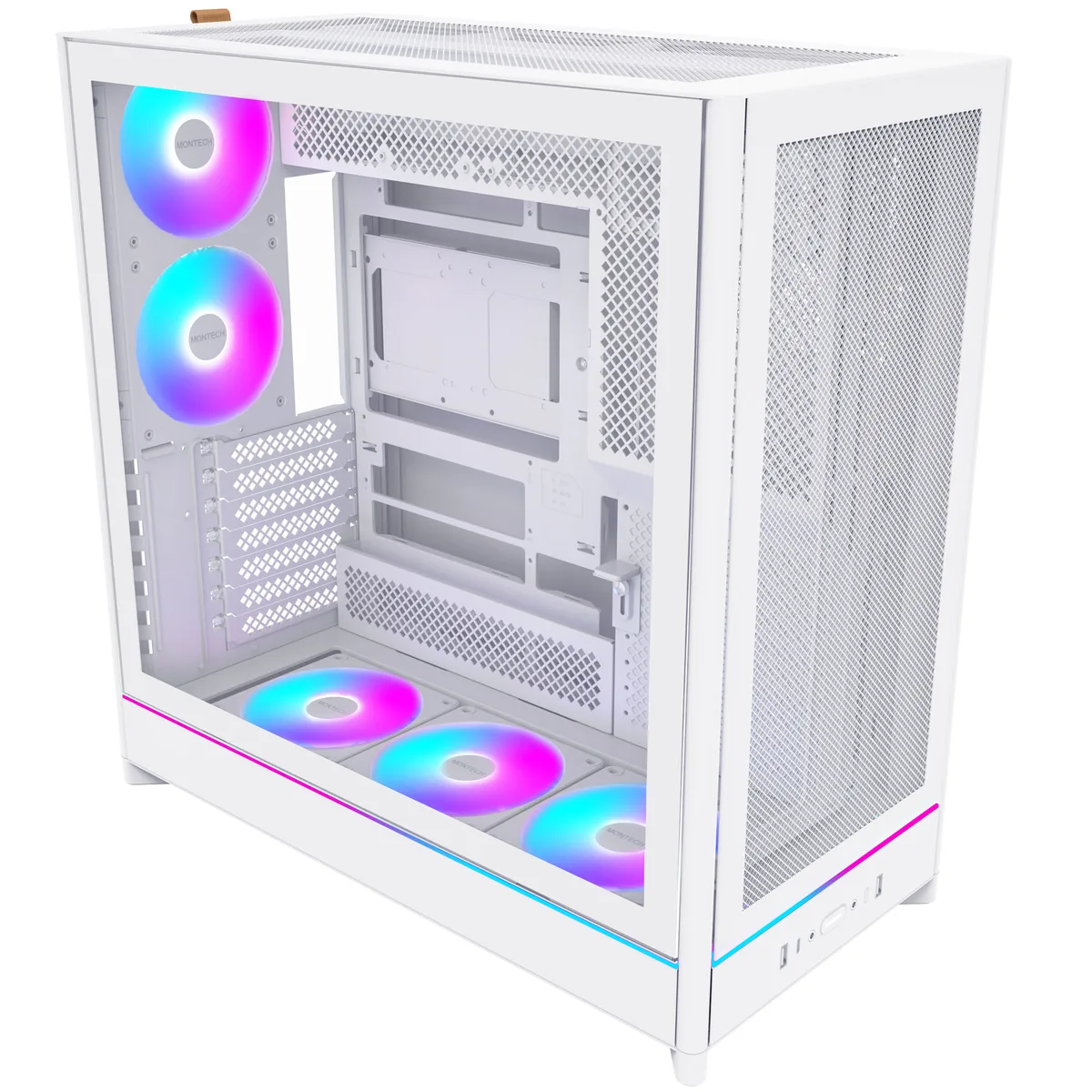

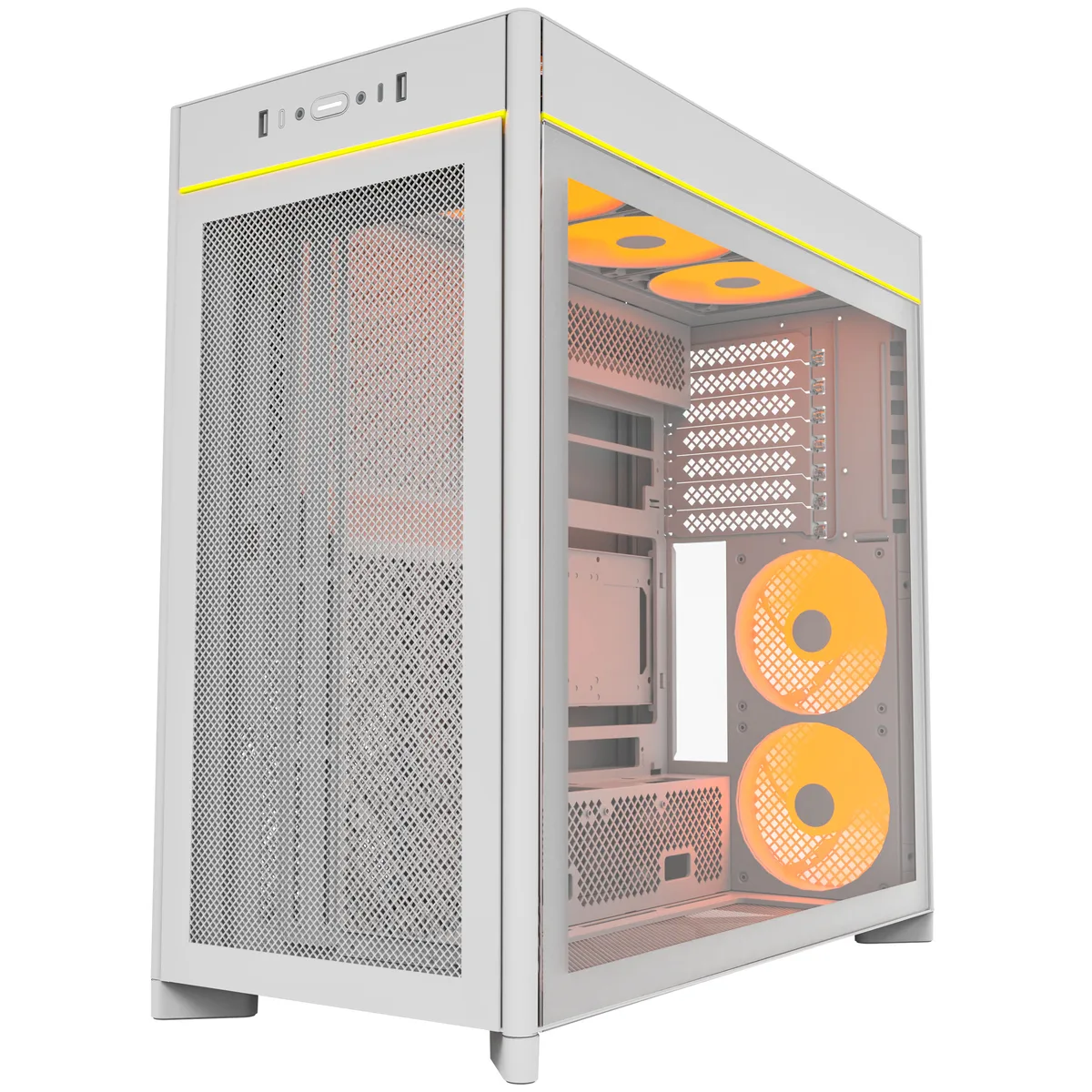

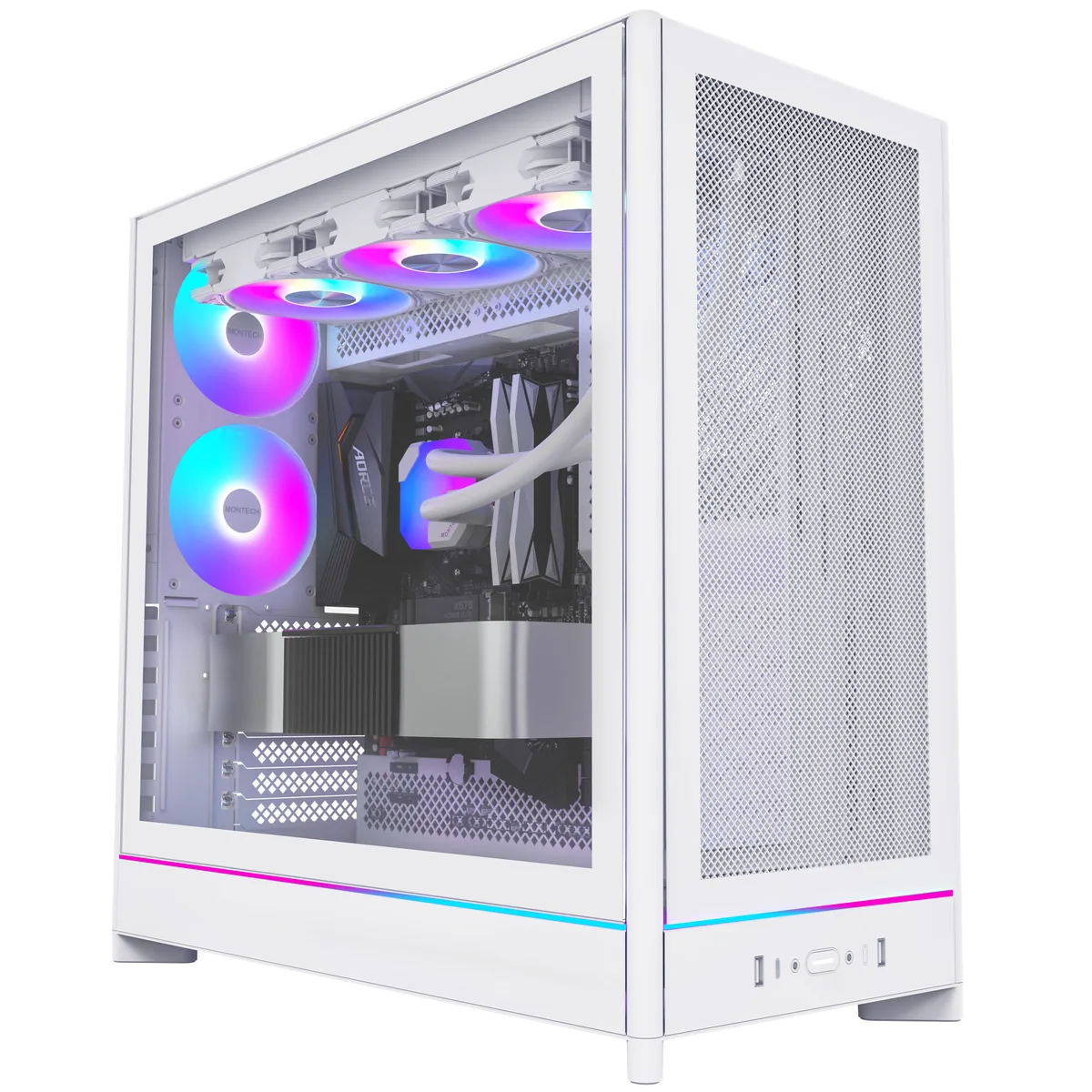

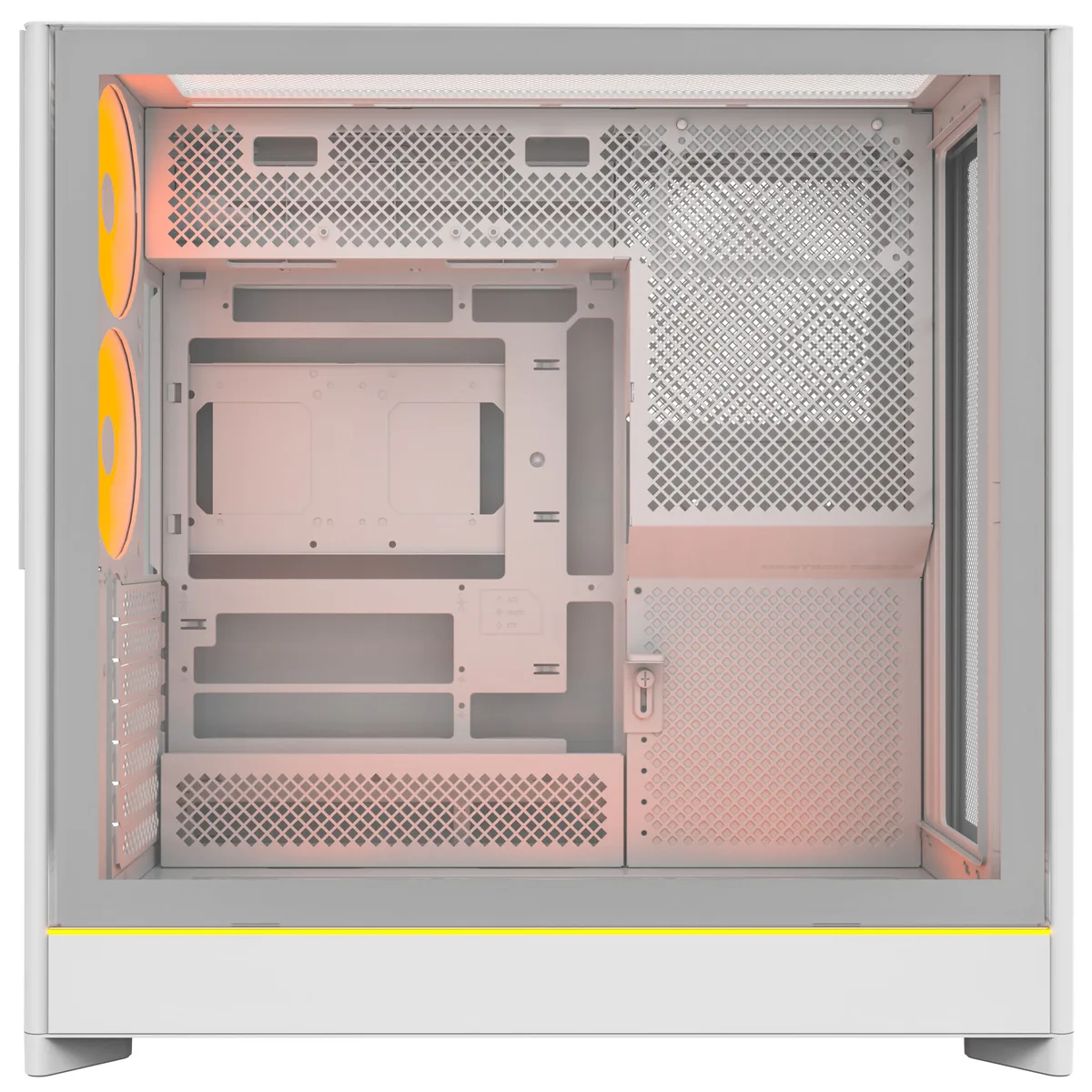

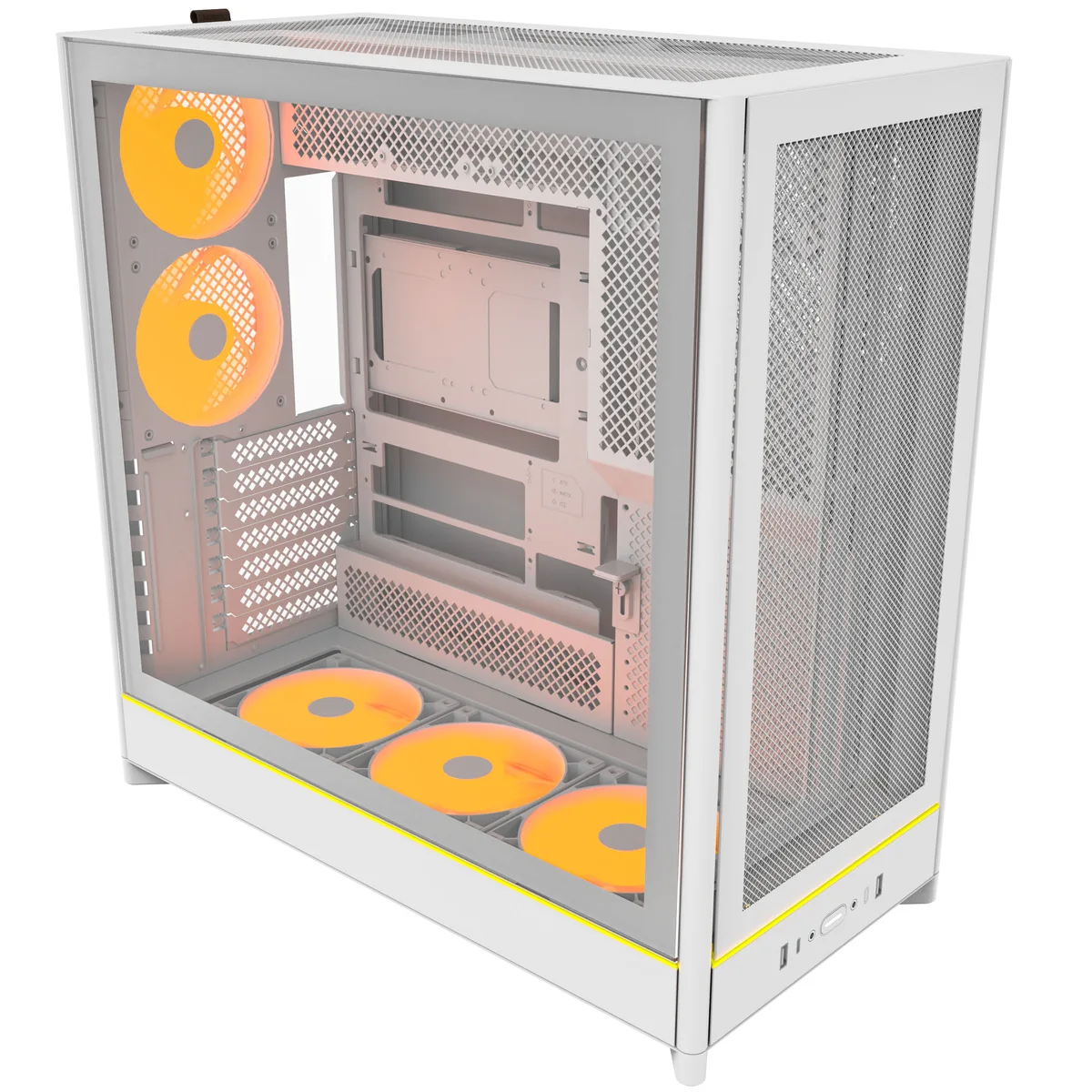

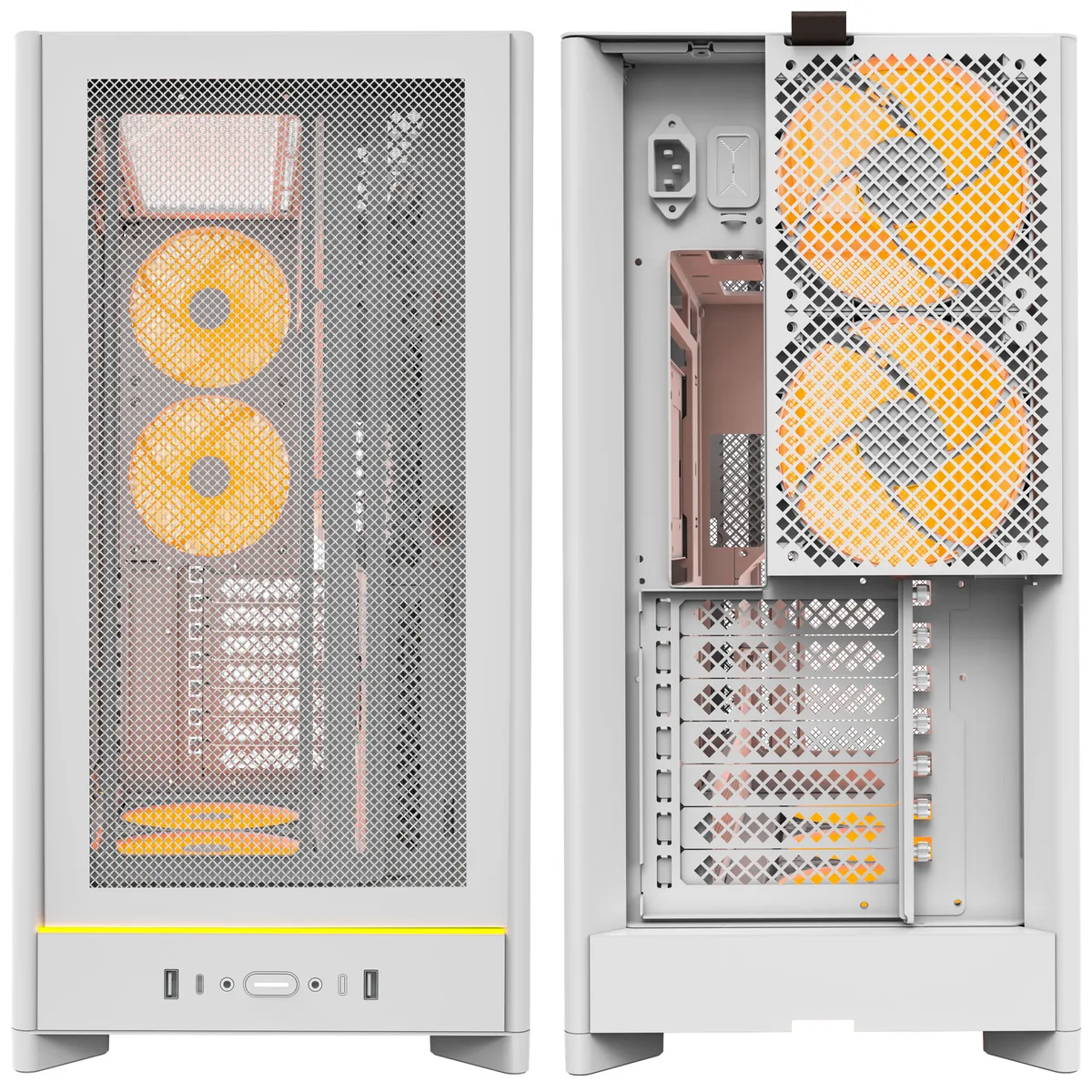

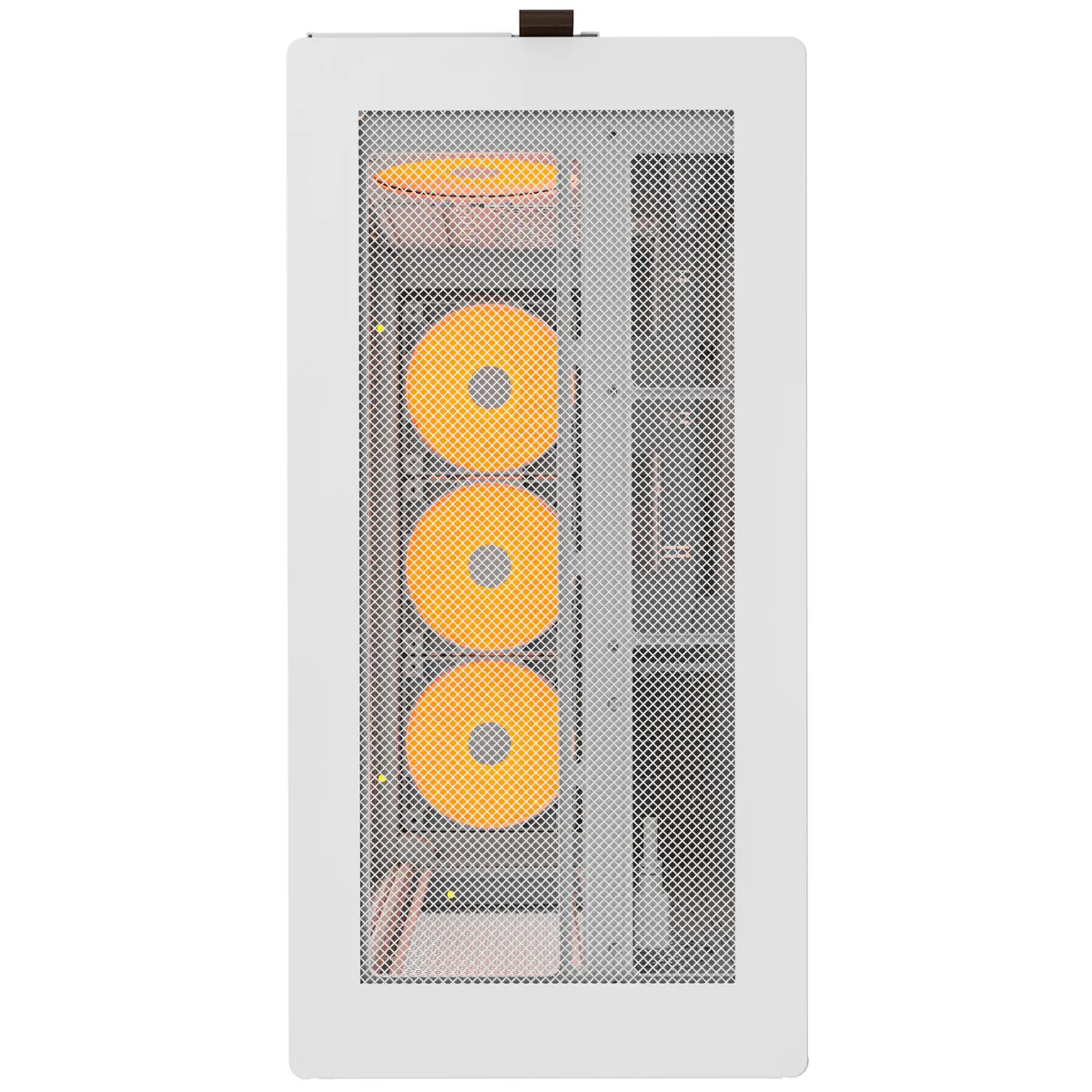

Montech HS01 PRO Reversible Layout Midi-Tower ATX ARGB Case - White
Model: HS01 PRO (W)
Technical Specifications69 specs
Additional Contents
Fans Included
Yes
Included Fans
5x 120 mm
Additional Information
Model Number
HS01 PRO (W)
Gtin
4710562744712
Back Connect
Back Connect
Yes
Back Connect Compatibility
ASUS BTF, MSI Project Zero, Gigabyte Project Stealth
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Front
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
White
Compliance
Compliance Documents
Montech Case Compliance and Safety
Connectivity
Card Reader
No
Dimensions
Length Depth
480 mm
Width
240 mm
Height
480 mm
Weight
5 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
4
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 1 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Rear
120mm Fan (2x)
Max Number Of Fans
11
Case Fan Support Bottom
120mm Fan (3x)
Case Fan Support Front
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support Top
120mm Fan (3x)
120 Mm Fans
11
140 Mm Fans
2
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
175 mm
Max Gpu Length
420 mm
Max Psu Length Depth
200 mm
Lighting
Lighting Rgb
Yes
Rgb Controller
Yes
Rgb Type
ARGB / DRGB
Lighting Colour
RGB
Materials
Materials
Plastic, Aluminium, Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX, SFX
Power Supply Position
front, top
Radiator Support
Max Radiator Compatibility
1x Single (120 mm), 1x Dual (240 mm), 1x Triple (360 mm)
Radiator Aio Support Bottom
120mm Radiator, 240mm Radiator
Radiator Aio Support Top
120mm Radiator, 240mm Radiator, 360mm Radiator
Radiator Aio Support Rear
120mm Radiator
