CasesLian Li

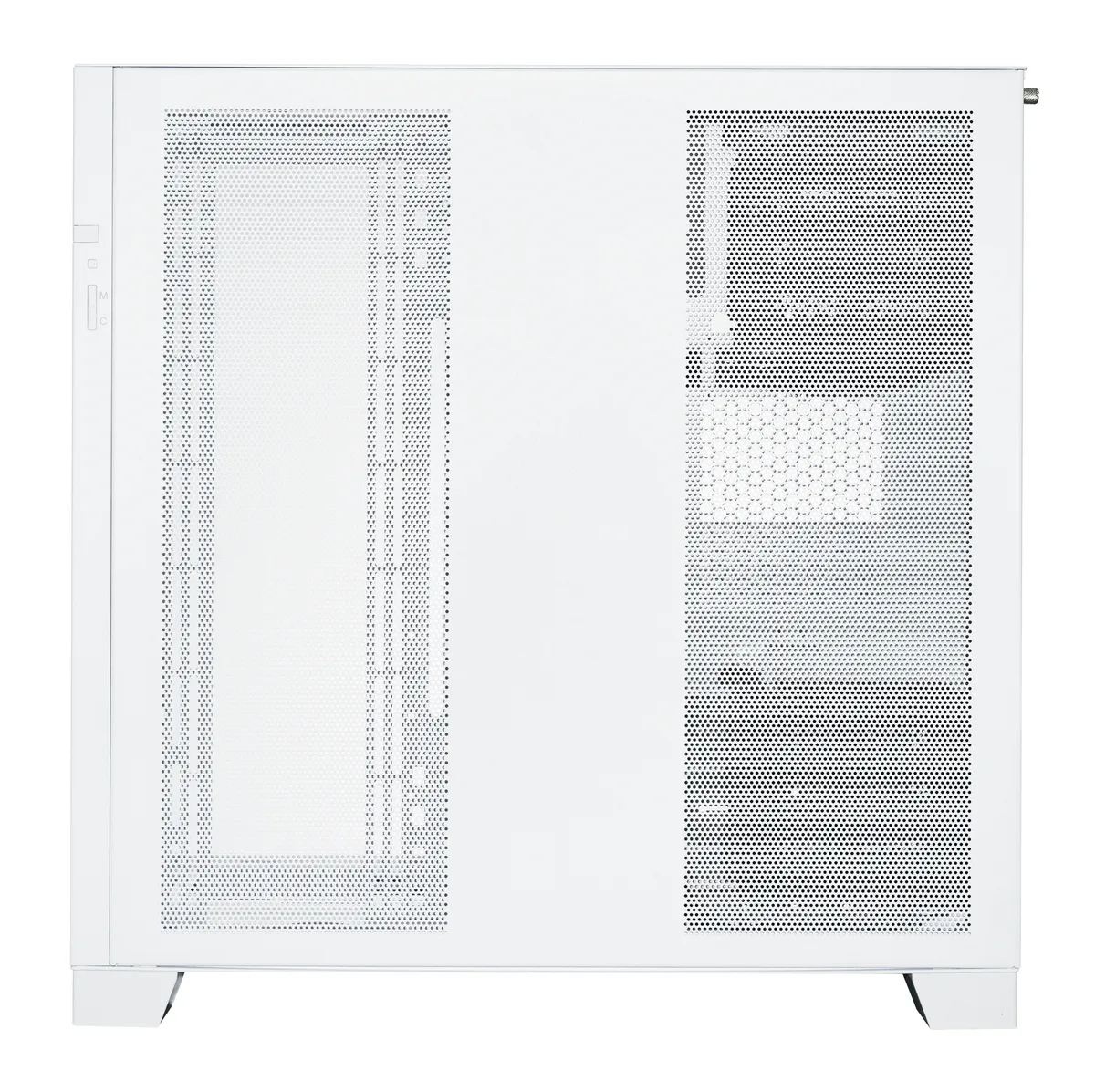

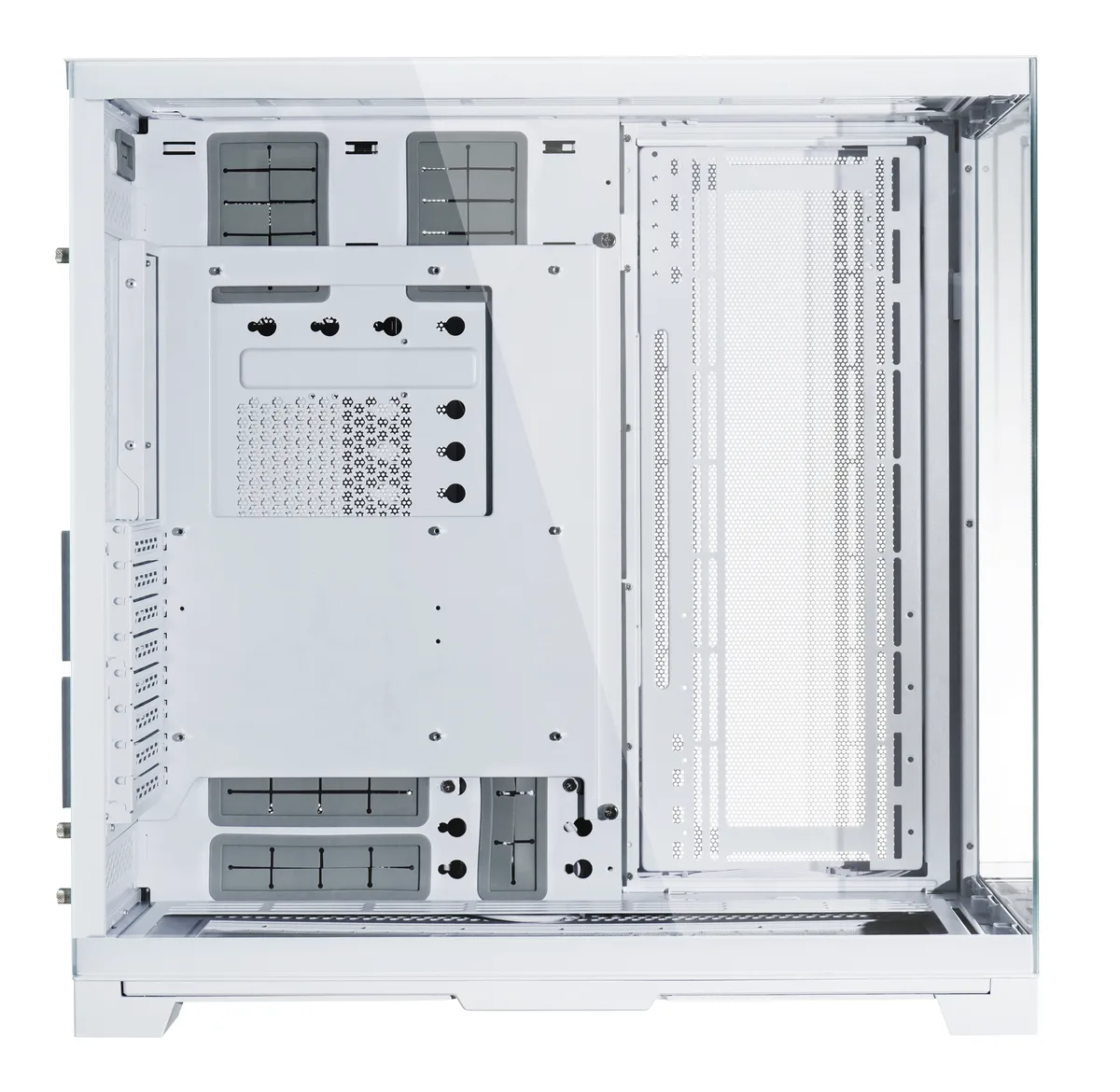

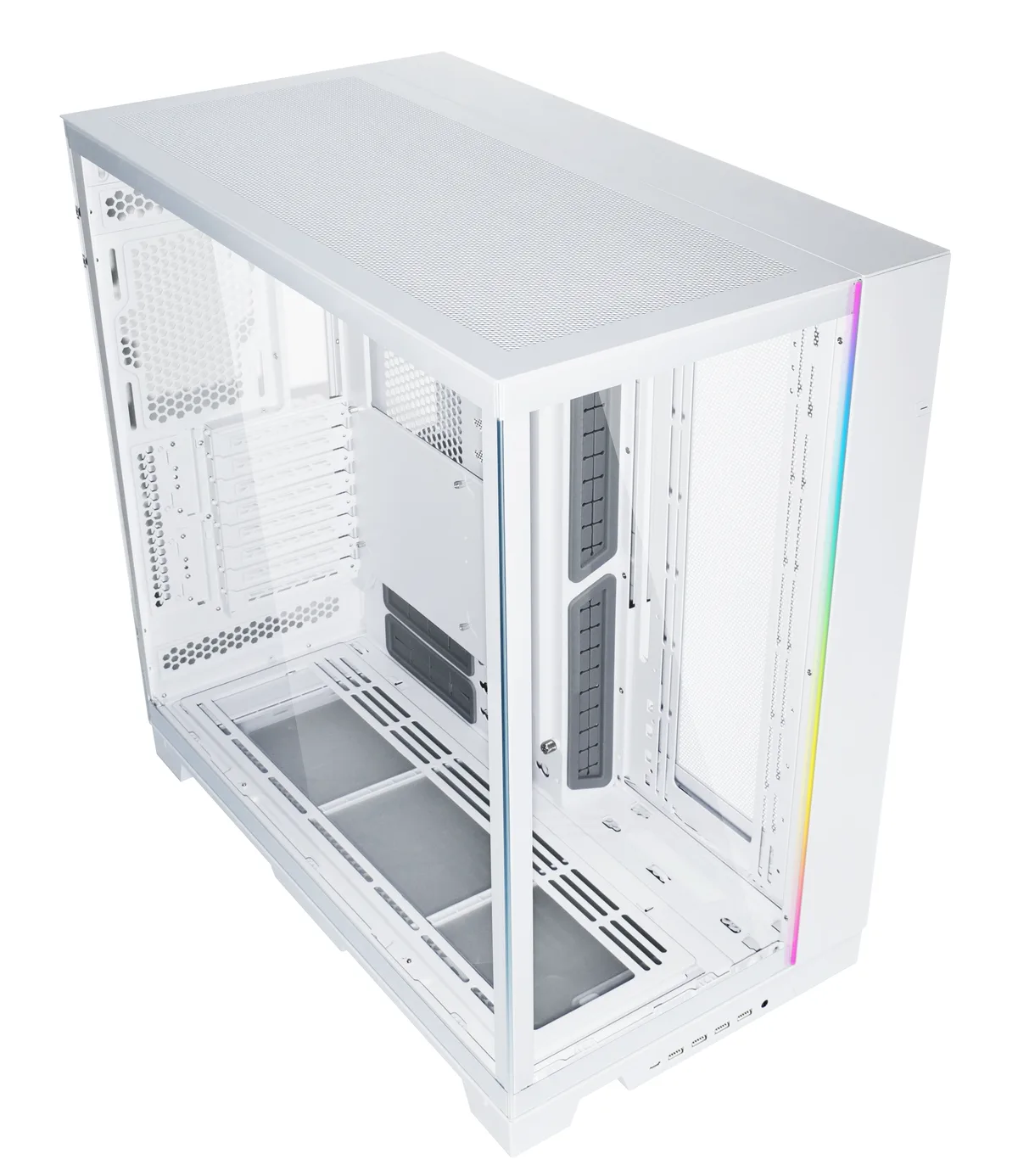

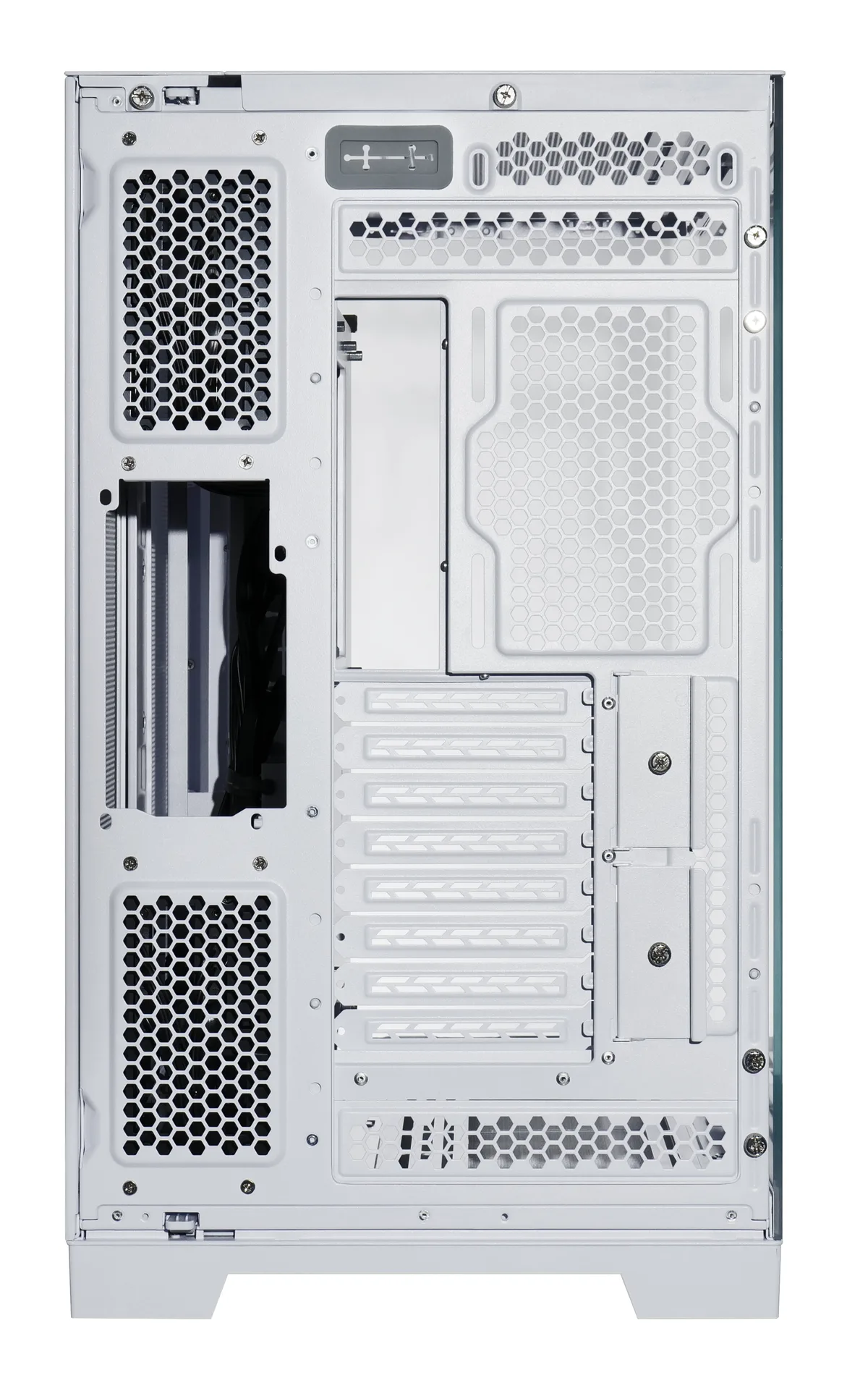

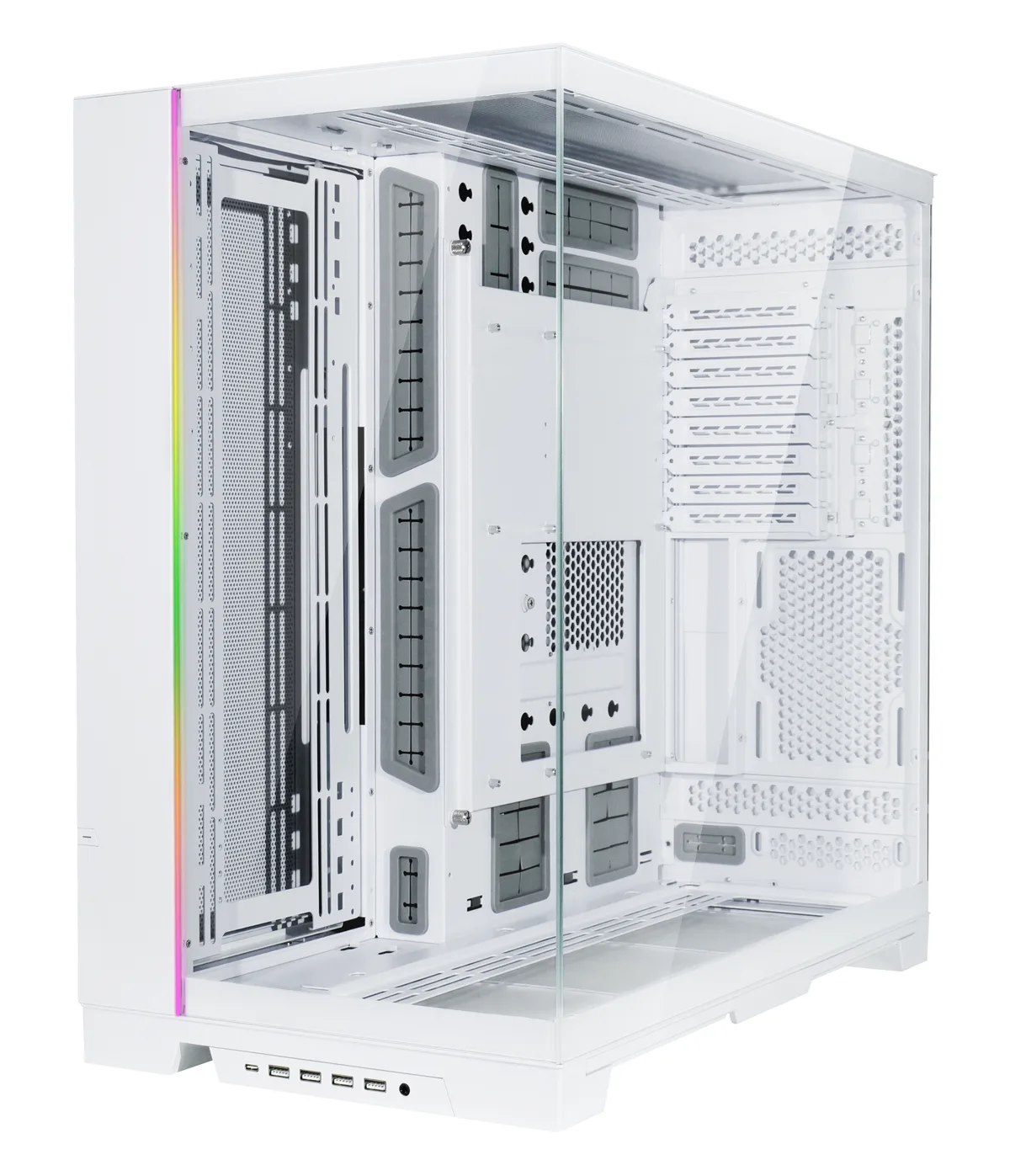

Lian Li O11D EVO XL - White
£219.64
Model: O11DEXL-W
Technical Specifications105 specs
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
O11DEXL-W
Gtin
4718466013729
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Full Tower
Case Features
I O Position
Front
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Top, Bottom, Side
Noise Dampening
No
Mainboard Slide Tray
No
Remote Included
No
Transport System
No
Chassis Physical Specifications
Colour
White
Chassis Construction Materials
Aluminium / Steel
Dimensions
304 x 531.9 x 522 (WxHxD mm)
Package Type
Retail
Please Note
-
Clearances
Cable Routing Space
-
Colour
Primary Colour
White
Secondary Colour
Transparent
Compliance
Compliance Documents
Lian Li Case Compliance and Safety
Core Chassis Specifications
Edition
O11 Dynamic Evo XL
Case Form Factor
Full Tower
Motherboard Form Factor
5U Rackmount
E-ATX
MicroATX
Mini-ITX
Back Connect Compatible
No
Dimensions
Length Depth
522 mm
Width
304 mm
Height
531.9 mm
Weight
17 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
7
Max 3 5 Inch Drives
4
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
3
1x 3 5 1x 2 5 Inch Internal Drive Bays Combined
4
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
8
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
4
Usb 3 1 External Type C
1
Usb 3 0 External Type A
4
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
No
Fans & Filters
Fan Bays
2 x 120mm
9 x 120mm / 9x 140mm
Fan Controller Hub
-
Dust Filters
Bottom
Side
Top
Fan Support
Case Fan Support Rear
120mm Fan (2x)
Case Fan Support Top
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Side
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Bottom
120mm Fan (3x), 140mm Fan (3x)
Max Number Of Fans
11
120 Mm Fans
11
140 Mm Fans
9
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
167 mm
Max Gpu Length
460 mm
Max Psu Length Depth
220 mm
I/O, Bays & Expansion
Front Side Top Panel I O
1 x Headphone/Mic Combo
2 x LED Control Button
1 x Power Button
1 x Reset Button
4 x USB 3.0
1 x USB 3.0 Type-C
Drive Bays
3 x 2.5" Internal
4 x 3.5" / 4x 2.5" Internal
Standard Expansion Slots
8
Vertical Expansion Slots
-
LED Lighting Functionality
Led Lighting
Yes
Led Lighting Emitters
Included Addressable LED Light Strip/s
Led Lighting Colour
RGB
Led Lighting Support Control
Control via Inc. Controller/Hub (Buttons/Switches)
Lighting
Lighting Rgb
Yes
Rgb Controller
Yes
Lighting Colour
RGB
Liquid Cooling Support
Front Radiator Compatibility
-
Top Radiator Compatibility
1 x 240/280/360/420mm
Bottom Radiator Compatibility
1 x 240/280/360/420mm
Rear Radiator Compatibility
-
Side Radiator Compatibility
1 x 240/280/360/420mm
Materials
Materials
Aluminium, Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear side
Power Supply Compatibility
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
ATX
Psu Mounting Location
-
Max Psu Length
-
Product Series
Product Series Family
O11D
Radiator Support
Radiator Aio Support Side
240mm Radiator, 280mm Radiator, 360mm Radiator, 420mm Radiator
Max Radiator Compatibility
3x Triple (420 mm)
Radiator Aio Support Bottom
240mm Radiator, 280mm Radiator, 360mm Radiator, 480mm Radiator
Radiator Aio Support Top
240mm Radiator, 280mm Radiator, 360mm Radiator, 420mm Radiator
Side Panels
Window S
Yes
Window Configuration
1 x Main Side
Window Construction
Tempered Glass
