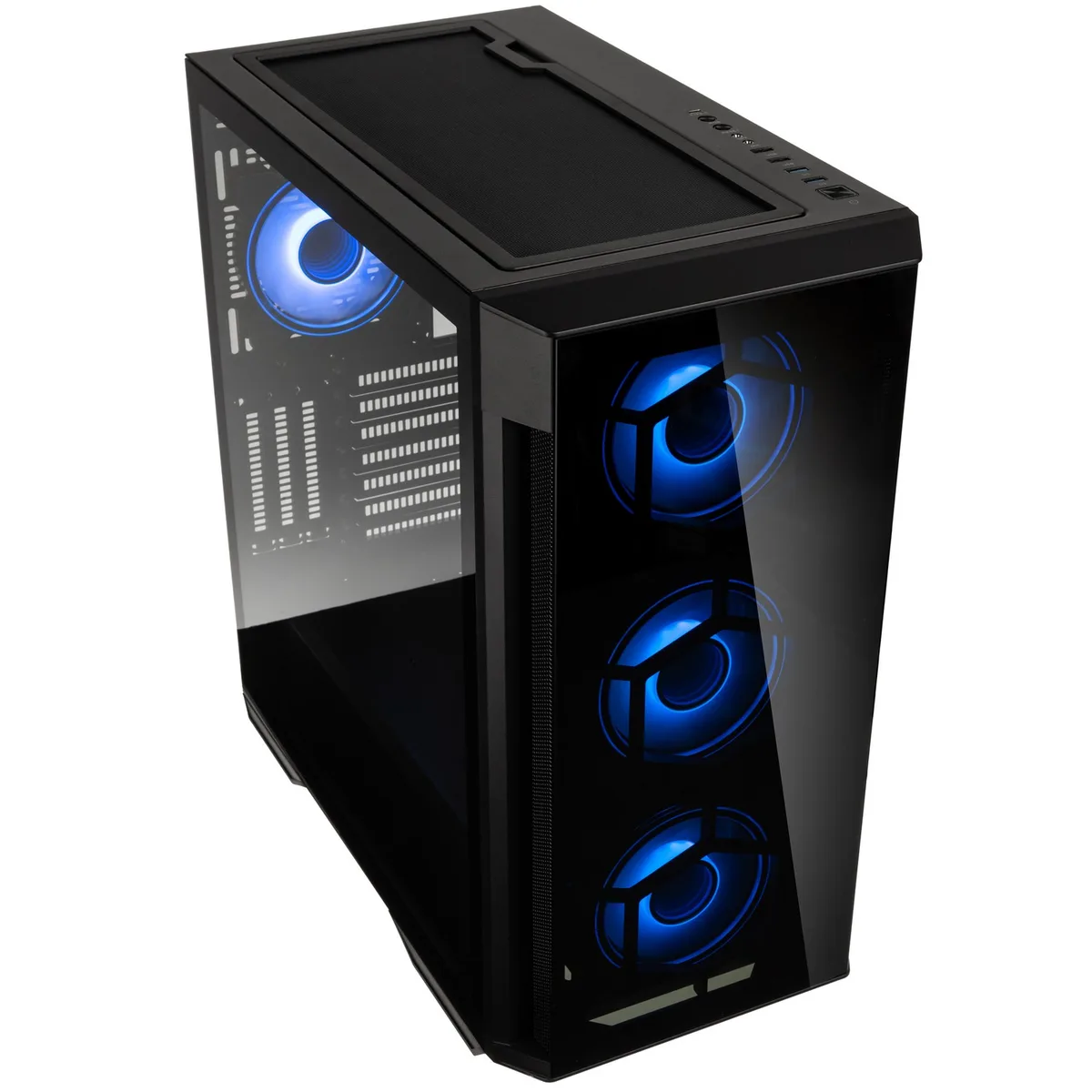

Kolink Observatory Z ARGB Super Midi Tower Case - Black
MPN: OBSERVATORY Z
Key specifications
Max GPU380.0 mm
Max Cooler180.0 mm
Max PSU200.0 mm
Form factorUnknown
Best indexed price
Price unavailable
Retailer offers
Amazon UKProduct link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 380.0mm GPU clearance.
Supports up to 180.0mm CPU cooler height.
Full Specifications75 fields
Additional Contents
Fans Included
Yes
Included Fans
4x 120 mm
Additional Information
Model Number
OBSERVATORY Z
Gtin
5999094003514
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Top, Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Fan Main Colour Frame
Black
Fan Main Colour Rotor
White
Compliance
Compliance Documents
Kolink Case Compliance and Safety
Manufacturer Information
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Responsible Person
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Connectivity
Card Reader
No
Dimensions
Length Depth
465 mm
Width
245 mm
Height
495 mm
Weight
9.7 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
5
Max 3 5 Inch Drives
4
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
5
3 5 Inch Internal Drive Bay
4
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7

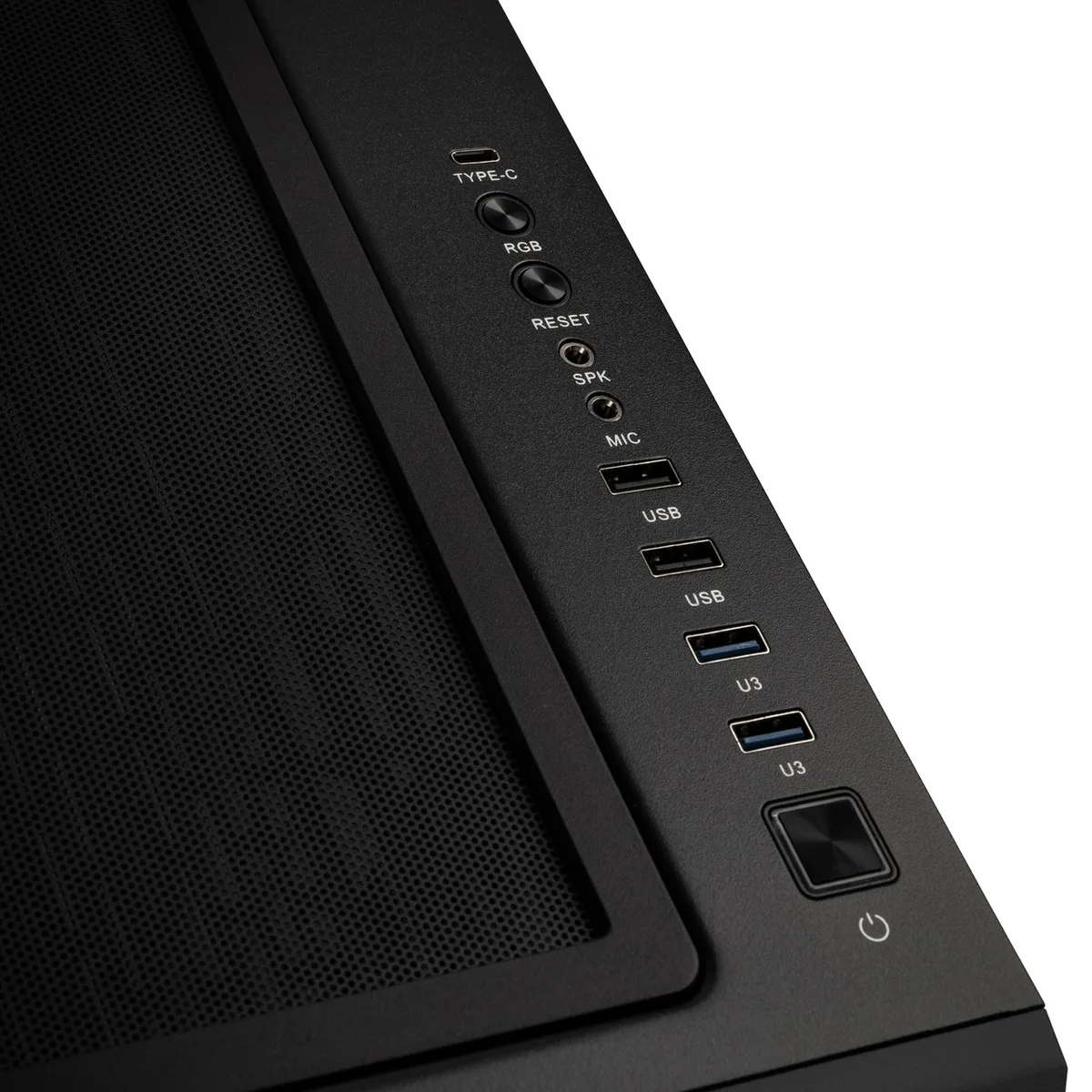

External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
4
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Usb 2 0 External Type A
2
Audio Outputs Inputs
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Hdmi Sockets
2x
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Rear
120mm Fan (1x), 140mm Fan (1x)
Case Fan Support Front
120mm Fan (3x), 140mm Fan (3x), 200mm Fan (2x)
Case Fan Support Top
120mm Fan (3x), 140mm Fan (2x)
Max Number Of Fans
7
120 Mm Fans
7
140 Mm Fans
6
200 Mm Fans
2
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
180 mm
Max Gpu Length
380 mm
Max Psu Length Depth
200 mm
Lighting
Lighting Rgb
Yes
Rgb Controller
Yes
Lighting Colour
RGB
Materials
Materials
ABS, Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Radiator Aio Support Top
240mm Radiator, 280mm Radiator, 360mm Radiator
Radiator Aio Support Rear
120mm Radiator, 140mm Radiator
Max Radiator Compatibility
2x Triple (360 mm)
Radiator Aio Support Front
240mm Radiator, 280mm Radiator, 360mm Radiator, 420mm Radiator
