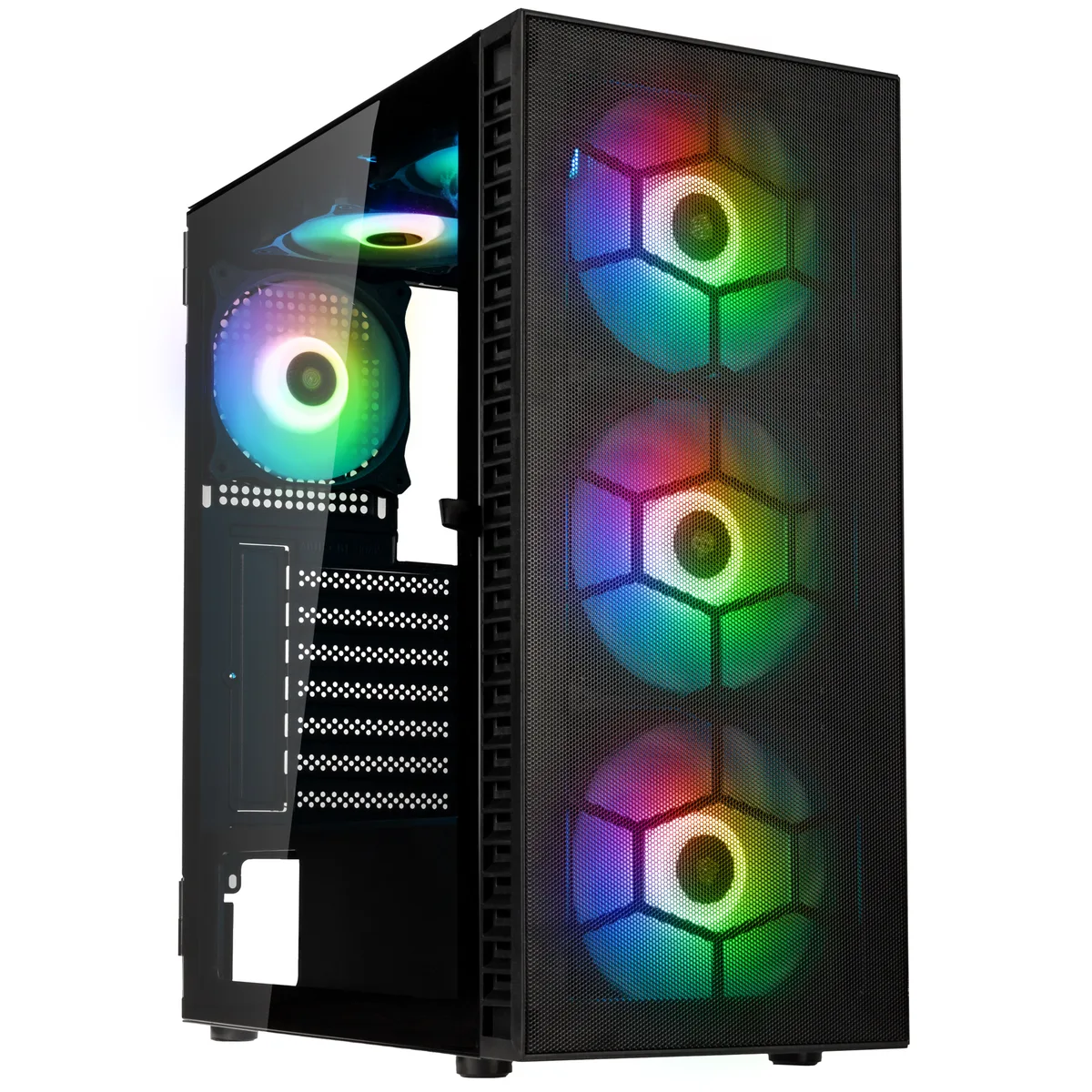

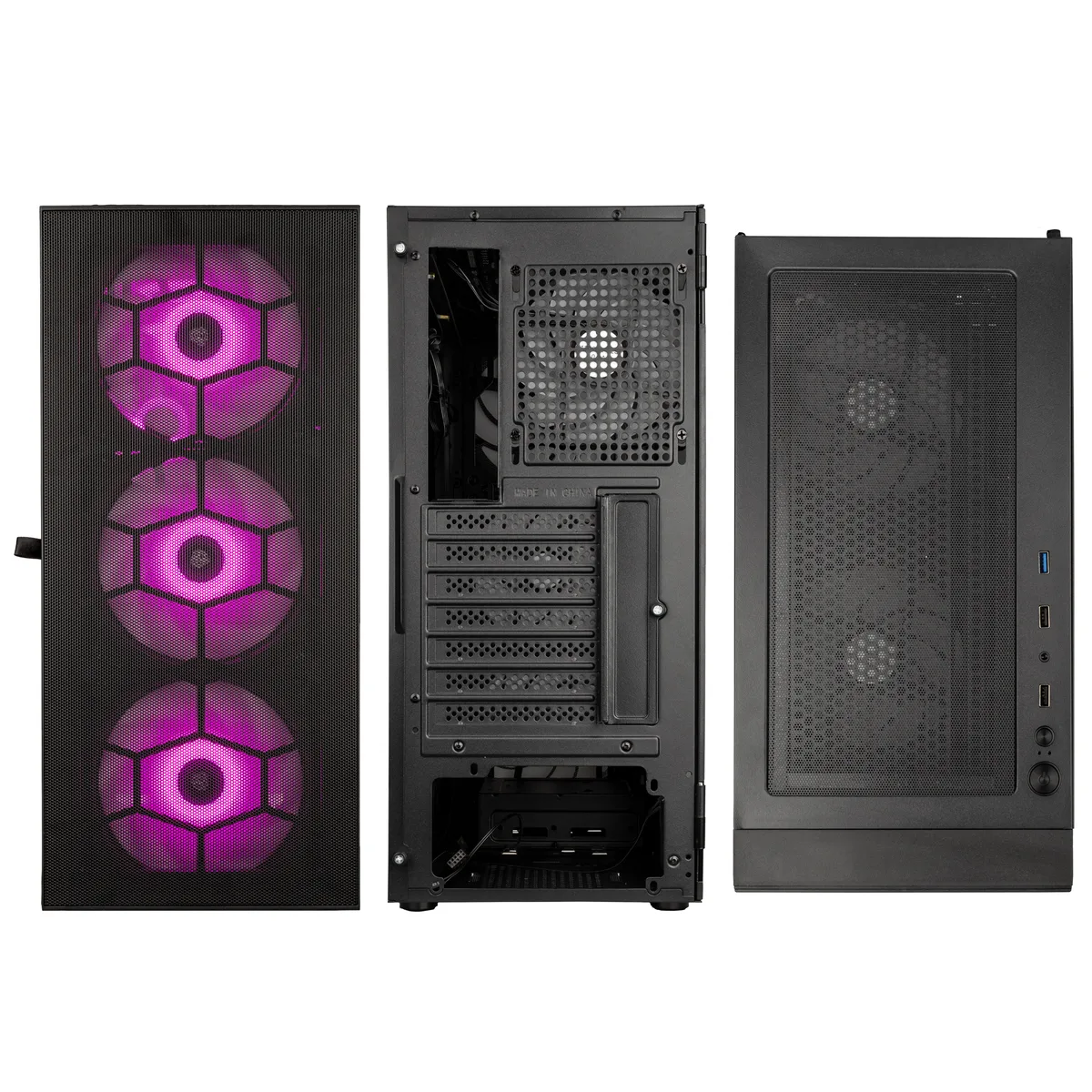

Kolink Observatory HF Mesh ARGB Midi Tower Case - Black
£76.58
Model: OBSERVATORY HF MB
Technical Specifications72 specs
Additional Contents
Fans Included
Yes
Included Fans
3x 120 mm, 3x 140 mm
Additional Information
Model Number
OBSERVATORY HF MB
Gtin
5999094005365
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Top

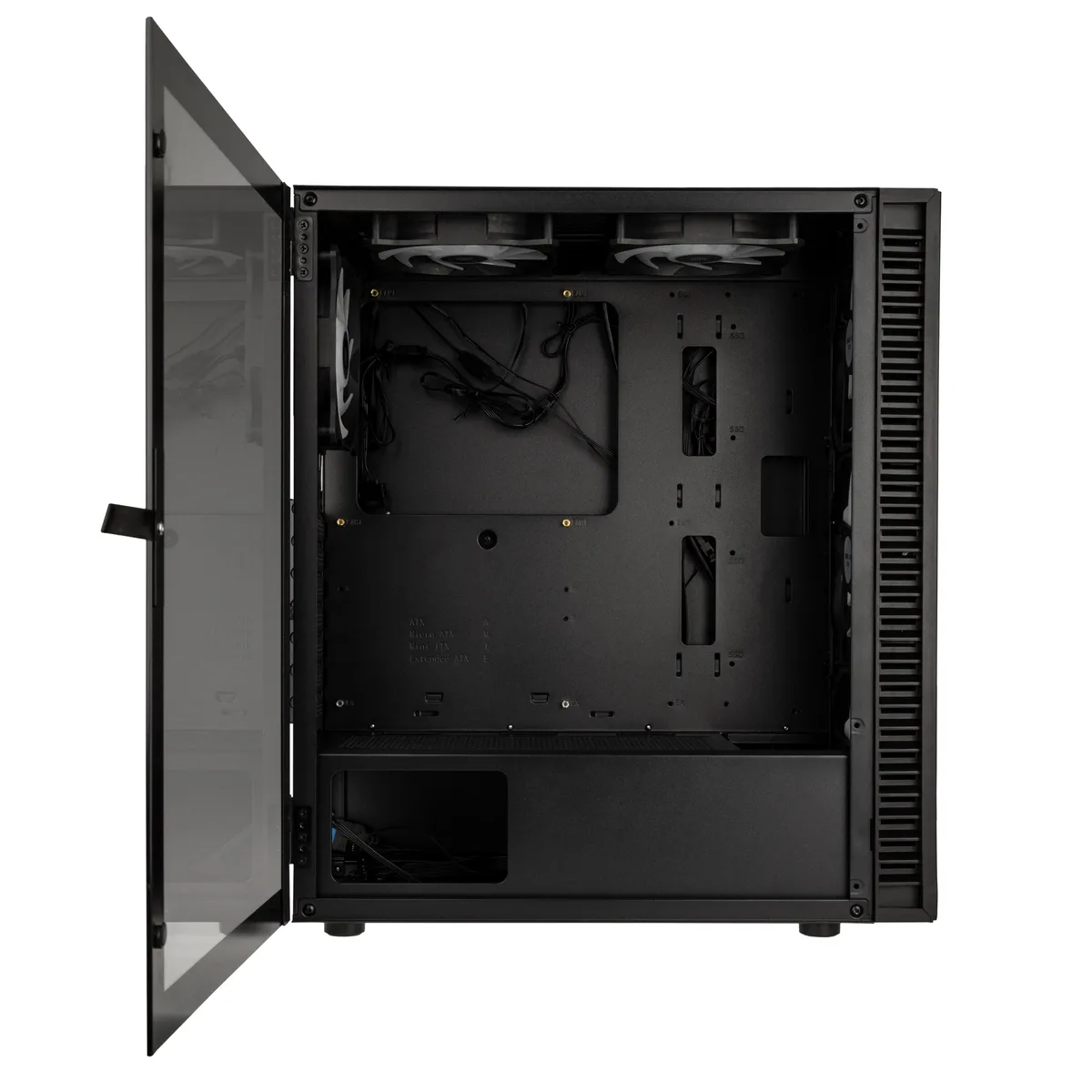

Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Secondary Colour
Transparent
Fan Main Colour Frame
Black
Fan Main Colour Rotor
White
Compliance
Compliance Documents
Kolink Case Compliance and Safety
Manufacturer Information
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Responsible Person
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Connectivity
Card Reader
No
Dimensions
Length Depth
390 mm
Width
200 mm
Height
449 mm
Weight
6.2 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
6
Max 3 5 Inch Drives
4
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
2
3 5 Inch Internal Drive Bay
2
1x 3 5 1x 2 5 Inch Internal Drive Bays Combined
2
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports

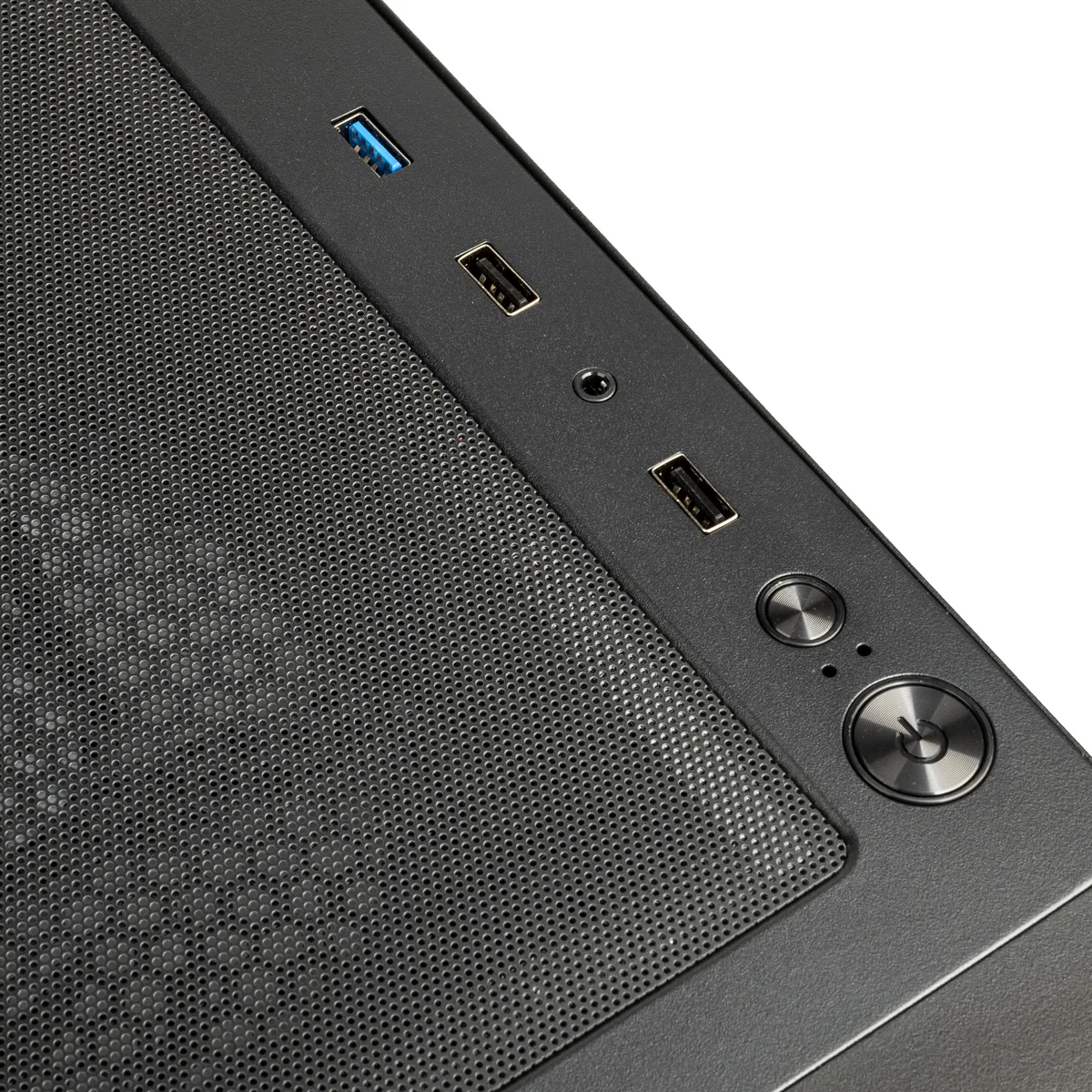

Front I O Usb Type A Ports Total
3
Usb 3 0 External Type A
1
Usb 2 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Bottom
120mm Fan (2x)

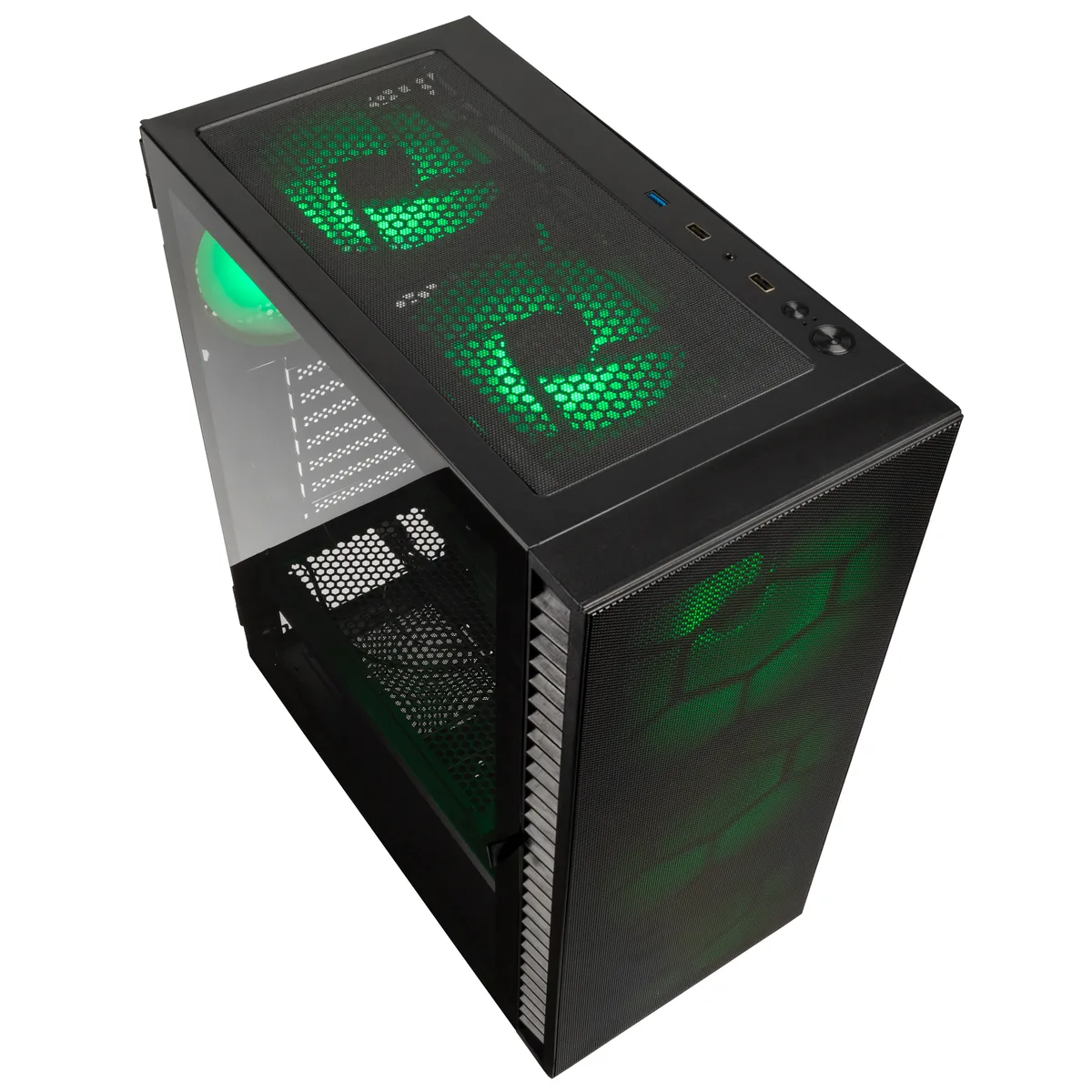

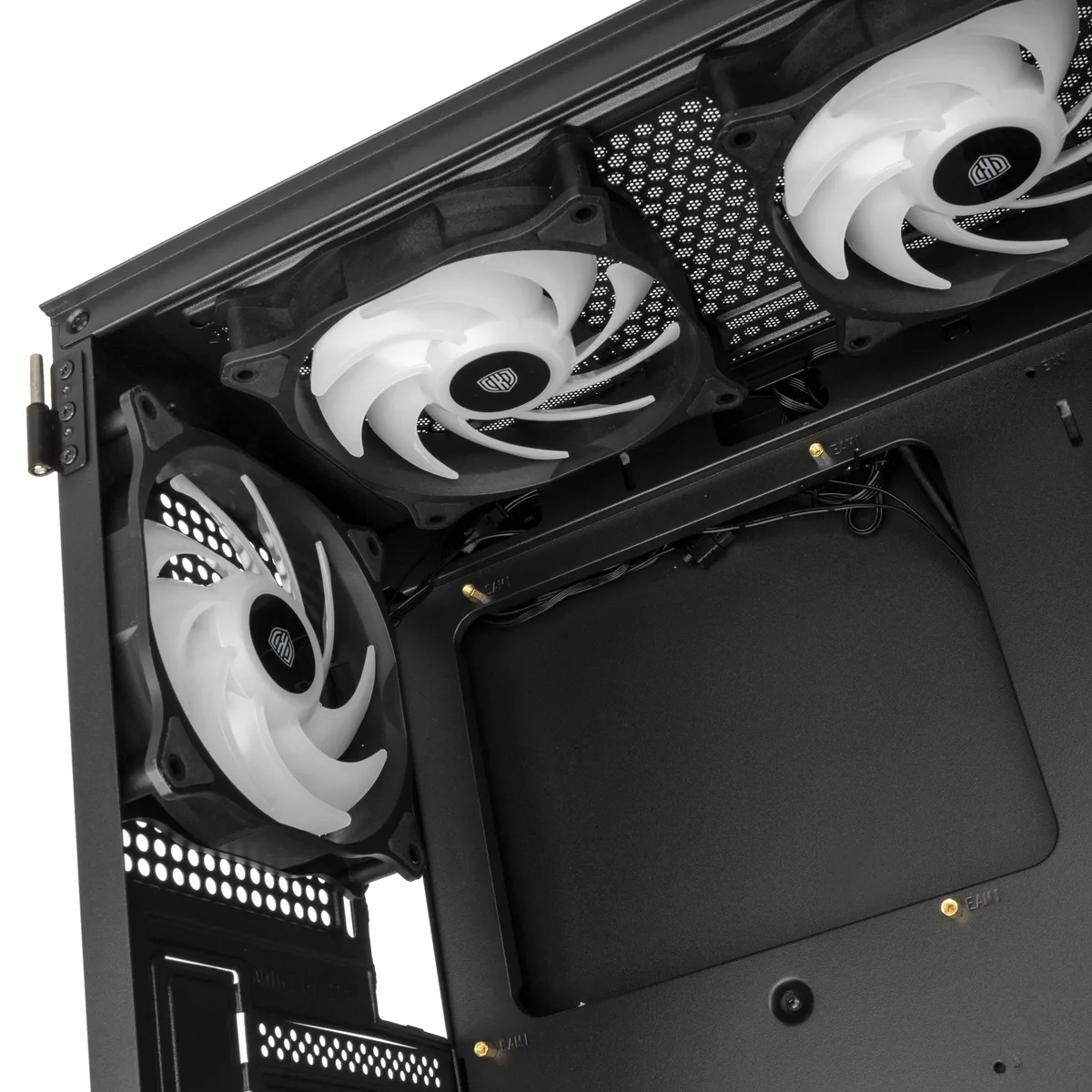

Case Fan Support Top
120mm Fan (2x), 140mm Fan (2x)
Case Fan Support Rear
120mm Fan (1x)
Max Number Of Fans
8

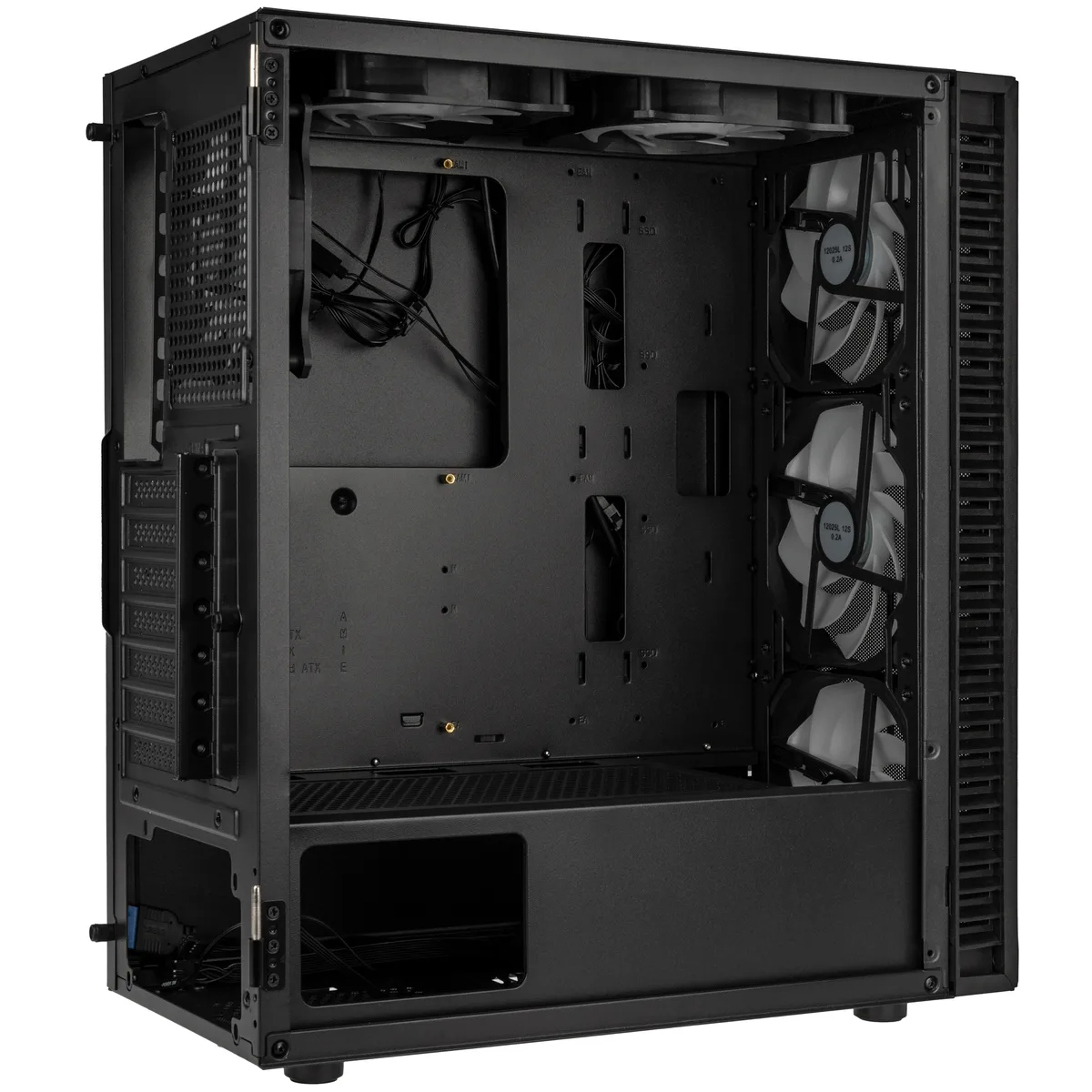

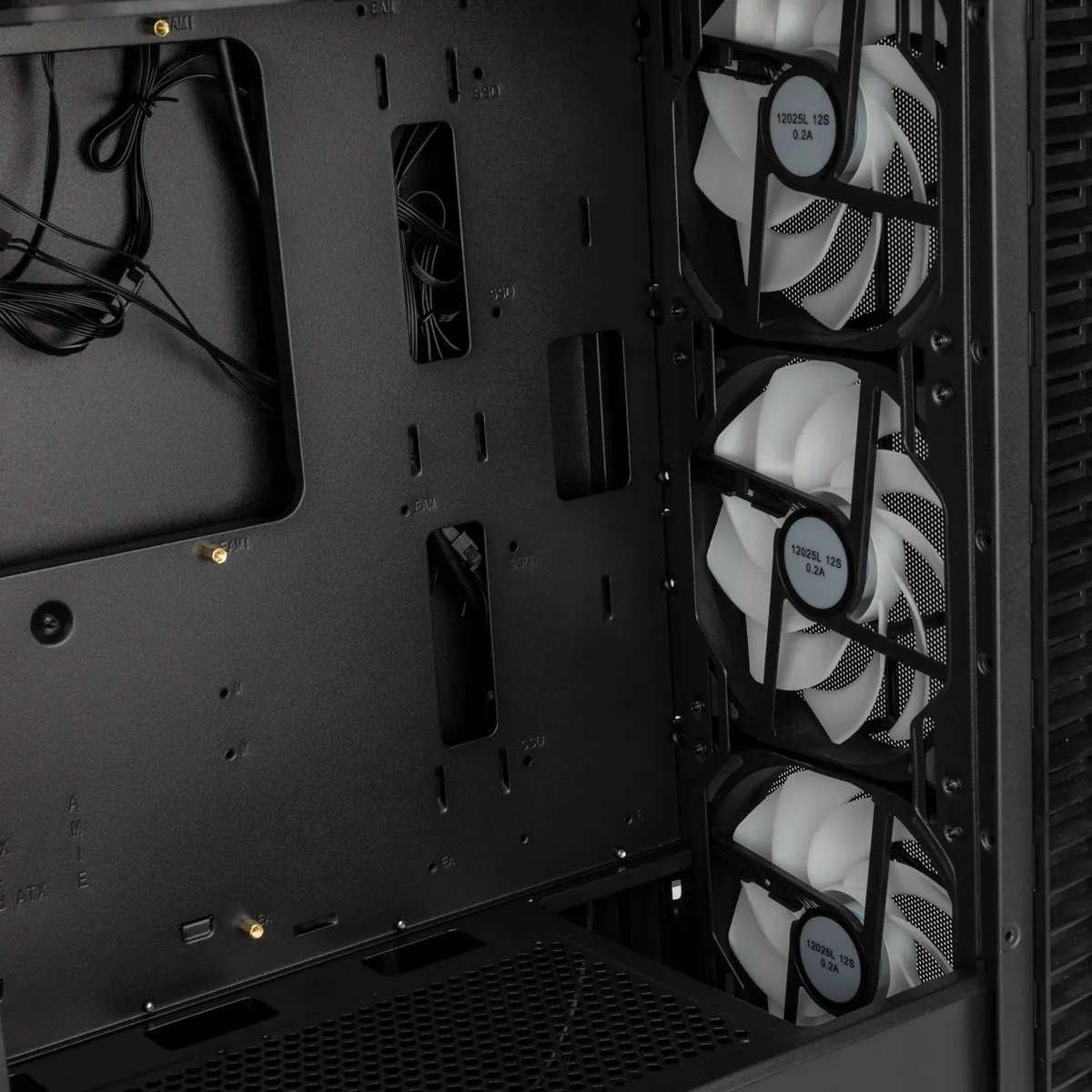

Case Fan Support Front
120mm Fan (3x), 140mm Fan (3x)
120 Mm Fans
8
140 Mm Fans
5
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
160 mm
Max Gpu Length
330 mm
Max Psu Length Depth
180 mm
Lighting
Lighting Rgb
Yes
Rgb Controller
Yes
Lighting Colour
RGB
Materials
Materials
Tempered Glass, SPCC (steel)
Motherboard Support
Compatible Motherboard Formats
ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
ATX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Radiator Aio Support Front
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
Radiator Aio Support Rear
120mm Radiator
Max Radiator Compatibility
1x Single (120 mm), 1x Triple (360 mm)
