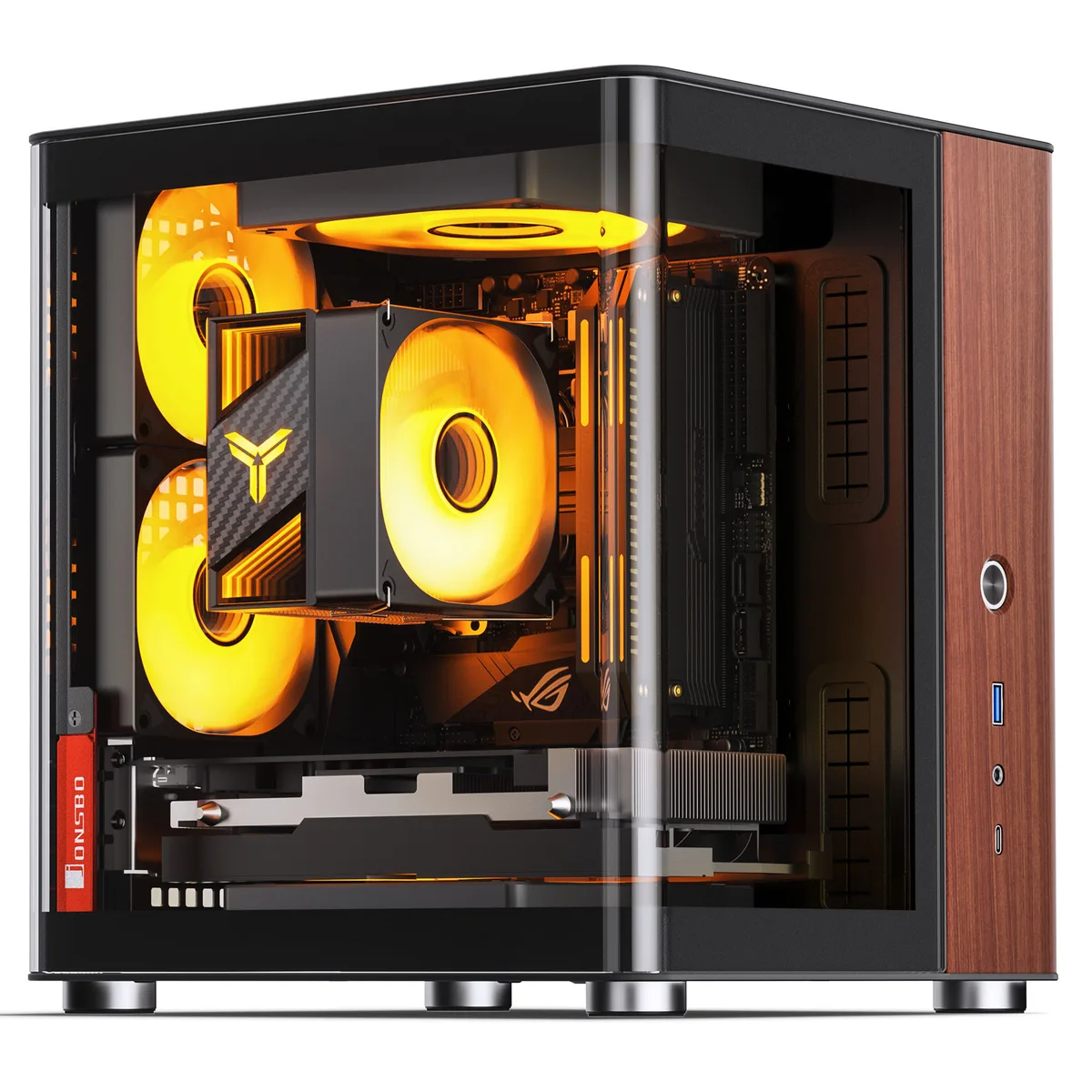

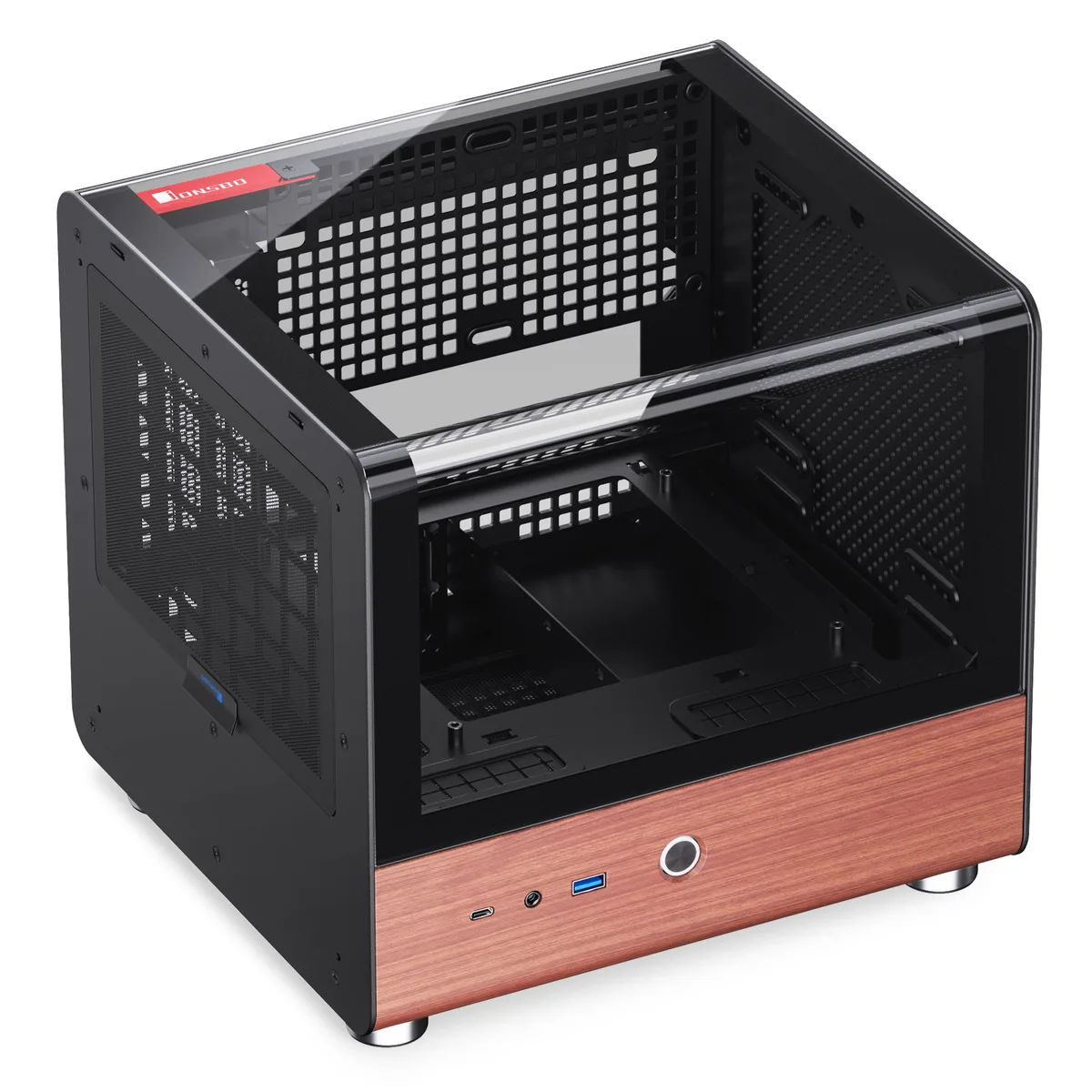

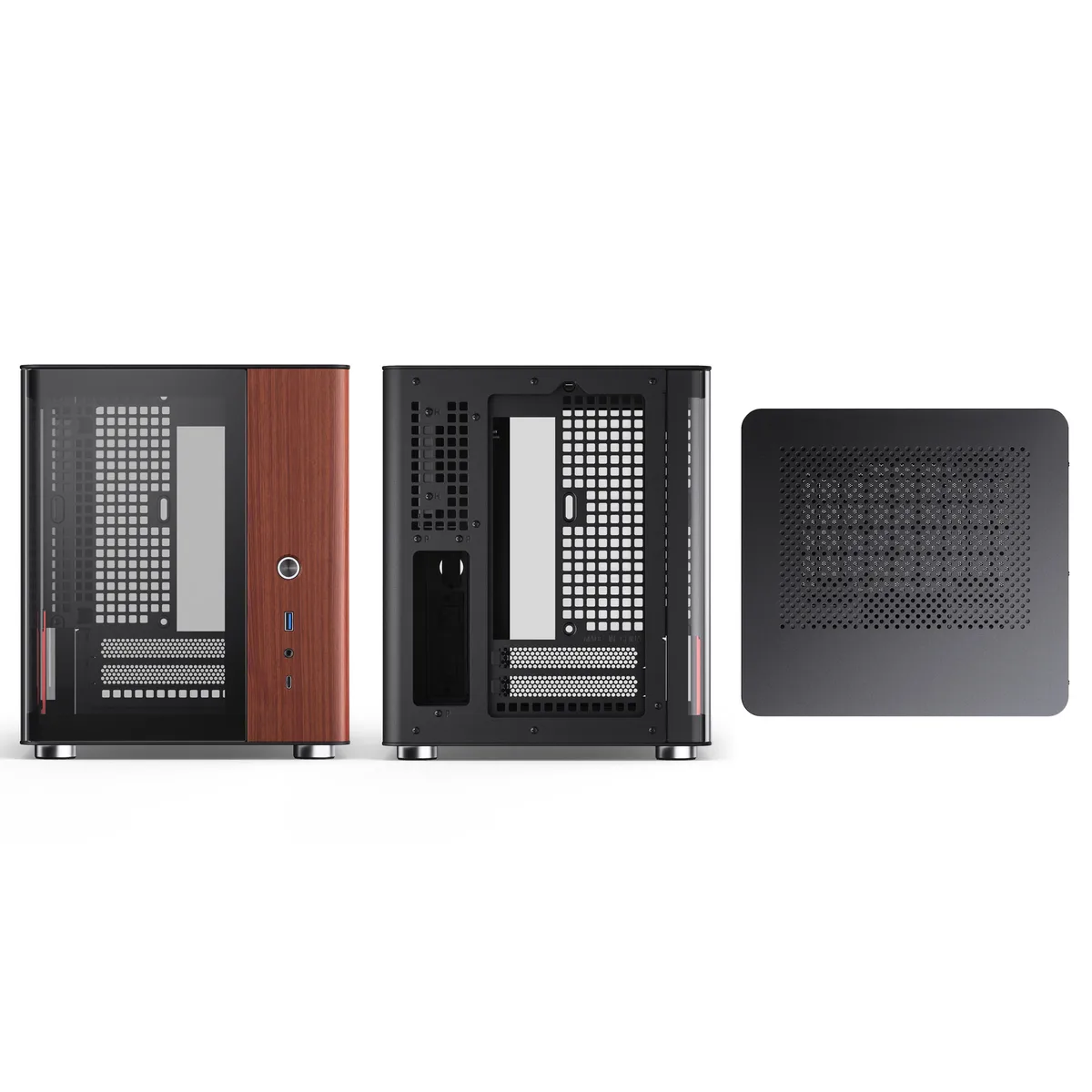

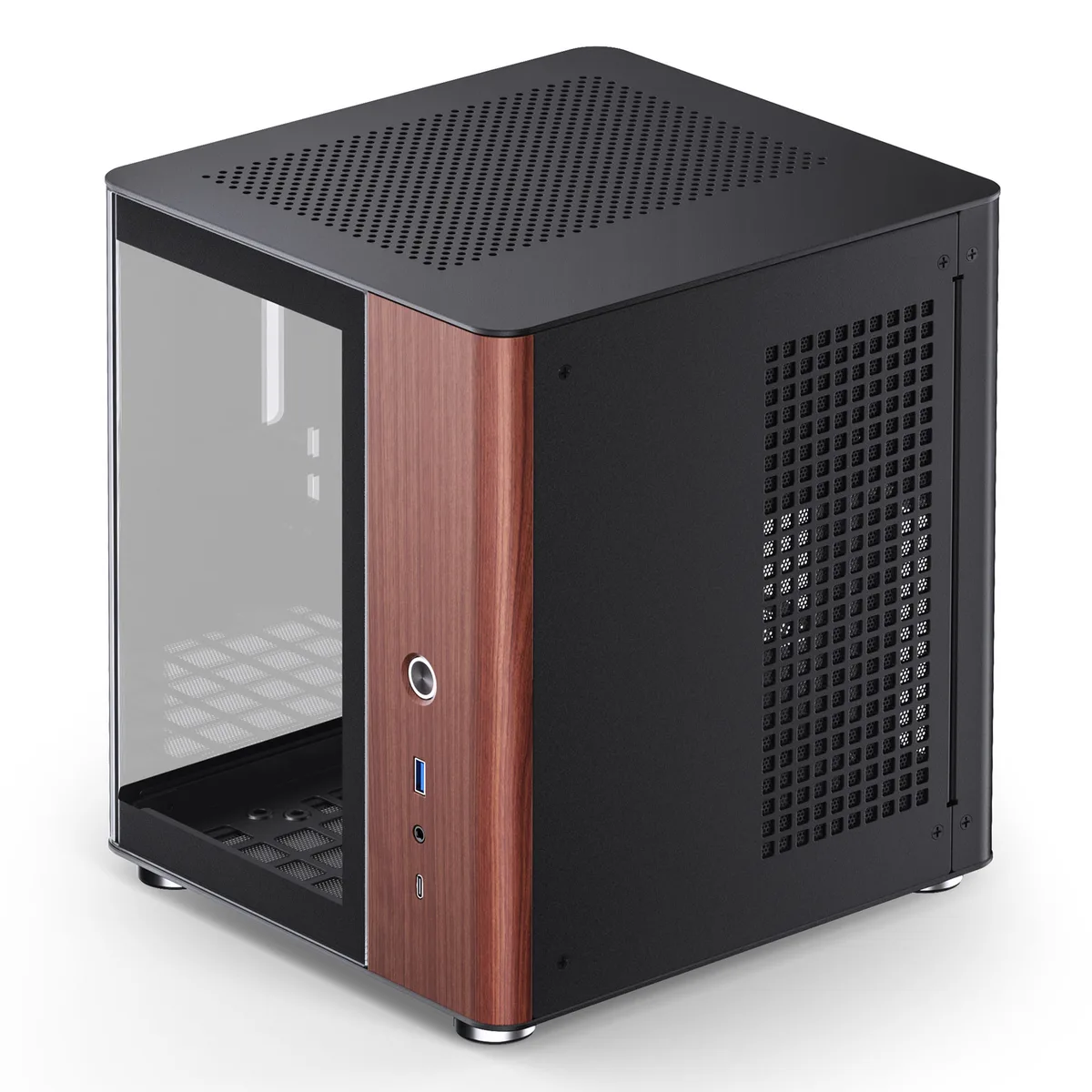

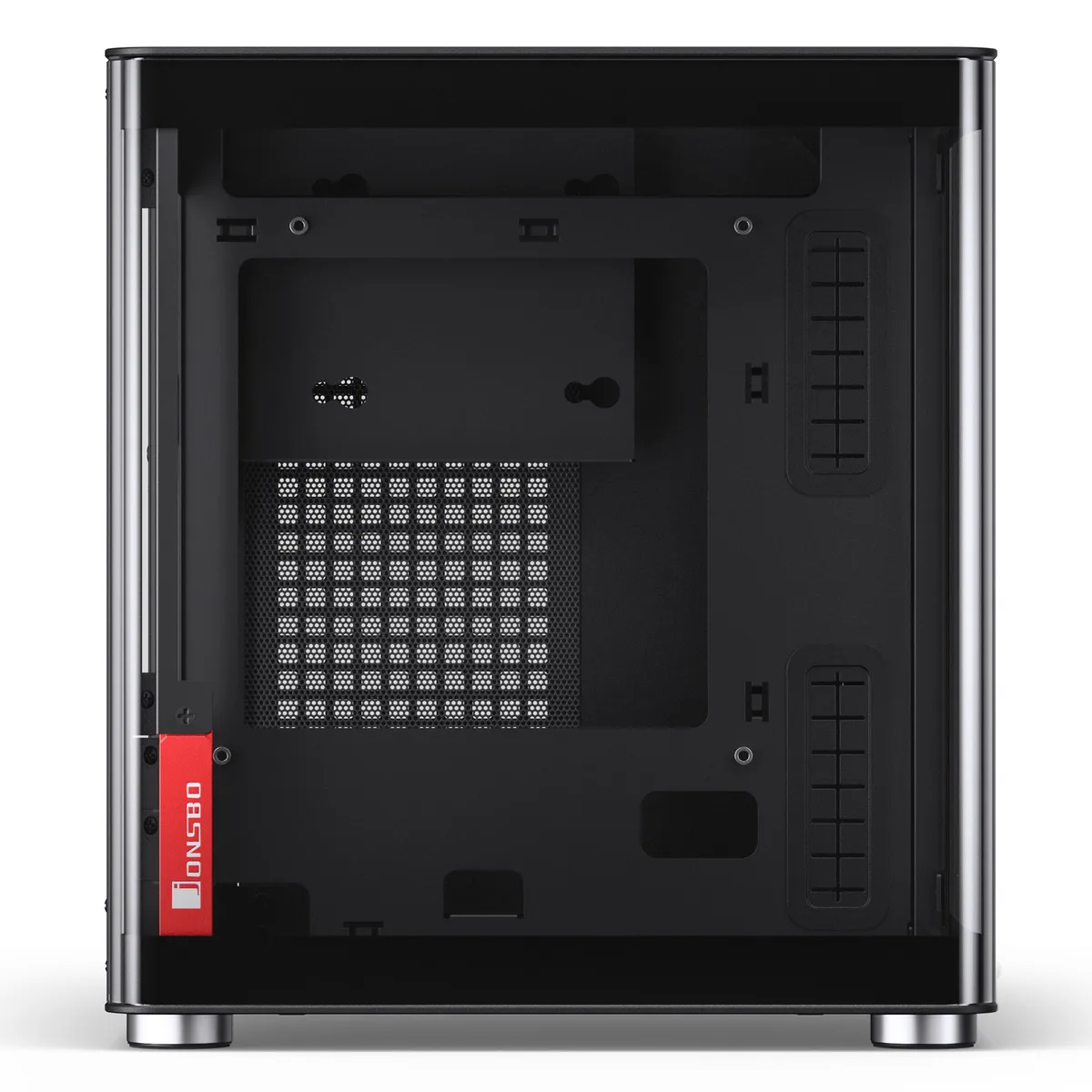

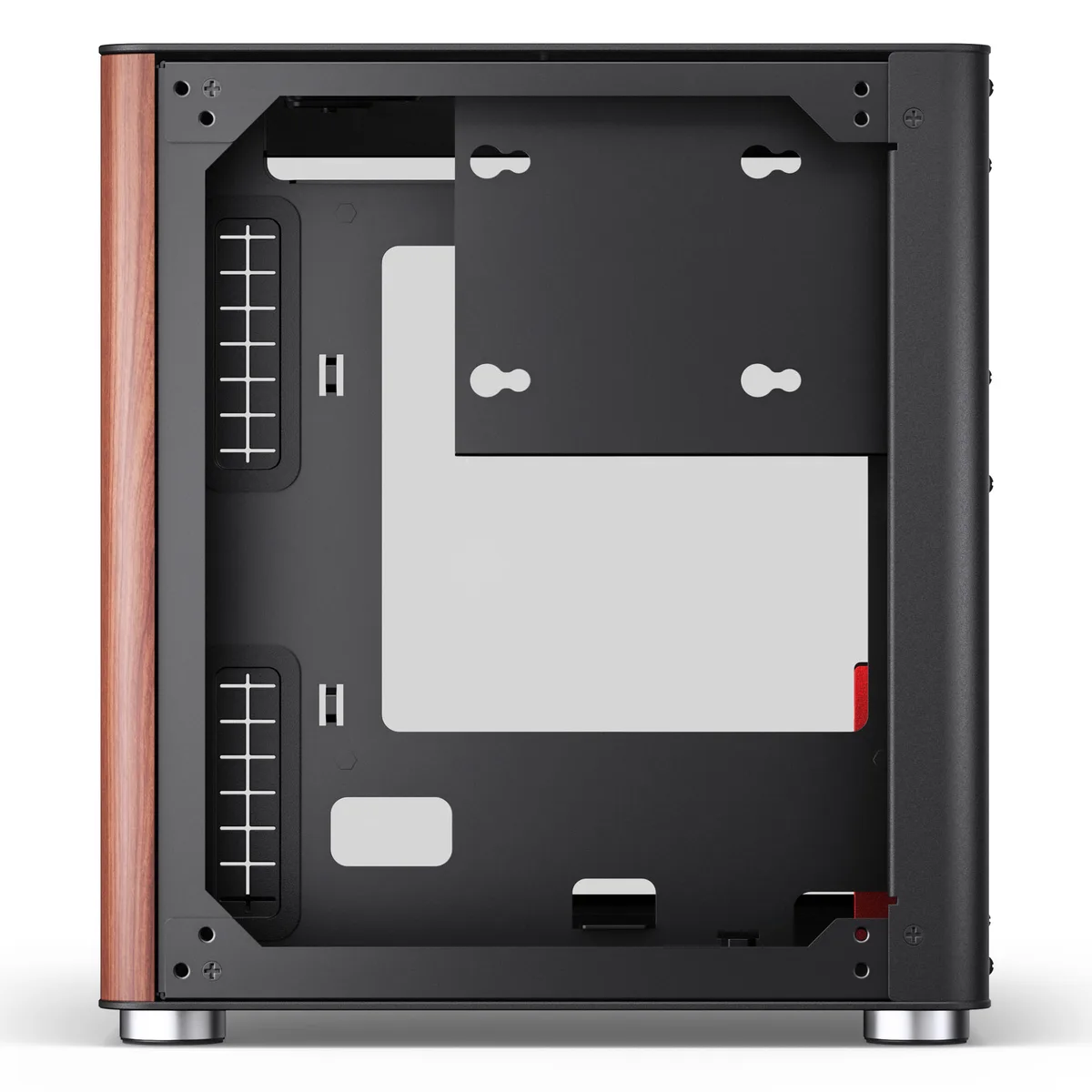

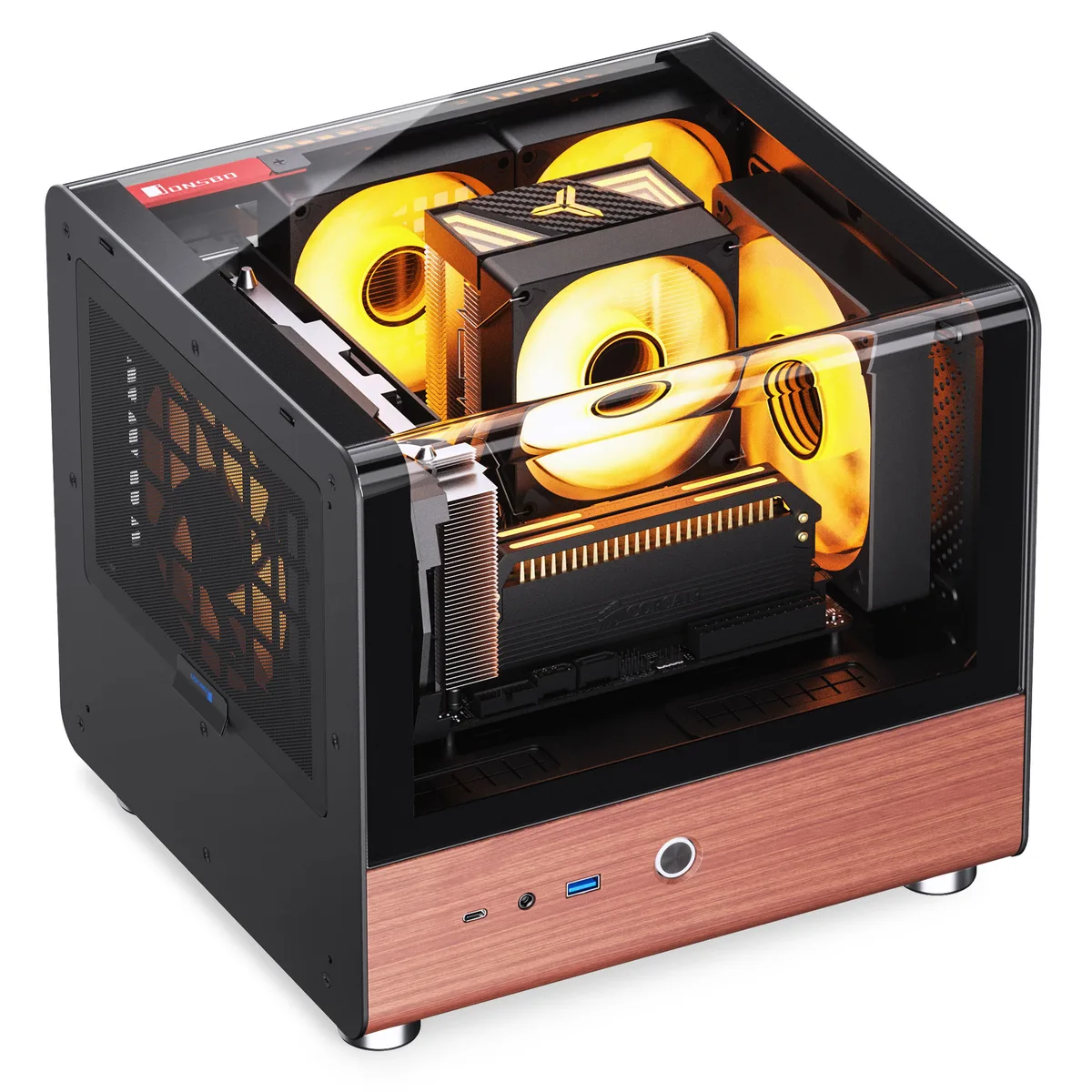

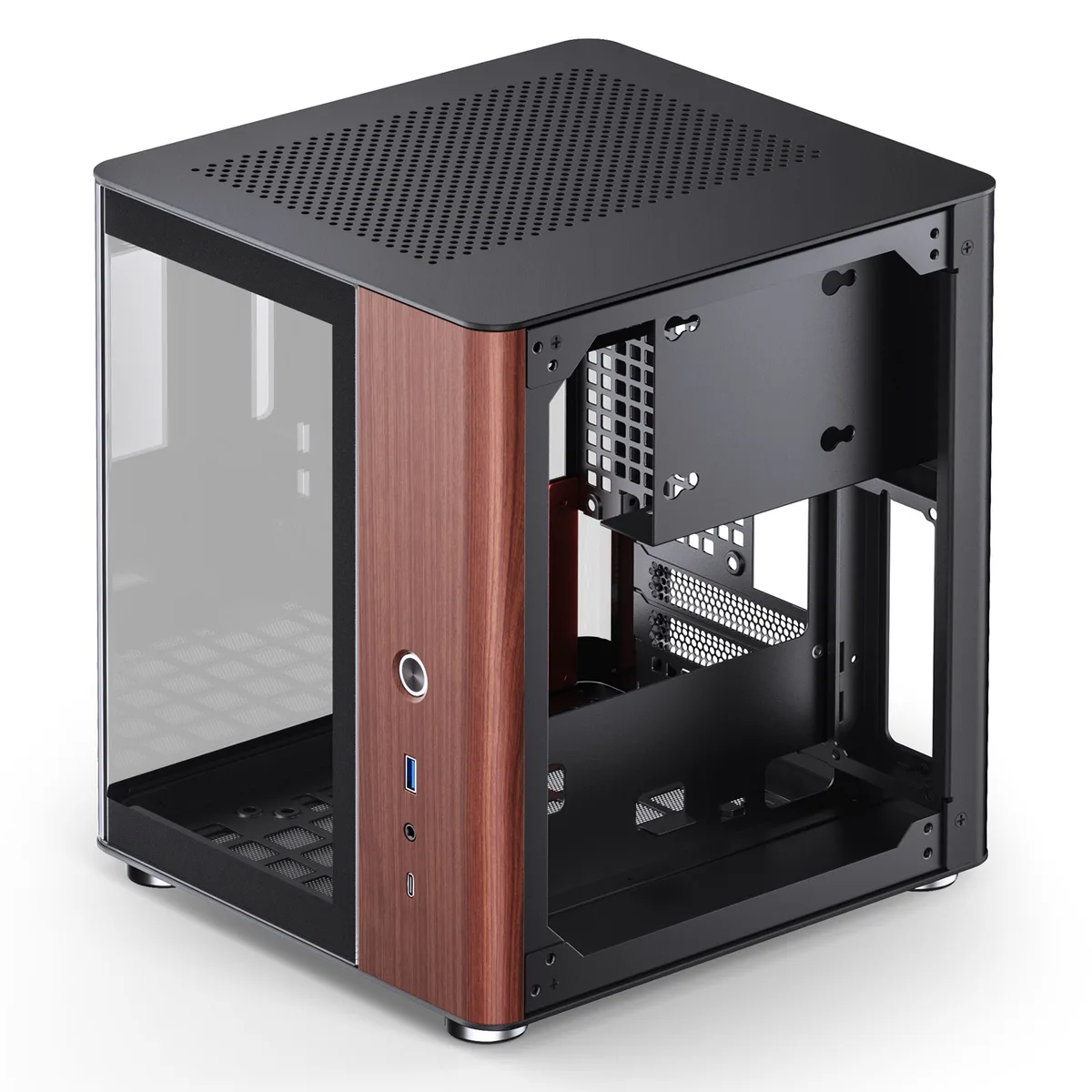

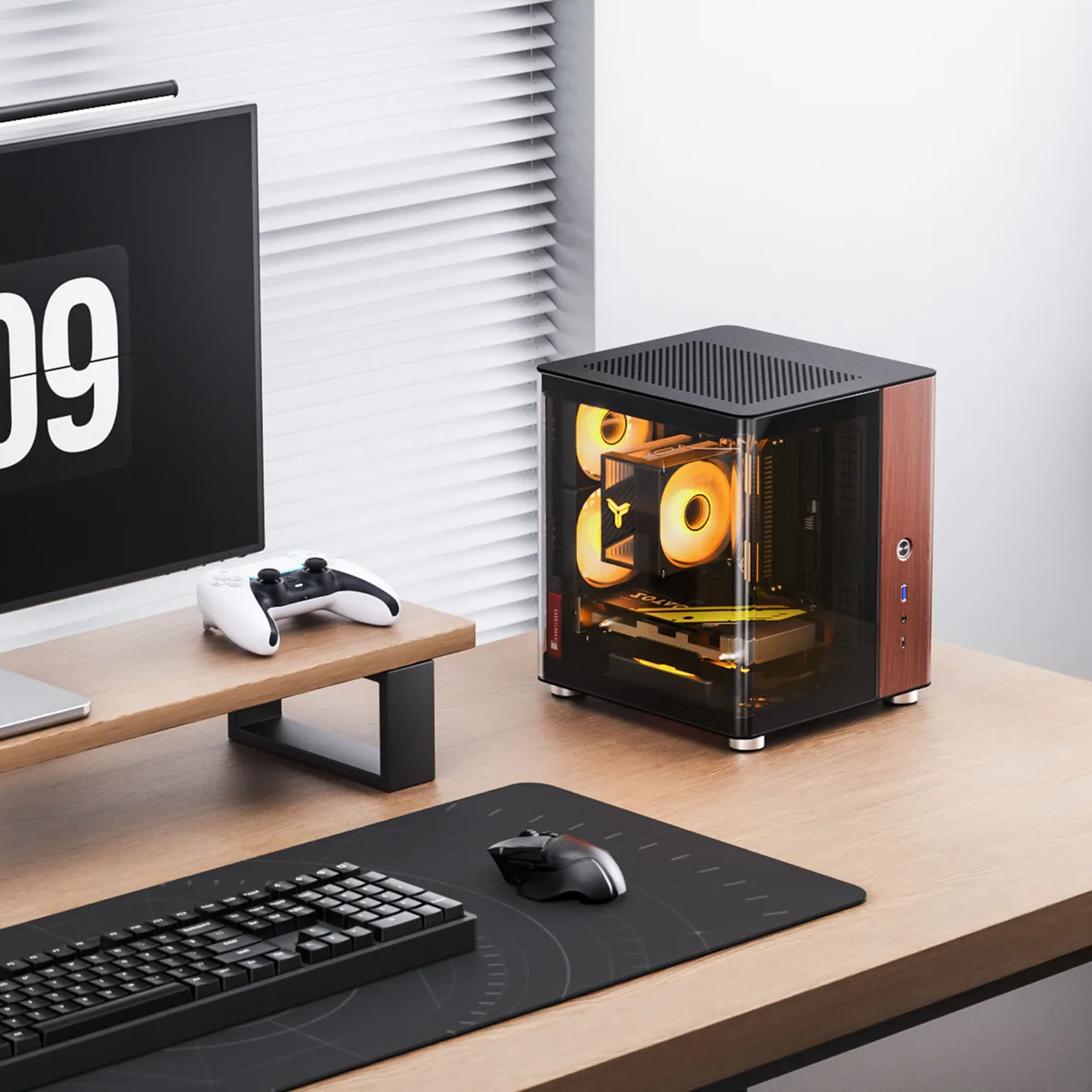

Jonsbo TK-0 Mini-ITX Case Tempered Glass - Black
MPN: TK-0 Black
Key specifications
Max GPU230.0 mm
Max Cooler135.0 mm
Max PSU160.0 mm
Form factorUnknown
Best indexed price
Price unavailable
Retailer offers
Amazon UKProduct link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 230.0mm GPU clearance.
Supports up to 135.0mm CPU cooler height.
Full Specifications62 fields
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
TK-0 Black
Gtin
6970620554099
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mini Case
Case Features
I O Position
Front
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Compliance
Compliance Documents
Jonsbo PC Case Compliance and Safety
Connectivity
Card Reader
No
Dimensions
Length Depth
250 mm
Width
235 mm
Height
280 mm
Weight
4.3 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
1
Max 3 5 Inch Drives
1
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
1
3 5 Inch Internal Drive Bay
1
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
2
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
1
Usb 3 2 External Type C
1
Usb 3 0 External Type A
1
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Bottom
120mm Fan (1x), 140mm Fan (1x)
Case Fan Support Top
120mm Fan (1x), 140mm Fan (1x)
Case Fan Support Rear
90mm Fan (2x)
Max Number Of Fans
4
120 Mm Fans
2
140 Mm Fans
2
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
135 mm
Max Gpu Length
230 mm
Max Psu Length Depth
160 mm
Lighting
Lighting Rgb
No
Materials
Materials
Aluminium, Steel, Wood
Motherboard Support
Compatible Motherboard Formats
Mini-ITX
Max Motherboard Format
Mini-ITX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
SFX
Power Supply Position
side
Radiator Support
Max Radiator Compatibility
no
