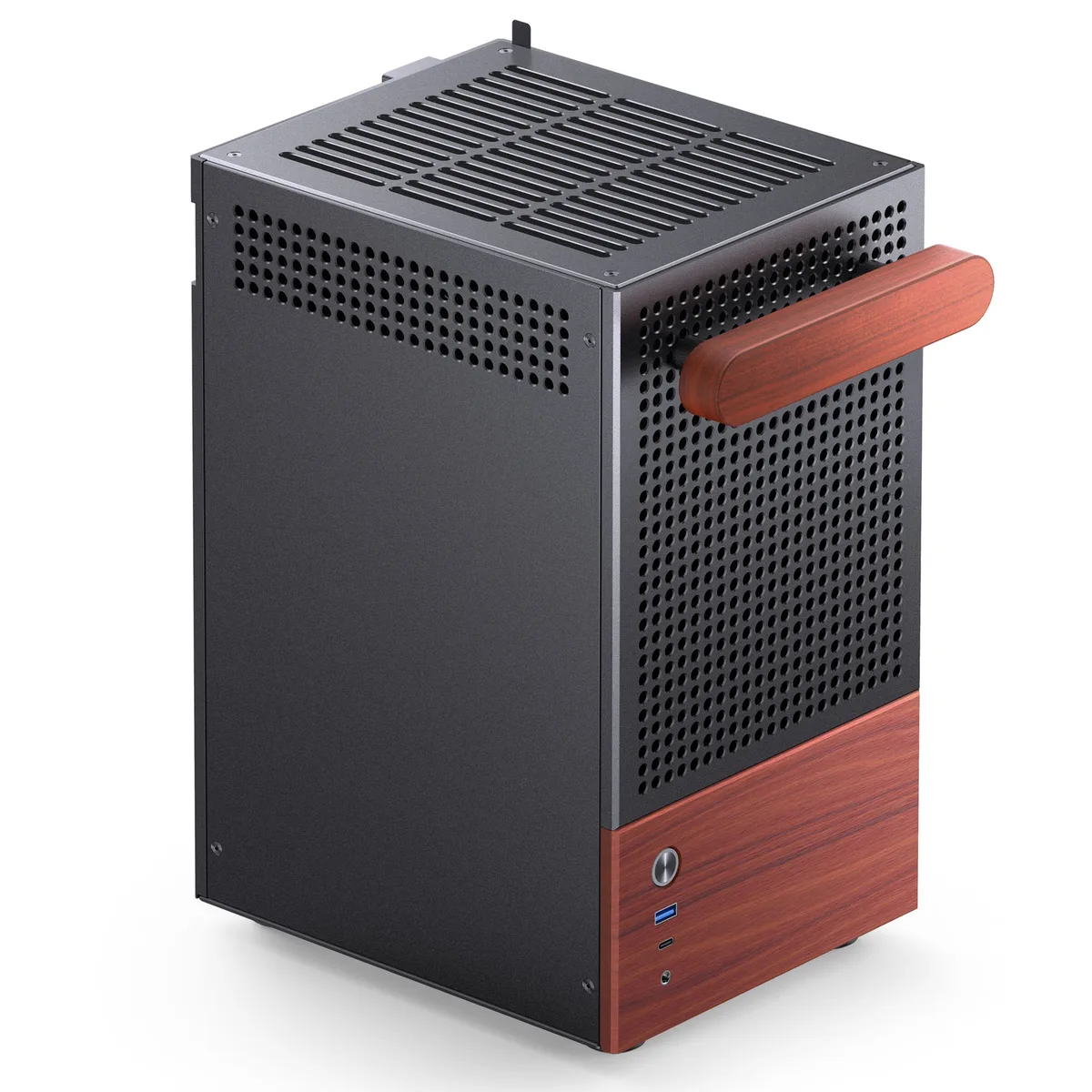

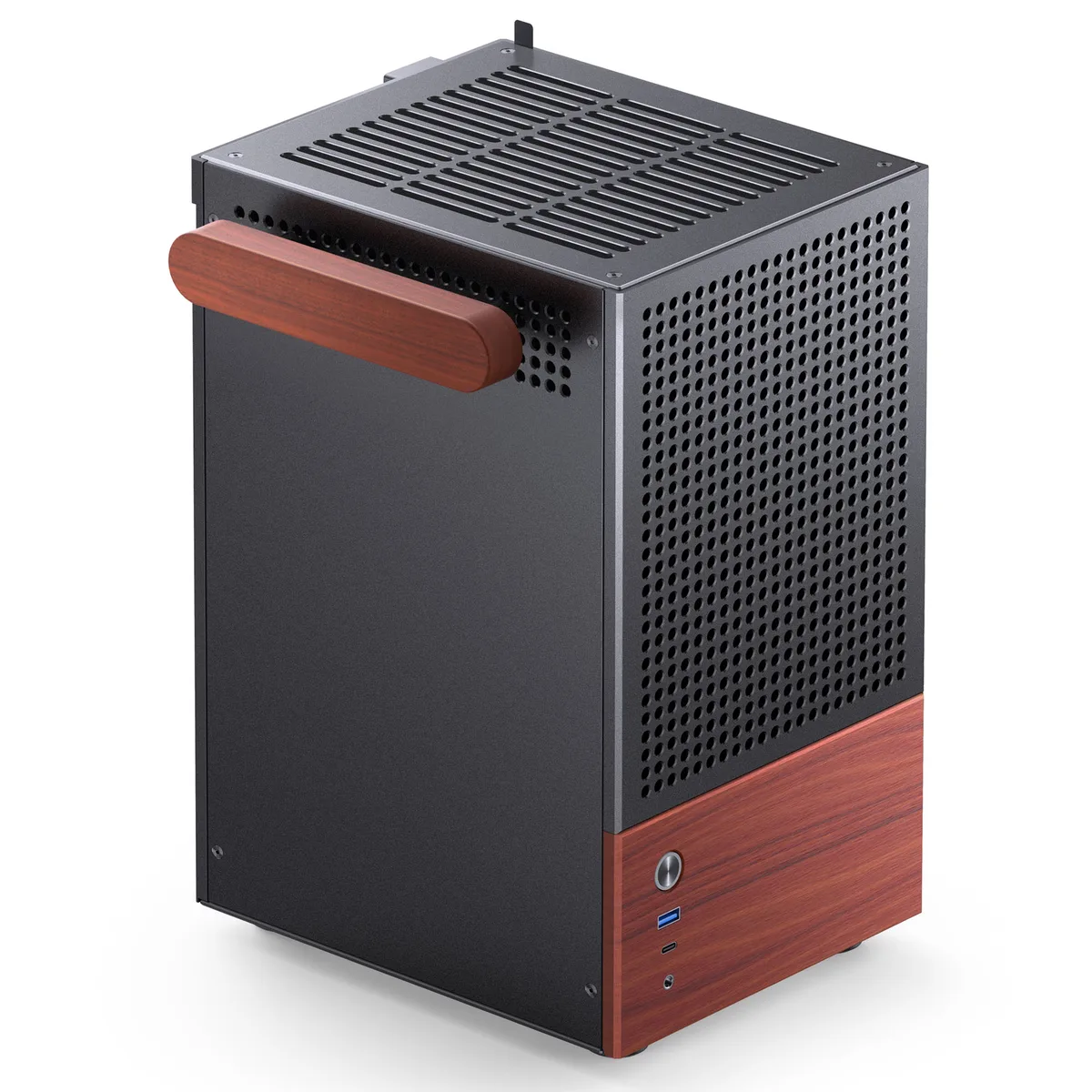

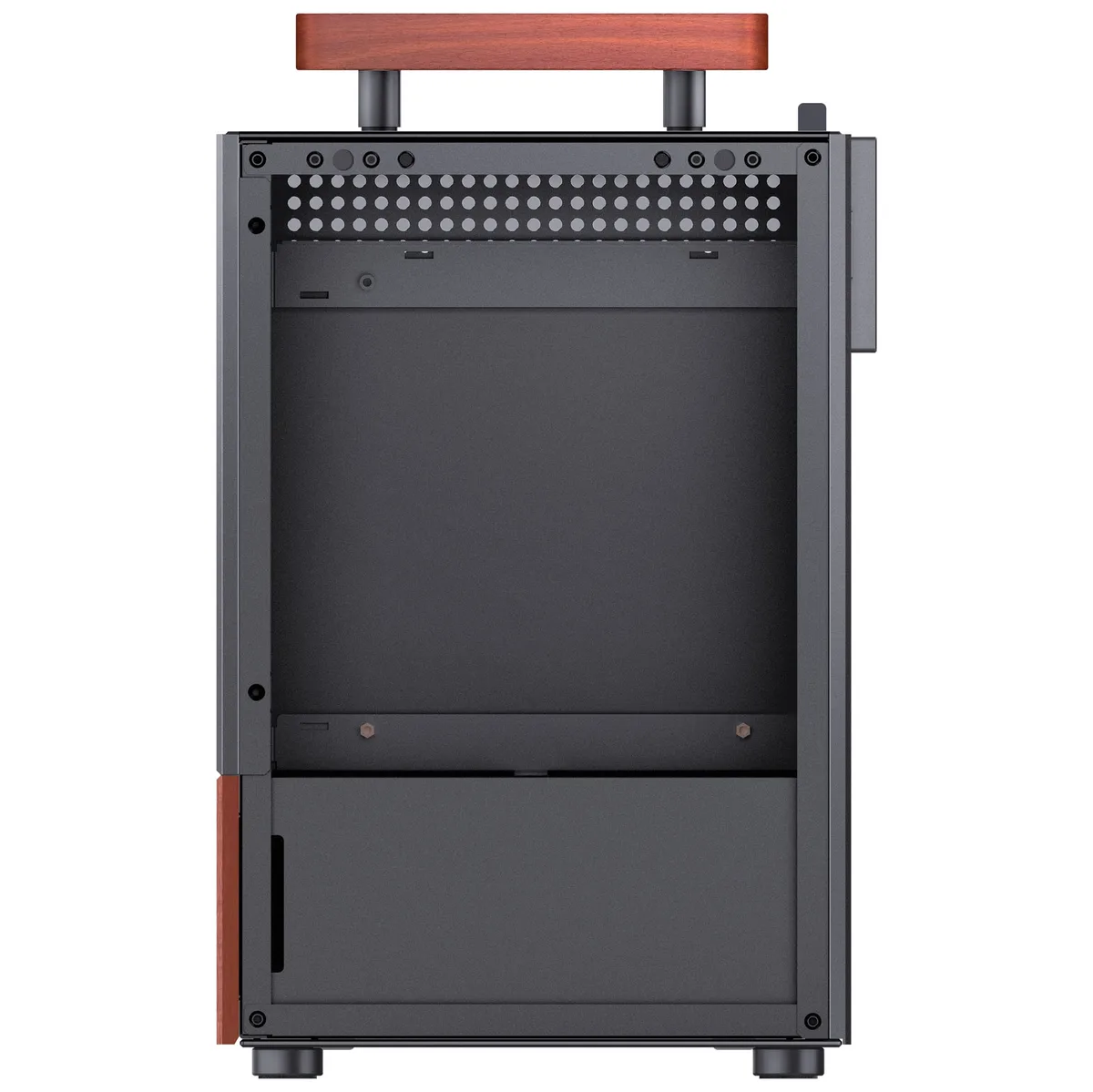

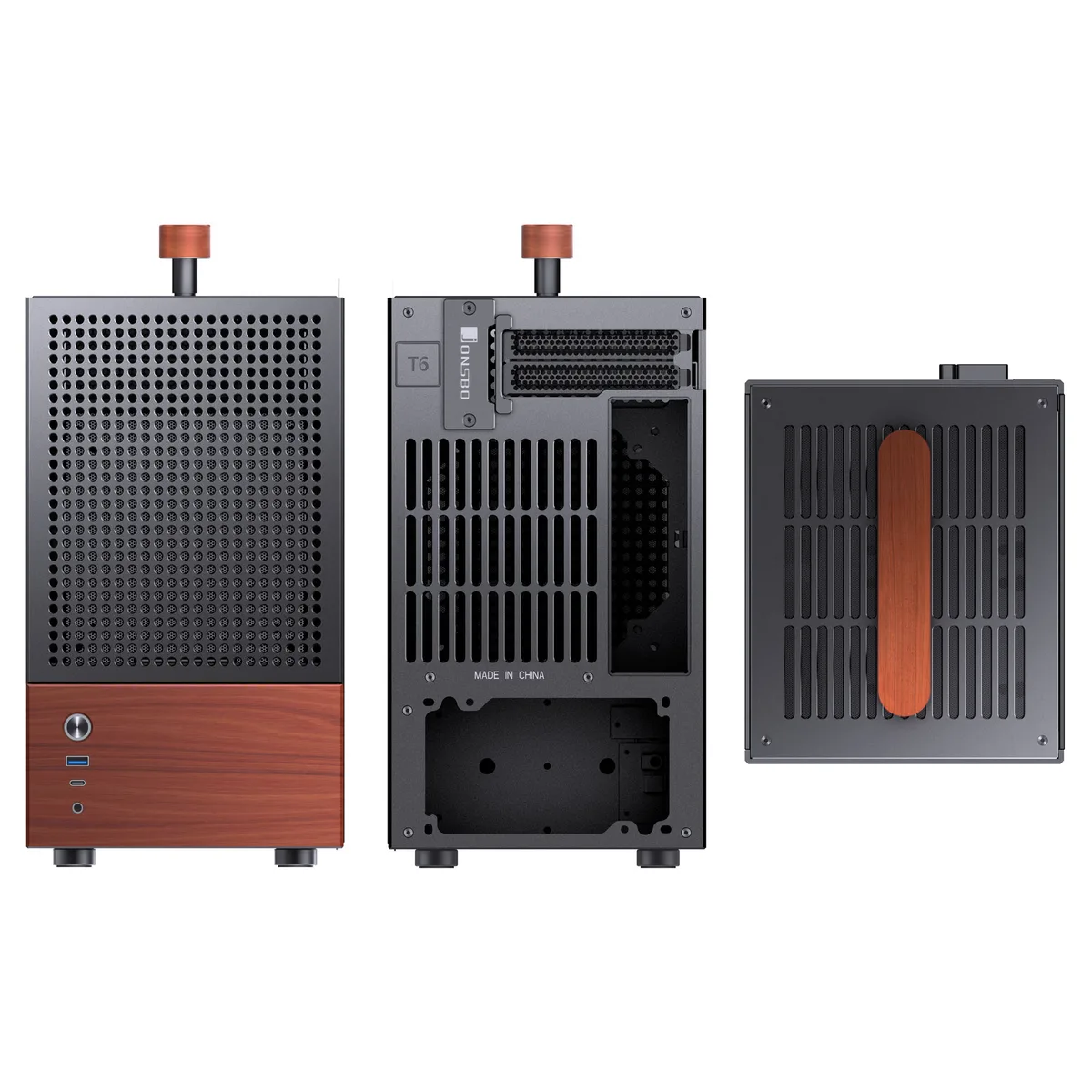

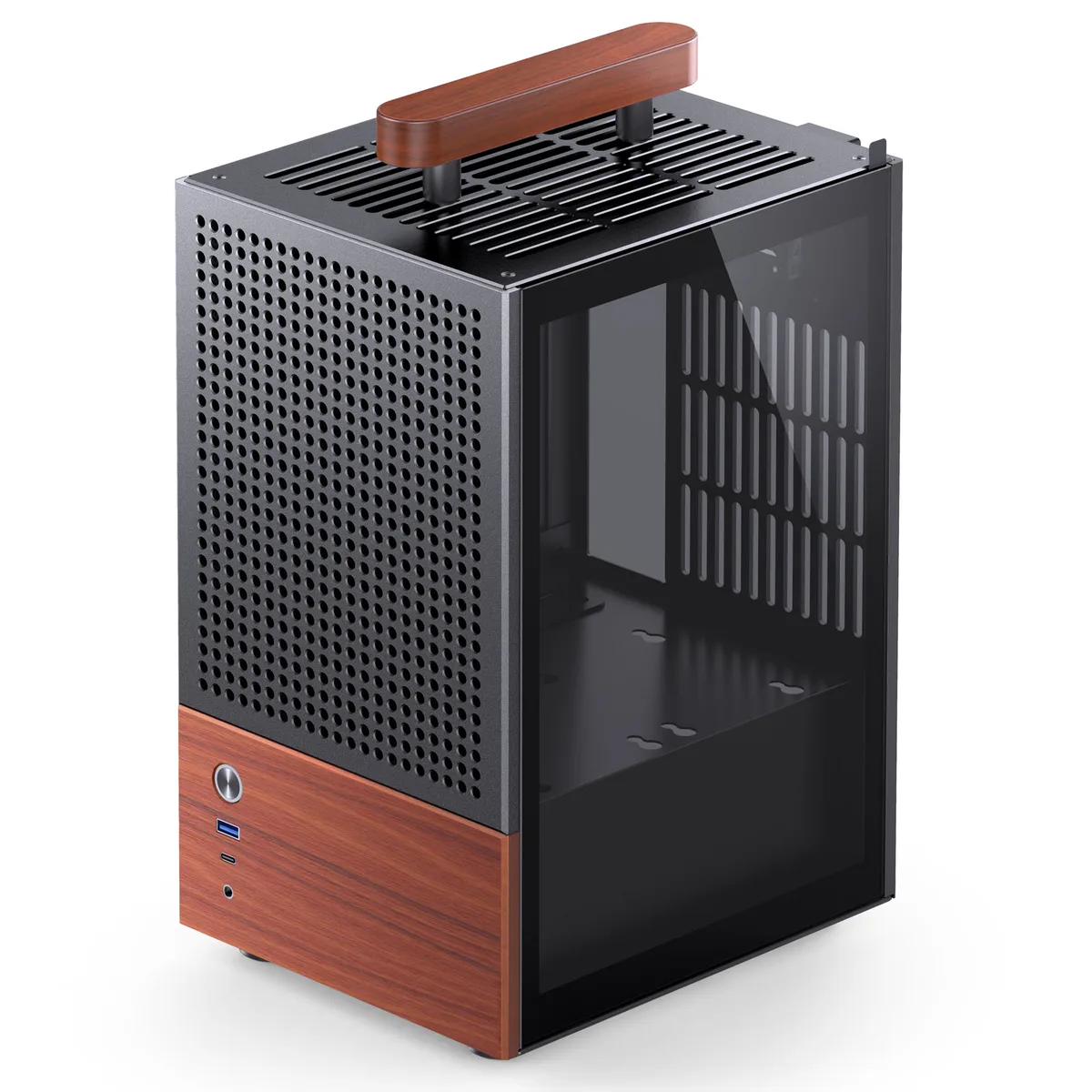

Jonsbo T6 Mini-ITX Case - Black
MPN: T6 Black
Key specifications
Max GPU215.0 mm
Max Cooler160.0 mm
Max PSU140.0 mm
Form factorUnknown
Best indexed price
Price unavailable
Retailer offers
Amazon UKProduct link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 215.0mm GPU clearance.
Supports up to 160.0mm CPU cooler height.
Full Specifications60 fields
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
T6 Black
Gtin
6970620554020
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mini Case
Case Features
I O Position
Front

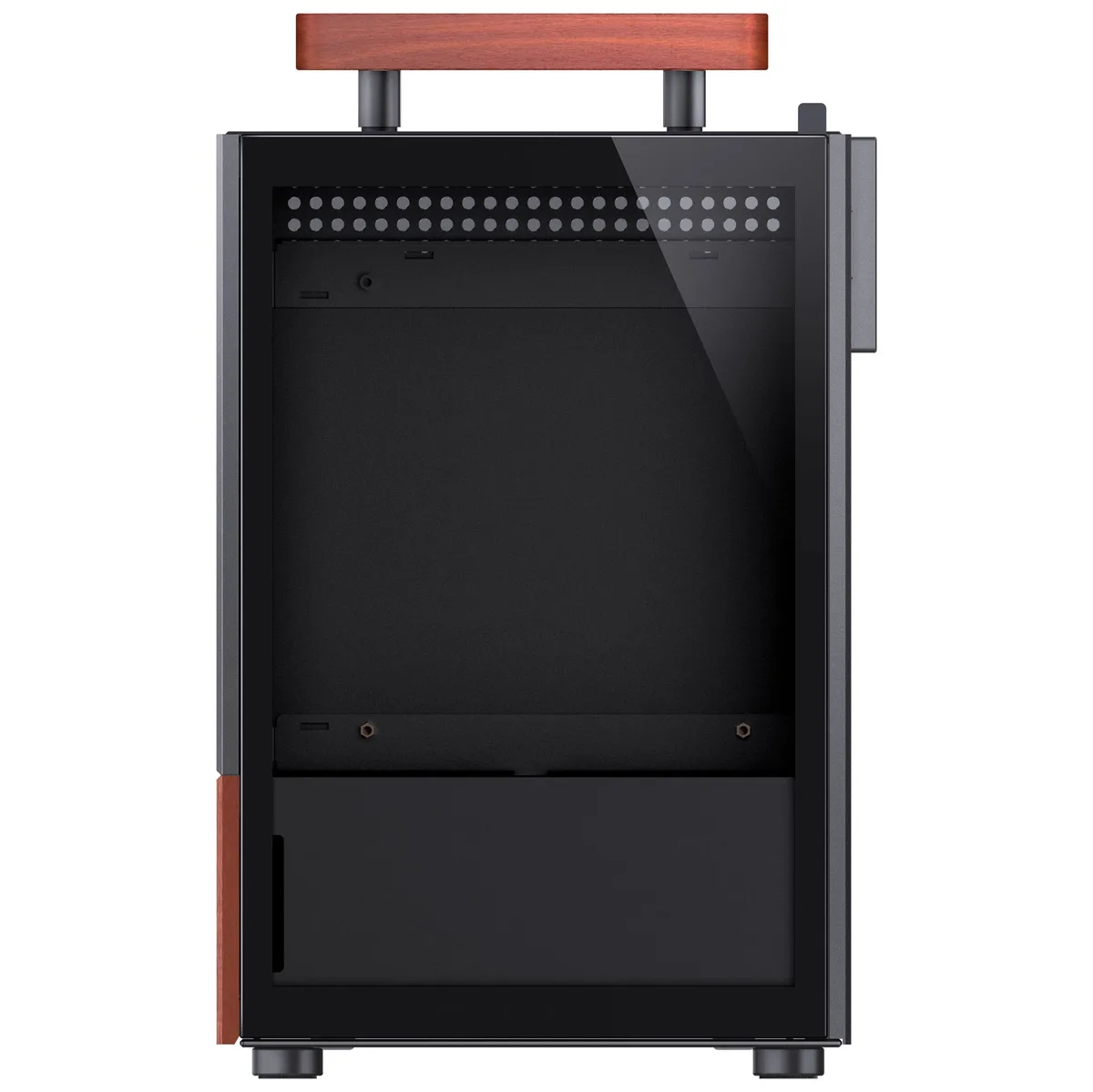

Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
Yes
Colour
Primary Colour
Black
Compliance
Compliance Documents
Jonsbo PC Case Compliance and Safety
Connectivity
Card Reader
No
Dimensions
Length Depth
223 mm
Width
185 mm
Height
332 mm
Weight
3.5 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
2
Max 3 5 Inch Drives
0
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
2
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
2
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
1
Usb 3 1 External Type C
1
Usb 3 0 External Type A
1
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Max Number Of Fans
2
Case Fan Support Rear
120mm Fan (1x)
Case Fan Support Front
120mm Fan (1x), 140mm Fan (1x)
120 Mm Fans
2
140 Mm Fans
1
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
160 mm
Max Gpu Length
215 mm
Max Psu Length Depth
140 mm
Lighting
Lighting Rgb
No
Materials
Materials
Aluminium, Steel, Wood
Motherboard Support
Max Motherboard Format
Mini-ITX
Compatible Motherboard Formats
Mini-ITX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
bottom
Radiator Support
Max Radiator Compatibility
no
