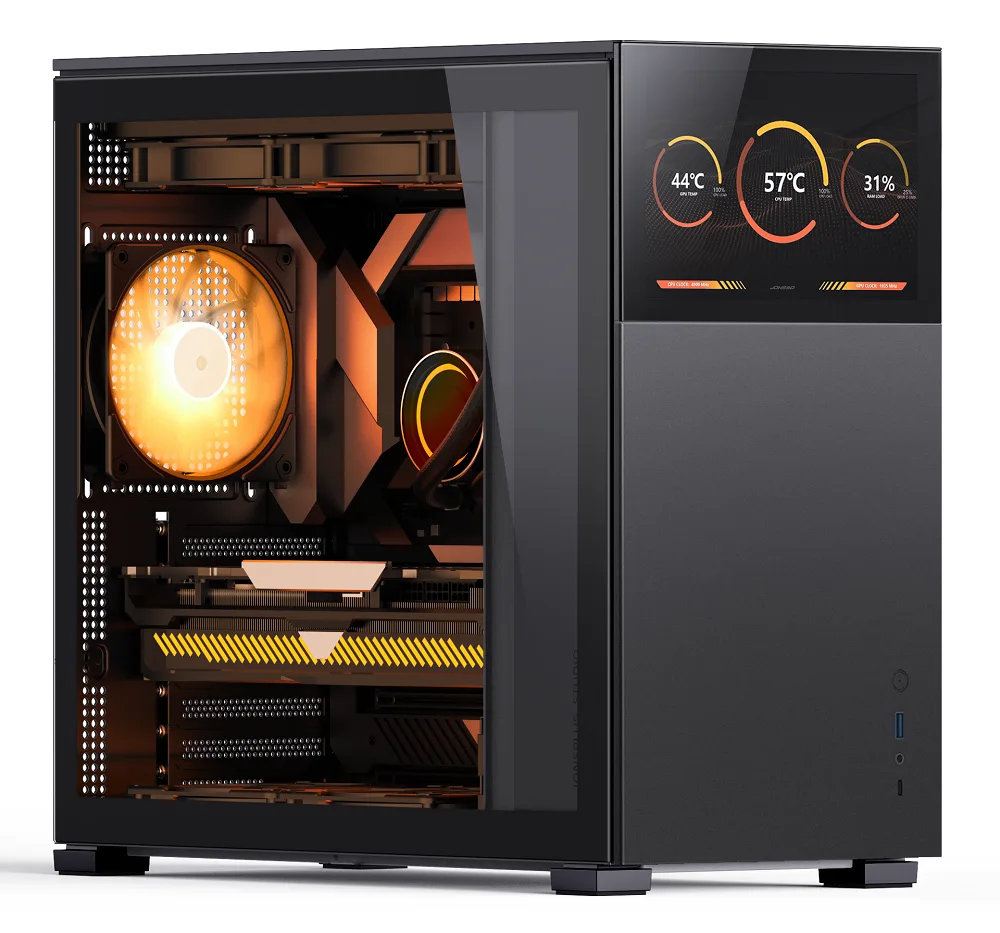

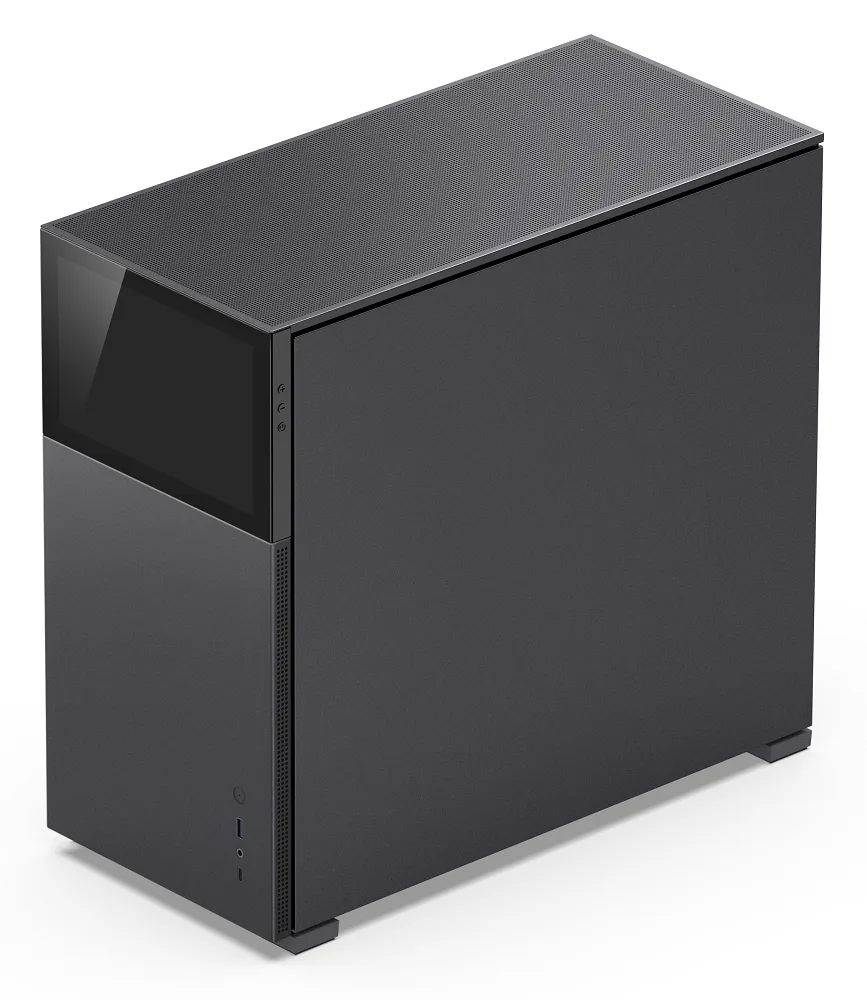

Jonsbo D41 Standard Screen ATX PC Case – Black, Tempered Glass
Model: D41 STD BLACK SC
Technical Specifications72 specs
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
D41 STD BLACK SC
Gtin
6970620552576
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Front
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Secondary Colour
Transparent
Compliance
Compliance Documents
Jonsbo PC Case Compliance and Safety

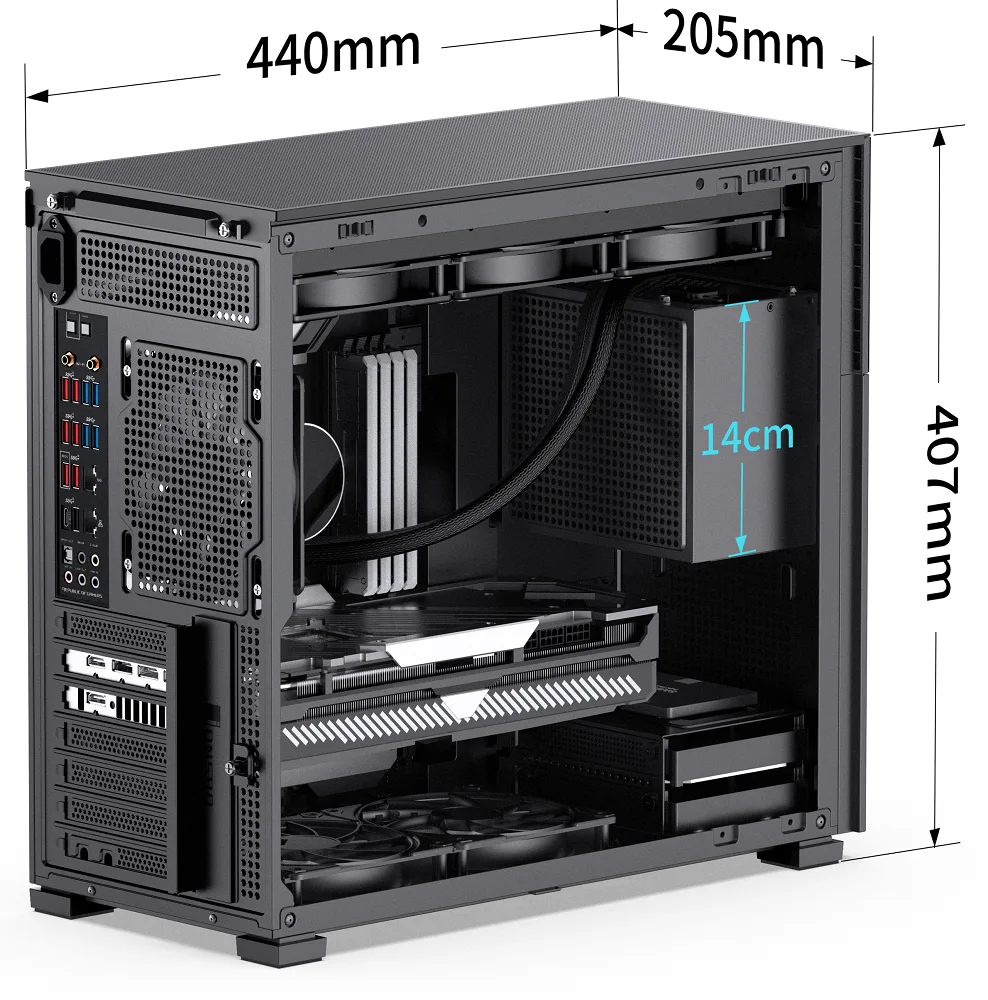

Dimensions
Length Depth
452 mm
Width
205 mm
Height
407 mm
Weight
7.08 kg
Display
Display Included
Yes
Display Size In Inch
8 "
Display Resolution
1280 x 800 Pixel
Display Refresh Rate
60 Hz
Display Panel Type
TFT-LCD
Screen Brightness Sdr Normal
300 cd/m²
Drive Bays
Max 2 5 Inch Drives
3
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
3
3 5 Inch Internal Drive Bay
2
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
1
Usb 3 2 External Type C
1
Usb 3 0 External Type A
1
Audio Outputs Inputs
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
No
Fan Support
Max Number Of Fans
8
Case Fan Support Rear
120mm Fan (1x)
Case Fan Support Top
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support Front
120mm Fan (1x)
Case Fan Support Bottom
120mm Fan (3x), 140mm Fan (2x)
120 Mm Fans
8
140 Mm Fans
4
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
168 mm
Max Gpu Length
400 mm
Max Psu Length Depth
140 mm
Inner Volume
35.4 l
Lighting
Lighting Rgb
No
Materials
Materials
Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
ATX, Micro-ATX
Max Motherboard Format
ATX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
Internal
Radiator Support
Max Radiator Compatibility
1x Single (120 mm), 2x Triple (360 mm)
Radiator Aio Support Bottom
240mm Radiator, 360mm Radiator
Radiator Aio Support Top
240mm Radiator, 280mm Radiator, 360mm Radiator
Radiator Aio Support Rear
120mm Radiator
