CasesJonsbo

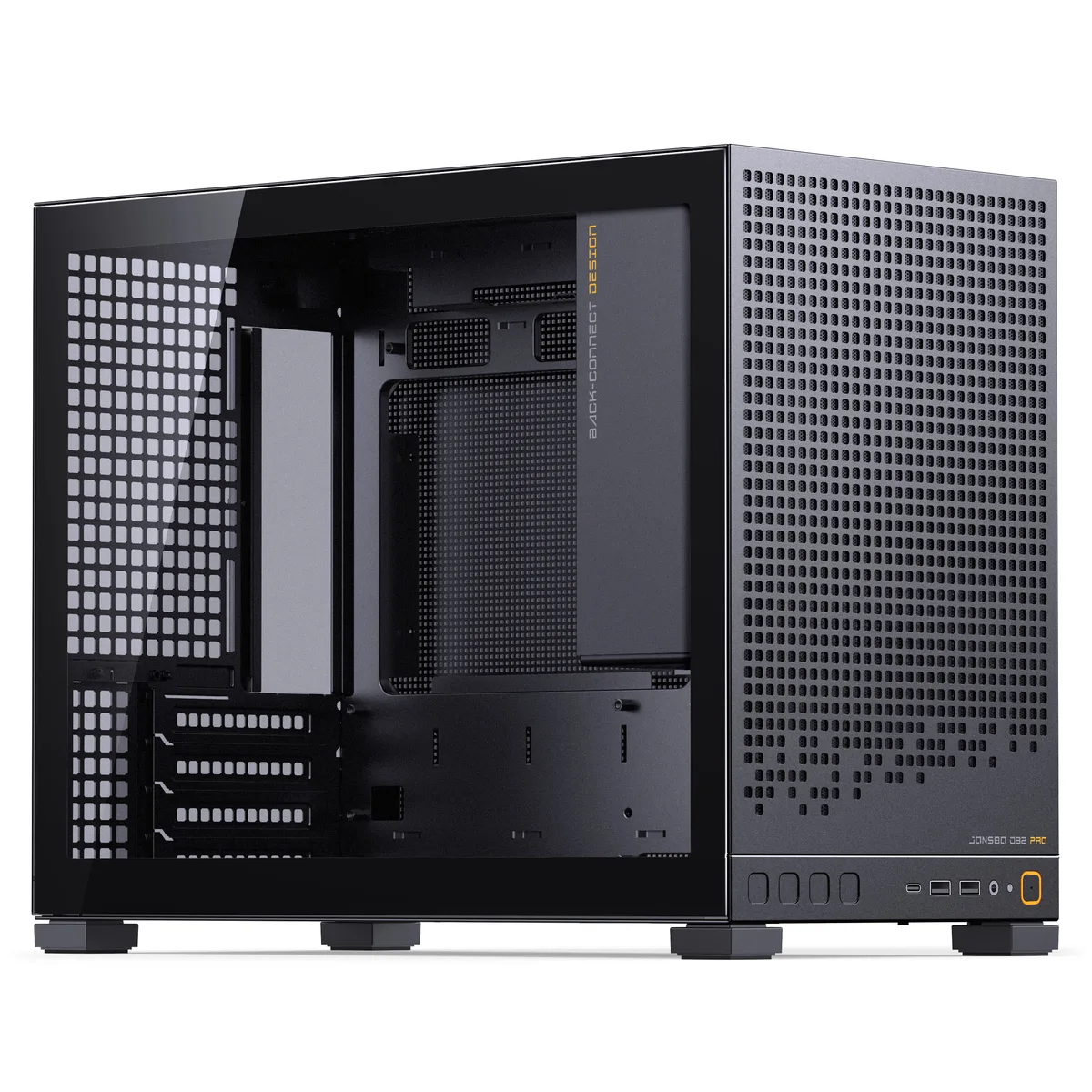

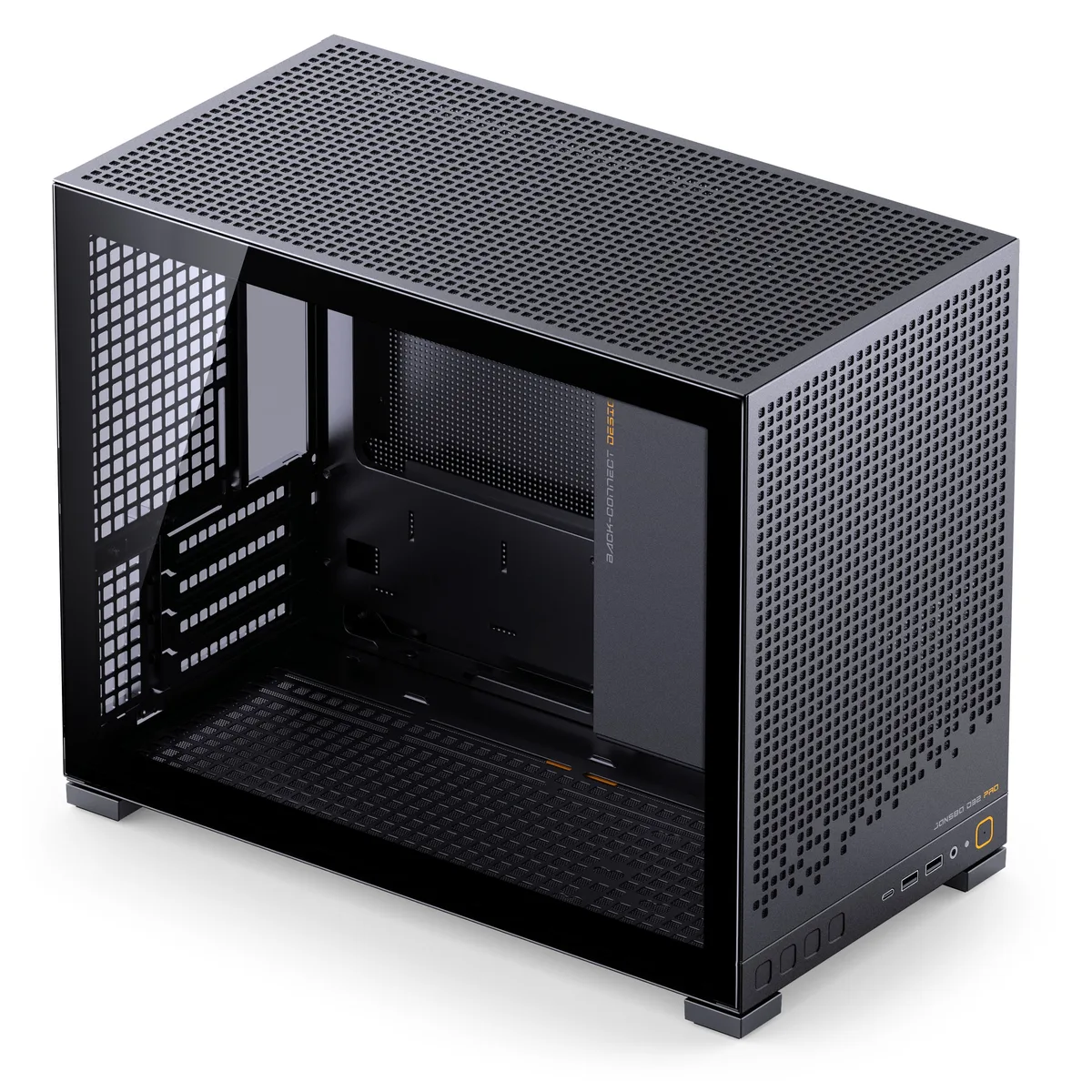

Jonsbo D32 PRO Tempered Glass mATX, Mini Case - Black
MPN: D32 PRO BLACK
Key specifications
Max GPU365.0 mm
Max Cooler170.0 mm
Max PSU200.0 mm
Form factorUnknown
Best indexed price
Price unavailable
Retailer offers
Amazon UKSearch link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 365.0mm GPU clearance.
Supports up to 170.0mm CPU cooler height.
Full Specifications67 fields
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
D32 PRO BLACK
Gtin
6970620554327
Back Connect
Back Connect
Yes
Back Connect Compatibility
ASUS BTF, MSI Project Zero, Gigabyte Project Stealth
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mini Case
Case Features
I O Position
Front
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Top, Bottom, Side
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Compliance
Compliance Documents
Jonsbo PC Case Compliance and Safety
Dimensions
Length Depth
396 mm
Width
207 mm
Height
314 mm
Weight
4.6 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
3
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
2
3 5 Inch Internal Drive Bay
2
1x 3 5 1x 2 5 Inch Internal Drive Bays Combined
2
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
4
Pci Slot Allocation
2x 2
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Rear
120mm Fan (1x)
Case Fan Support Bottom
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support Top
120mm Fan (2x), 140mm Fan (2x)
Max Number Of Fans
6
120 Mm Fans
6
140 Mm Fans
4
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
170 mm
Max Gpu Length
365 mm
Max Psu Length Depth
200 mm
Lighting
Lighting Rgb
No
Materials
Materials
Plastic, Aluminium, Steel
Motherboard Support
Compatible Motherboard Formats
Micro-ATX, Mini-ITX
Max Motherboard Format
Micro-ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX, SFX-L, SFX
Power Supply Position
front
Radiator Support
Max Radiator Compatibility
1x Dual (240 mm)
Radiator Aio Support Top
240mm Radiator
