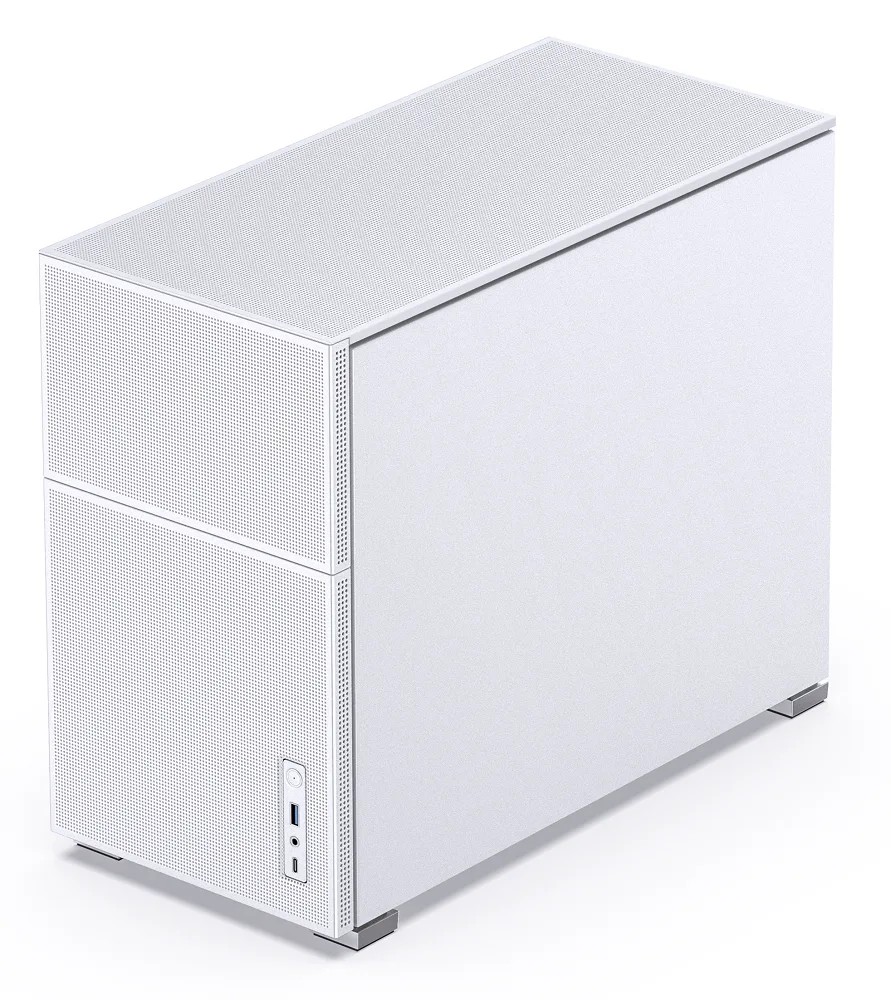

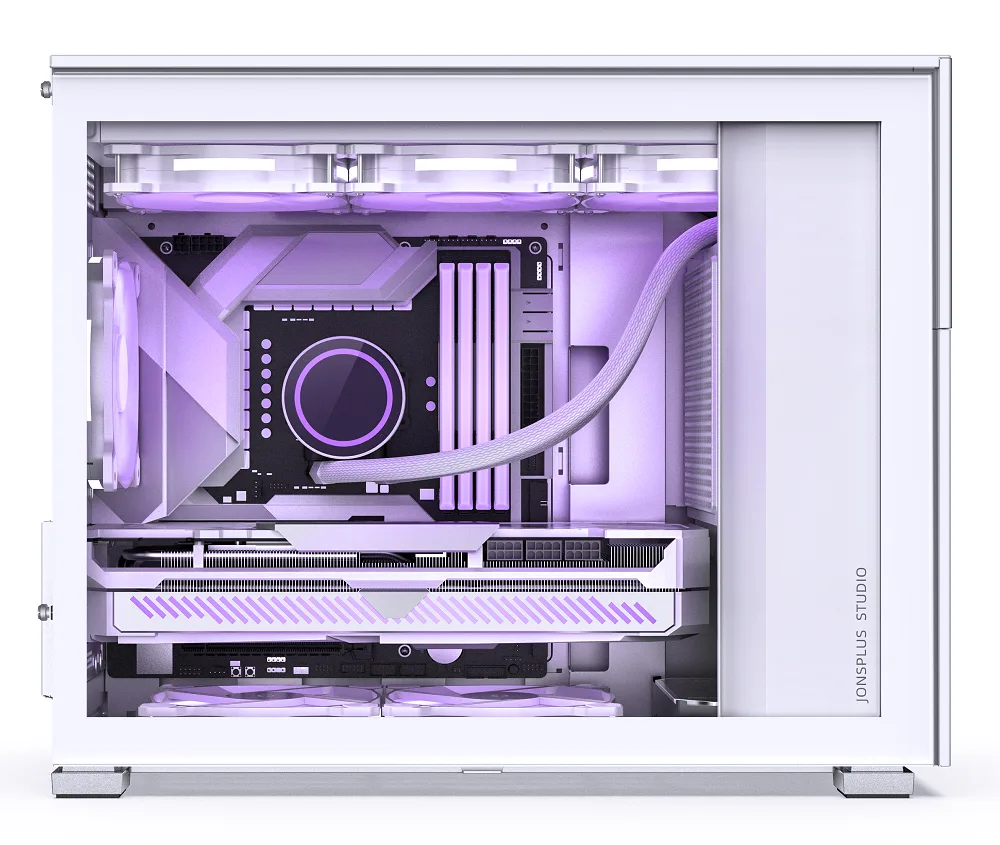

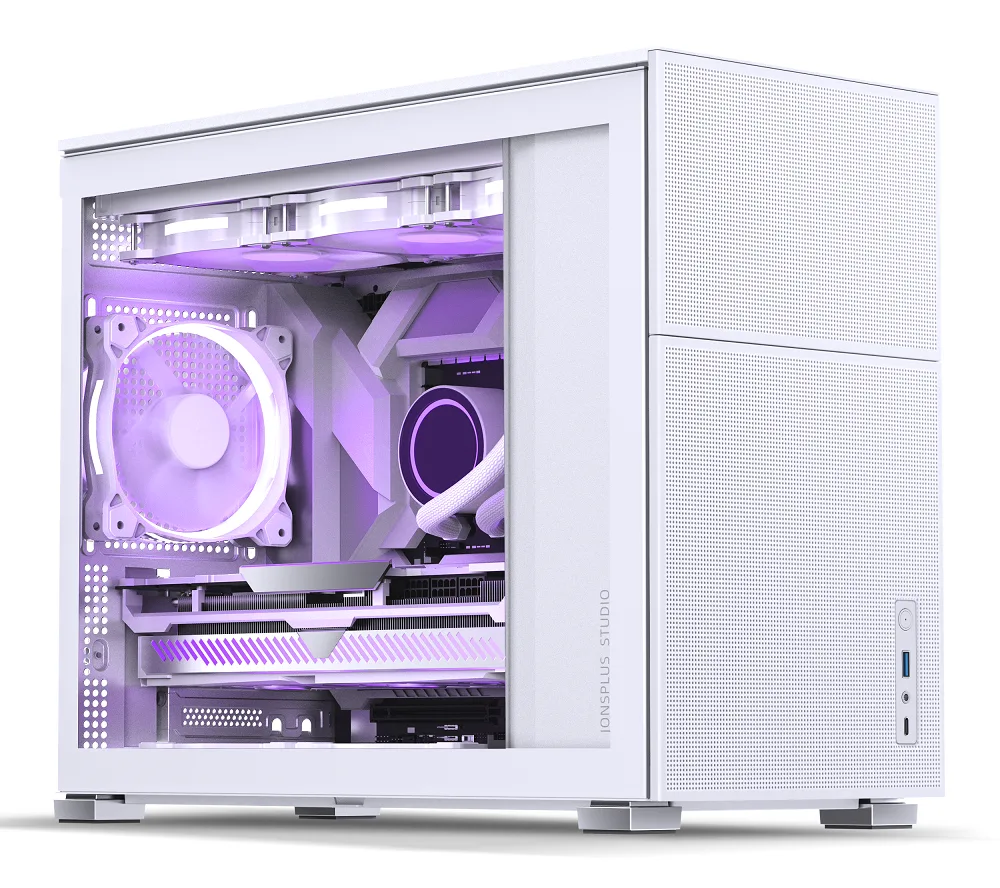

Jonsbo D31 Mesh Micro-ATX PC Case – White, Tempered Glass
£72.38
Model: D31 MESH WHITE
Technical Specifications69 specs
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
D31 MESH WHITE
Gtin
6970620552484
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mini Case
Case Features
I O Position
Front
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes

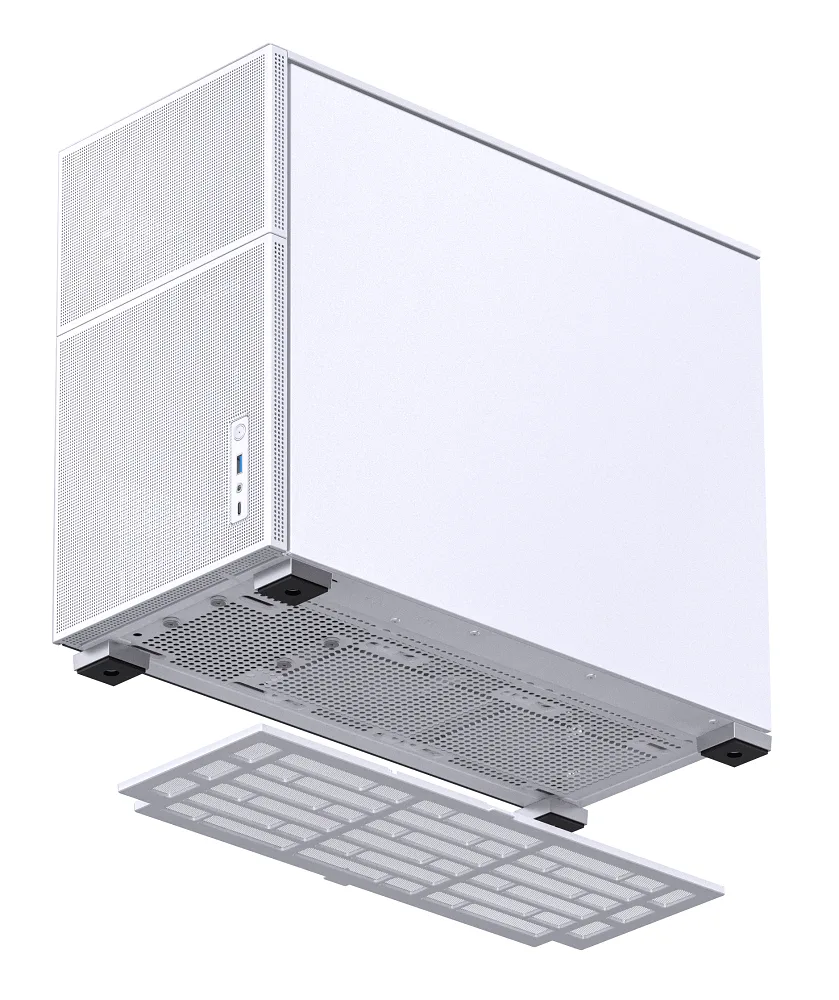

Filters Included
Yes
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
White
Secondary Colour
Transparent
Fan Main Colour Frame
White
Fan Main Colour Rotor
White
Compliance
Compliance Documents
Jonsbo PC Case Compliance and Safety
Dimensions
Length Depth
452 mm
Width
205 mm
Height
363 mm
Weight
5.8 kg
Display
Display Included
No

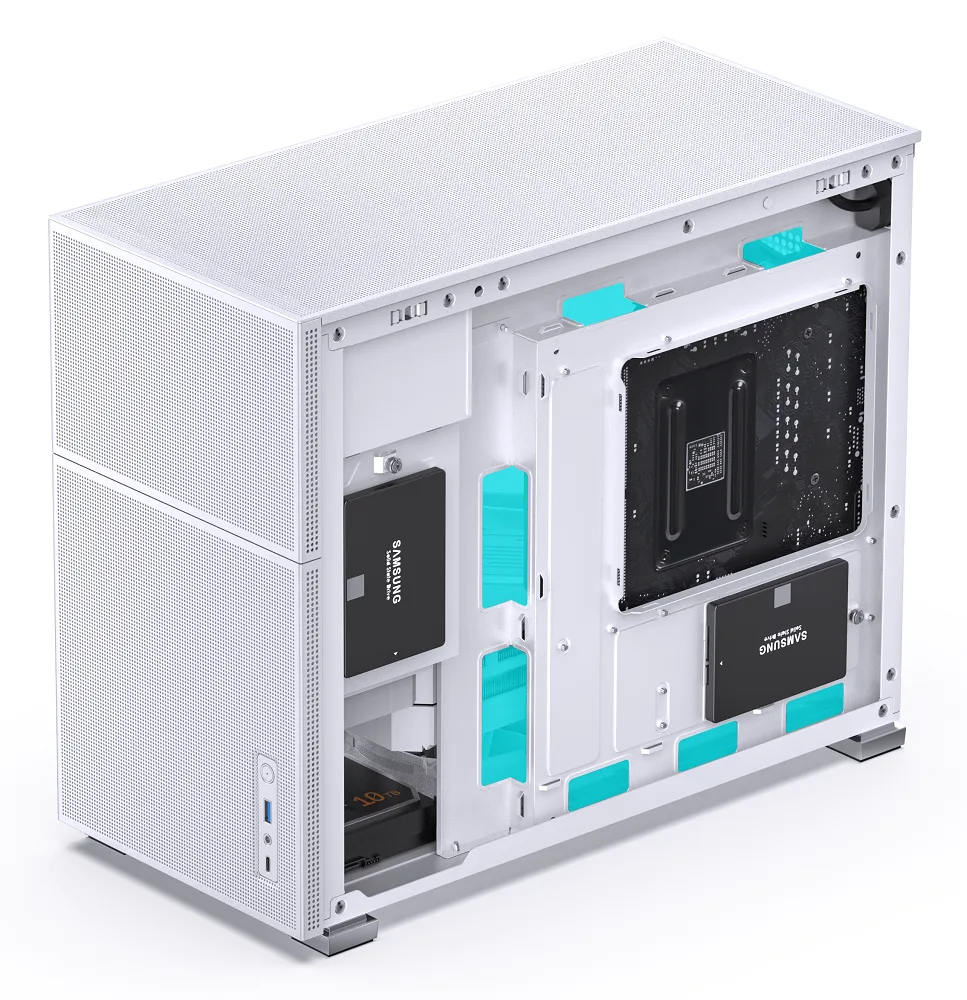

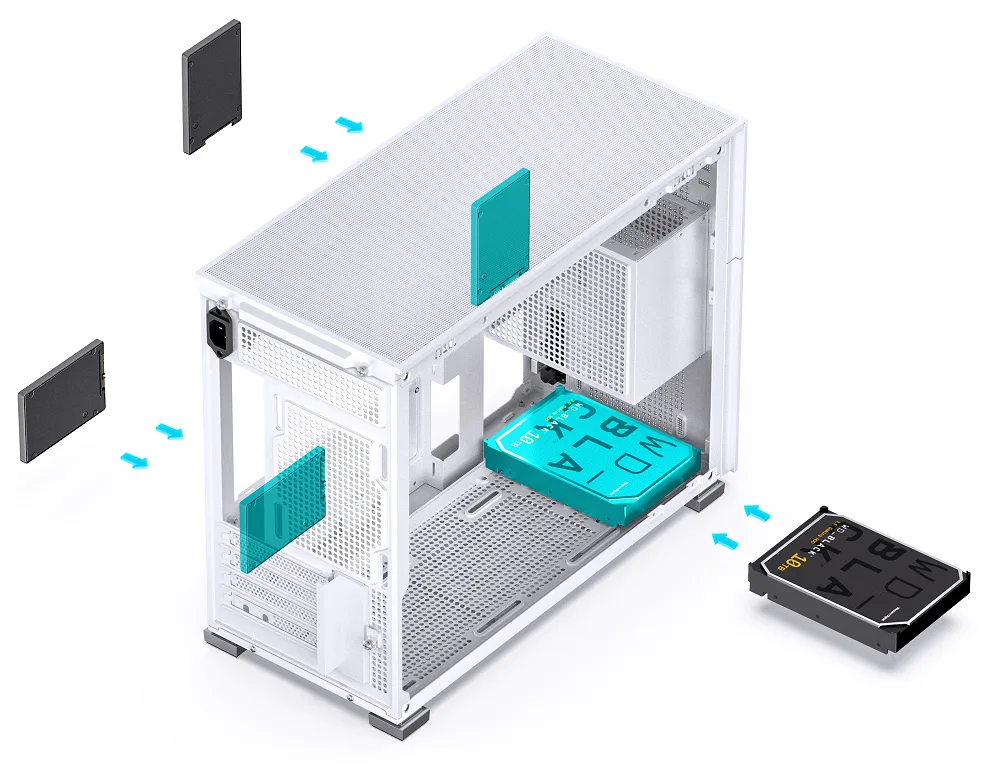

Drive Bays
Max 2 5 Inch Drives
2
Max 3 5 Inch Drives
1
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
2
3 5 Inch Internal Drive Bay
1
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
4

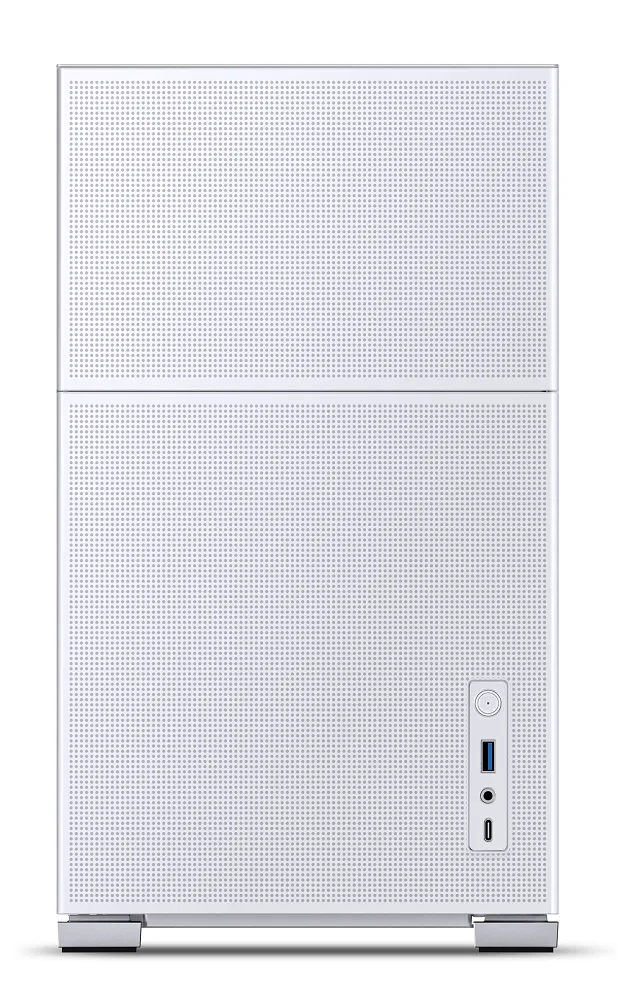

External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
1
Usb 3 2 External Type C
1
Usb 3 0 External Type A
1
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Bottom
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support Top
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support Front
120mm Fan (1x)
Case Fan Support Rear
120mm Fan (1x)
Max Number Of Fans
8
120 Mm Fans
8
140 Mm Fans
4
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
168 mm
Max Gpu Length
400 mm

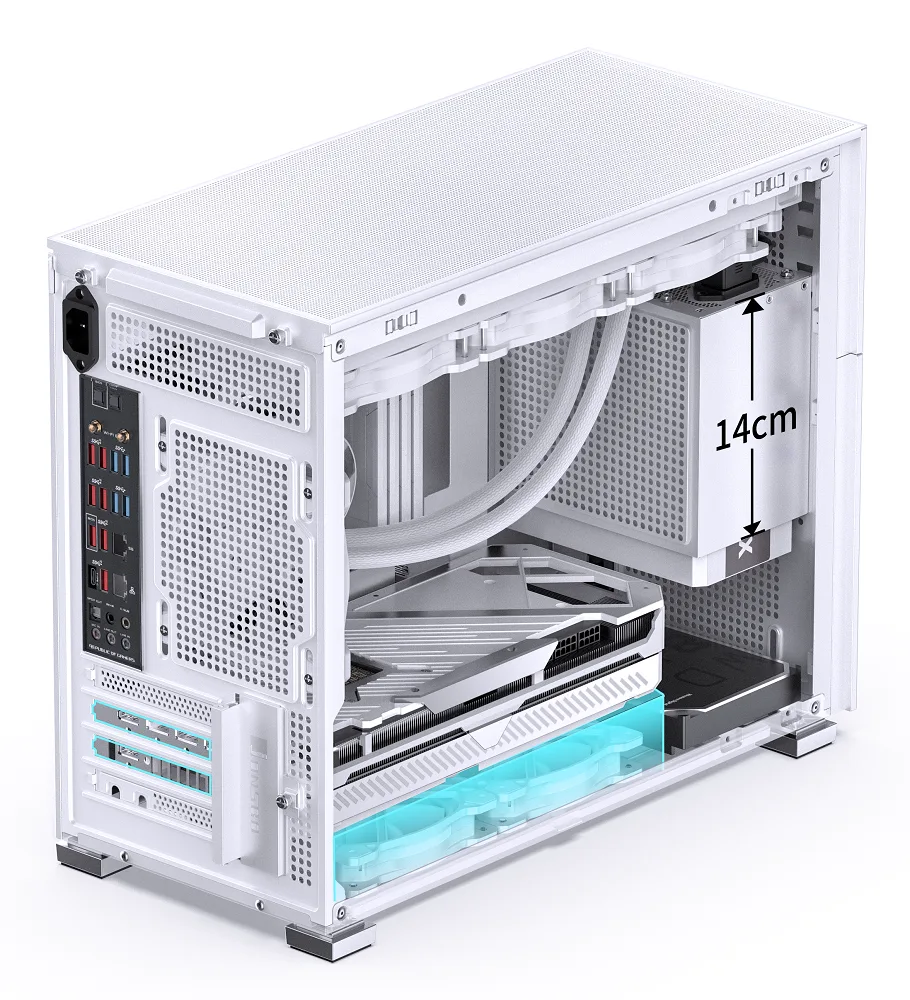

Max Psu Length Depth
140 mm
Inner Volume
31.3 l
Lighting
Lighting Rgb
No
Materials
Materials
Steel, Tempered Glass
Motherboard Support
Max Motherboard Format
Micro-ATX
Compatible Motherboard Formats
Micro-ATX, Mini-ITX, DTX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear top
Radiator Support
Radiator Aio Support Bottom
240mm Radiator, 360mm Radiator
Radiator Aio Support Rear
120mm Radiator
Max Radiator Compatibility
1x Single (120 mm), 2x Triple (360 mm)
Radiator Aio Support Top
240mm Radiator, 280mm Radiator, 360mm Radiator
