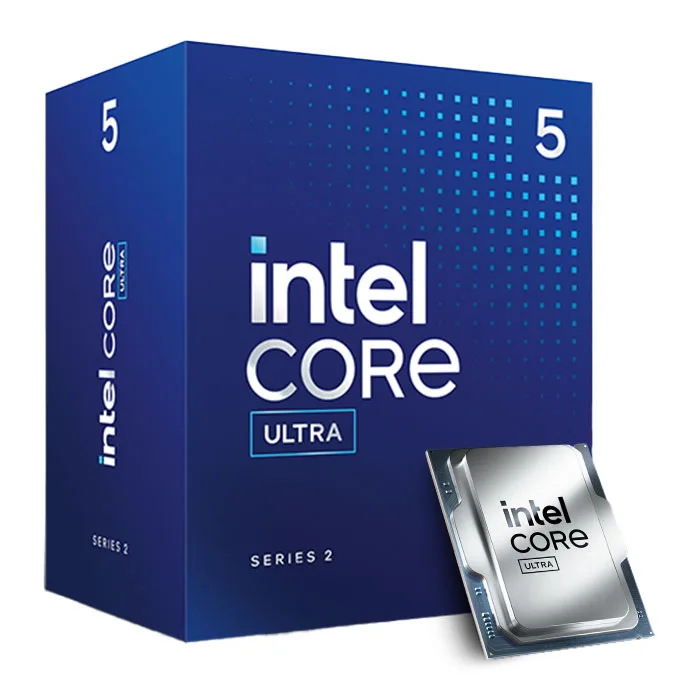

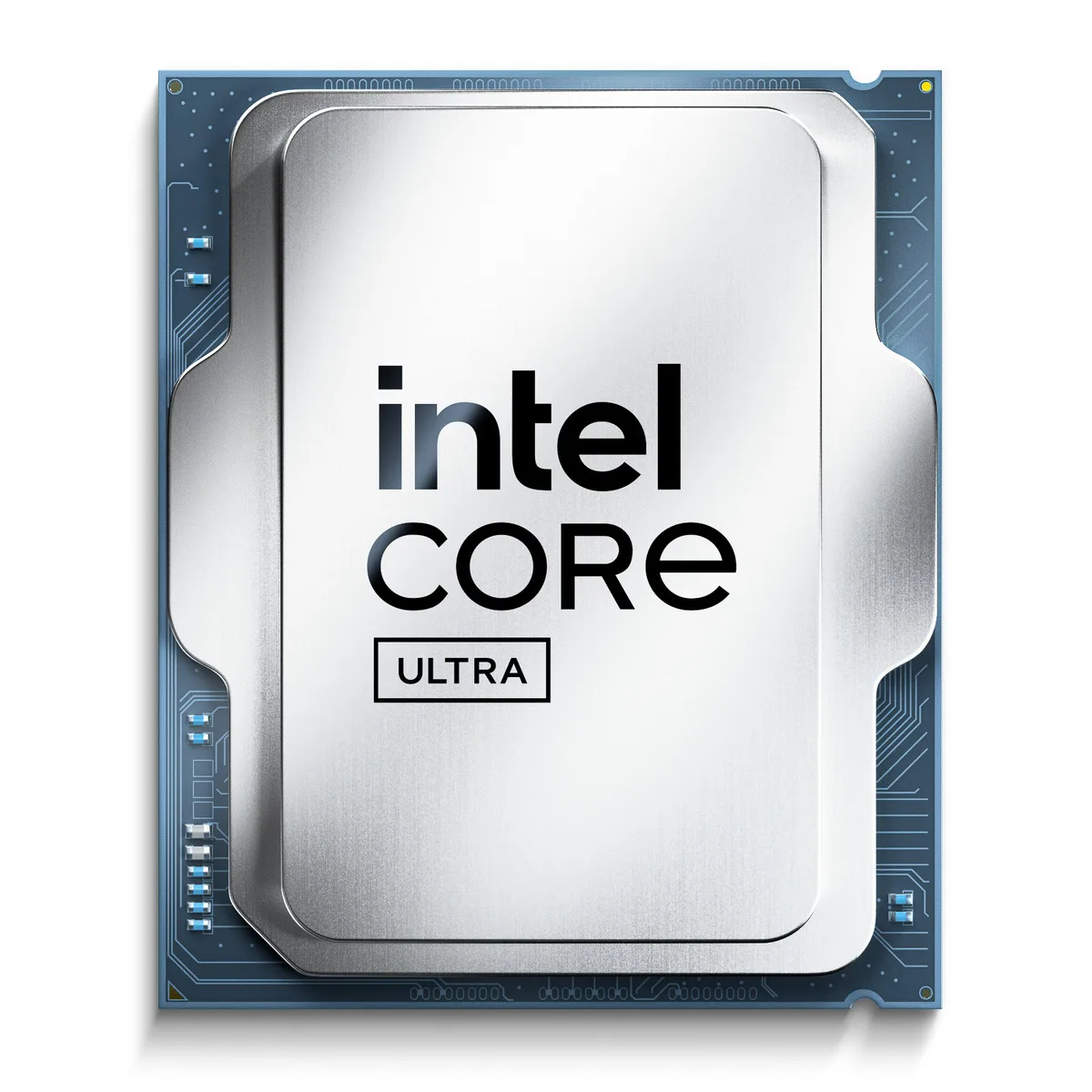

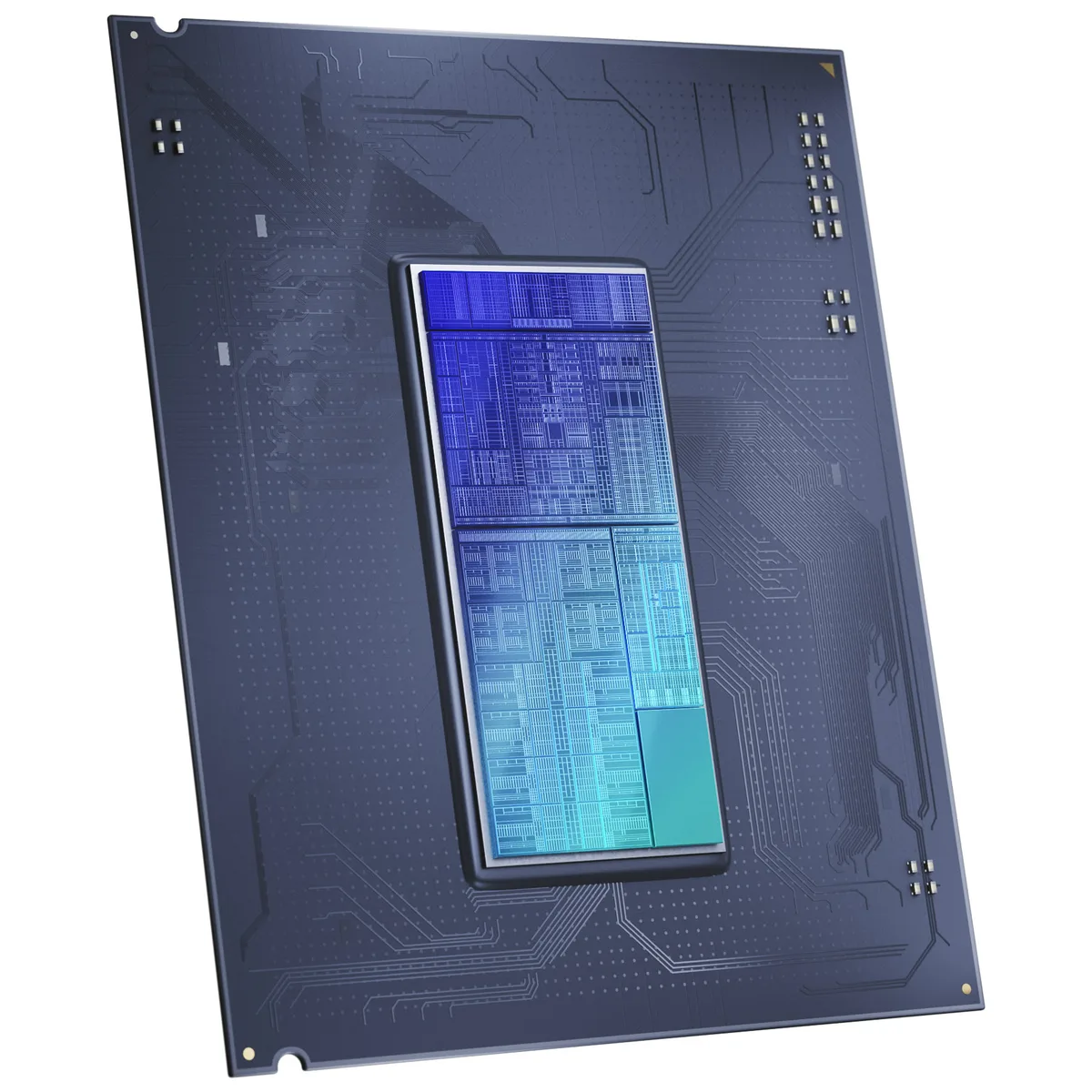

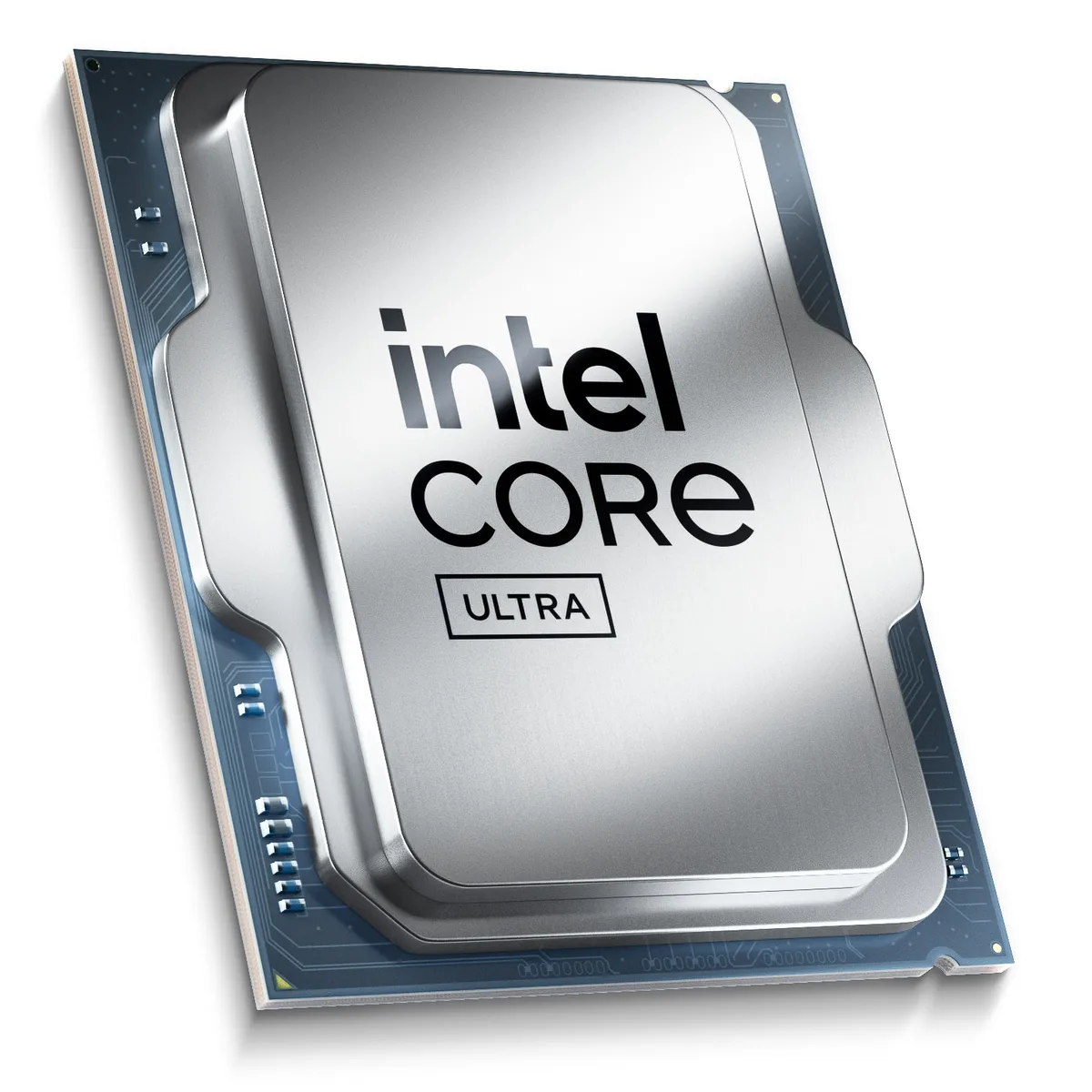

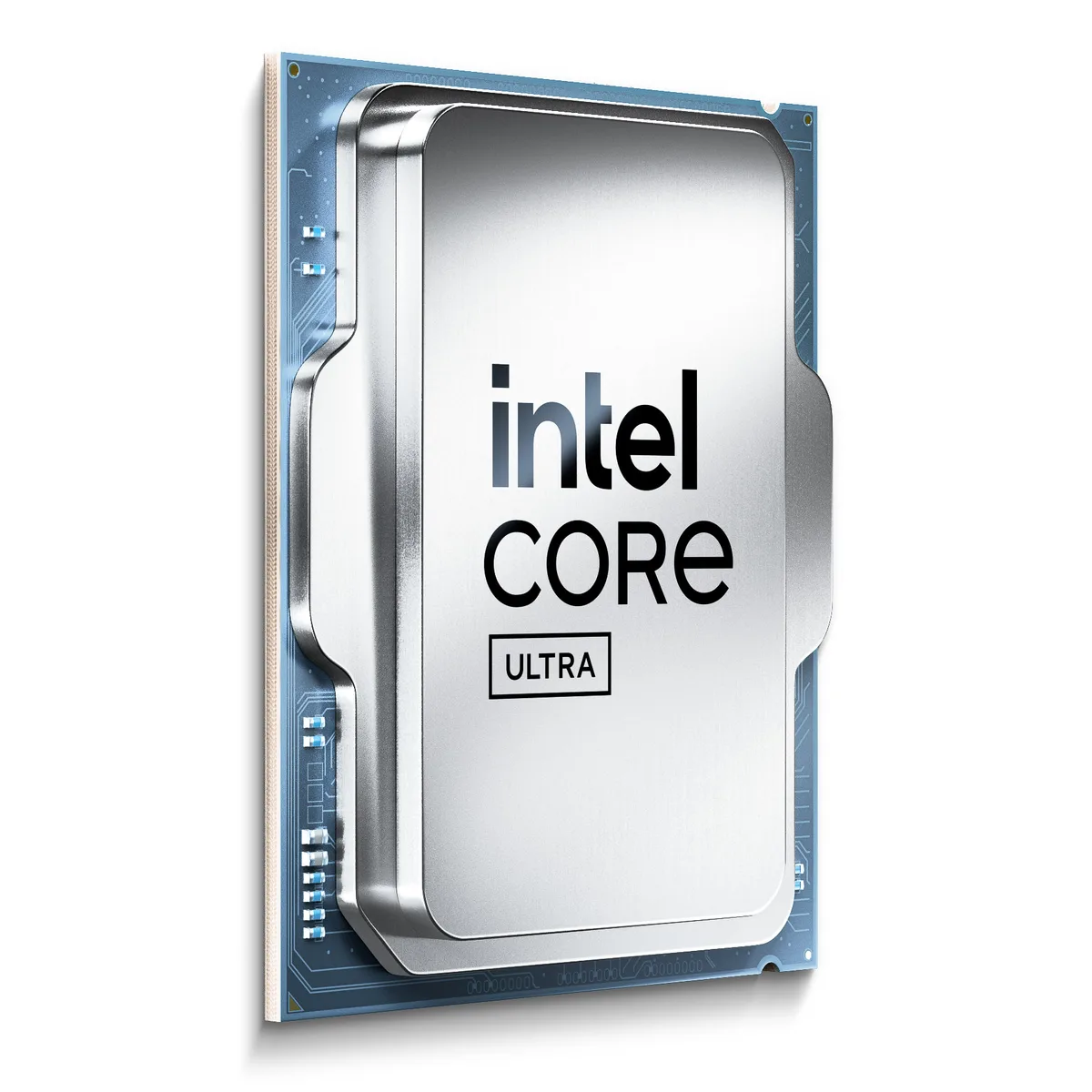

Intel Core Ultra 5 225 (Arrow Lake) Socket LGA 1851 Processor - Retail
MPN: BX80768225
Key specifications
SocketLGA 1851
Cores10
Threads10
Boost clock4.9 GHz
TDP65 W
Integrated graphicsYes
Retailer offers
Amazon UKProduct link
Find on AmazonMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Add this to your build in the PC Builder to automatically check dimensions, sockets, and power draw.
Related Products
Full Specifications133 fields
Additional Information
Model Number
BX80768225
Gtin
5032037282352
Bus Speeds
Fsb Speed
N/A
Qpi Speed
N/A
Upi Links Speed
N/A
Dmi Speed
N/A
Cores & Clocks
Core Count
10 Core
Thread Count
10
Core Ratio
-
Clock Speed
-
Turbo Speed
4.9 GHz
Turbo Boost Max Technology 3 0 Speed
N/A
Thermal Velocity Boost Speed
-
Unlocked Core Multiplier
No
Unlocked Full Range Base Clock B Clock
No
CPU Cache
L1 Cache
-
L3 Cache
-
Intel Smart Cache
20MB
Features
Execute Disable Bit
Yes
Idle States
Yes
Thermal Monitoring Technologies
Yes
Market Segment
Desktop
Use Conditions
PC/Client/Tablet
Maximum Number Of Pci Express Lanes
24
Pci Express Slots Version
4.0, 5.0
Supported Instruction Sets
AVX 2.0, SSE4.1, SSE4.2
Scalability
1S
Embedded Options Available
Yes
Direct Media Interface Dmi Revision
4.0
Graphics
On Board Graphics Card
Yes
Discrete Graphics Card
No
On Board Graphics Card Model
Intel Graphics
On Board Graphics Card Outputs Supported
HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1
On Board Graphics Card Base Frequency
300 MHz
On Board Graphics Card Dynamic Frequency Max
1800 MHz
Number Of Displays Supported On Board Graphics
4
On Board Graphics Card Directx Version
12.0
On Board Graphics Card Opengl Version
4.5
On Board Graphics Card Refresh Rate At Maximum Resolution Displayport
60 Hz
On Board Graphics Card Refresh Rate At Maximum Resolution Edp Integrated Flat Panel
60 Hz
On Board Graphics Card Refresh Rate At Maximum Resolution Hdmi
60 Hz
On Board Graphics Card Id
0x7D67
Discrete Graphics Card Model
Not available
Xe Cores
2
Integrated Graphics
Igpu Cores
-
Igpu Base Clock
N/A
Igpu Boost Clock
N/A
Igpu Max Resolution
-
Lanes & Features
Intel Deep Learning Boost Support
No
Node Controller Support
No
Pcie Version
4.0 / 5.0
Pcie Lanes
24
Memory
Maximum Internal Memory Supported By Processor
192 GB
Memory Types Supported By Processor
DDR5-SDRAM
Memory Clock Speeds Supported By Processor
6400 MHz
Memory Channels
Dual-channel
Memory Support
Max Memory Size
192 GB
Max Memory Speed
DDR5 - 6400(OC)
Max Memory Channels
2 (Dual Channel)
Ecc Memory
Not Supported
Intel Optane Memory
No
Intel Optane Dc Persistent Memory
No
Model & Type
Cpu Type
Intel Core Ultra 5
Cpu Model
Intel® Core Ultra 5 225
Architecture
Intel® Core Ultra (Series 2)
Manufacturing Process
-
Neural processor unit (NPU)
Neural Processor Unit Npu
Intel AI Boost
Sparsity Support
Yes
Windows Studio Effects Support
Yes
Ai Software Frameworks Supported By Npu
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total Processor Performance Up To
23 TOPs
Npu Performance Up To
13 TOPs
Gpu Performance Up To
4 TOPs
Operational conditions
Maximum Operating Temperature
105 °C
Other features
L2 Cache
22528 KB
Maximum Internal Memory
192 GB
Graphics Output
DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
Processor
Processor Manufacturer
Intel
Processor Generation
Intel Core Ultra (Series 2)
Processor Model
225
Processor Family
Intel Core Ultra 5
Processor Cores
10
Socket
LGA 1851 (Socket V1)
Processor Threads
10
Processor Operating Modes
64-bit
Performance Cores
6
Efficient Cores
4
Processor Boost Frequency
4.9 GHz
Performance Core Boost Frequency
4.9 GHz
Performance Core Base Frequency
3.3 GHz
Efficient Core Boost Frequency
4.4 GHz
Efficient Core Base Frequency
2.7 GHz
Processor Cache
20 MB
Processor Cache Type
Smart Cache
Box
Yes
Processor Base Power
65 W
Maximum Turbo Power
121 W
Ai Software Frameworks Supported By Cpu
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Maximum Number Of Dmi Lanes
8
Processor Codename
Arrow Lake
Processor Ark Id
241070
Processor special features
Intel Turbo Boost Technology
2.0
Intel Quick Sync Video Technology
Yes
Intel Aes New Instructions Intel Aes Ni
Yes
Enhanced Intel Speedstep Technology
Yes
Intel Trusted Execution Technology
Yes
Intel Speed Shift Technology
Yes
Intel Thunderbolt 4
Yes
Intel Control Flow Enforcement Technology Cet
Yes
Intel Thread Director
Yes
Intel Vt X With Extended Page Tables Ept
Yes
Intel Secure Key
Yes
Intel Os Guard
Yes
Intel 64
Yes
Intel Virtualization Technology Vt X
Yes
Intel Virtualization Technology For Directed I O Vt D
Yes
Intel Boot Guard
Yes
Intel Deep Learning Boost Intel Dl Boost On Cpu
Yes
Intel Volume Management Device Vmd
Yes
Mode Based Execute Control Mbe
Yes
Intel Standard Manageability Ism
Yes
Intel Deep Learning Boost Intel Dl Boost On Gpu
Yes
Technical details
Opencl Version
3.0
Launch Date
Q1'25
Status
Launched
Thermals & Package
Tdp
65W
Thermal Specification
105 °C
Heatsink Cooler Included
-
Package Type
Retail
Note
-
General
Features Integrated Graphics
Yes
Integrated Graphics Model Type
-
