Graphics CardsInno3D

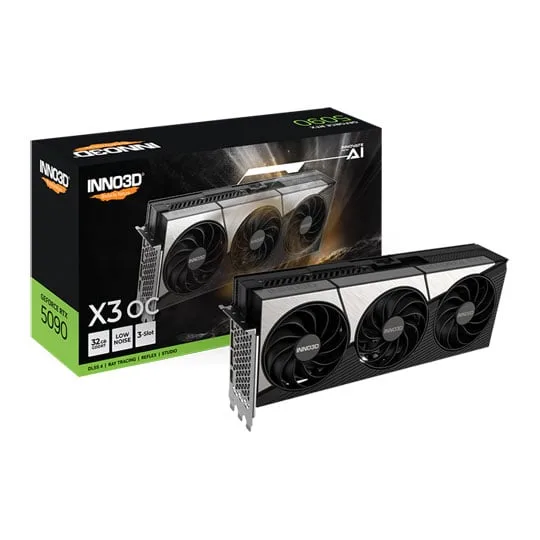

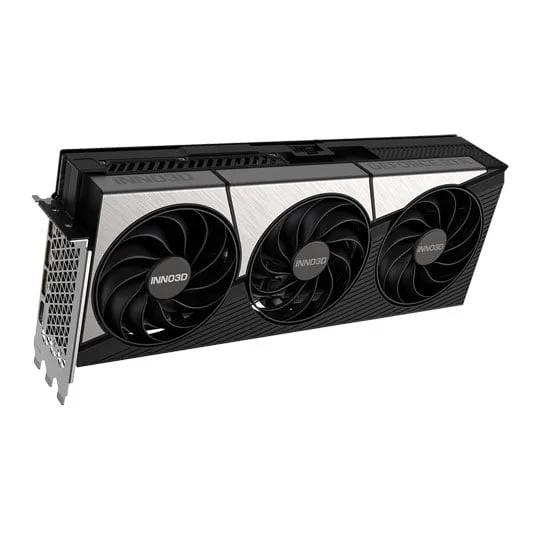

INNO3D NVIDIA GeForce RTX 5090 X3 OC Blackwell Graphics Card
Quick Specs
ChipsetRTX 5090
VRAM32 GB
MemoryGDDR7
Length333 mm
Min PSU1000 W
Model: N50903-32D7X-17593928
Technical Specifications35 specs
Additional Information
Model Number
N50903-32D7X-17593928
Gtin
8886307700131
Cooling
Included Backplate
Yes
Cores & Clocks
Cores
21760
Core Clock
2017 MHz
Boost Clock
2452 MHz
Ai Tops
3352
I/O & Connectivity
Interface
PCIe 5.0 (x16)
Connectivity
3 x DisplayPort 2.1b
1 x HDMI 2.1b
Key Specifications
Chipset
GeForce RTX 5090
Edition
INNO3D GeForce RTX 5090 X3 OC
Manufacturing Process
4 nm
Microarchitecture
Blackwell
Physical
Width
Triple Slot
Low Profile Support
N/A
Dimensions
333 x 137 x 60 mm
Package Type
Retail
Power & Thermals
Graphics Card Power Connectors
1 x 12v-2x6
Tdp
-
Minimum Recommended Psu
1000 W
Maximum Gpu Temperature
-
Ray
Tracing Real Time Ray Tracing
Yes
Tracing Nvidia Rt Cores
170 (4th Gen)
Tracing Nvidia Tensor Cores
680 (5th Gen)
Video Memory (VRAM)
Vram Size
32GB
Memory Type
GDDR7
Memory Clock
-
Memory Bus
512 Bit
Visuals
Geforce Vr Ready
Yes
Multi Way Graphics Support
-
Microsoft Directx Support
12 API
Hdcp Ready
Yes
Max Concurrent Displays
4 Displays
Maximum Digital Resolution
7680x4320 (8K UHD)
General
Solution
Tri Fan (3)
