CasesHYTE

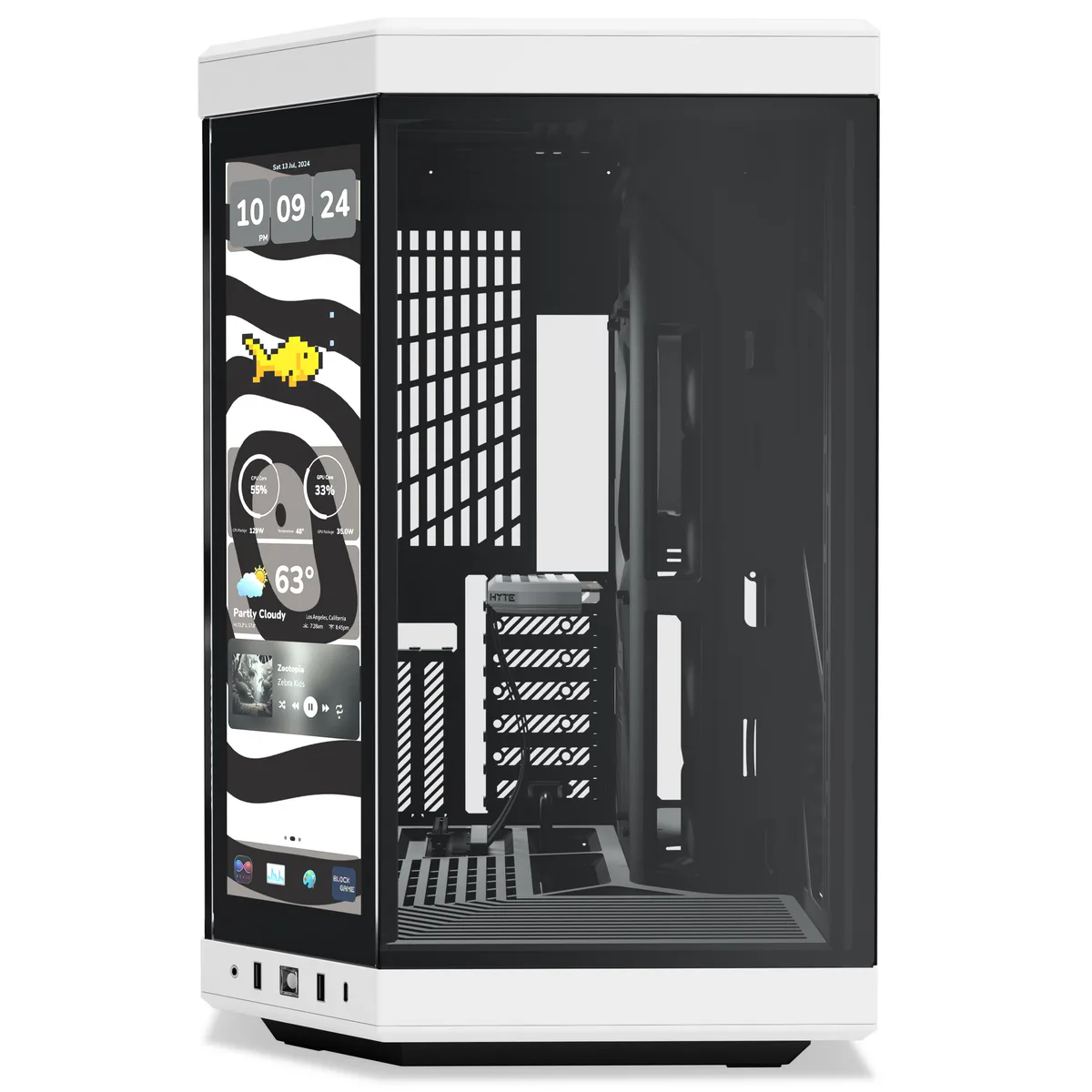

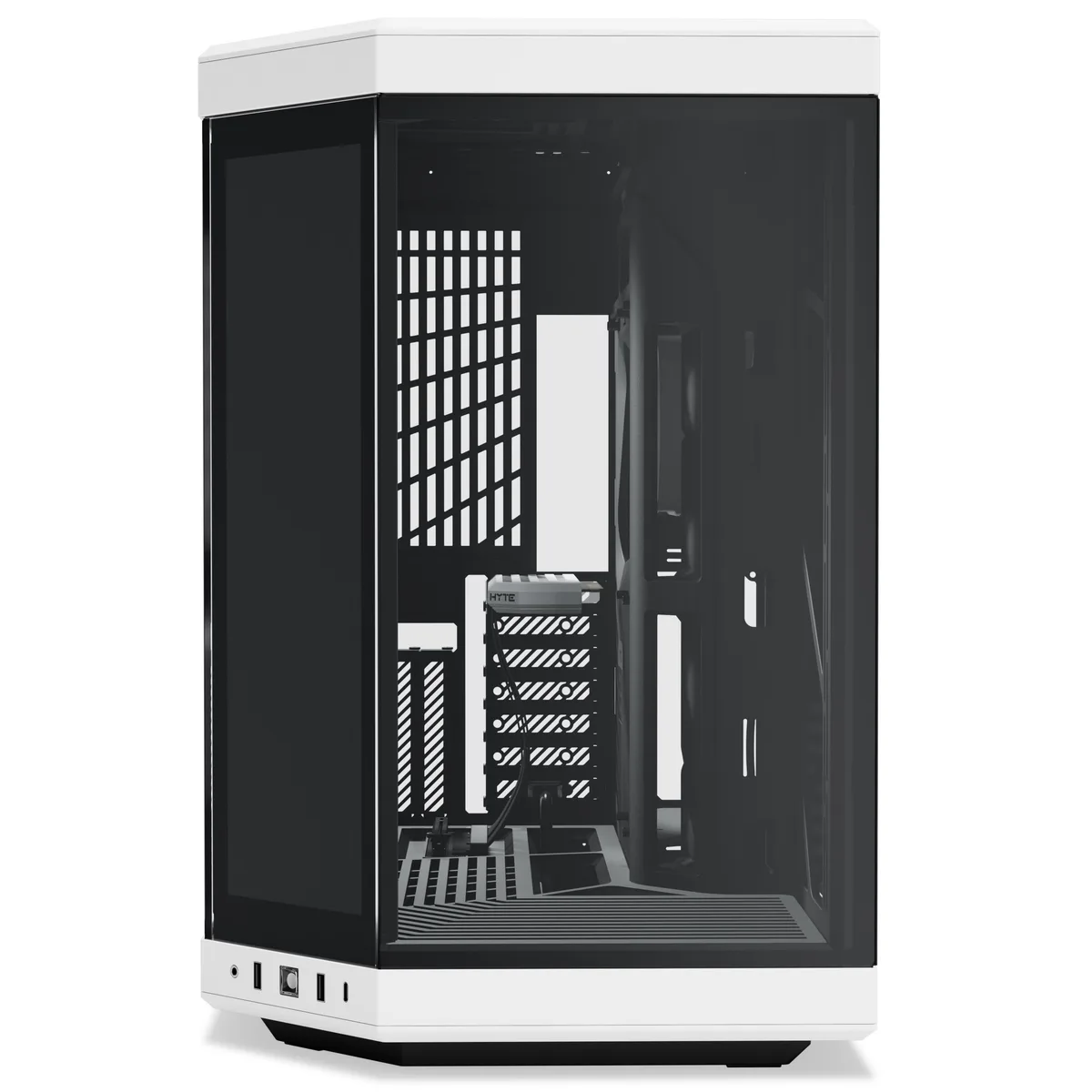

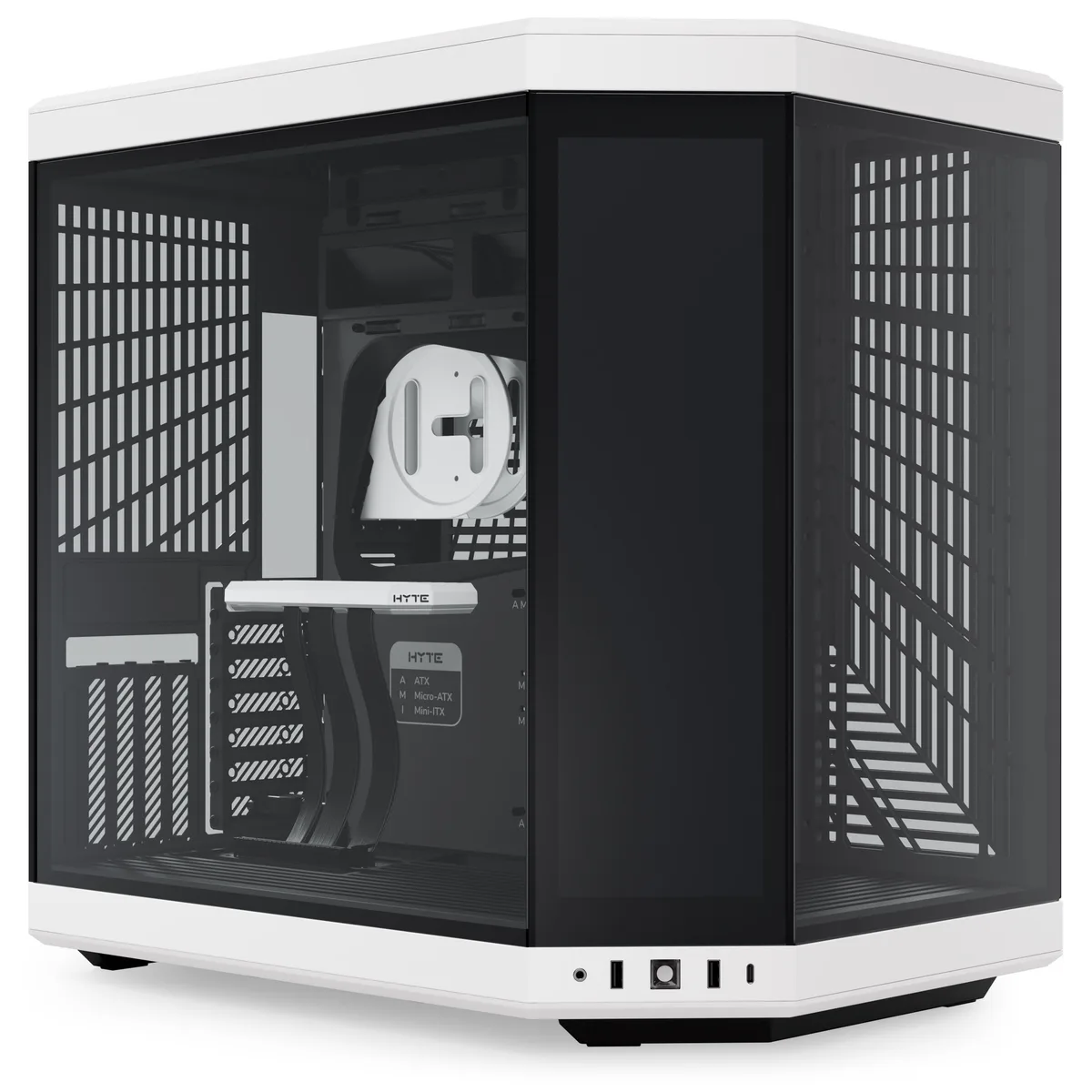

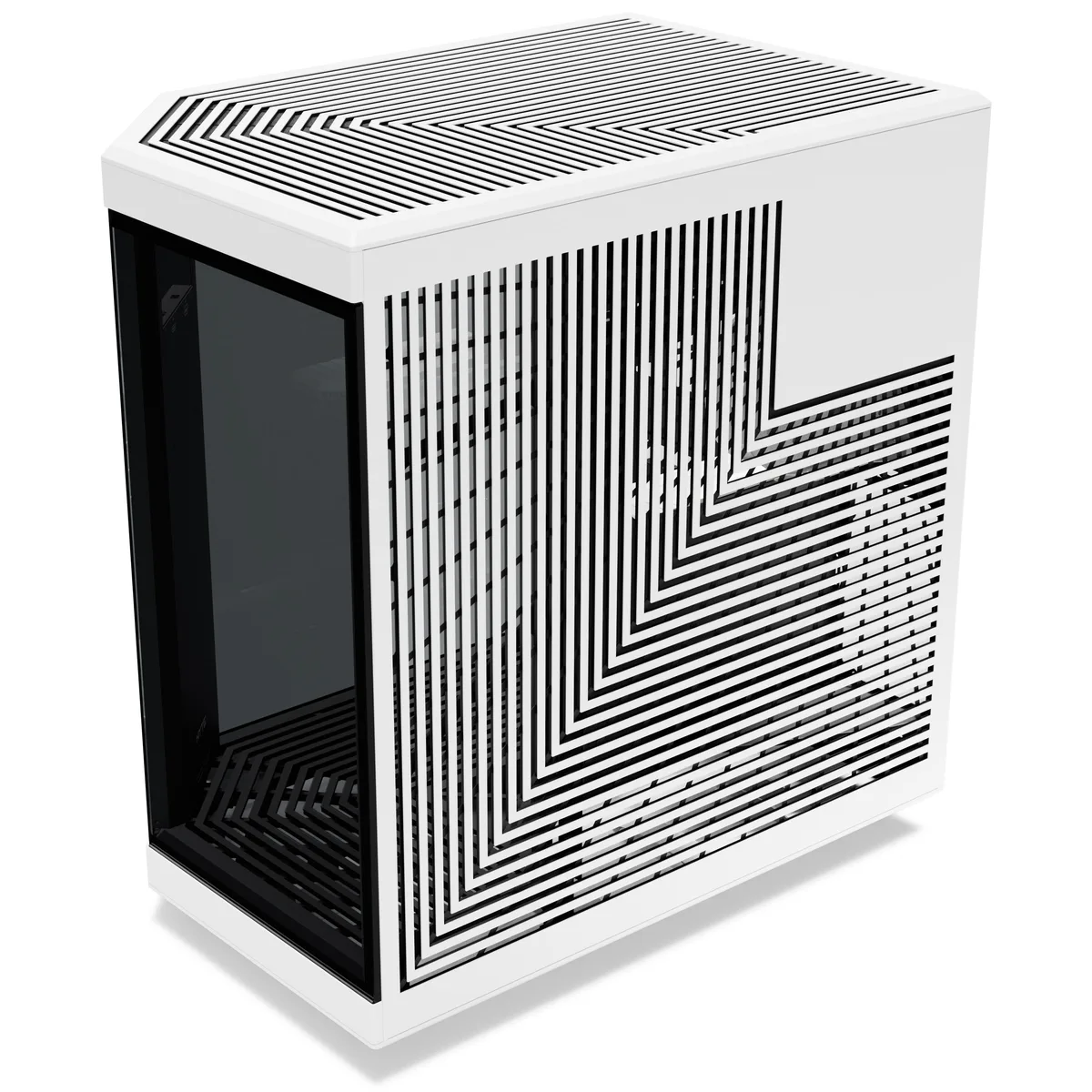

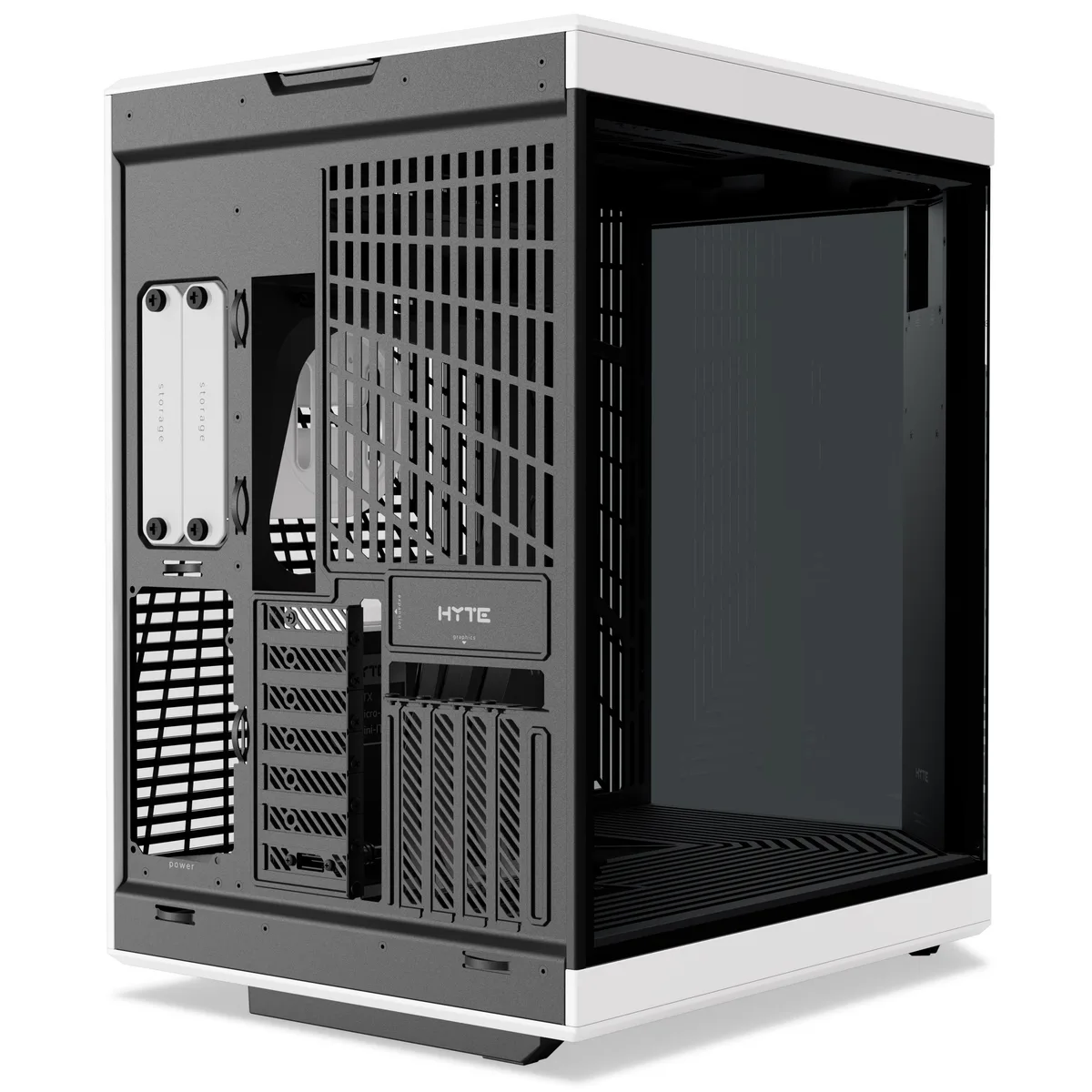

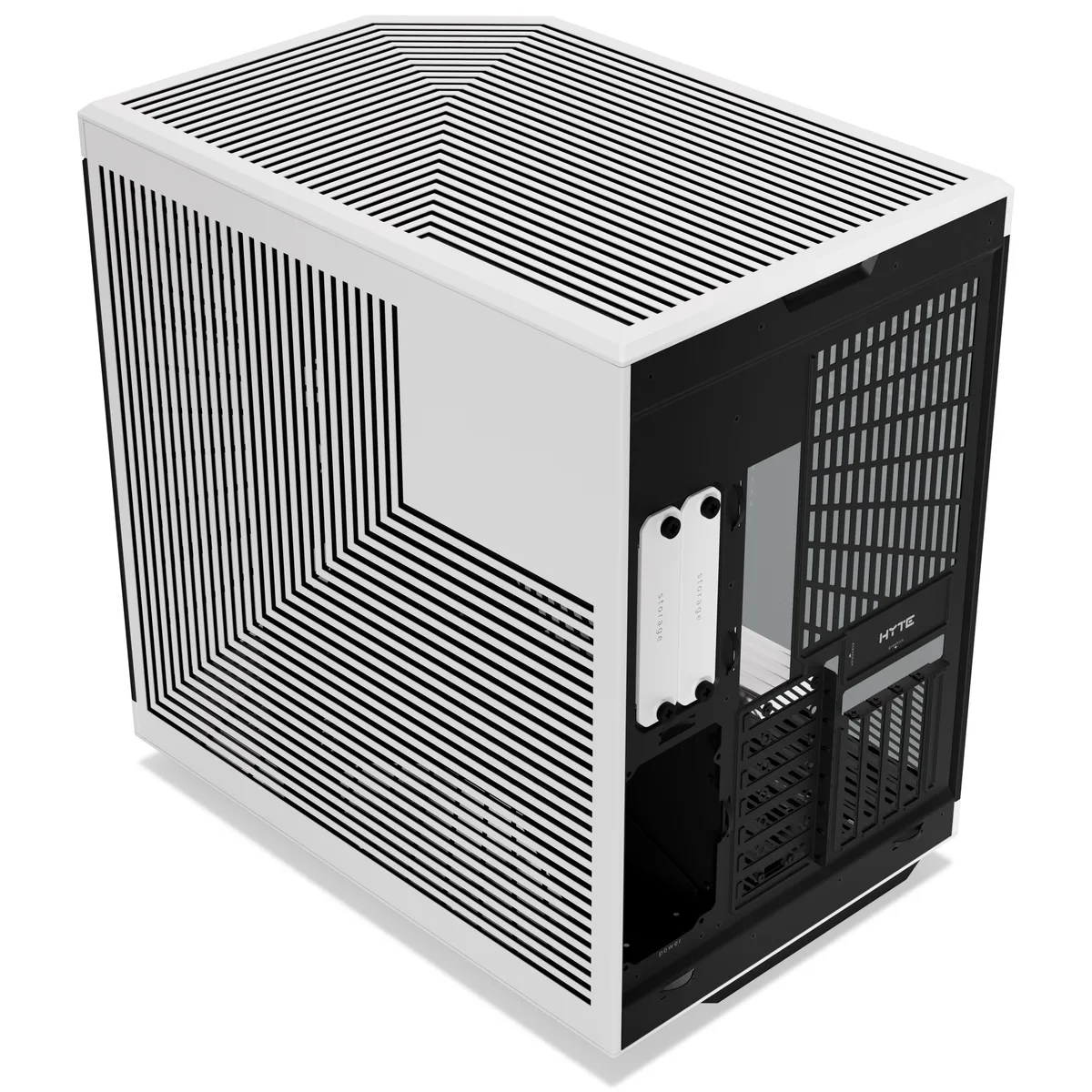

Hyte Y70 TOUCH Infinite - Panda
£352.94
Model: CS-HYTE-Y70TTI-WB
Technical Specifications78 specs
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
CS-HYTE-Y70TTI-WB
Gtin
1220000351769
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
Yes
Riser Cable Generation
PCIe 4.0
Case
Case Type
Mid Tower
Case Features
I O Position
Front
Side Panel
with window
Vertical Gpu Mount
Yes
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Top, Bottom, Side
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Secondary Colour
White
Dimensions
Length Depth
470 mm
Width
320 mm
Height
470 mm
Weight
11.05 kg
Display
Display Included
Yes
Display Size In Inch
14.9 "
Display Resolution
2.5K (682 x 2560 Pixel)
Display Refresh Rate
60 Hz
Display Panel Type
IPS
Screen Brightness Sdr Normal
500 cd/m²
Drive Bays
Max 2 5 Inch Drives
4
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
4
3 5 Inch Internal Drive Bay
2
1x 3 5 1x 2 5 Inch Internal Drive Bays Combined
2
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
11
Pci Slot Allocation
4 + 7
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Rear
120mm Fan (1x), 140mm Fan (1x)
Case Fan Support Bottom
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support Top
120mm Fan (3x), 140mm Fan (2x)
Max Number Of Fans
10
Case Fan Support Side
120mm Fan (3x), 140mm Fan (2x)
120 Mm Fans
10
140 Mm Fans
7
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
180 mm
Max Gpu Length
390 mm
Max Gpu Width
105 mm
Max Psu Length Depth
235 mm
Inner Volume
70.7 l
Lighting
Lighting Rgb
No
Materials
Materials
ABS, Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Mounting
Internal Monitor Mount
Yes
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear side
Product Series
Product Series Family
Y70 Touch
Radiator Support
Max Radiator Compatibility
1x 120/140 mm, 2x Triple (360 mm)
Radiator Aio Support Rear
120mm Radiator, 140mm Radiator
Radiator Aio Support Top
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
Radiator Aio Support Side
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
Set
Set
No
