CasesHYTE

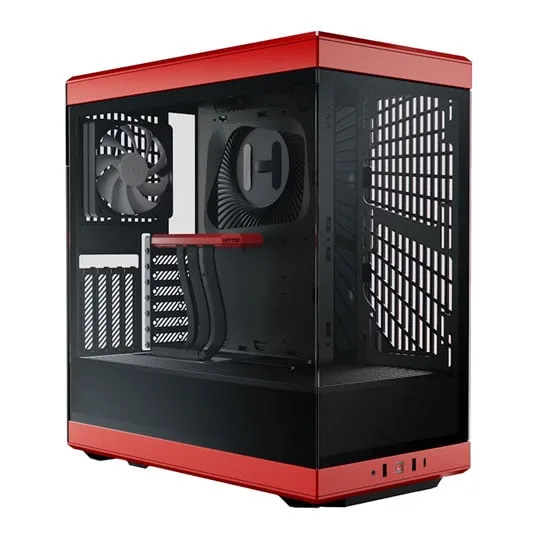

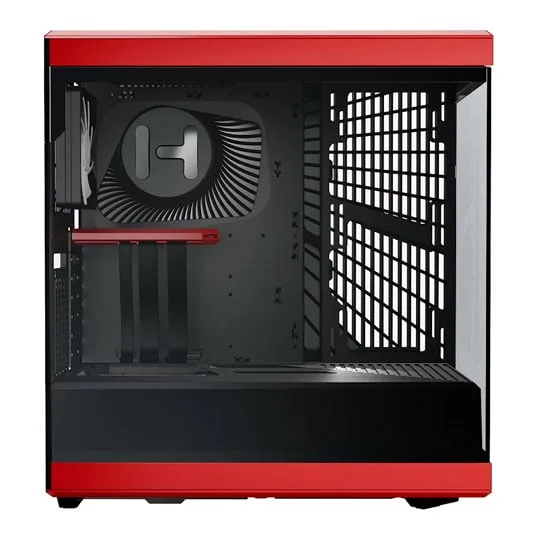

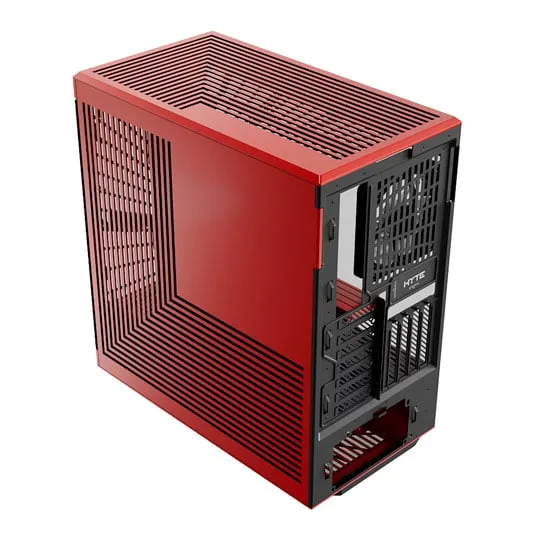

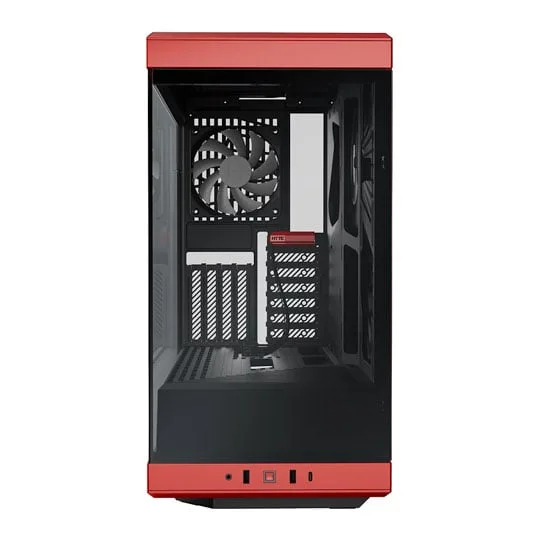

HYTE Y40 Red Panoramic Glass Mid-Tower ATX Case
MPN: CS-HYTE-Y40-BR
Key specifications
Max GPU422 mm
Max Cooler183 mm
Max PSU224 mm
Form factorMid Tower
Full Specifications41 fields
Additional Information
Model Number
CS-HYTE-Y40-BR
Gtin
1220000350304
Chassis Physical Specifications
Colour
Red
Chassis Construction Materials
-
Dimensions
240 x 439 x 472 (WxHxD mm)
Weight
-
Package Type
-
Please Note
-
Clearances
Max Cooler Height
183 mm
Max Gpu Length
422 mm
Cable Routing Space
-
Core Chassis Specifications
Edition
Y40 Red
Case Form Factor
Mid Tower
Motherboard Form Factor
ATX
MicroATX
Mini-ITX
Back Connect Compatible
No
Fans & Filters
Fan Bays
3 x 120/140mm
4 x 120mm
Fans Included
2 x 120mm
Fan Controller Hub
-
Dust Filters
Bottom
Side
Top
I/O, Bays & Expansion
Front Side Top Panel I O
1 x Headphone/Mic Combo
1 x Power Button with LED
2 x USB 3.0
Drive Bays
1 x 3.5" / 2x 2.5" Internal
Standard Expansion Slots
4 + 6 half-height​
Vertical Expansion Slots
-
LED Lighting Functionality
Led Lighting
No
Led Lighting Emitters
-
Led Lighting Colour
-
Led Lighting Support Control
-
Liquid Cooling Support
Front Radiator Compatibility
-
Top Radiator Compatibility
1 x 120/240/360mm
Bottom Radiator Compatibility
-
Rear Radiator Compatibility
1 x 120mm
Side Radiator Compatibility
1 x 120/140/240/280mm
Power Supply Compatibility
Psu Included
No
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
-
Psu Mounting Location
Bottom Mount, Rear
Max Psu Length
224 mm
Side Panels
Window S
Yes
Window Configuration
1 x Front
1 x Main Side
Window Construction
Tempered Glass (Tinted)
Best indexed price
£111.99GBP
Indexed 25 May 2026 — verify at retailer
