CasesHYTE

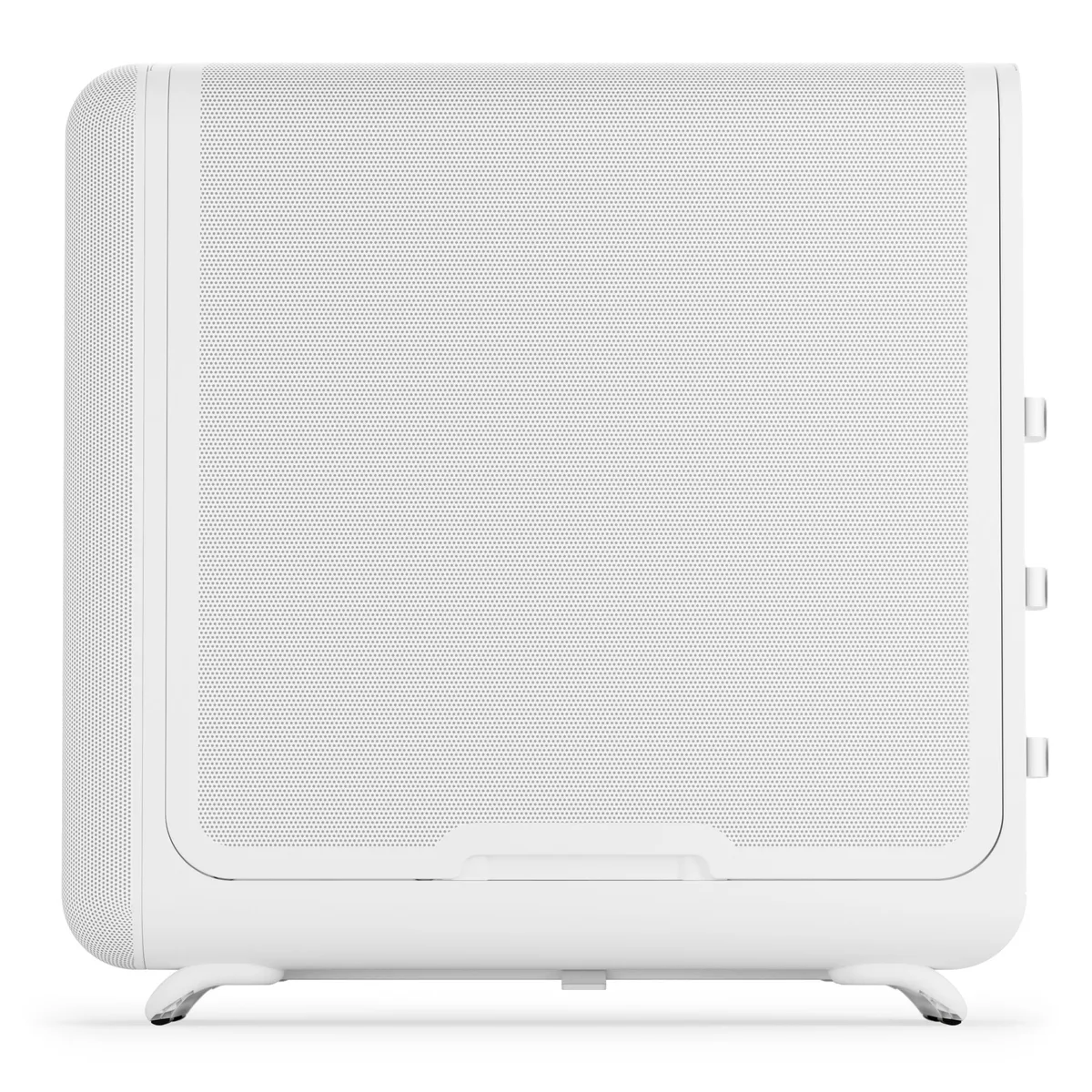

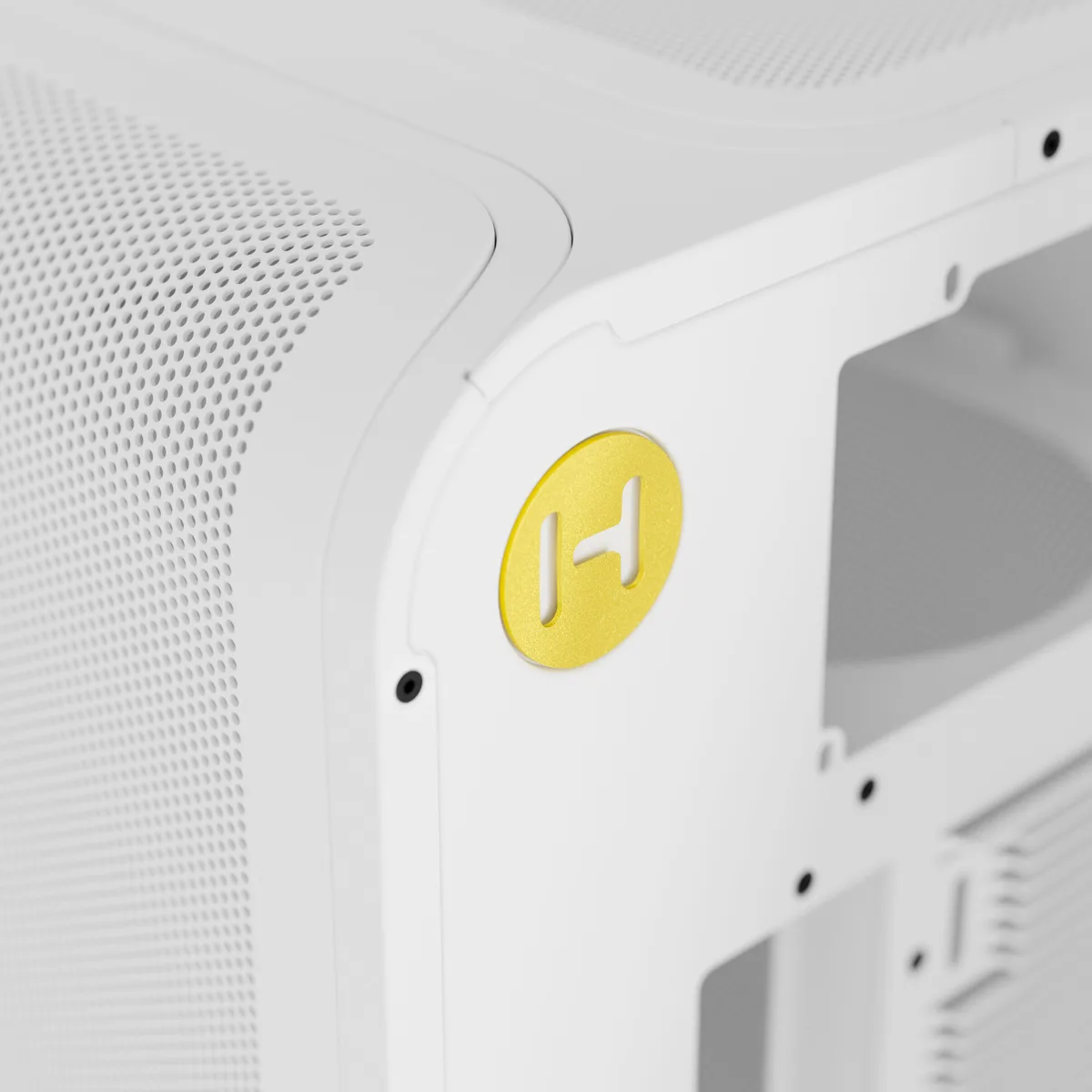

HYTE X50 AIR Modern Performance Mid-Tower ATX Case - SNOW WHITE
Model: CS-HYTE-X50A-WW
Technical Specifications63 specs
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
CS-HYTE-X50A-WW
Gtin
1220000352537
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Top
Side Panel
with mesh
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
White
Dimensions
Length Depth
510 mm
Width
255 mm
Height
485 mm
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
2
Max 3 5 Inch Drives
1
Max 5 25 Inch Drives
0
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Side
120mm Fan (3x)
Case Fan Support Bottom
120mm Fan (3x)
Case Fan Support Front
120mm Fan (3x), 140mm Fan (3x)
Max Number Of Fans
10
Case Fan Support Rear
120mm Fan (1x)
120 Mm Fans
10
140 Mm Fans
3
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
170 mm
Max Gpu Length
430 mm
Max Gpu Width
160 mm
Max Psu Length Depth
223 mm
Inner Volume
63 l
Lighting
Lighting Rgb
No
Materials
Materials
ABS, Steel
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear top
Product Series
Product Series Family
X50
Radiator Support
Max Radiator Compatibility
360
Radiator Aio Support Front
360mm Radiator
Radiator Aio Support Side
360mm Radiator
Radiator Aio Support Rear
120mm Radiator
