Technical Specifications70 specs
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
HVN-CA-HS420-06
Gtin
4251442512149
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Cover
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Top, Bottom, Side
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Compliance
Compliance Documents
HAVN HS 420 Compliance and Safety
Manufacturer Information
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Responsible Person
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Dimensions
Length Depth
541 mm
Width
259.5 mm
Height
547 mm
Weight
17.84 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
10
Max 3 5 Inch Drives
5
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
8
3 5 Inch Internal Drive Bay
4
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
6

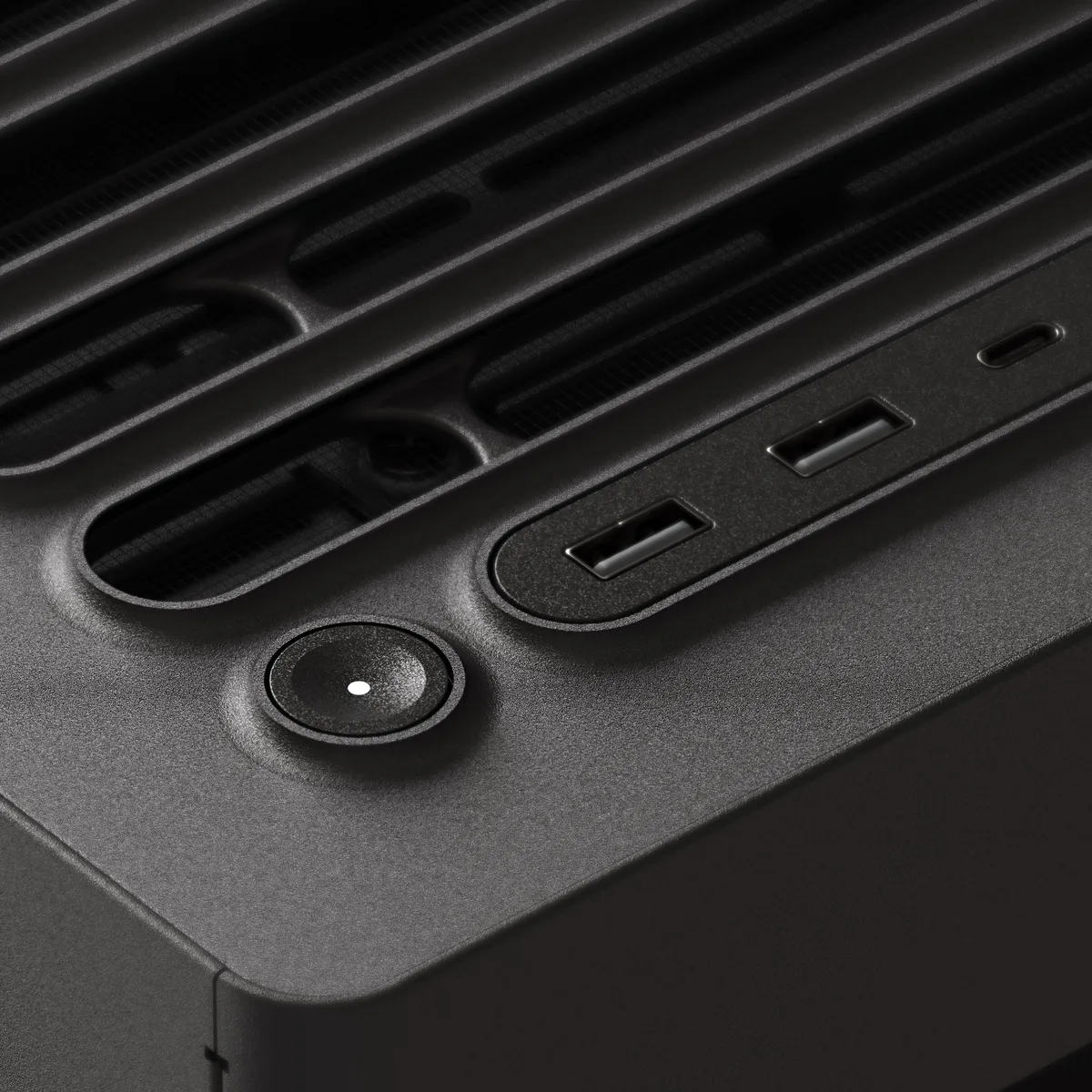

External Ports
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
Yes
4 Pin Fan Connectors
12
Fan Support
Case Fan Support Top
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Rear
120mm Fan (2x), 140mm Fan (2x)
Case Fan Support Side
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Bottom
120mm Fan (3x), 140mm Fan (3x)
Max Number Of Fans
11
120 Mm Fans
11
140 Mm Fans
11
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
185 mm
Max Gpu Length
480 mm
Max Gpu Width
195 mm
Max Psu Length Depth
220 mm
Lighting
Lighting Rgb
No
Materials
Materials
ABS, Nylon, Silicone, Zinc alloy, Tempered Glass, SGCC (Steel)
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Mounting
Internal Monitor Mount
Yes
Case Vesa Mountable
No
Vesa Standard
75 x 75 mm, 100 x 100 mm
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear side / bottom
Product Series
Product Series Family
HS 420
Radiator Support
Radiator Aio Support Bottom
280mm Radiator, 360mm Radiator, 420mm Radiator
Radiator Aio Support Top
280mm Radiator, 360mm Radiator, 420mm Radiator
Radiator Aio Support Side
280mm Radiator, 360mm Radiator, 420mm Radiator
Max Radiator Compatibility
3x Triple (420 mm)
