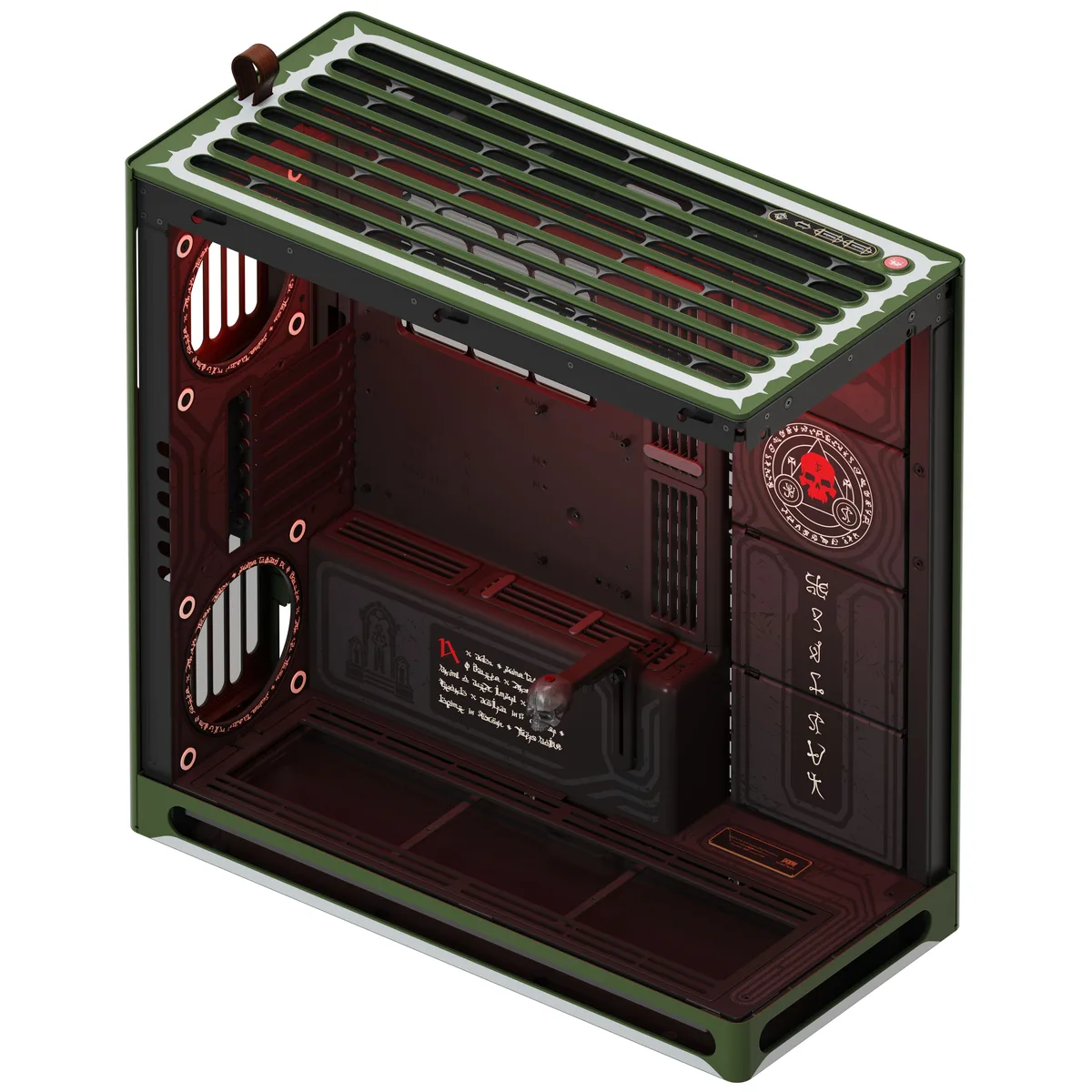

HAVN HS 420 DOOM The Dark Ages Limited Edition - Premium Mid Tower Case
MPN: HVN-CA-HS420-05-DOOM
Key specifications
Max GPU480.0 mm
Max Cooler185.0 mm
Max PSU220.0 mm
Form factorUnknown
Best indexed price
Price unavailable
Retailer offers
Amazon UKProduct link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 480.0mm GPU clearance.
Supports up to 185.0mm CPU cooler height.
Full Specifications71 fields
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
HVN-CA-HS420-05-DOOM
Gtin
4251442513580
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Green
Compliance
Compliance Documents
HAVN HS 420 Compliance and Safety
Manufacturer Information
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Responsible Person
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Connectivity
Card Reader
No
Dimensions
Length Depth
541 mm
Width
259.5 mm
Height
547 mm
Weight
18.25 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
10
Max 3 5 Inch Drives
5
Max 5 25 Inch Drives
0
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
6
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
Yes
4 Pin Fan Connectors
12
Fan Support
Case Fan Support Top
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Rear
120mm Fan (2x), 140mm Fan (2x)
Case Fan Support Bottom
120mm Fan (3x), 140mm Fan (3x)
Max Number Of Fans
11
Case Fan Support Side
120mm Fan (3x), 140mm Fan (3x)
120 Mm Fans
11
140 Mm Fans
11
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
185 mm
Max Gpu Length
480 mm
Max Gpu Width
195 mm
Max Psu Length Depth
220 mm
Lighting
Lighting Rgb
Yes
Rgb Controller
No
Materials
Materials
Plastic, ABS, Nylon, Silicone, Aluminium, Zinc alloy, Tempered Glass, SGCC (Steel)
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Mounting
Internal Monitor Mount
Yes
Case Vesa Mountable
No
Vesa Standard
75 x 75 mm, 100 x 100 mm
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Product Series
Product Series Family
HS 420
Radiator Support
Radiator Aio Support Bottom
280mm Radiator, 360mm Radiator, 420mm Radiator
Radiator Aio Support Side
280mm Radiator, 360mm Radiator, 420mm Radiator
Radiator Aio Support Top
280mm Radiator, 360mm Radiator, 420mm Radiator
Max Radiator Compatibility
3x Triple (420 mm)
