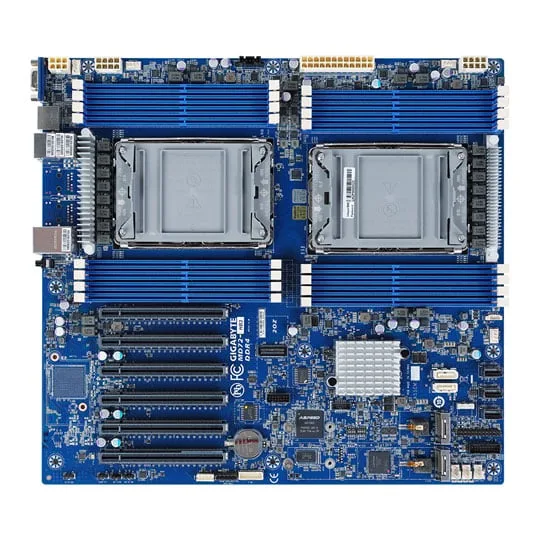

Gigabyte MD72-HB3 Intel Xeon Server/Workstation Motherboard
Quick Specs
MemoryRDIMM / RDIMM 3DS / LRDIMM / LRDIMM 3DS
Form FactorE-ATX
M.2 Slots1
Model: 9MD72HB3MR-00
Technical Specifications30 specs
Additional Information
Model Number
9MD72HB3MR-00
Additional Specifications
Water Cooled
No
Cooling
-
Qpi Speed
N/A
Dimensions
409 x 355 x 78 mm
Note
-
Core Specifications
Edition
MD72-HB3
Form Factor
E-ATX
Socket
-
Chipset
-
External Connectivity
Network Interface Type
Dual Wired Gigabit LAN (10/100/1000) + Mgmt LAN
Network Chip Modules
2 x Intel® I210AT (Gigabit LAN)
1 x Mgmt LAN (10/100/1000)
Rear I O Connectors
1 x ID Button with LED
2 x RJ-45
1 x RJ-45 Mgmt LAN
1 x Serial (COM) Port (with RJ45)
2 x USB 3.0
1 x VGA
Graphics Support
Primary Gpu Interface
PCIe
Nvidia Sli Support
N/A
Amd Crossfire Support
N/A
Integrated Graphics
Integrated ASPEED AST2600
On Board Graphics Connectors
D-Sub (VGA)
Internal Connectivity
Expansion Slots
2 x M.2, 22-80/110, PCIe Gen4x4
6 x PCIe 4.0 x16
Sata Support
SATA3
Raid Support Via
Intel® SATA RAID 0/1/10/5
Storage Mode Support
RAID 0
RAID 1
RAID 10
RAID 5
Internal I O
1 x 24-pin (Power)
1 x 6-pin PCIe (Power)
2 x 8-pin (Power)
1 x BIOS Recovery Jumper
1 x Clear CMOS jumper
2 x CPU Fan Connector
1 x Front Panel Connector
1 x HDD Back Plane Board Header
1 x IPMB Connector/Header
1 x PMBus Connector
2 x SATA III - 6Gb/s
3 x SlimSAS Connector
5 x System Fan header
1 x TPM (SPI_TPM) header
1 x TPM Header
1 x USB 3.0 Connector
1 x VROC Connector
RAM Memory Support
Memory Type
DDR4
Memory Channel
Octa (8)
Memory Type Ecc
-
Memory Type R U
RDIMM / RDIMM 3DS / LRDIMM / LRDIMM 3DS
Memory Speed Mhz
DDR4 - 2666
DDR4 - 2933
DDR4 - 3200
Max Memory Capacity
256GB (16x16GB)
General
Audio
-
