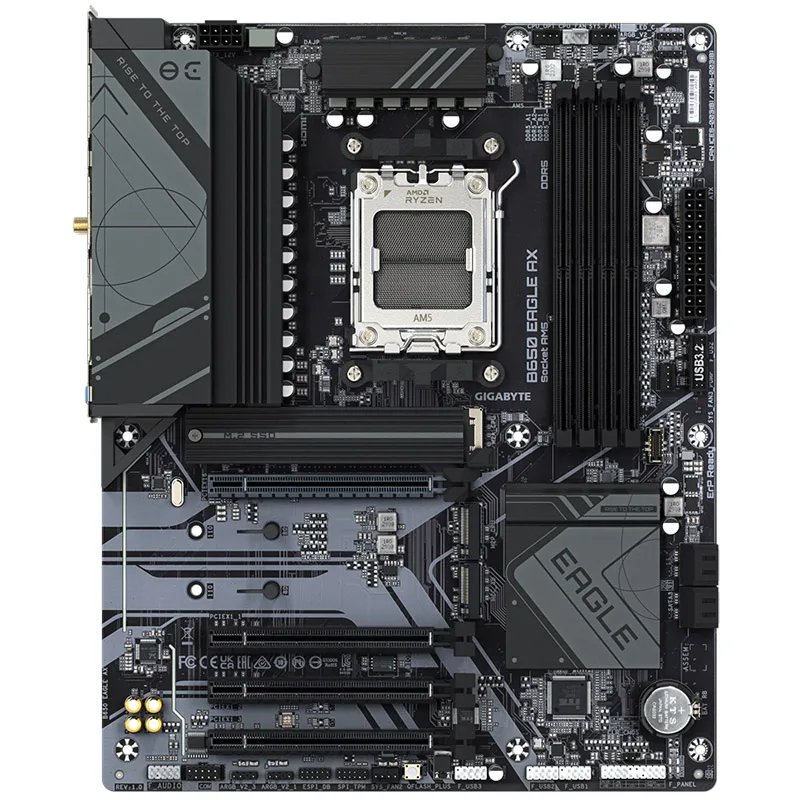

Gigabyte B650 EAGLE AX (Socket AM5) DDR5 ATX Motherboard
£110.99
Quick Specs
ChipsetAMD B650
SocketAM5
MemoryDDR5
Form FactorATX
M.2 Slots2
Model: B650 EAGLE AX
Technical Specifications60 specs
Additional Information
Model Number
B650 EAGLE AX
Gtin
4719331860158
Additional Specifications
Water Cooled
No
Cooling
Passive Heatsinks
Qpi Speed
N/A
Dimensions
305 x 244 mm
Note
-
Colour
Primary Colour
Black
Secondary Colour
Grey
Core Specifications
Edition
B650 EAGLE AX
Form Factor
ATX
Chipset
AMD B650
CPU
Cpu Manufacturer
AMD
Socket
AM5
Expansion Slots
Pcie X16 Slots Total
4
Pcie 4 0 X16 Mechanical Slot
1
Pcie 3 0 X16 Mechanical Slot
3
External Connectivity
Network Interface Type
Wired Gigabit LAN (10/100/1000)
Network Chip Modules
-

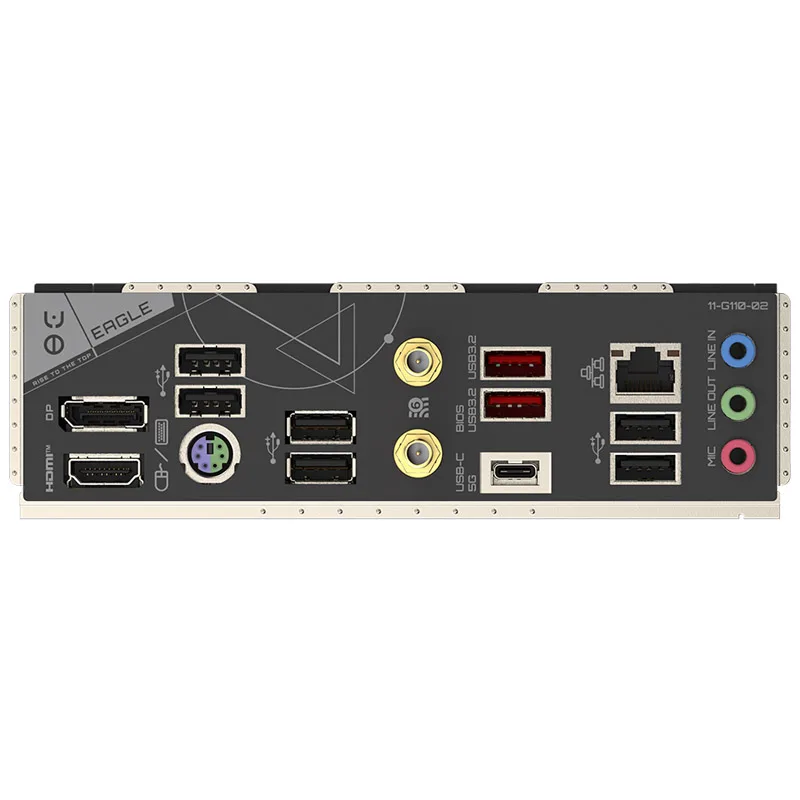

Rear I O Connectors
1 x DisplayPort
1 x HDMI
1 x Line In
1 x Line Out
1 x Mic-In
1 x PS/2 Keyboard/Mouse Combo
1 x RJ-45
2 x SMA antenna connectors (2T2R)
6 x USB 2.0
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen2 Type-A
External Ports
Usb 3 1 External Type A
2
Usb 3 0 External Type C
1
Display Connectors
HDMI (1x), Display Port (1x)
Fan Header
4 Pin Fan Connectors
5
Form Factor
Motherboard Formfactor
ATX
Graphics Support
Primary Gpu Interface
PCIe 4.0 (x16)
Nvidia Sli Support
N/A
Amd Crossfire Support
N/A
Integrated Graphics
-
On Board Graphics Connectors
DisplayPort 1.4
HDMI 2.1
Internal Connectivity
Expansion Slots
1 x M.2 PCIe
2 x M.2, 22-80/110, PCIe Gen4x4
3 x PCIe 3.0 x16 (x1 Bandwidth)
1 x PCIe 4.0 x16
4 x SATA 6GB/s
Sata Support
SATA3
Raid Support Via
-
Storage Mode Support
RAID 0
RAID 1
RAID 10
Internal I O
1 x 24-pin (Power)
1 x 8-pin (Power)
3 x Addressable Gen 2 Header
1 x Clear CMOS jumper
1 x CPU Fan Connector
1 x CPU Water Pump/Fan Connector
1 x Front Panel Audio Header
1 x Front Panel Connector
3 x M.2 Connector
1 x Q-Flash Plus Button
1 x RGB Header
4 x SATA III - 6Gb/s
1 x Serial (COM) Header
2 x System Fan header
1 x System Fan/Water Pump Header
1 x TPM Header
3 x USB 2.0 Header
2 x USB 3.2 Gen1 Header
Internal Ports
Cpu Power Supply
1x 8-Pin
Usb 3 0 3 1 3 2 Internal Type C Possible Ports
1
Usb 3 0 Internal Possible Ports
2
Rgb Led Connectors
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
Lighting
Lighting Rgb
No
Memory
Max Memory
192 GB
Memory Type
DDR5
Memory Form Factor
DIMM
Memory Slots
4x
Motherboard
Motherboard Chipset
AMD B650
RAM Memory Support
Memory Channel
Dual (2)
Memory Type Ecc
Non-ECC
Memory Type R U
UDIMM (Unbuffered)
Memory Speed Mhz
DDR5 - 4400
DDR5 - 4800
DDR5 - 5200
DDR5 - 5600(OC)
DDR5 - 6000(OC)
DDR5 - 6200(OC)
DDR5 - 6400(OC)
DDR5 - 6600(OC)
DDR5 - 6800(OC)
DDR5 - 7000(OC)
DDR5 - 7200(OC)
DDR5 - 7600(OC)
Max Memory Capacity
192GB
Storage Ports
M 2 Pcie 4 0 X2
1
M 2 Pcie 4 0 X4
1
Sata 6g Internal
4
Wi
Fi Lan Lan
Yes
Fi Lan Lan Ports
1x 1 Gbit/s
Fi Lan Wi Fi Bluetooth
Yes
General
Audio
7.1 Channel HD Audio
