Graphics CardsGigabyte

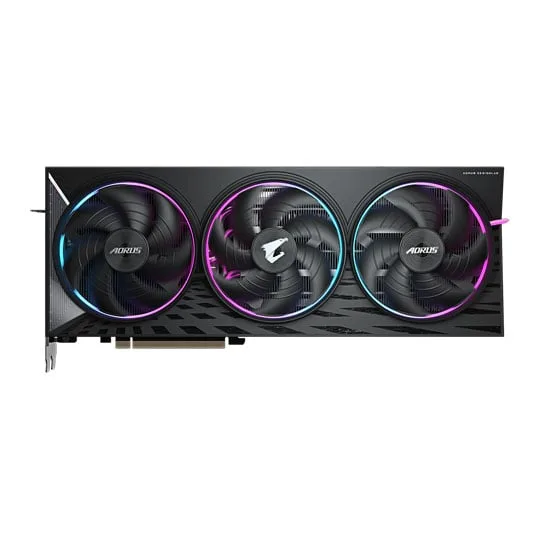

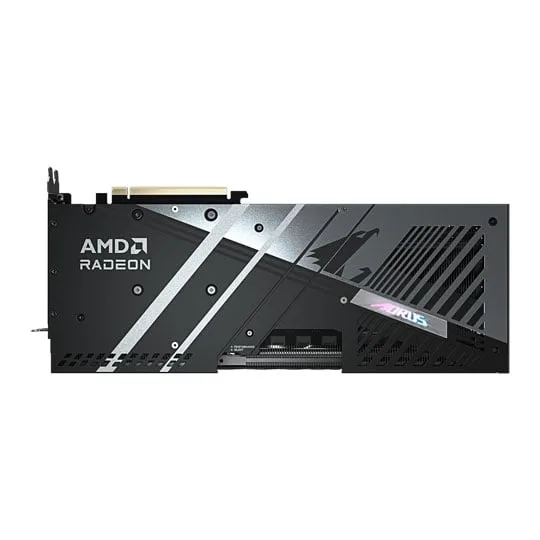

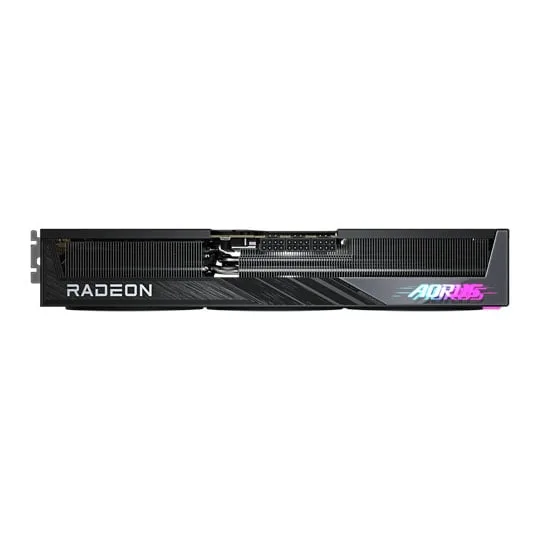

Gigabyte AORUS AMD Radeon RX 9070 XT ELITE Graphics Card
MPN: GV-R9070XTAORUS E-16GD
Key specifications
ChipsetRX 9070 XT
VRAM16 GB GB
Boost clockUnknown
Length339 mm
Slot widthUnknown
Min PSU850 W
Full Specifications72 fields
Additional Information
Model Number
GV-R9070XTAORUS E-16GD
Gtin
4719331355517
AI
Ai Accelerator
AMD AI-Accelerator
Ai Acceleration
Yes
Clock Speeds
Max Gpu Clock Base
1870 MHz
Max Gpu Clock Game
2570 MHz
Max Gpu Clock Boost
3100 MHz
Colour
Primary Colour
Black
Cooling
Number Of Gpu Fans
3
Included Backplate
Yes
Cores & Clocks
Streams
4096
Core Clock
-
Boost Clock
-
Dimensions
Length Depth
339 mm
Height
59 mm
Expansion Slots
Expansion Slots Required
3 Slots
External Ports
Display Connectors
HDMI (2x), Display Port (2x)
Display Connector Standards
HDMI 2.1, DisplayPort 2.1
Features
Virtual Reality Ready
Yes
GPU Model
Gpu Series Name
AMD Radeon RX 9070 XT
Graphics Chip
Navi 48 XTX
Shader Units
4096
Raytracing Cores Ray Acceleratorss
64
Gpu Memory Type
GDDR6
Slot Type Standard
PCIe 5.0
Compute Units
64
Gpu Memory Size Gb
16
Gpu Memory Interface Bit
256
Gpu Memory Bandwidth Gb S
644.6
Gpu Memory Clock Mhz
2518
Gpu Memory Clock Effective Gbps
20.1
Graphics Card
Gpu Series
RX 9000 Series
Internal Ports
Required Power Connectors
8-pin PCIe (3x)
I/O & Connectivity
Interface
PCIe 5.0 (x16)
Connectivity
2 x DisplayPort 2.1a
2 x HDMI 2.1b
Key Specifications
Chipset
Radeon RX 9070 XT
Edition
AORUS Radeon™ RX 9070 XT ELITE 16G
Manufacturing Process
4 nm
Microarchitecture
RDNA 4
Lighting
Lighting Rgb
Yes
Physical
Width
Triple Slot
Low Profile Support
-
Dimensions
339 x 136 x 59 mm
Package Type
Retail
Power & Thermals
Graphics Card Power Connectors
3 x 8-pin PCIe
Tdp
-
Minimum Recommended Psu
850 W
Maximum Gpu Temperature
-
Standards / Specifications
Adaptive Sync Technology G Sync Freesync
AMD Freesync
Video Memory (VRAM)
Vram Size
16GB
Memory Type
GDDR6
Memory Clock
-
Memory Speed Effective With Ddr
-
Memory Bus
256 Bit
Memory Bandwidth
-
Memory Data Rate
-
Visuals
Amd Crossfire Support
Not Supported
Amd Freesync Support
Yes
Hdr Support
Yes
Microsoft Directx Support
12 API
Max Concurrent Displays
4 Displays
Maximum Digital Resolution
7680x4320 (8K UHD)
Maximum Analog Vga Resolution
-
Water Cooling
Watercooling
No
General
Solution
Tri Fan (3)
Peak Half Precision Compute Performance Fp16
-
Peak Single Precision Compute Performance Fp32
-
Peak Double Precision Compute Performance Fp64
-
Best indexed price
£726.97GBP
Indexed 25 May 2026 — verify at retailer
