Technical Specifications67 specs
Additional Contents
Fans Included
Yes
Included Fans
3x 140 mm
Additional Information
Model Number
FD-C-MES3A-02
Gtin
7340172707172
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features

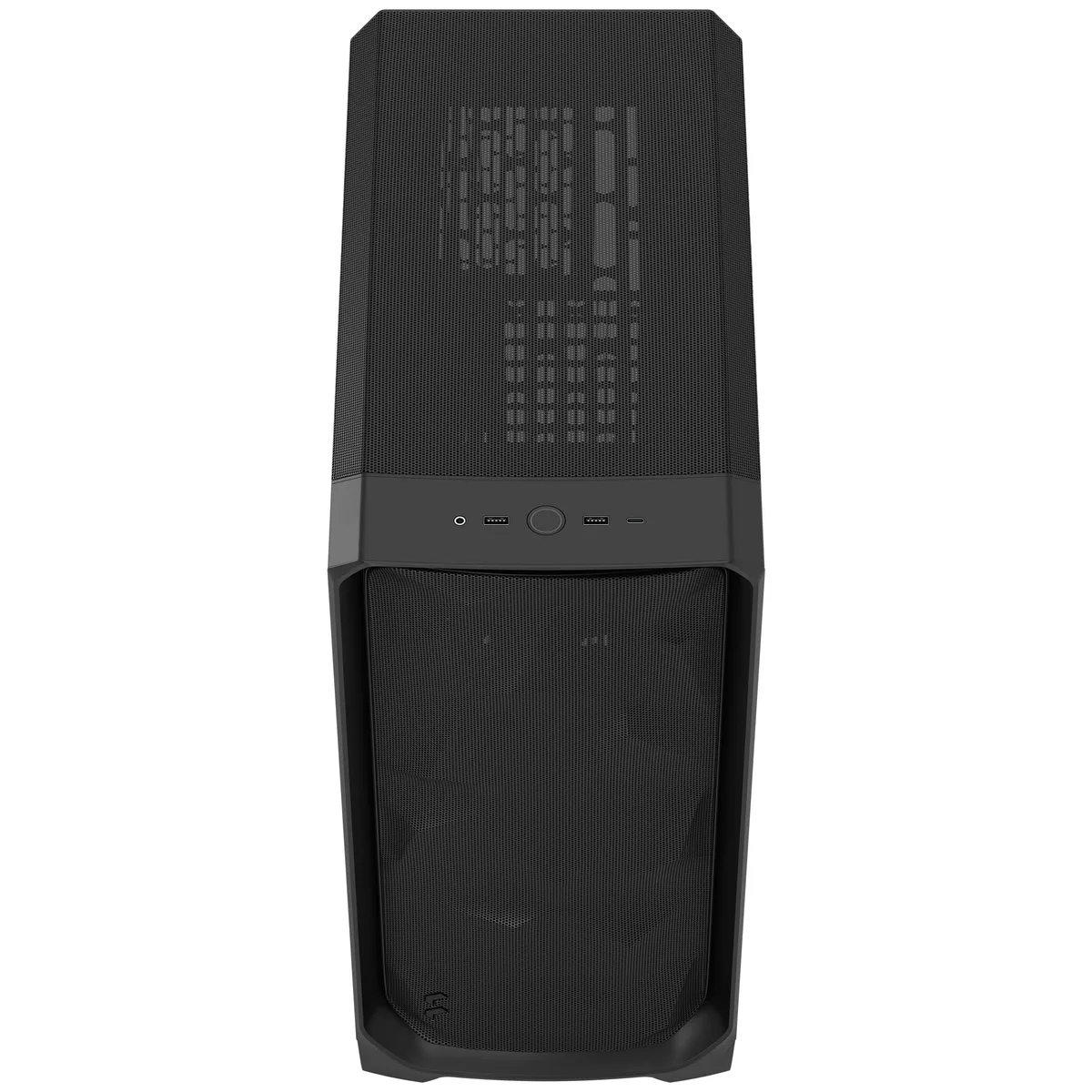

I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Connectivity
Card Reader
No
Dimensions
Length Depth
433 mm
Width
229 mm
Height
507 mm
Weight
8.8 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
6
Max 3 5 Inch Drives
4
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
2
1x 3 5 1x 2 5 Inch Internal Drive Bays Combined
4
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Top
120mm Fan (2x), 140mm Fan (2x)
Case Fan Support Rear
120mm Fan (1x)
Max Number Of Fans
6
Case Fan Support Front
120mm Fan (3x), 140mm Fan (3x)
120 Mm Fans
6
140 Mm Fans
5
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
173 mm
Max Gpu Length
349 mm
Max Gpu Width
176 mm
Max Psu Length Depth
180 mm
Lighting
Lighting Rgb
No
Materials
Materials
Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Radiator Aio Support Front
280mm Radiator, 360mm Radiator
Radiator Aio Support Rear
120mm Radiator
Radiator Aio Support Top
240mm Radiator, 280mm Radiator
Max Radiator Compatibility
1x Triple (360 mm)
Set
Set
No
