CasesDeepcool

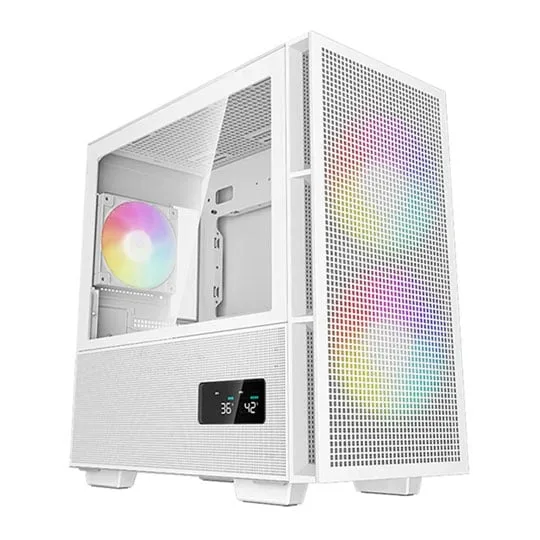

Deepcool CH360 White Tempered Glass MicroATX/Mini-ITX Case
Model: R-CH360-WHAPE3D-G-1
Technical Specifications41 specs
Additional Information
Model Number
R-CH360-WHAPE3D-G-1
Gtin
6933412774686
Chassis Physical Specifications
Colour
White
Chassis Construction Materials
Metal
Dimensions
215 x 431 x 428 (WxHxD mm)
Weight
6 kg (Approx)
Package Type
Retail
Please Note
-
Clearances
Max Cooler Height
165 mm
Max Gpu Length
320 mm
Cable Routing Space
-
Core Chassis Specifications
Edition
CH360 DIGITAL
Case Form Factor
Mini-ITX
Motherboard Form Factor
MicroATX
Mini-ATX
Back Connect Compatible
No
Fans & Filters
Fan Bays
4 x 120/140mm
4 x 120mm
Fans Included
1 x 120mm w/ Addressable RGB LEDs
2 x 140mm w/ Addressable RGB LEDs
Fan Controller Hub
Built-in Fan Hub
Dust Filters
Bottom
Front
Top
I/O, Bays & Expansion
Front Side Top Panel I O
1 x Headphone/Mic Combo
1 x Power On/Off button
1 x RGB LED Control Button
1 x USB 3.0
1 x USB 3.0 Type-C
Drive Bays
3 x 2.5" Internal
2 x 3.5" Internal
Standard Expansion Slots
4
Vertical Expansion Slots
-
LED Lighting Functionality
Led Lighting
Yes
Led Lighting Emitters
Included LED Fan/s
Led Lighting Colour
RGB
Led Lighting Support Control
Control via Inc. Controller/Hub (Buttons/Switches)
Liquid Cooling Support
Front Radiator Compatibility
1 x 120/140/240/280/360mm
Top Radiator Compatibility
1 x 120/140/240mm
Bottom Radiator Compatibility
-
Rear Radiator Compatibility
1 x 120mm
Side Radiator Compatibility
-
Power Supply Compatibility
Psu Included
No
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
-
Psu Mounting Location
Bottom Mount, Front
Max Psu Length
160 mm
Side Panels
Window S
Yes
Window Configuration
1 x Main Side
Window Construction
Tempered Glass
