CasesCooler Master

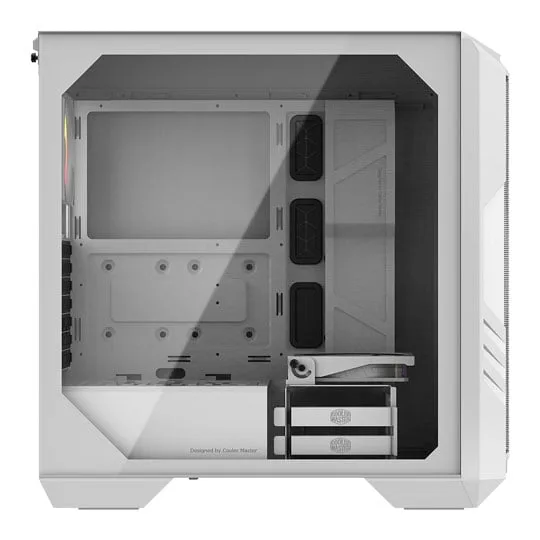

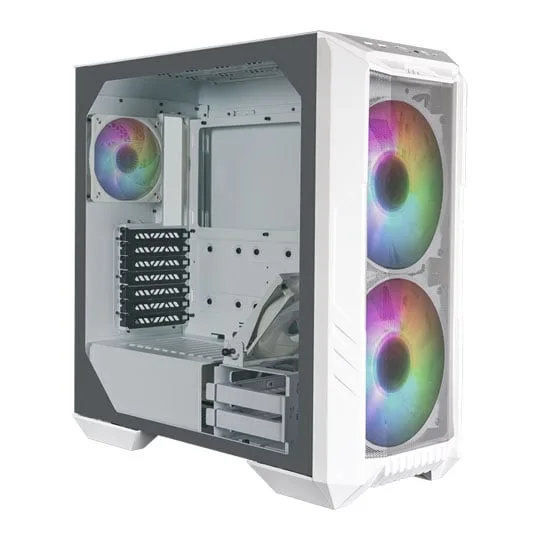

CoolerMaster HAF 500 White ARGB Mid Tower PC Case
MPN: H500-WGNN-S00
Key specifications
Max GPU410 mm
Max Cooler167 mm
Max PSU180 mm
Form factorMid Tower
Best indexed price
Price unavailable
Retailer offers
Amazon UKProduct link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 410mm GPU clearance.
Supports up to 167mm CPU cooler height.
Related Products
Full Specifications41 fields
Additional Information
Model Number
H500-WGNN-S00
Gtin
4719512124192
Chassis Physical Specifications
Colour
White
Chassis Construction Materials
Plastic / Steel / Tempered Glass
Dimensions
224 x 510 x 516 (WxHxD mm)
Weight
9.5 kg (Approx)
Package Type
-
Please Note
-
Clearances
Max Cooler Height
167 mm
Max Gpu Length
410 mm
Cable Routing Space
30 mm
Core Chassis Specifications
Edition
HAF 500
Case Form Factor
Mid Tower
Motherboard Form Factor
ATX
E-ATX
MicroATX
SSI CEB
Back Connect Compatible
No
Fans & Filters
Fan Bays
8 x 120mm / 4x 140mm / 4x 200mm
Fans Included
1 x 120mm
1 x 120mm w/ Addressable RGB LEDs
2 x 200mm w/ RGB LEDs
Fan Controller Hub
-
Dust Filters
Bottom
Top
I/O, Bays & Expansion
Front Side Top Panel I O
1 x HD Audio
2 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-C
Drive Bays
2 x 2.5" Internal
2 x 2.5"/ 3.5" Internal
Standard Expansion Slots
7
Vertical Expansion Slots
-
LED Lighting Functionality
Led Lighting
Yes
Led Lighting Emitters
Included Addressable LED Fan/s
Led Lighting Colour
RGB
Led Lighting Support Control
-
Liquid Cooling Support
Front Radiator Compatibility
1 x 120/140/200/240/280/
360mm
Top Radiator Compatibility
1 x 120/140/240/280/360mm
Bottom Radiator Compatibility
-
Rear Radiator Compatibility
1 x 120mm
Side Radiator Compatibility
-
Power Supply Compatibility
Psu Included
No
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
ATX
Psu Mounting Location
Bottom Mount, Rear
Max Psu Length
180 mm
Side Panels
Window S
Yes
Window Configuration
1 x Main Side
Window Construction
Tempered Glass
