CasesCooler Master

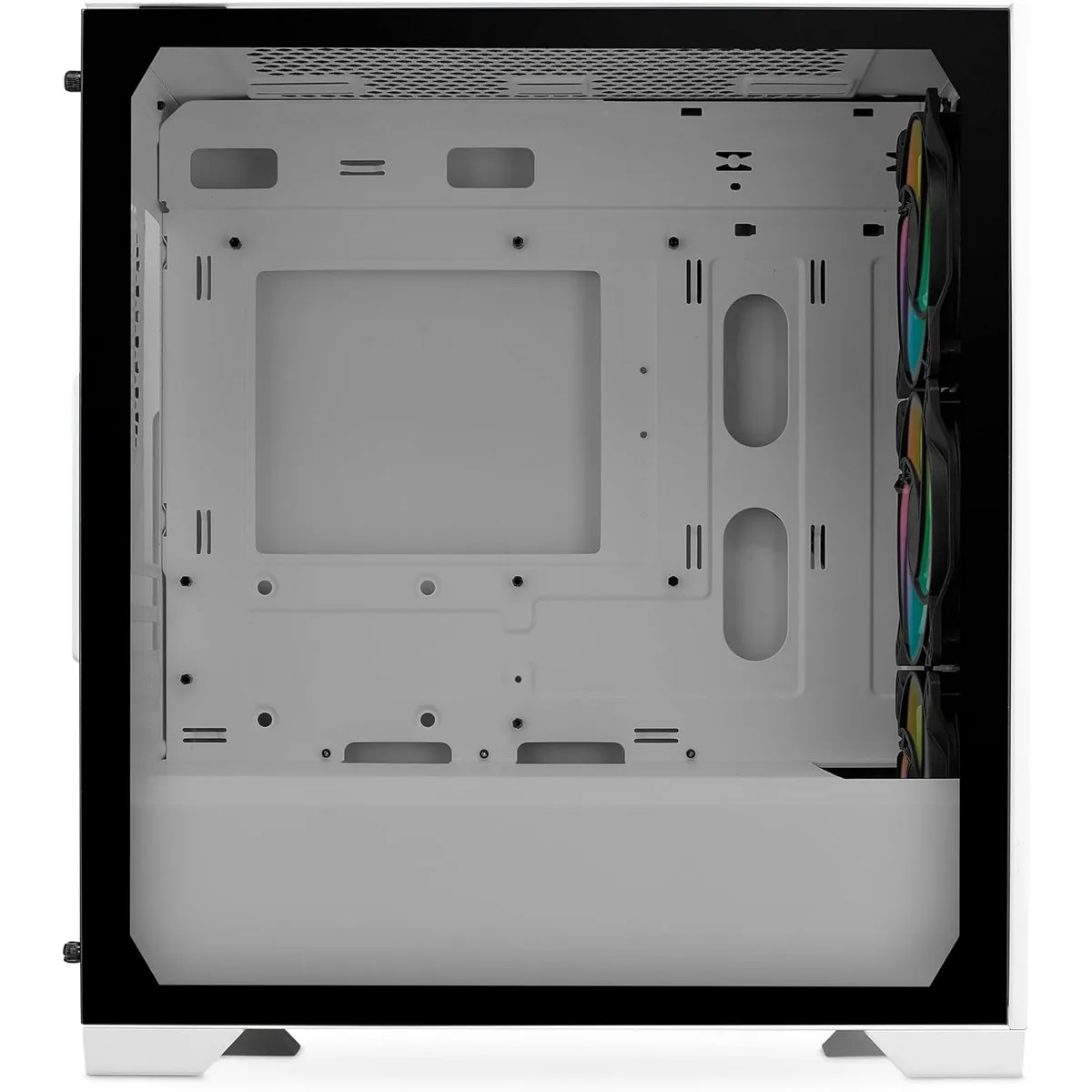

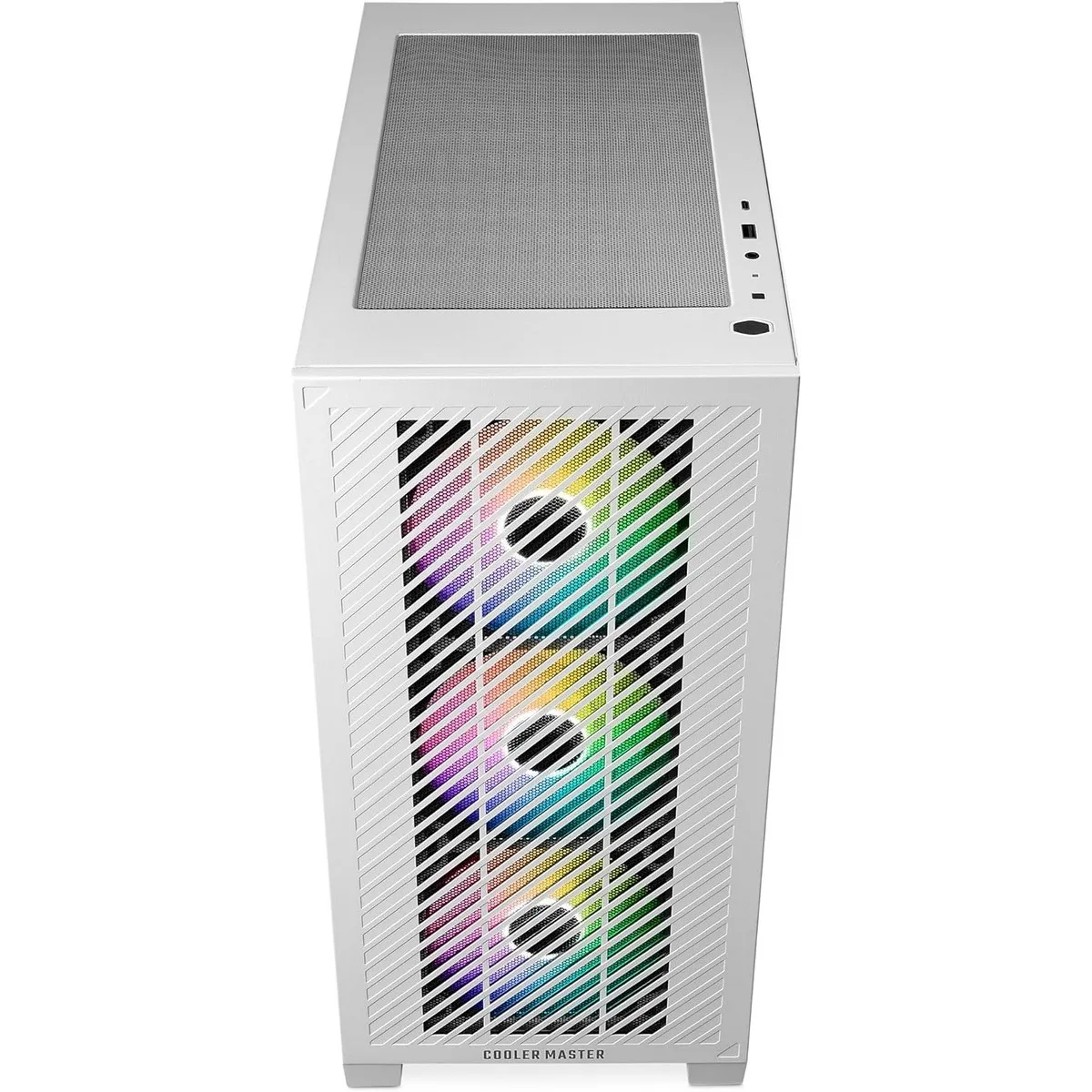

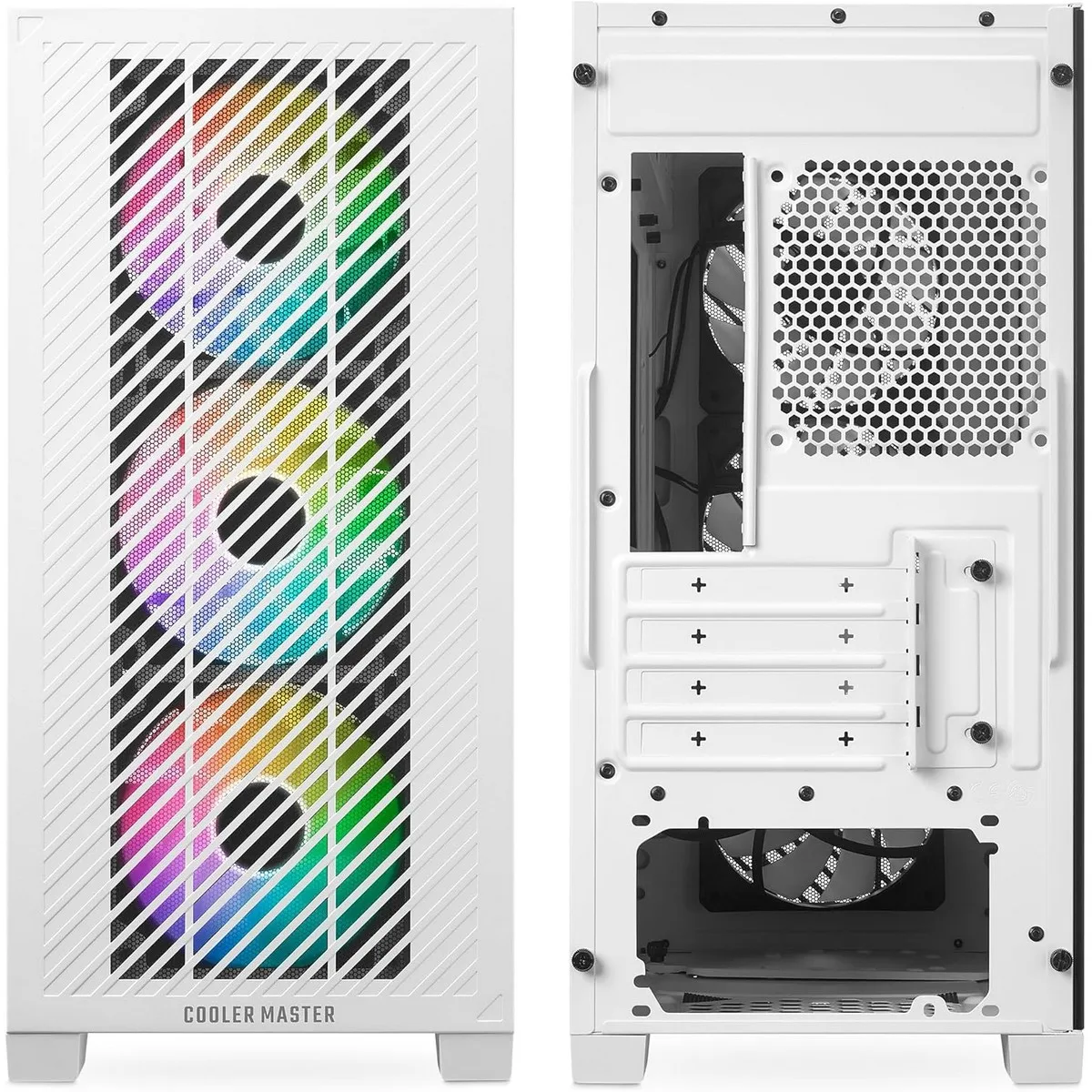

Cooler Master Elite 301 Mini Tower - White
MPN: E301-WGNN-S00
Key specifications
Max GPU365.0 mm
Max Cooler163.5 mm
Max PSU160.0 mm
Form factorUnknown
Best indexed price
Price unavailable
Retailer offers
Amazon UKSearch link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 365.0mm GPU clearance.
Supports up to 163.5mm CPU cooler height.
Full Specifications66 fields
Additional Contents
Fans Included
Yes
Included Fans
3x 120 mm
Additional Information
Model Number
E301-WGNN-S00
Gtin
4719512147764
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mini Case
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Top, Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
White
Connectivity
Card Reader
No
Dimensions
Length Depth
390 mm
Width
203.5 mm
Height
430 mm
Weight
6.3 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
2
Max 3 5 Inch Drives
1
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
2
3 5 Inch Internal Drive Bay
1
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
4
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
1
Usb 3 2 External Type C
1
Usb 3 0 External Type A
1
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Top
120mm Fan (2x), 140mm Fan (2x)
Case Fan Support Rear
120mm Fan (1x)
Max Number Of Fans
6
Case Fan Support Front
120mm Fan (3x)
120 Mm Fans
6
140 Mm Fans
2
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
163.5 mm
Max Gpu Length
365 mm
Max Psu Length Depth
160 mm
Inner Volume
34.13 l
Lighting
Lighting Rgb
No
Materials
Materials
Plastic, Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
Micro-ATX, Mini-ITX
Max Motherboard Format
Micro-ATX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Radiator Aio Support Front
120mm Radiator, 240mm Radiator
Radiator Aio Support Top
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator
Radiator Aio Support Rear
120mm Radiator
Max Radiator Compatibility
1x Single (120 mm), 1x Dual (240 mm), 1x Dual (280 mm)
