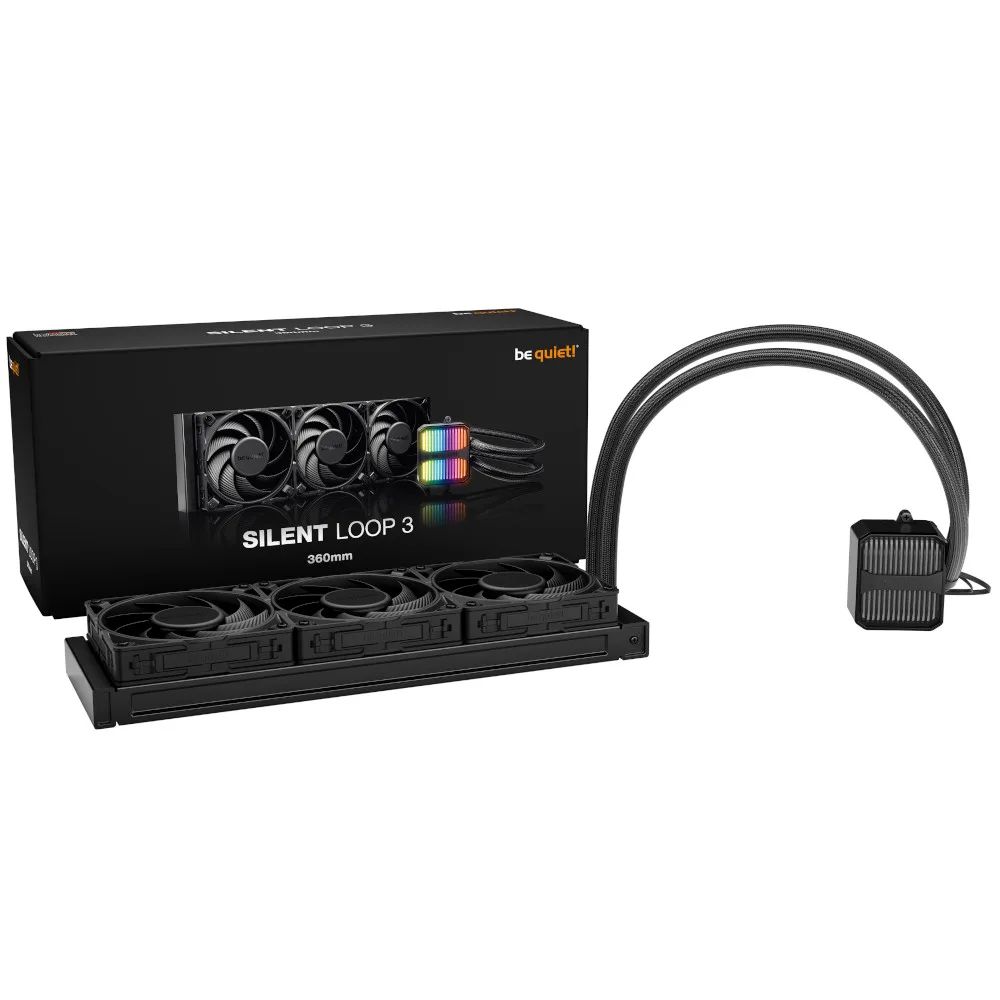

be quiet Silent Loop 3 360 High Performance CPU Water Cooler - 360mm
£106.24
Model: BW025
Technical Specifications80 specs
Additional Information
Model Number
BW025
Gtin
4260052192542
Cooler Specifications
Edition
be quiet! Silent Loop 3 360mm
Cooler Form Factor
360mm All-In-One Hydro Cooler
Heatpipes
-
Cooler Features
Aluminium Fins
Includes Y-Cable
Nickel-Plated Copper Base
RGB LED CPU Block
Socket Compatibility
1150
1151
1155
1700
1851
AM4
AM5
TR4
TR5
Max Tdp
-
Design
Product Colour
Black
Radiator Material
Aluminum
Base Plate Material
Copper
Number Of Fans
3 fan(s)
Illumination Led
Yes
Illumination Colour
Multi
Led Connector Type
3-pin
Fan Connector
4-pin
Dimensions & Weight

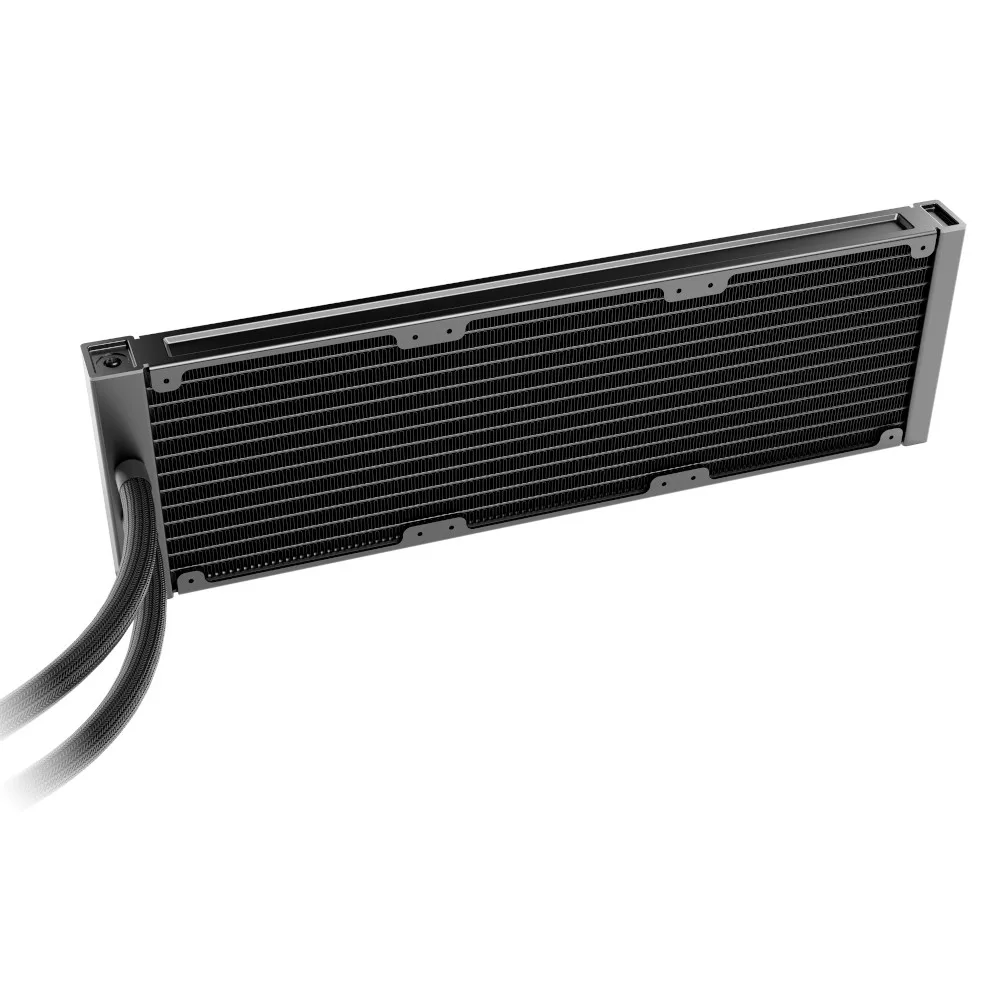

Heatsink Radiator Dimensions
120 x 397 x 52 mm (WxHxD)
Total Dimensions
-

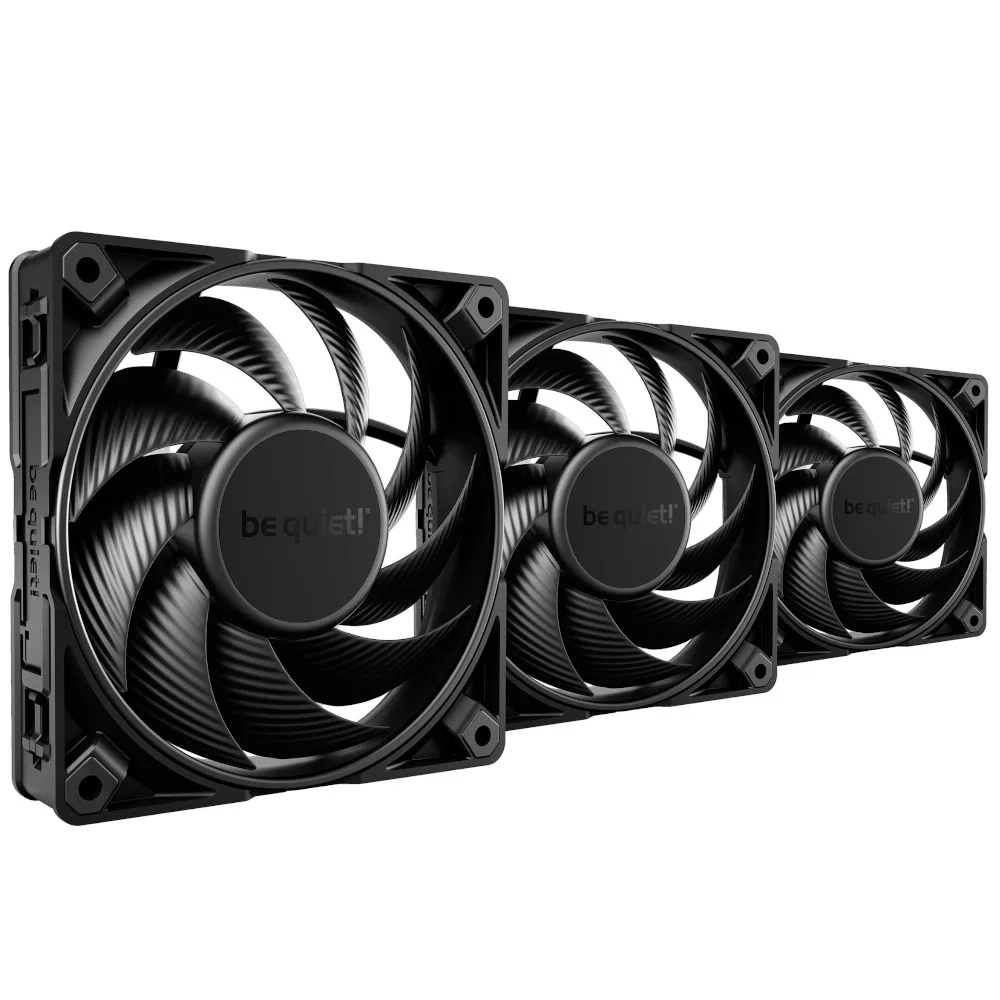

Fan Specifications
Included Fan Configuration
3 x 120mm
Fan Edition
Silent Wings PWM
Pwm Fan
Yes
Fan Bearing Type
Fluid Dynamic Bearing
Fan Colour
Black
Led Lighting
RGB Water Block/Pump
Fan Pump Connectors
1 x 3-Pin RGB
1 x 4-pin PWM
Max Fan Speed
2500 rpm
Max Fan Airflow
76.7 CFM
Max Air Pressure
3.96 mm H²O
Max Sound Level
36.9 dBA
Materials
Included Tim Thermal Interface Material
Included
Other features
Thermal Grease
Yes

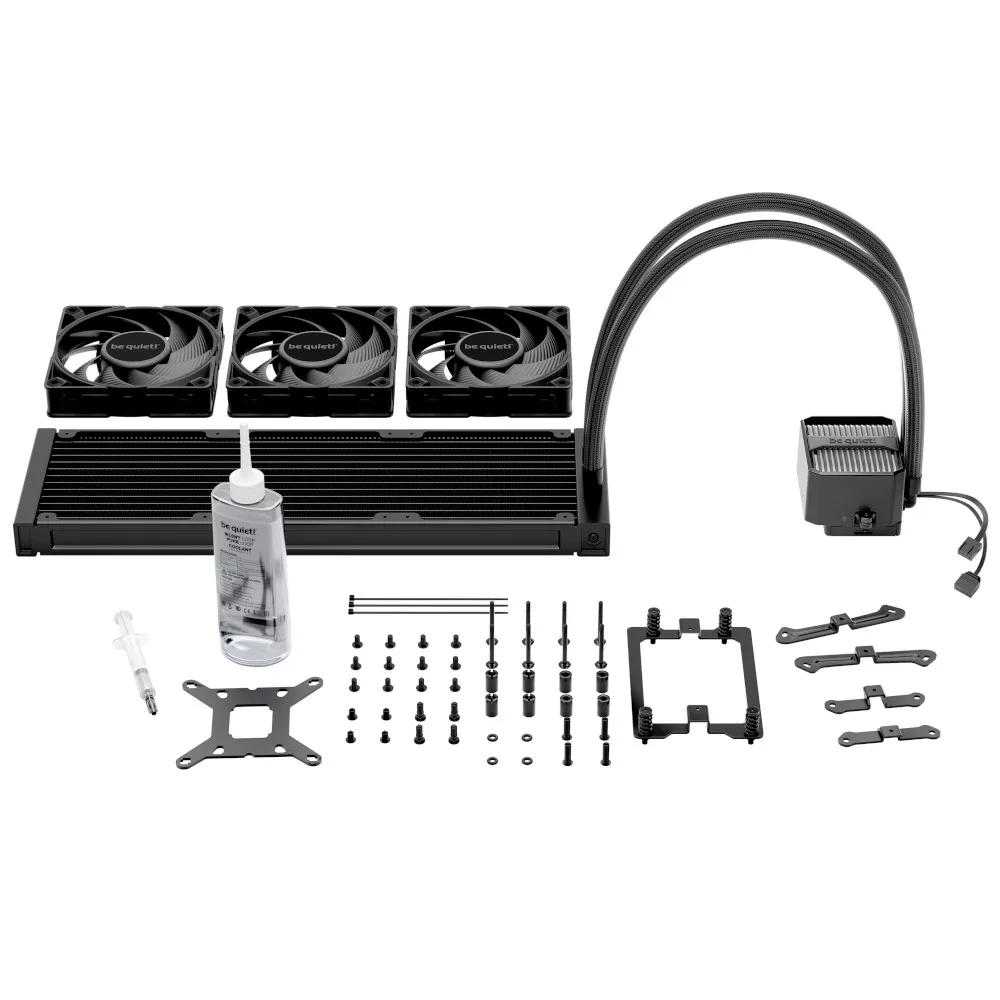

Packaging content
Package Type
Box
Mounting Kit
Yes
Screws Included
Yes
Manual
Yes
Cpu Bracket S
Yes
Performance
Suitable Location
Processor
Type
All-in-one liquid cooler
Fan Diameter
12 cm
Supported Processor Sockets
Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket TR5
Noise Level Low Speed
19.8 dB
Noise Level High Speed
38.8 dB
Maximum Airflow
76.7 cfm
Airflow
130.3 m³/h
Maximum Air Pressure
3.96 mmH2O
Pulse Width Modulation Pwm Support
Yes
Bearing Type
Fluid Dynamic Bearing (FDB)
Pump Connector
4-pin
Quantity Per Pack
1 pc(s)
Pump Motor Speed
3500 RPM
Pump Motor Speed Min
1700 RPM
Pump Motor Speed Max
3500 RPM
Fan Speed Max
2500 RPM
Fan S Mean Time To Failure Mttf
300000 h
Power
Fan Power Consumption
3.6 W
Led Voltage
5 V
Fan Voltage
12 V
Fan Current
0.3 A
Technical details
Sustainability Certificates
Triman
Warranty Period
3 year(s)
Compliance Certificates
CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
Weight & dimensions
Width
120 mm
Radiator Width
12 cm
Radiator Depth
39.7 cm
Radiator Height
2.7 cm
Depth
52 mm
Tube Length
40 cm
Waterblock Width
8 cm
Waterblock Depth
5.6 cm
Waterblock Height
9.35 cm
Height
397 mm
Weight
1.77 kg
Fan Dimensions W X D X H
120 x 120 x 25 mm
Cable Length
0.5 m
Package Width
206 mm
Package Depth
461 mm
Package Height
138 mm
Package Weight
3 kg
General
Cooler Materials
Aluminium / Nickel Plated / Copper
