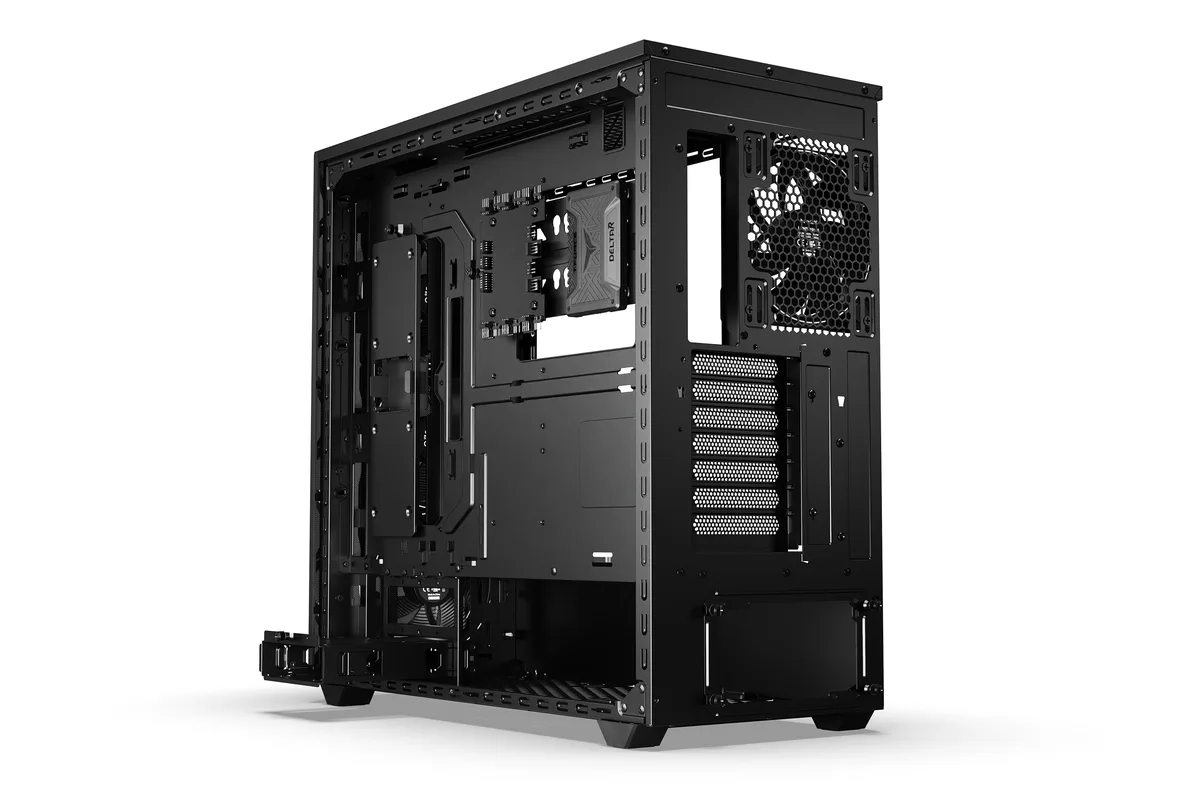

be quiet! Shadow Base 800 FX Black
Cases
be quiet!
be quiet! Shadow Base 800 FX Black
Check Price
Model:
BGW63
Add to Build
Technical Specifications
62 specs

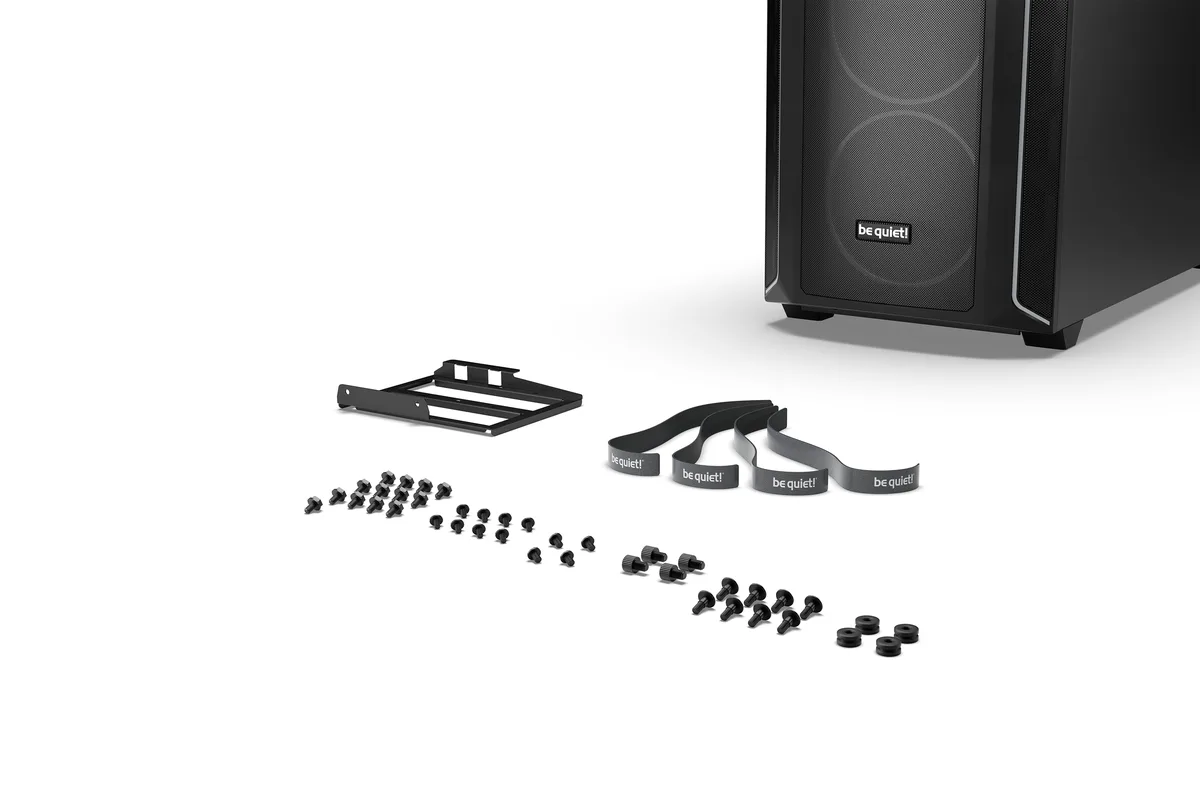

Additional Contents
Included Fans
1x 140 mm, 3x 140 mm
Additional Information
Model Number
BGW63
Gtin
4260052190630
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Front
Side Panel
closed
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
No
Filters Included
Yes
Noise Dampening
No
Mainboard Slide Tray
No
Remote Included
No
Transport System
No
Colour
Primary Colour
Black
Secondary Colour
Transparent
Fan Main Colour Frame
Black

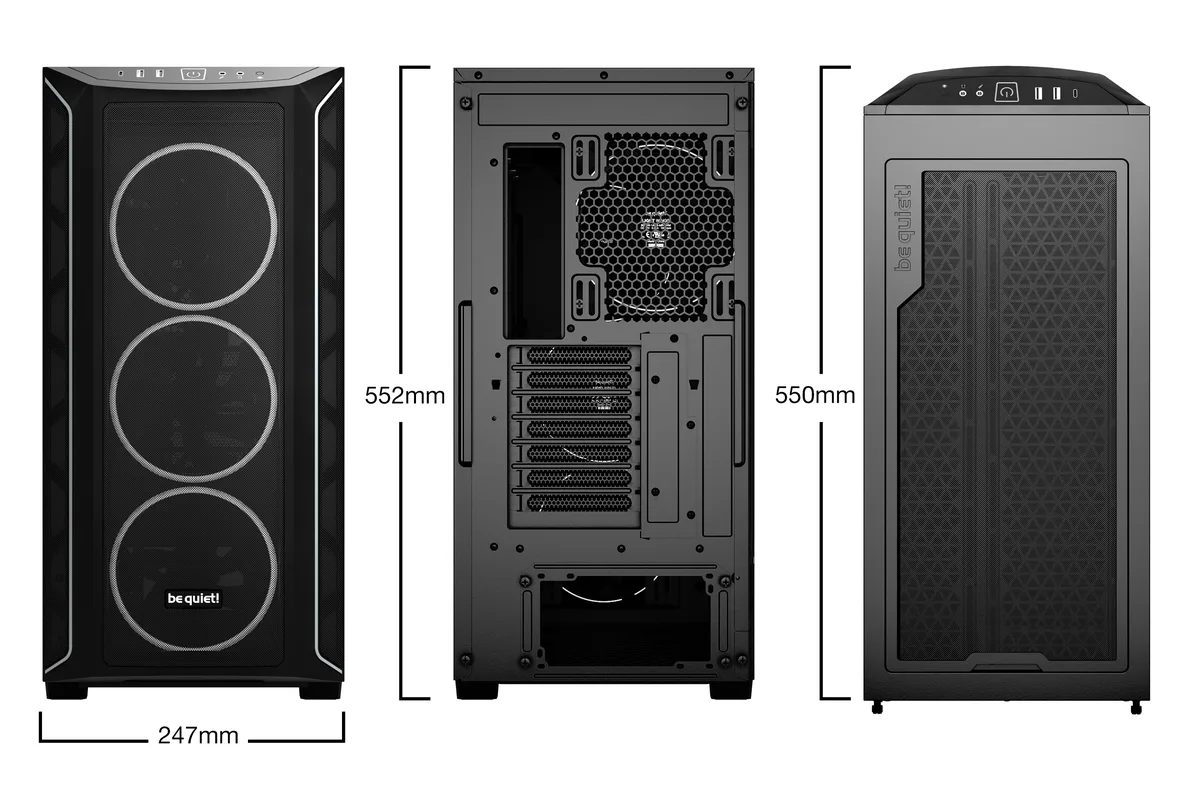

Dimensions
Length Depth
550 mm
Width
247 mm
Height
503 mm
Weight
13.8 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
4
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
4
3 5 Inch Internal Drive Bay
2
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7

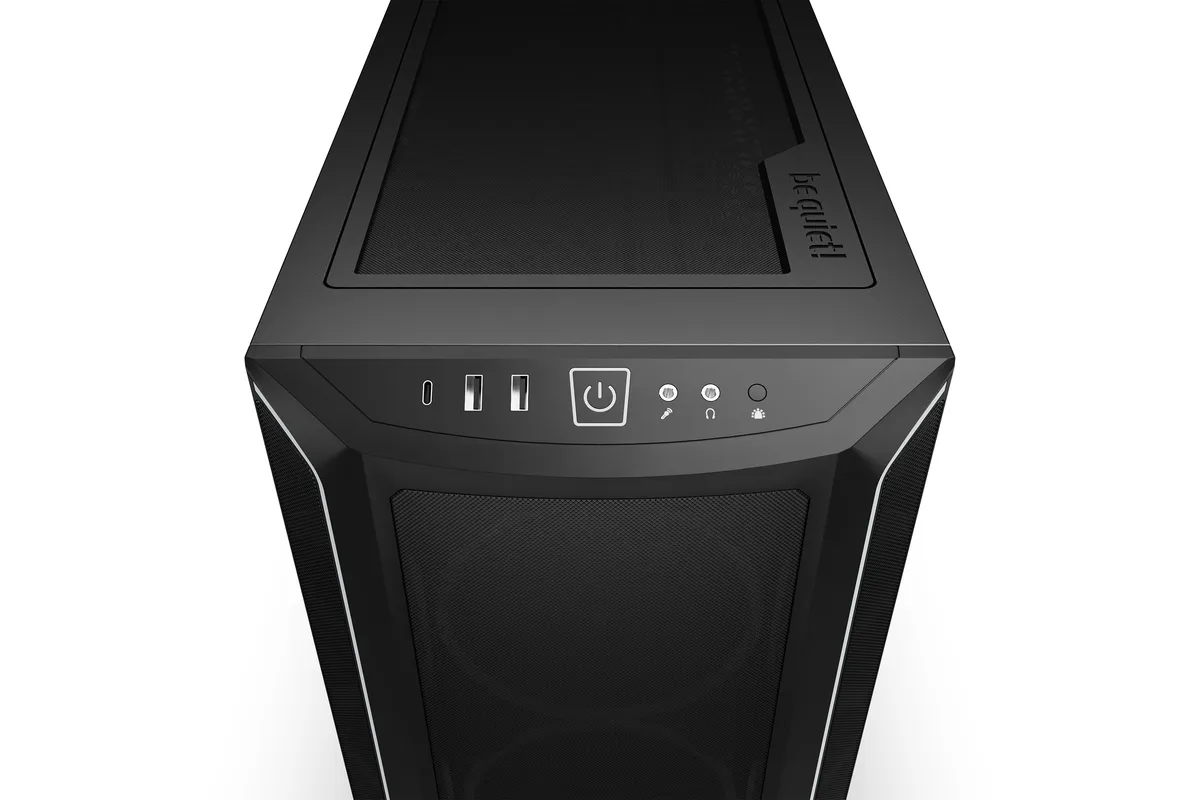

External Ports
Usb 3 2 External Type C
1
Usb 3 1 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
Yes

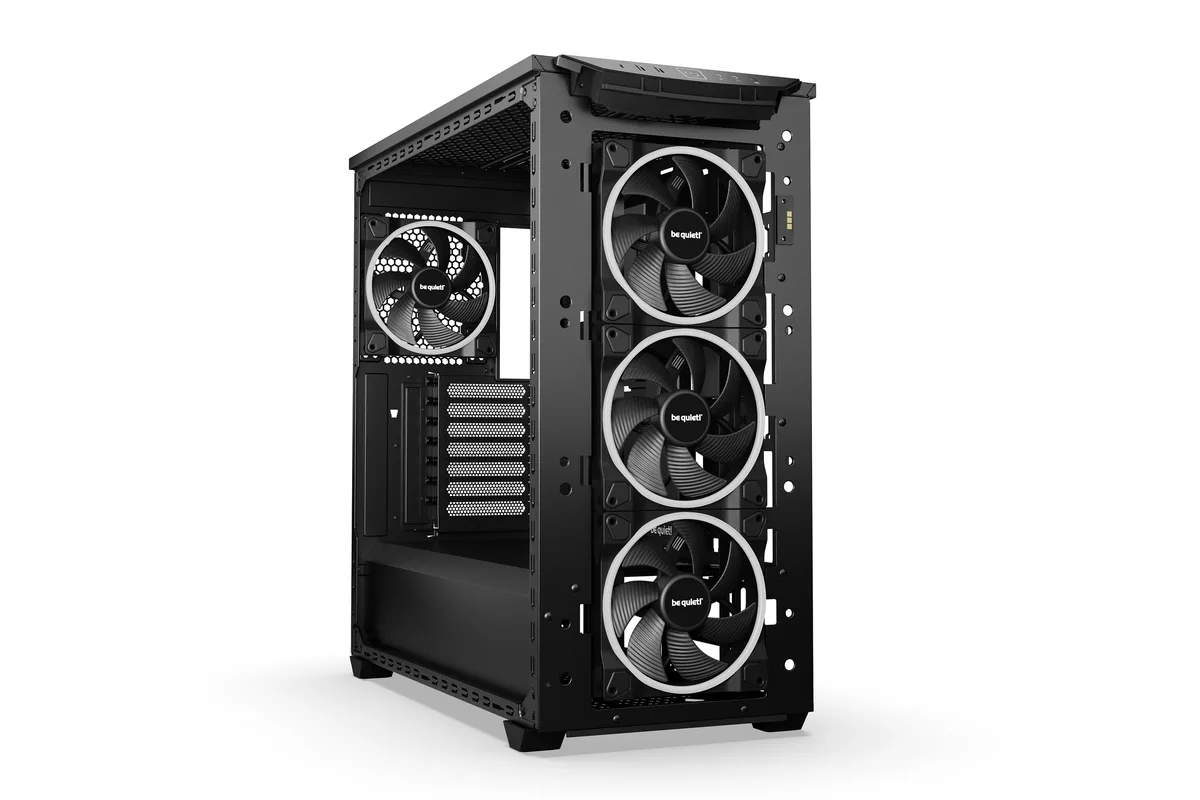

Fan Support
Max Number Of Fans
8
120 Mm Fans
8
140 Mm Fans
4
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
180 mm
Max Gpu Length
430 mm
Max Psu Length Depth
305 mm
Inner Volume
62.74 l

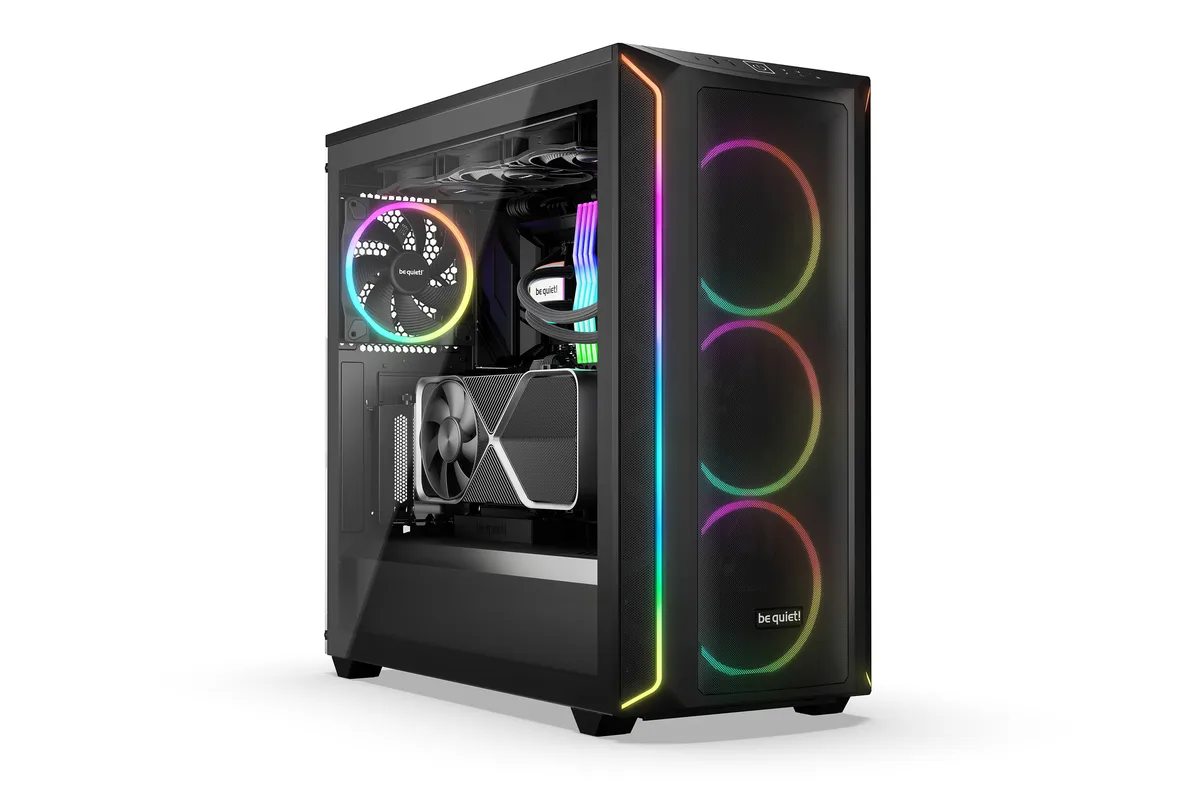

Lighting
Lighting Rgb
Yes
Fan Rgb Control
Yes
Rgb Controller
Yes
Lighting Colour
RGB
Materials
Materials
ABS, Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
Yes
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Max Radiator Compatibility
120, 2x Triple (420 mm)
