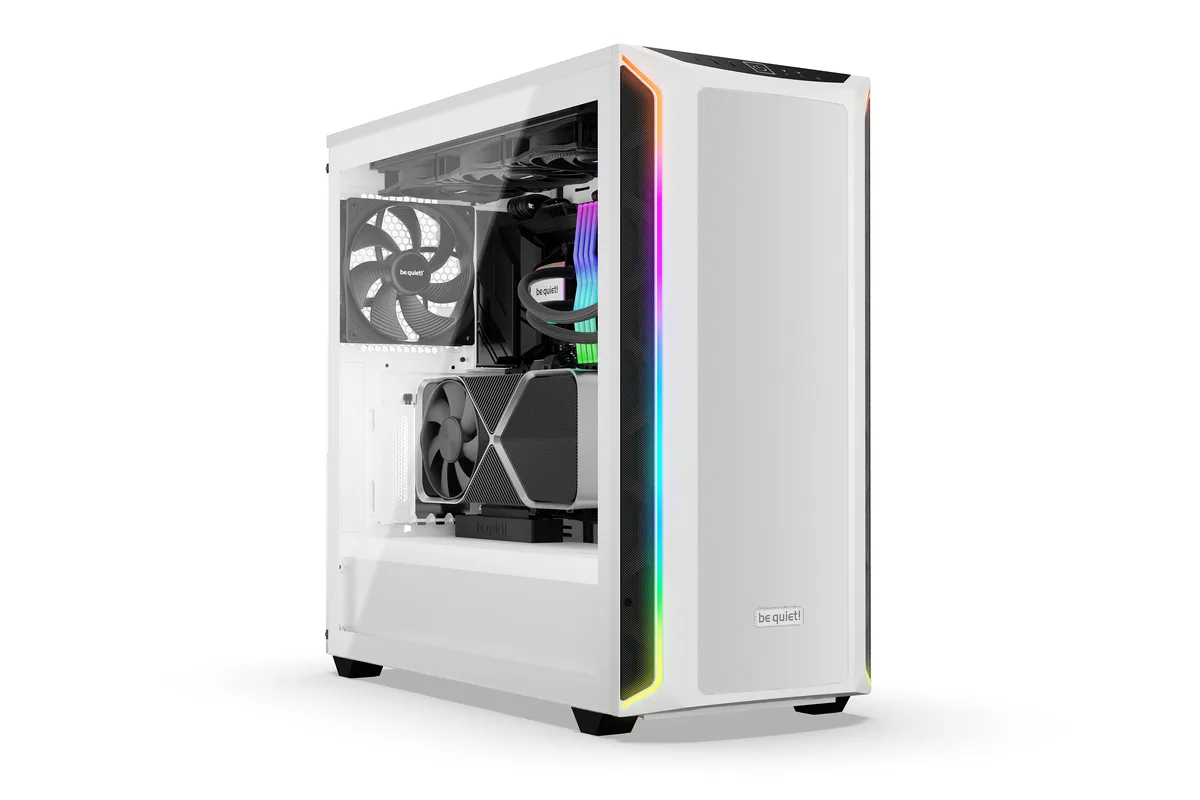

be quiet! Shadow Base 800 DX White
£179.58
Model: BGW62
Technical Specifications99 specs
Additional Information
Model Number
BGW62
Gtin
4260052190623
Chassis Physical Specifications
Colour
White
Chassis Construction Materials
SECC Steel / ABS Plastic / Tempered Glass
Dimensions
319 x 628 x 575 (WxHxD mm)
Package Type
-
Please Note
-
Clearances
Max Cooler Height
180 mm
Max Gpu Length
430 mm
Cable Routing Space
-
Cooling
Front Fans Installed
1x 140 mm
Number Of Front Fans Supported Max
3
Front Fans Diameters Supported
120,140 mm
Rear Fans Installed
1x 140 mm
Number Of Rear Fans Supported Max
1
Rear Fans Diameters Supported
120,140 mm
Top Fans Installed
1x 140 mm
Number Of Top Fans Supported Max
3
Top Fans Diameters Supported
120,140 mm
Number Of Bottom Fans Supported Max
1
Bottom Fans Diameters Supported
120,140 mm
Fan Speed
0 - 1200 RPM
Maximum Airflow
57.4 cfm
Maximum Air Pressure
0.96 mmH2O
Liquid Cooling Capability
Yes
Front Radiator Sizes Supported
120,140,240,280,360,420 mm
Rear Radiator Sizes Supported
120 mm
Top Radiator Sizes Supported
140,240,360,120,280,420 mm
Core Chassis Specifications
Edition
Shadow Base 800 DX
Motherboard Form Factor
ATX
E-ATX
MicroATX
Mini-ITX
Back Connect Compatible
No
Design
Material
Acrylonitrile butadiene styrene (ABS), Steel, Tempered glass
Form Factor
Midi Tower
Type
PC
Product Colour
White
Supported Motherboard Form Factors
ATX, EATX, micro ATX, Mini-ITX
Number Of 3 5 Bays
2
Number Of 2 5 Bays
4
Number Of Expansion Slots
7
Side Window
Yes
Illumination
Yes
Illumination Colour
Multi
Illumination Location
Front
Tempered Glass Panel S
Yes
Anti Dust Filter
Yes
Reset Button
Yes
On Off Button
Yes
Maximum Cpu Cooler Height
18 cm
Maximum Graphics Card Length
43 cm
Maximum Psu Length
30.5 cm
Fans & Filters
Fan Bays
8 x 120mm / 8x 140mm
Fans Included
3 x 140mm
Fan Controller Hub
Built-in Fan Controller
Dust Filters
Bottom
Front
I/O, Bays & Expansion
Front Side Top Panel I O
1 x Fan Controller Button(s)
1 x Headphone Out
1 x Mic In
1 x Power Button
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
Drive Bays
4 x 3.5" / 8x 2.5" Internal
Standard Expansion Slots
7
Vertical Expansion Slots
-
LED Lighting Functionality
Led Lighting
Yes
Led Lighting Emitters
Addressable External Front Light Strips
Led Lighting Colour
RGB
Led Lighting Support Control
-
Liquid Cooling Support
Front Radiator Compatibility
1 x 120/140/240/280/360/
420mm
Top Radiator Compatibility
1 x 120/140/240/280/360/
420mm
Bottom Radiator Compatibility
-
Rear Radiator Compatibility
1 x 120mm
Side Radiator Compatibility
-
Packaging data
Led Controller
Yes
Package Width
319 mm
Package Depth
575 mm
Package Height
628 mm
Package Weight
13.2 kg
Ports & interfaces
Audio Input
Yes
Audio Output
Yes
Usb 3 2 Gen 2 3 1 Gen 2 Type C Ports Quantity
1
Usb 3 2 Gen 2 3 1 Gen 2 Type A Ports Quantity
2
Power supply
Power Supply Included
No
Supported Power Supply Form Factors
ATX, PS2
Power Supply Compatibility
Psu Included
No
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
ATX
Psu Mounting Location
Bottom Mount, Rear
Max Psu Length
305 mm
Side Panels
Window S
Yes
Window Configuration
1 x Main Side
Window Construction
Tempered Glass
Storage
Supported Hdd Sizes
2.5,3.5"
Technical details
Sustainability Compliance
Yes
Sustainability Certificates
Triman
Compliance Certificates
CE, REACH, RoHS, UKCA, WEEE
Weight & dimensions
Width
247 mm
Depth
550 mm
Height
522 mm
Weight
11.8 kg
