be quiet Light Loop 360 ARGB High Performance All In One CPU Cooler - 360mm
£102.37
Model: BW022
Technical Specifications77 specs
Additional Information
Model Number
BW022
Gtin
4260052191132
Cooler Specifications
Edition
be quiet! Light Loop 360mm
Cooler Form Factor
360mm All-In-One Hydro Cooler
Heatpipes
-
Cooler Features
Aluminium Fins

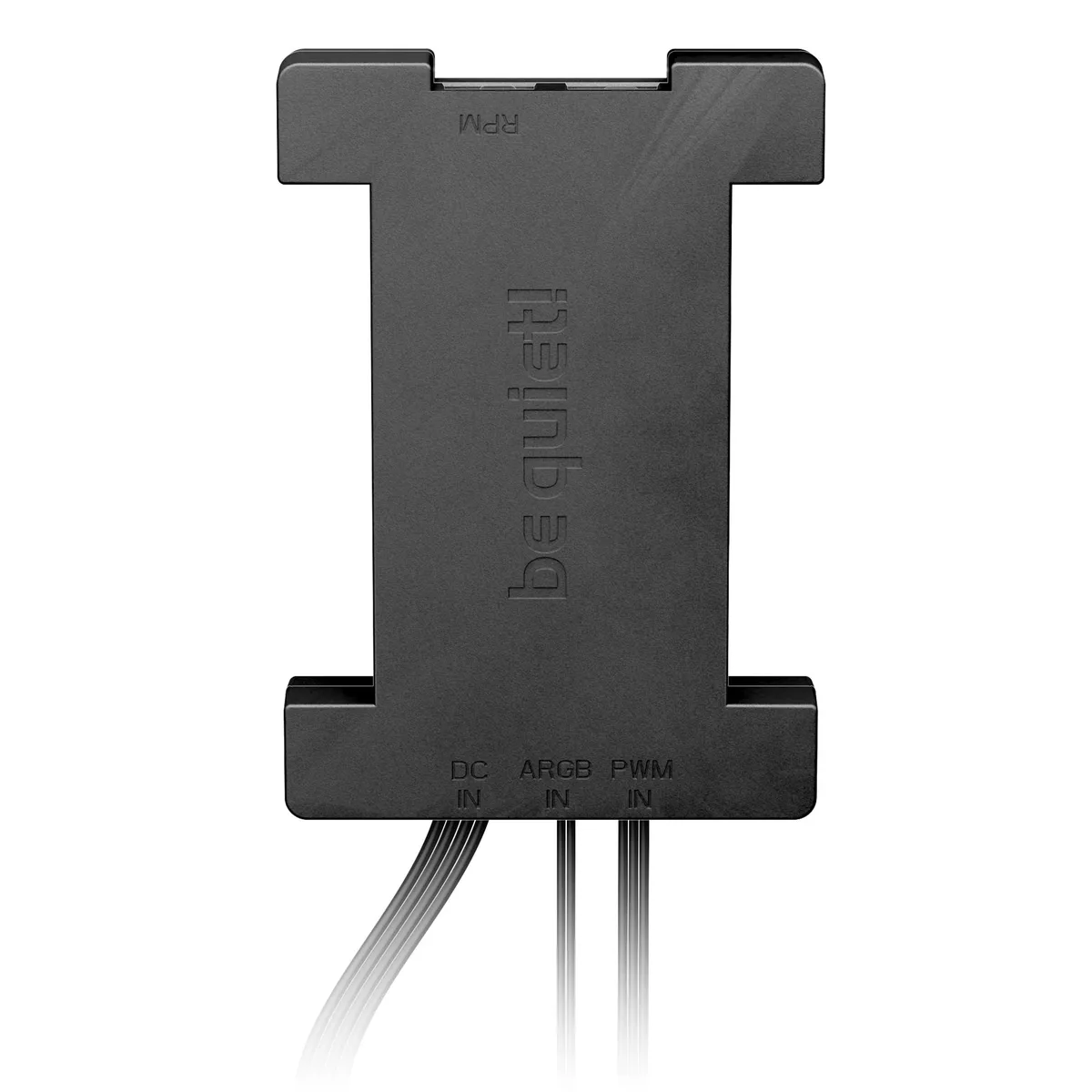

Integrated Fan Hub
Nickel-Plated Copper Base
RGB LED CPU Block
Socket Compatibility
1150
1151
1155
1200
1700
AM4
AM5
Max Tdp
-
Design
Product Colour
Black
Radiator Material
Aluminum
Base Plate Material
Copper
Number Of Fans
3 fan(s)
Number Of Fan Blades
9
Illumination Led
Yes
Illumination Colour
Multi
Led Connector Type
3-pin
Fan Connector
4-pin
Certification
CE, FCC, UKCA, RoHS, WEEE, Triman
Dimensions & Weight
Heatsink Radiator Dimensions
120 x 27 x 397 mm (WxHxD)
Total Dimensions
205 x 137 x 448 mm (WxHxD)
Fan Specifications
Included Fan Configuration
3 x 120mm
Fan Edition
Light Wings
Pwm Fan
Yes
Fan Bearing Type
Rifle Bearing
Fan Colour
Black
Led Lighting
Addressable RGB
Fan Pump Connectors
1 x 4-pin PWM
Max Fan Speed
2100 rpm
Max Fan Airflow
61.8 CFM
Max Air Pressure
2.51 mm H²O
Max Sound Level
36.8 dBA
Materials
Included Tim Thermal Interface Material
Included

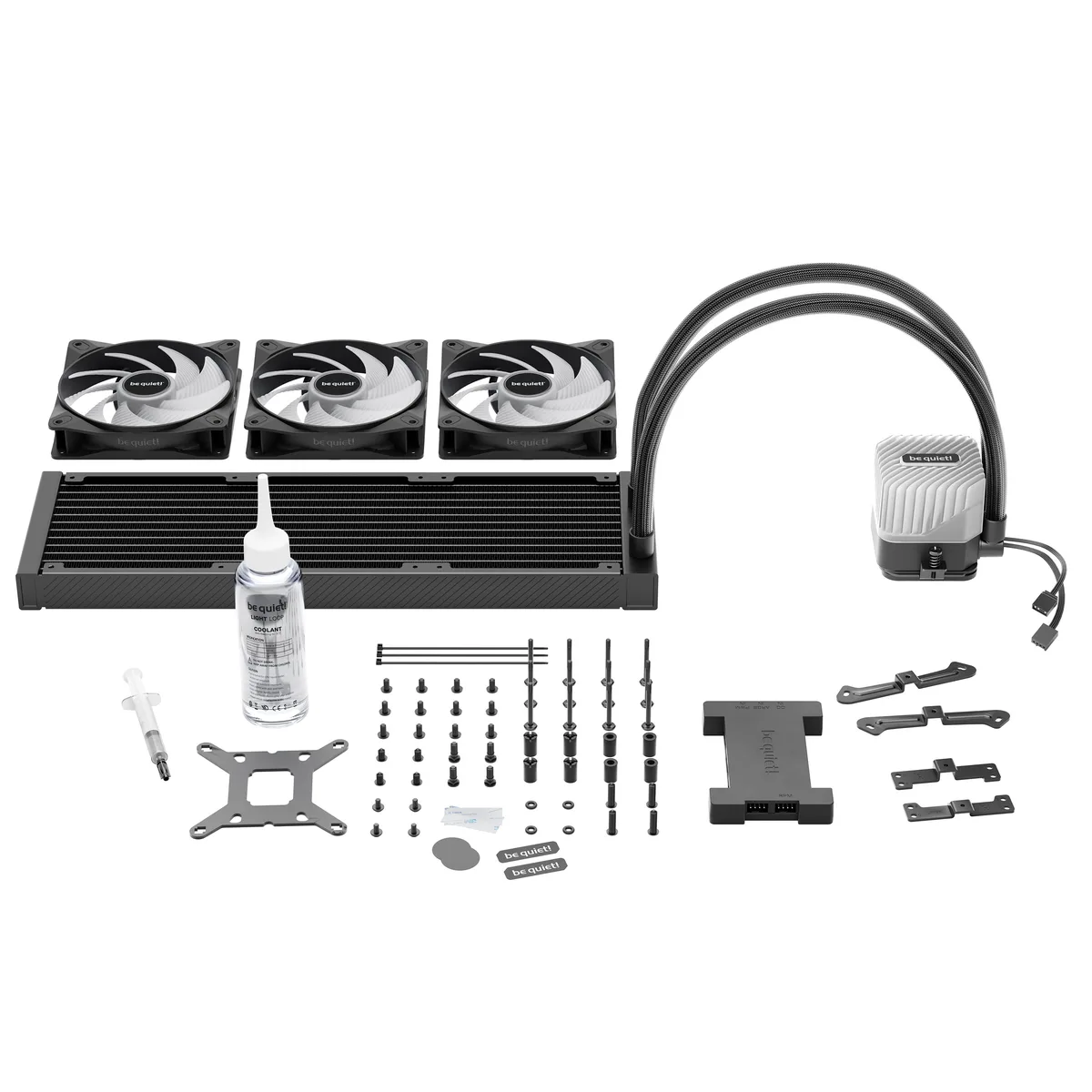

Packaging content
Package Type
Box
Mounting Kit
Yes
Screws Included
Yes
Performance
Suitable Location
Processor
Type
All-in-one liquid cooler
Fan Diameter
12 cm
Supported Processor Sockets
Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Noise Level Low Speed
17.2 dB
Noise Level High Speed
36.8 dB
Maximum Airflow
61.8 cfm
Airflow
105.1 m³/h
Maximum Air Pressure
2.51 mmH2O
Pulse Width Modulation Pwm Support
Yes
Fan Bearing Technology
Rifle bearing
Pump Connector
4-pin
Quantity Per Pack
1 pc(s)
Pump Motor Speed
2900 RPM
Pump Motor Speed Min
1500 RPM
Pump Motor Speed Max
2900 RPM
Fan Speed Max
2100 RPM
Fan S Mean Time To Failure Mttf
60000 h
Power
Rated Voltage
12 V
Fan Power Consumption
5.4 W
Fan Voltage
12 V
Fan Current
0.45 A
Technical details
Sustainability Compliance
Yes
Sustainability Certificates
Triman
Warranty Period
3 year(s)
Compliance Certificates
CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
Weight & dimensions
Radiator Width
12 cm
Radiator Depth
5.2 cm
Radiator Height
39.7 cm
Tube Length
40 cm
Waterblock Width
9.4 cm
Waterblock Depth
8.2 cm
Waterblock Height
7.5 cm
Weight
1.48 kg
Fan Dimensions W X D X H
120 x 120 x 25 mm
Cable Length
0.5 m
Package Width
205 mm
Package Depth
448 mm
Package Height
137 mm
Package Weight
2.6 kg
General
Cooler Materials
Aluminium / Nickel Plated / Copper
