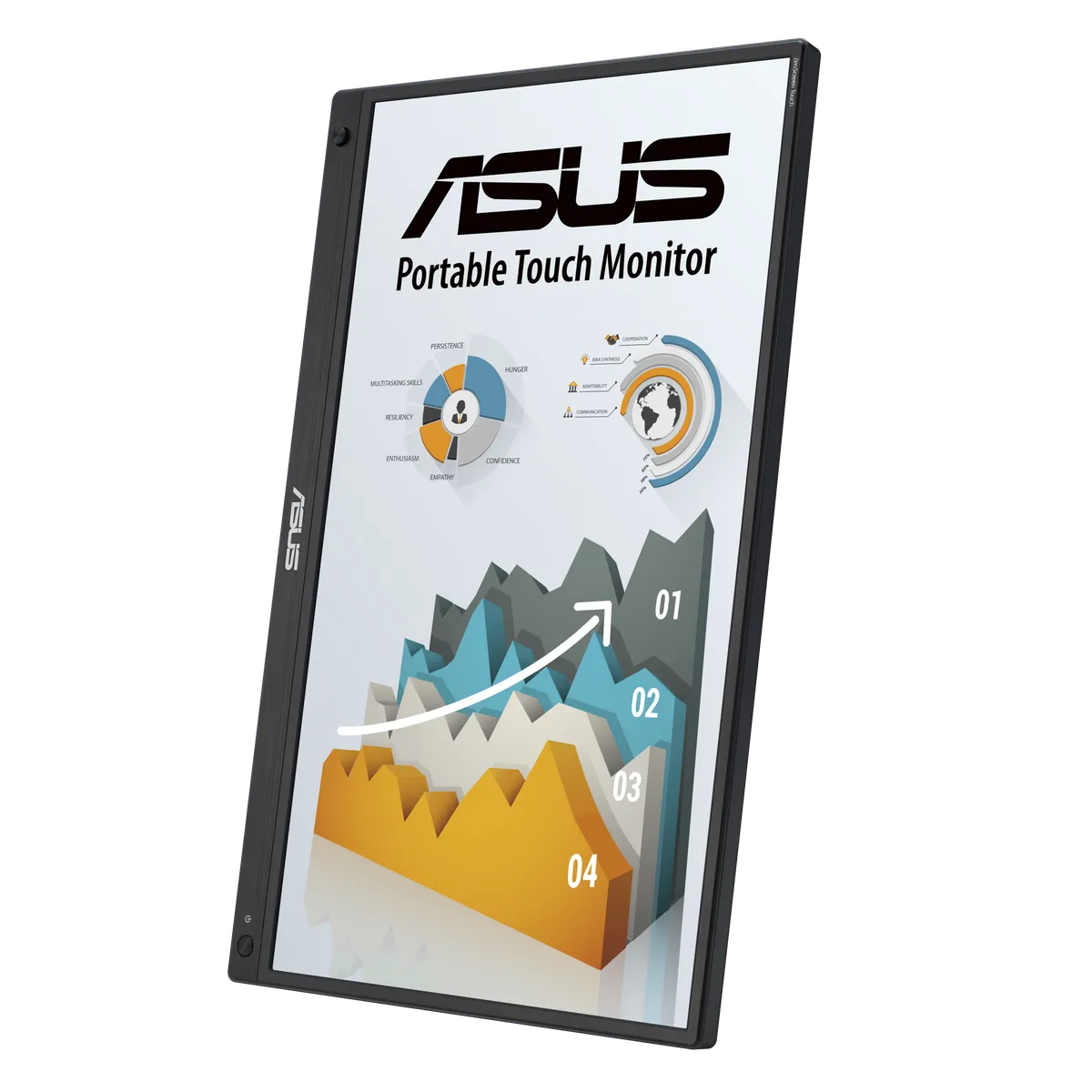

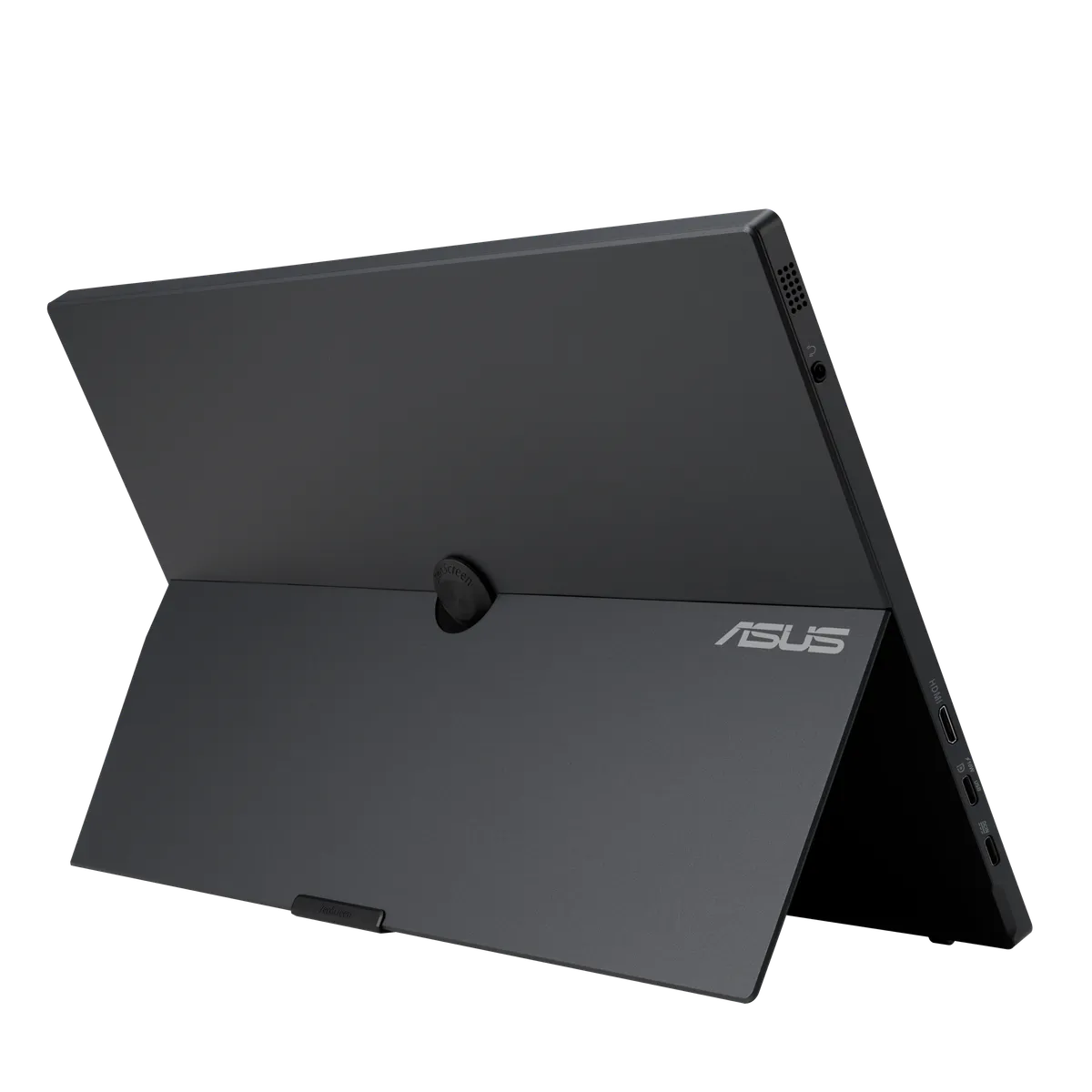

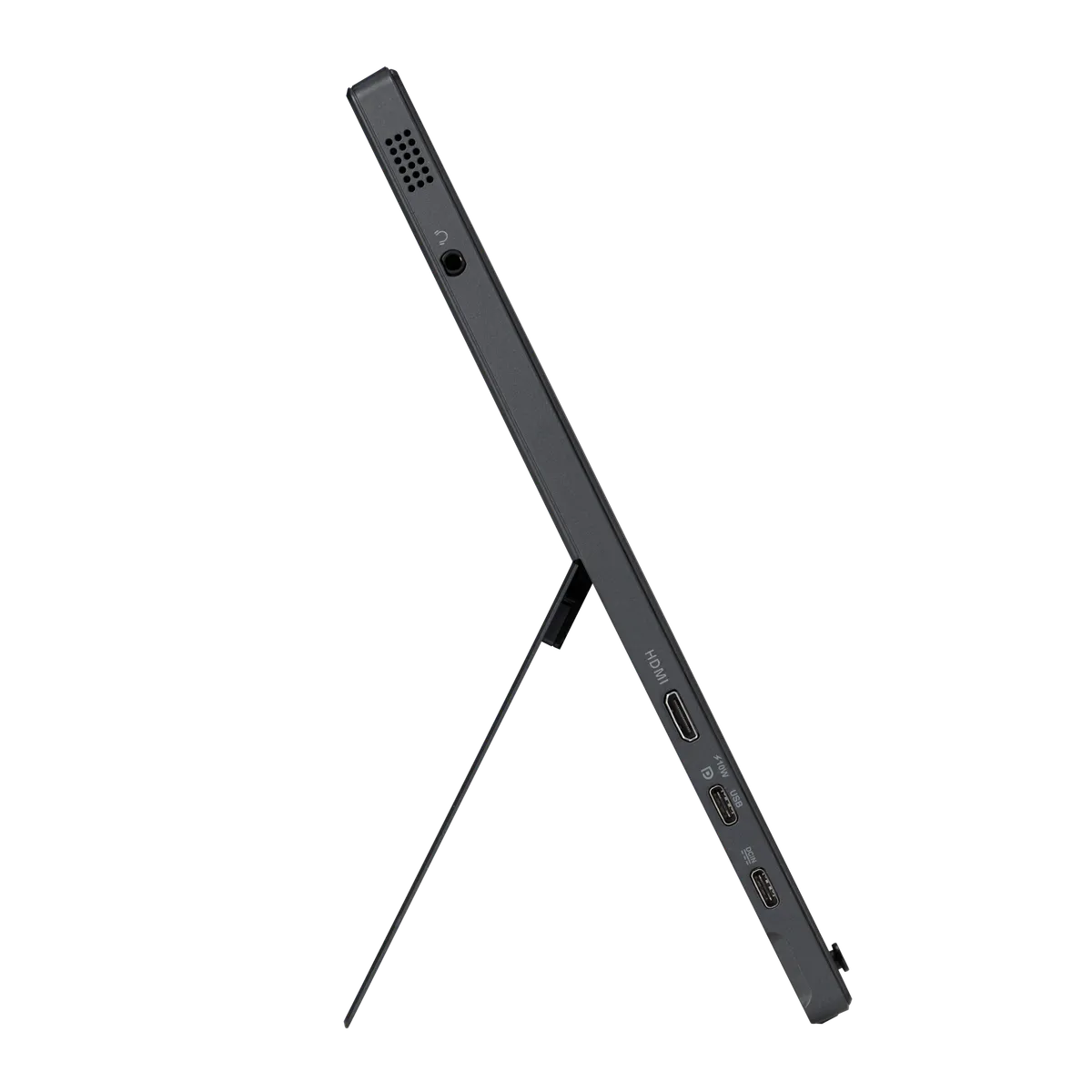

ASUS ZenScreen Touch MB16AMTR
Price TBC
Compatibility Data
Monitor Resolution1920x1080
Monitor Refresh Rate Hz60
Monitor Panel TypeIPS
Monitor Aspect Ratio16:9
Monitor Response Time Ms5
Monitor CurvedNo
Model: 25254
Technical Specifications18 specs
General
Model
ASUS ZenScreen Touch MB16AMTR
Display
- Panel Size (inch) : 15.6
- Aspect Ratio : 16:9
- Display Viewing Area (H x V) : 344.16 x 193.59 mm
- Display Surface : Anti-Glare
- Backlight Type : LED
- Panel Type : IPS
- Viewing Angle (CR≧10, H/V) : 170°/ 170°
- Pixel Pitch : 0.179mm
- Resolution : 1920x1080
- Brightness (Typ.) : 250cd/㎡
- Contrast Ratio (Typ.) : 700:1
- Display Colors : 260K
- Response Time : 5ms(GTG)
- Refresh Rate (Max) : 60Hz
- Touch : Yes, Projective Capacitive 10-point Touch
- Flicker-free : Yes
Features
- SPLENDID Technology : Yes
- Color Temp. Selection : Yes (4 modes)
- Auto Rotation:Yes, supported by DisplayWidget Center
- QuickFit : Yes (Photo/Alighment Grid)
- HDCP : Yes
- DisplayWidget : Yes, DisplayWidget Center
- Low Blue Light : Yes
Audio
Speaker : Yes(1Wx2)
I O Ports
- USB-C x 2 (DP Alt Mode & USB 3.2 x1 + DC In x1)
- Mini HDMI x 1
- Earphone Jack : Yes
- USB-C Power Delivery : 10W
- USB 3.2 (Signal) : x 1
Signal Frequency
- Digital Signal Frequency : HDMI: 24~83 KHz (H) / 50~61 Hz (V)
- USB-C: 83~83 KHz (H) / 50~61 Hz (V)
Battery
Battery : 7800mAh
Power Consumption
- Power Consumption : 10W
- Power Saving Mode : <0.5W
- Power Off Mode : <0.3W
- Voltage : 100-240V, 50/60Hz
Mechanical Design
- Tilt : Yes (+15° ~ +35°)
- Height Adjustment : No
- 1/4" Tripod Socket : Yes
Dimensions Esti
- Phys. Dimension (W x H x D) : 35.99 x 22.68 x 1.19 cm (14.17" x 8.93" x 0.47")
- Phys. Dimension without Stand (W x H x D) : 35.99 x 22.68 x 1.19 cm (14.17" x 8.93" x 0.47")
- Box Dimension (W x H x D) : 48.8 x 29.8 x 8.8 cm (19.21" x 11.73" x 3.46")
Weight Esti
- Net Weight without Stand : 1.15 kg (2.54 lbs)
- Gross Weight : 2.29 kg (5.05 lbs)
Accessories Vary By Regions
- ZenScreen tripod hole cover
- ZenScreen sleeve
- Warranty Card
- USB-C cable
- USB Type-C to A adapter
- Quick start guide
- Power adapter
- Mini HDMI to HDMI cable
Operation Temperature Humidity
- Operation Temperature : 5~35℃
- Operation Humidity : 20-90% RH
Certificate
- TÜV Low Blue Light
- TÜV Flicker-free
Physical Dimensions
Length Mm
359.9
Width Mm
226.8
Height Mm
11.9
Weight G
1150
