ASUS ZenScreen OLED MQ16AH
MonitorsAsus

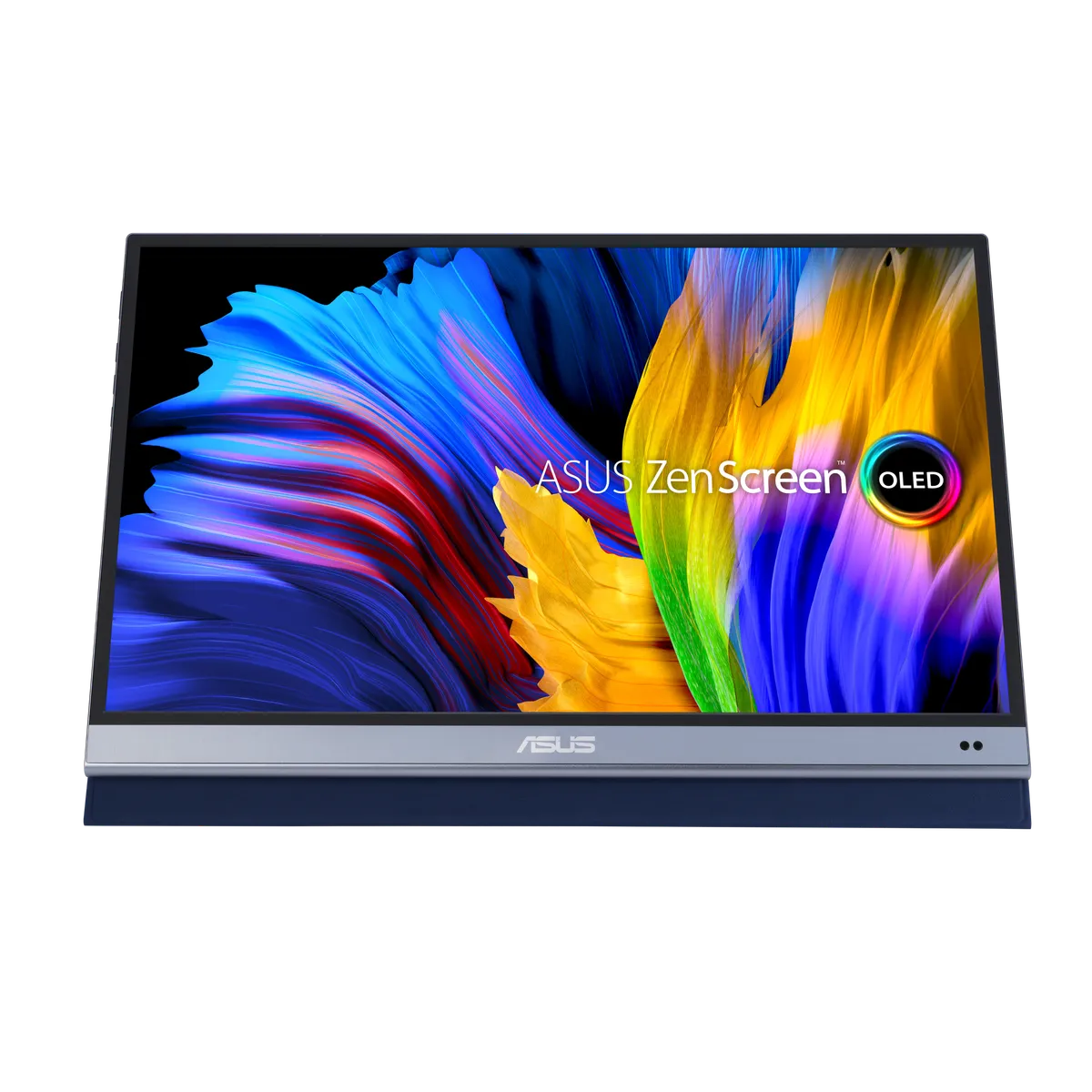

ASUS ZenScreen OLED MQ16AH

Price TBC

Compatibility Data

Monitor Resolution1920x1080
Monitor Refresh Rate Hz60
Monitor Panel TypeOLED
Monitor Aspect Ratio16:9
Monitor Response Time Ms1
Monitor HdrHDR10
Model: 20295

Technical Specifications17 specs

General

Model
ASUS ZenScreen OLED MQ16AH
Display
  • Panel Size (inch) : 15.6
  • Aspect Ratio : 16:9
  • Display Viewing Area (H x V) : 344.21 x 193.62 mm
  • Display Surface : Glare
  • Backlight Type : OLED
  • Panel Type : OLED
  • Viewing Angle (CR≧10, H/V) : 178°/ 178°
  • Pixel Pitch : 0.179mm
  • Resolution : 1920x1080
  • Color Space (DCI-P3) : 100%
  • Brightness (HDR, Peak) : 400 cd/㎡
  • Brightness (Typ.) : 360cd/㎡
  • Contrast Ratio (HDR, Max) : 1,000,000:1
  • Contrast Ratio (Typ.) : 100,000:1
  • Display Colors : 1073.7M (10 bit)
  • Response Time : 1ms(GTG)
  • Refresh Rate (Max) : 60Hz
  • HDR (High Dynamic Range) Support : HDR10
  • Flicker-free : Yes
Features
  • Trace Free Technology : Yes
  • SPLENDID Technology : Yes
  • Color Temp. Selection : Yes (4 modes)
  • Color Accuracy : △E< 2
  • GamePlus : Yes
  • QuickFit : Yes (Photo/Alighment Grid)
  • HDCP : Yes, 1.4
  • DisplayWidget : Yes
  • Low Blue Light : Yes (Hardware Solution)
Audio
Speaker : No
I O Ports
  • USB-C x 2 (DP Alt Mode)
  • Mini HDMI x 1
Signal Frequency
  • Digital Signal Frequency : HDMI: 60HZ (V)
  • USB-C: 60HZ (V)
Power Consumption
  • Power Consumption : 15 W
  • Power Saving Mode : <0.5W
  • Power Off Mode : <0.3W
  • Voltage : 100-240V, 50/60Hz
Mechanical Design
  • Height Adjustment : No
  • 1/4" Tripod Socket : Yes
Dimensions Esti
  • Phys. Dimension without Stand (W x H x D) : 35.87 x 22.62 x 0.90 cm (14.12" x 8.91" x 0.35")
  • Box Dimension (W x H x D) : 55.20 x 39.40 x 12.50 cm (21.73" x 15.51" x 4.92")
Weight Esti
  • Net Weight without Stand : 0.65 kg (1.43 lbs)
  • Gross Weight : 3.65 kg (8.05 lbs)
Accessories Vary By Regions
  • ZenScreen tripod hole cover
  • ZenScreen smart cover
  • Warranty Card
  • USB-C cable
  • USB Type-C to A adapter
  • Quick start guide
  • Power adapter
  • Mini HDMI to HDMI cable
Certificate
  • TÜV Low Blue Light (Hardware Solution)
  • TÜV Flicker-free
Warranty
2 years (including panel burn-in)

Physical Dimensions

Length Mm
358.7
Width Mm
226.2
Height Mm
9
Weight G
650
