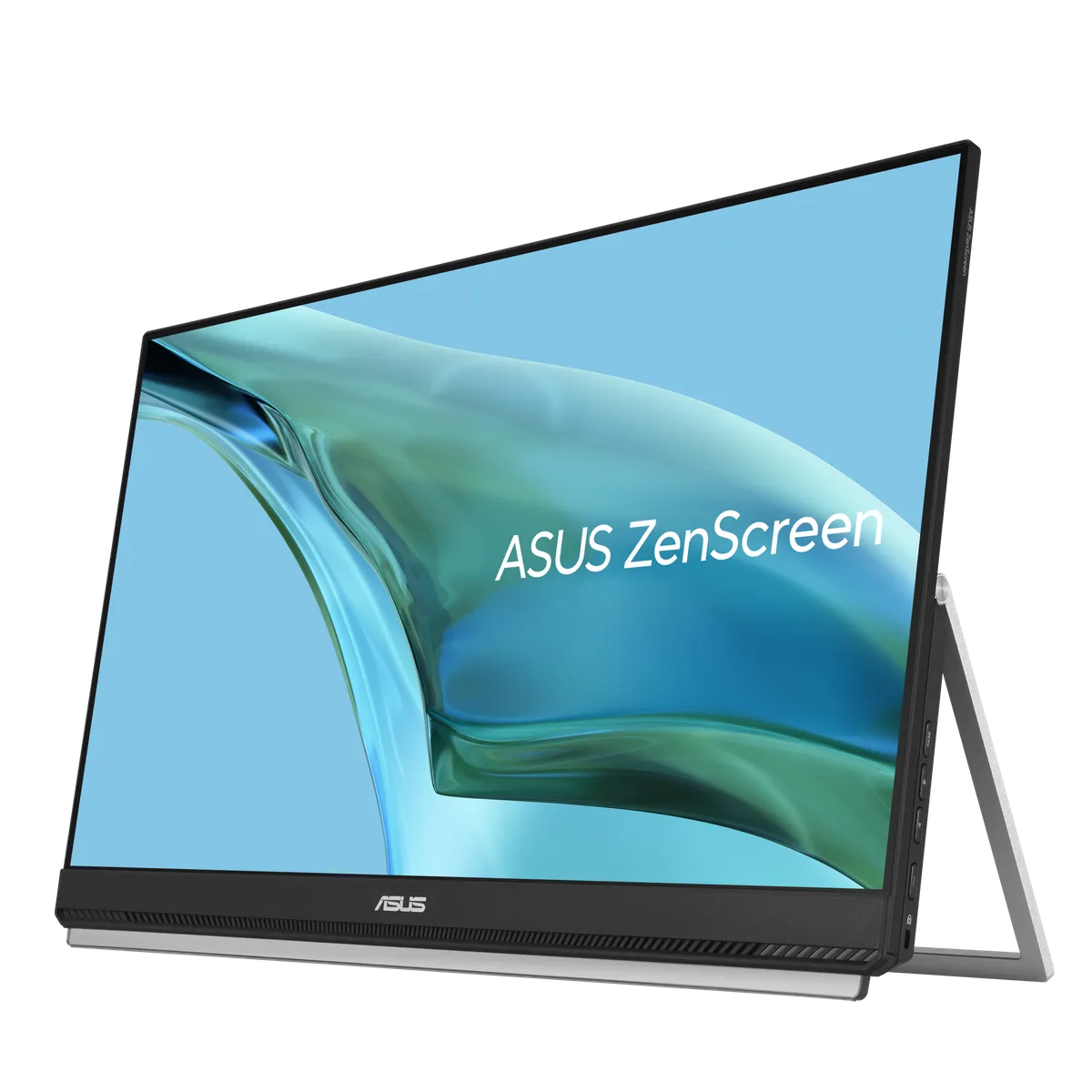

ASUS ZenScreen MB249C
MonitorsAsus

ASUS ZenScreen MB249C

Price TBC

Compatibility Data

Monitor Resolution1920x1080
Monitor Refresh Rate Hz75
Monitor Panel TypeIPS
Monitor Aspect Ratio16:9
Monitor Response Time Ms5
Monitor CurvedNo
Model: 22480

Technical Specifications16 specs

General

Model
ASUS ZenScreen MB249C
Display
  • Panel Size (inch) : 23.8
  • Aspect Ratio : 16:9
  • Display Viewing Area (H x V) : 527.04(H) x 296.46 (V) mm
  • Display Surface : Anti-Glare
  • Backlight Type : LED
  • Panel Type : IPS
  • Viewing Angle (CR≧10, H/V) : 178°/ 178°
  • Pixel Pitch : 0.2745mm
  • Resolution : 1920x1080
  • Brightness (Typ.) : 250cd/㎡
  • Contrast Ratio (Typ.) : 1000:1
  • Display Colors : 16.7M
  • Response Time : 5ms(GTG)
  • Refresh Rate (Max) : 75Hz
  • Flicker-free : Yes
Features
  • Trace Free Technology : Yes
  • SPLENDID Technology : Yes
  • Color Temp. Selection : Yes (4 modes)
  • GamePlus : Yes
  • QuickFit : Yes
  • HDCP : Yes, 1.4
  • VRR Technology : Yes (Adaptive-Sync)
  • DisplayWidget : Yes, DisplayWidget Lite
  • Low Blue Light : Yes
Audio
Speaker : Yes(1Wx2)

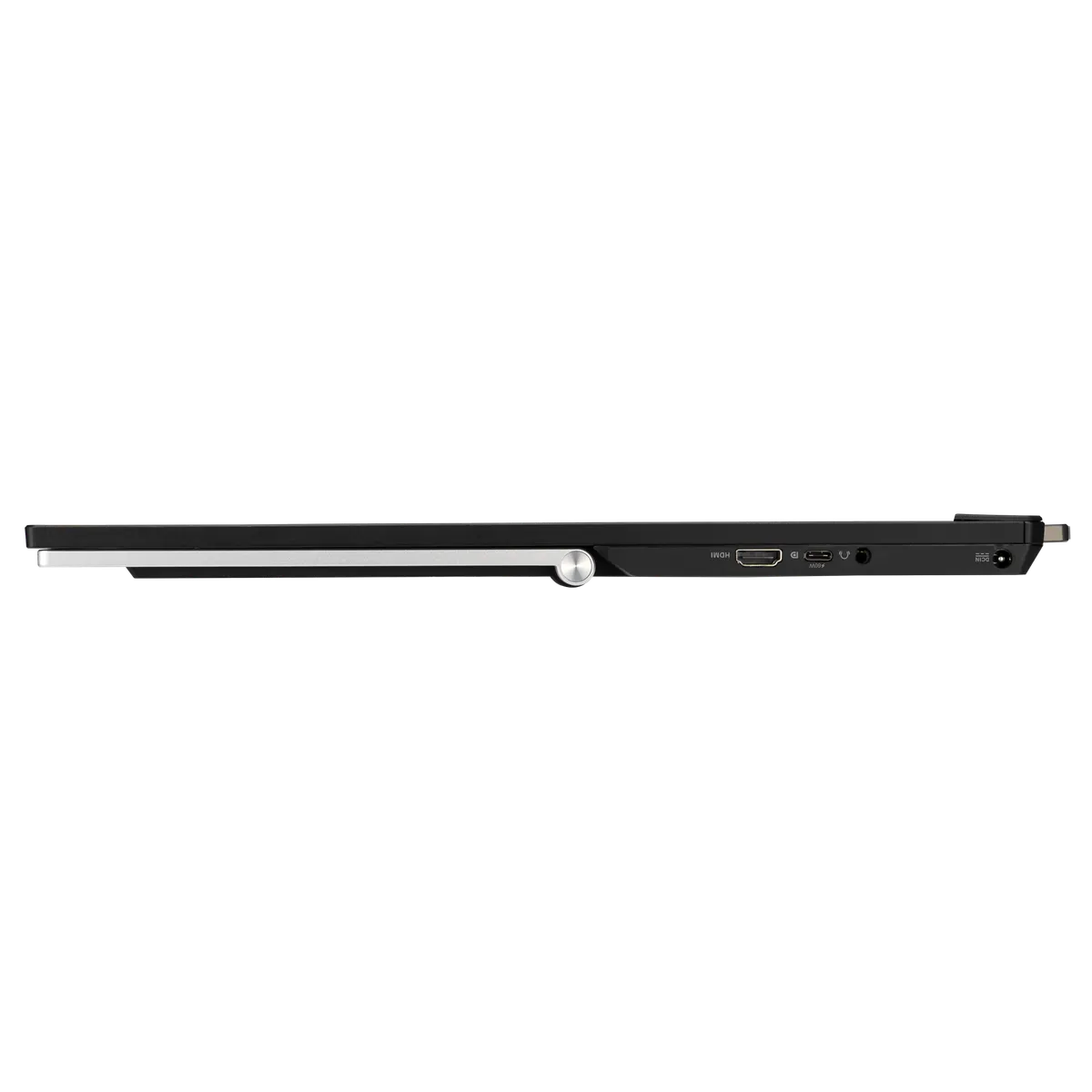

I O Ports
  • USB-C x 1 (DP Alt Mode)
  • HDMI(v1.4) x 1
  • Earphone Jack : Yes
  • USB-C Power Delivery : 60W
Signal Frequency
  • Digital Signal Frequency : HDMI: 24~84 KHz (H)/ 48~75Hz (V)
  • USB-C: :84KHz (H) / 48~75 Hz (V)
Power Consumption
  • Power Consumption : 13W
  • Power Saving Mode : <0.5W
  • Power Off Mode : <0.3W
  • Voltage : 100-240V, 50/60Hz
Mechanical Design
  • Tilt : Yes (+20° ~ -5°) with arm
  • Swivel : Yes (+90° ~ -90°) with arm
  • Pivot : Yes (0° ~ 90° Clockwise) with arm
  • Height Adjustment : 0~180mm with arm
  • Z-axis Adjust.:Extend / Retract 0~144mm
  • VESA Wall Mounting : 100x100mm
  • Kensington Lock : Yes
Dimensions Esti
  • Phys. Dimension (W x H x D) : 53.93 x 71.14 x 30.22 cm (21.23" x 28.01" x 11.90")
  • Phys. Dimension without Stand (W x H x D) : 53.93 x 34.63 x 2.36 cm (21.23" x 13.63" x 0.93")
  • Box Dimension (W x H x D) : 60.00 x 42.60 x 12.40 cm (23.62" x 16.77" x 4.88")
Weight Esti
  • Net Weight : 4.84 kg (10.67 lbs)
  • Net Weight without Stand : 2.85 kg (6.28 lbs)
  • Gross Weight : 7.6 kg (16.76 lbs)
Accessories Vary By Regions
  • Warranty Card
  • USB-C cable
  • Quick start guide
  • Power cord
  • Power adapter

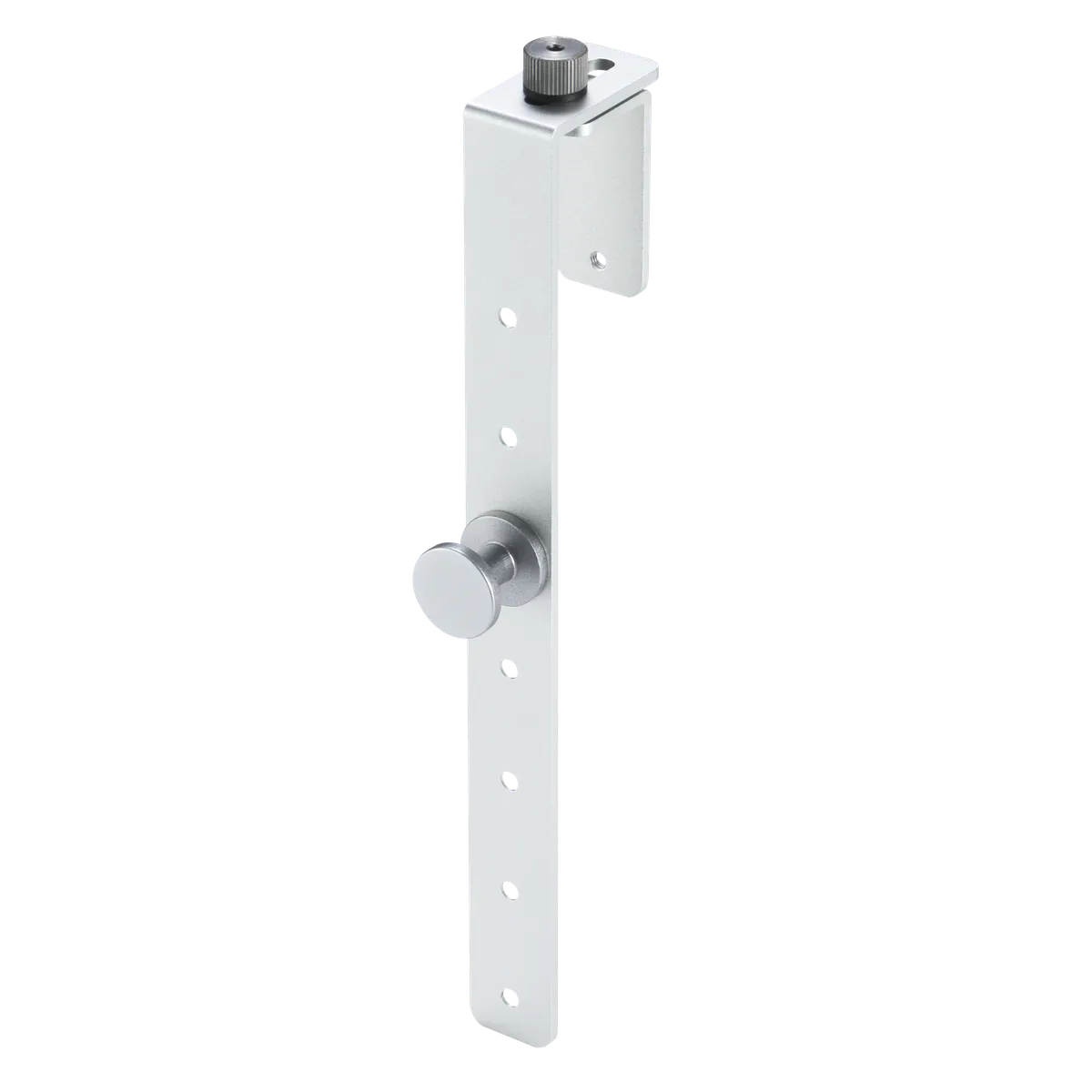

  • Partition hook
  • L-shaped Screwdriver
  • HDMI cable

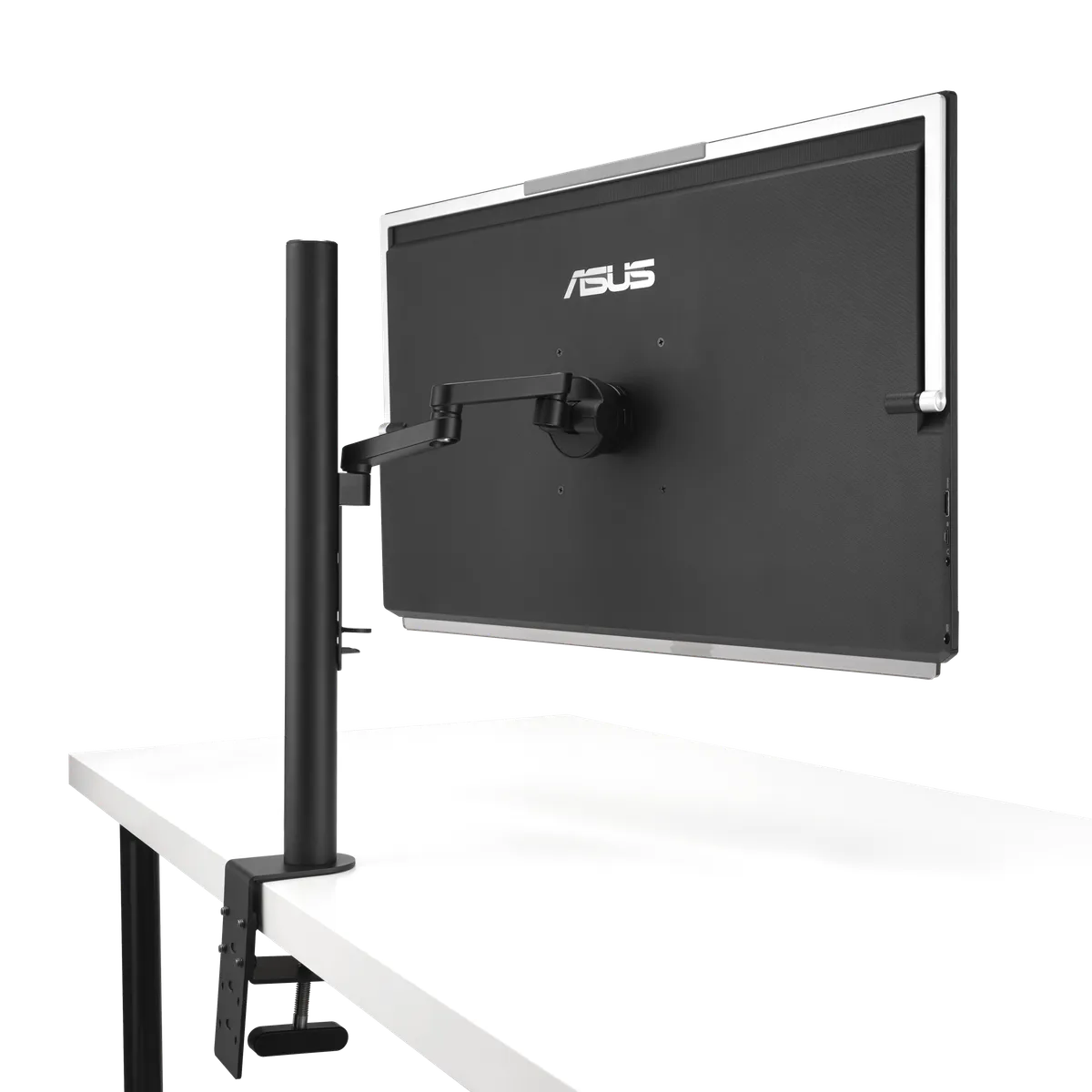

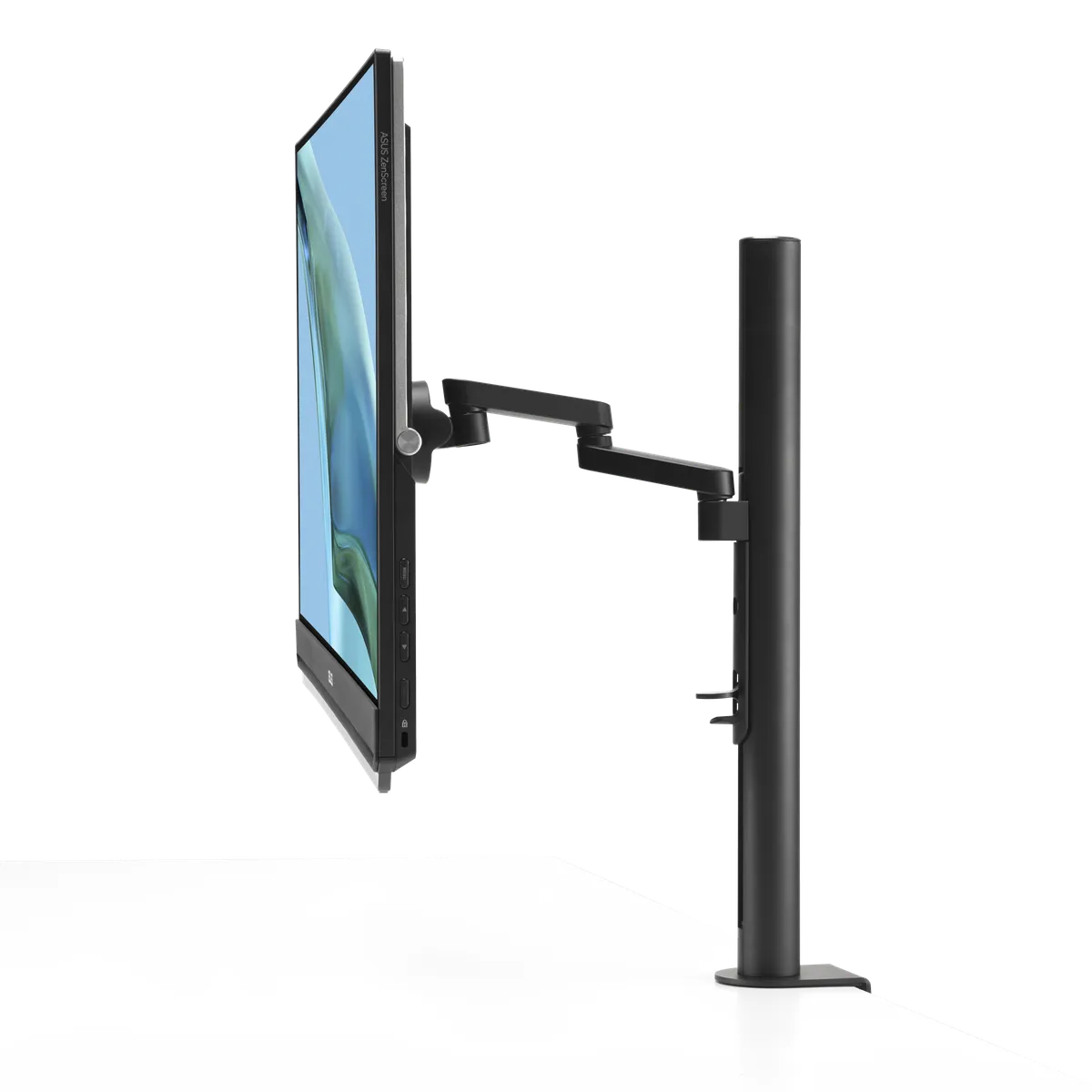

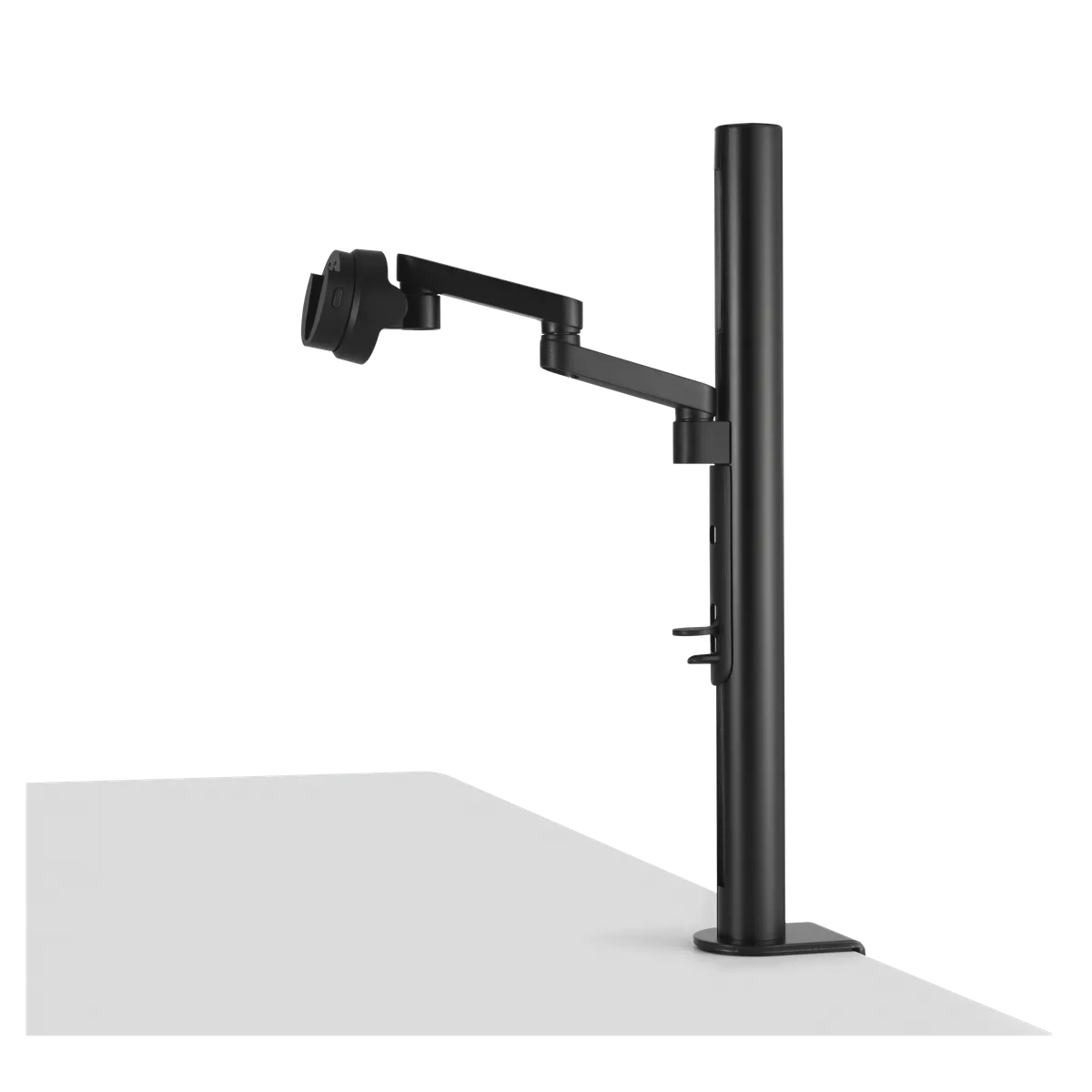

  • C-Clamp Arm
Certificate
  • FSC MIX
  • TÜV Low Blue Light
  • TÜV Flicker-free
  • Energy Star

Physical Dimensions

Length Mm
539.3
Width Mm
711.4
Height Mm
302.2
Weight G
4840
