MonitorsAsus

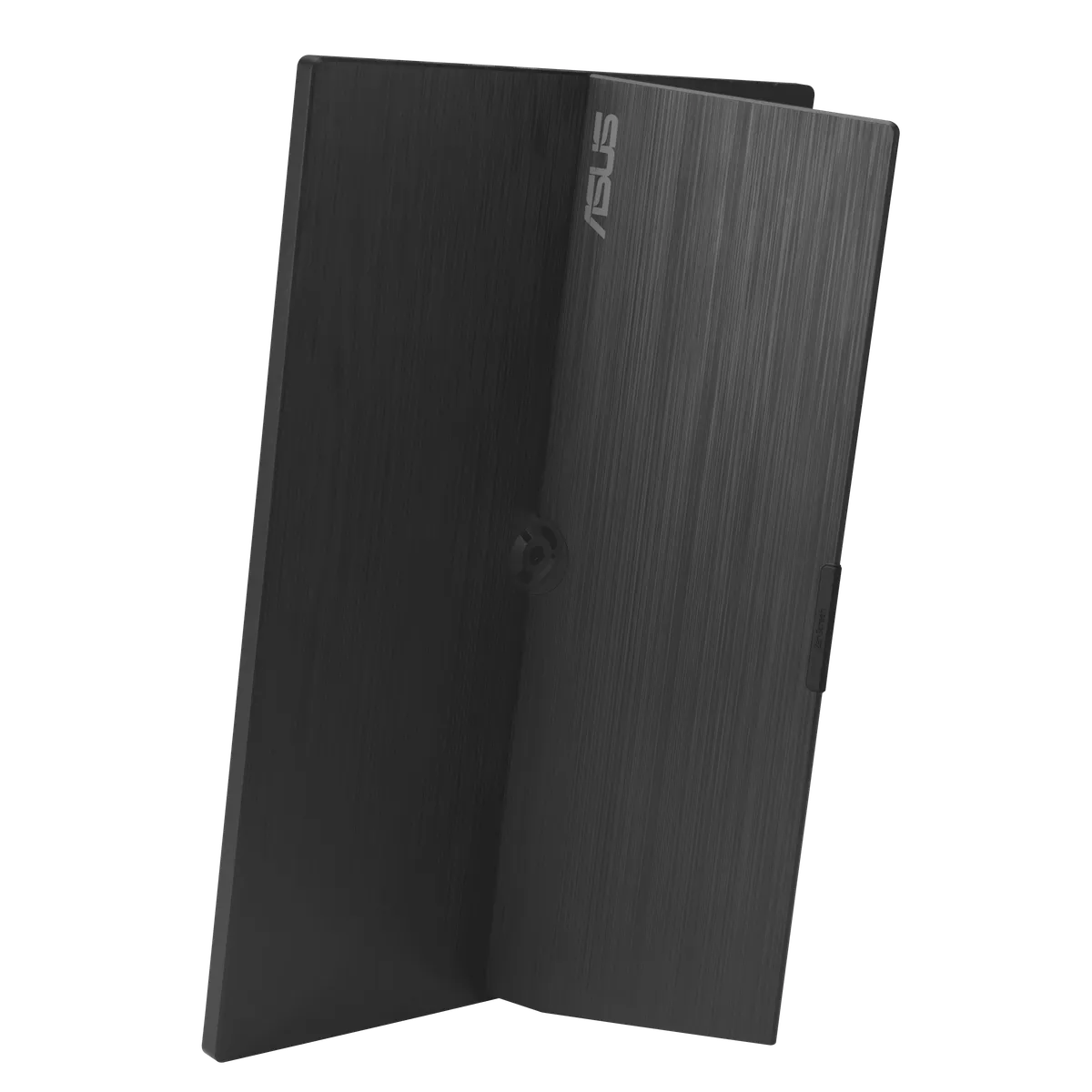

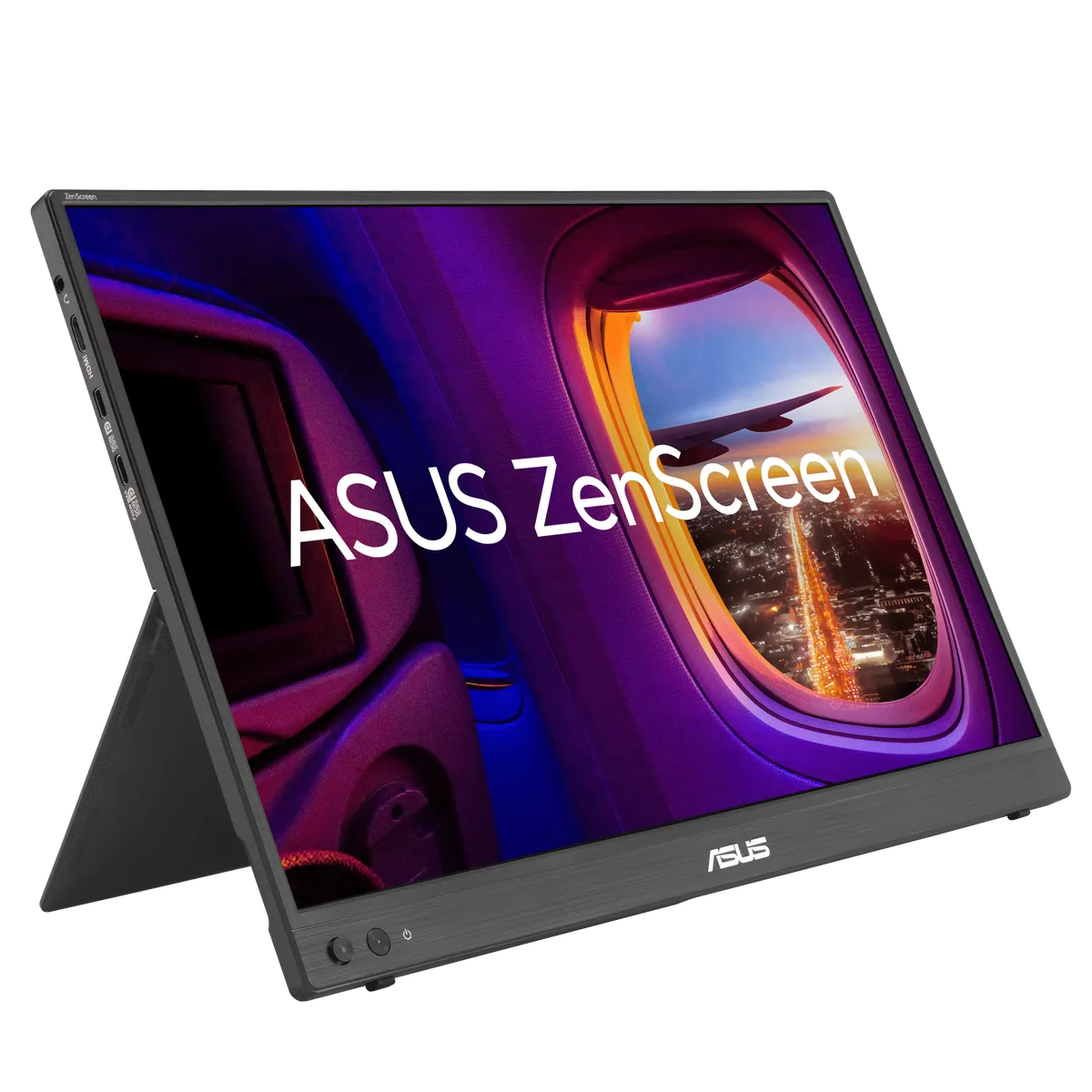

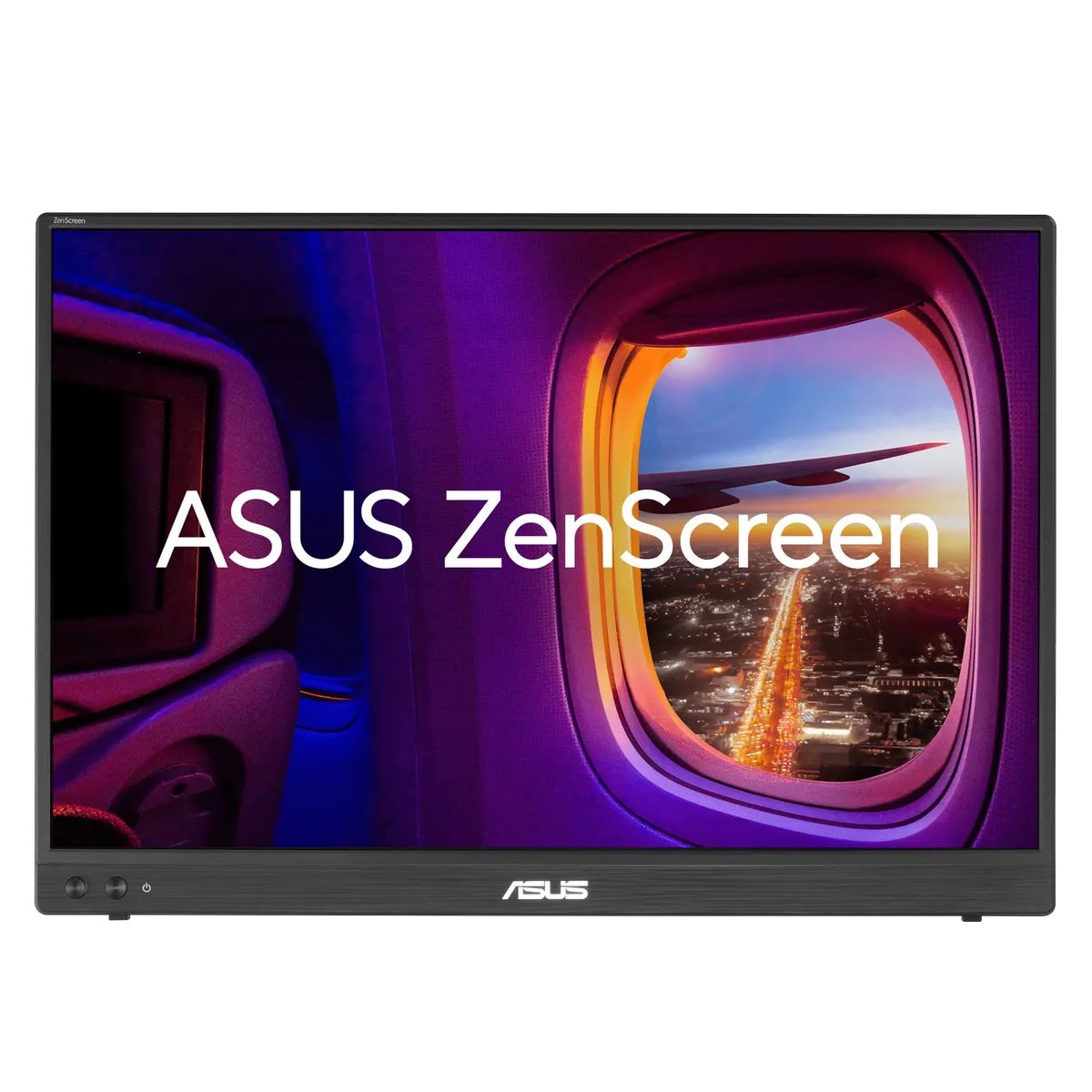

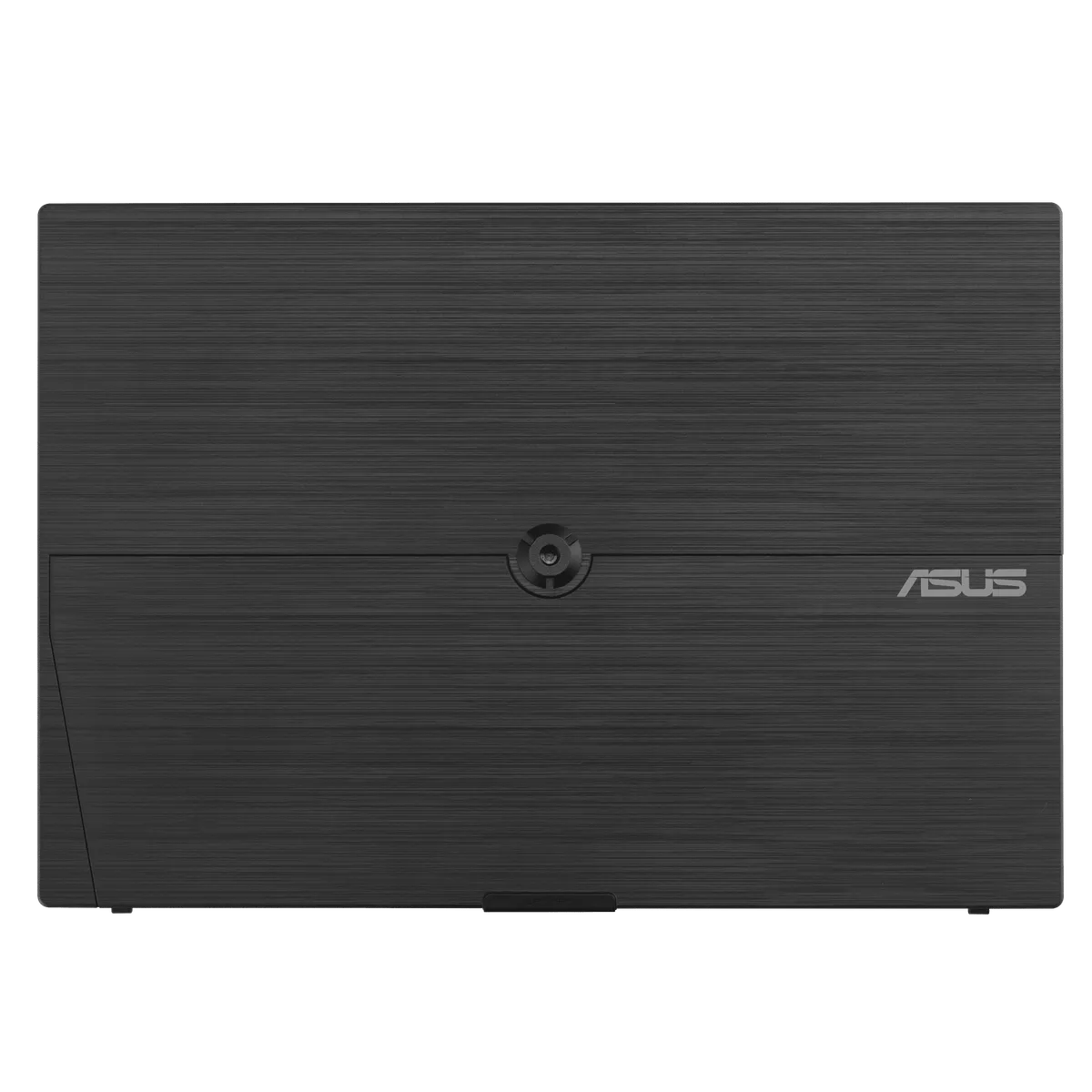

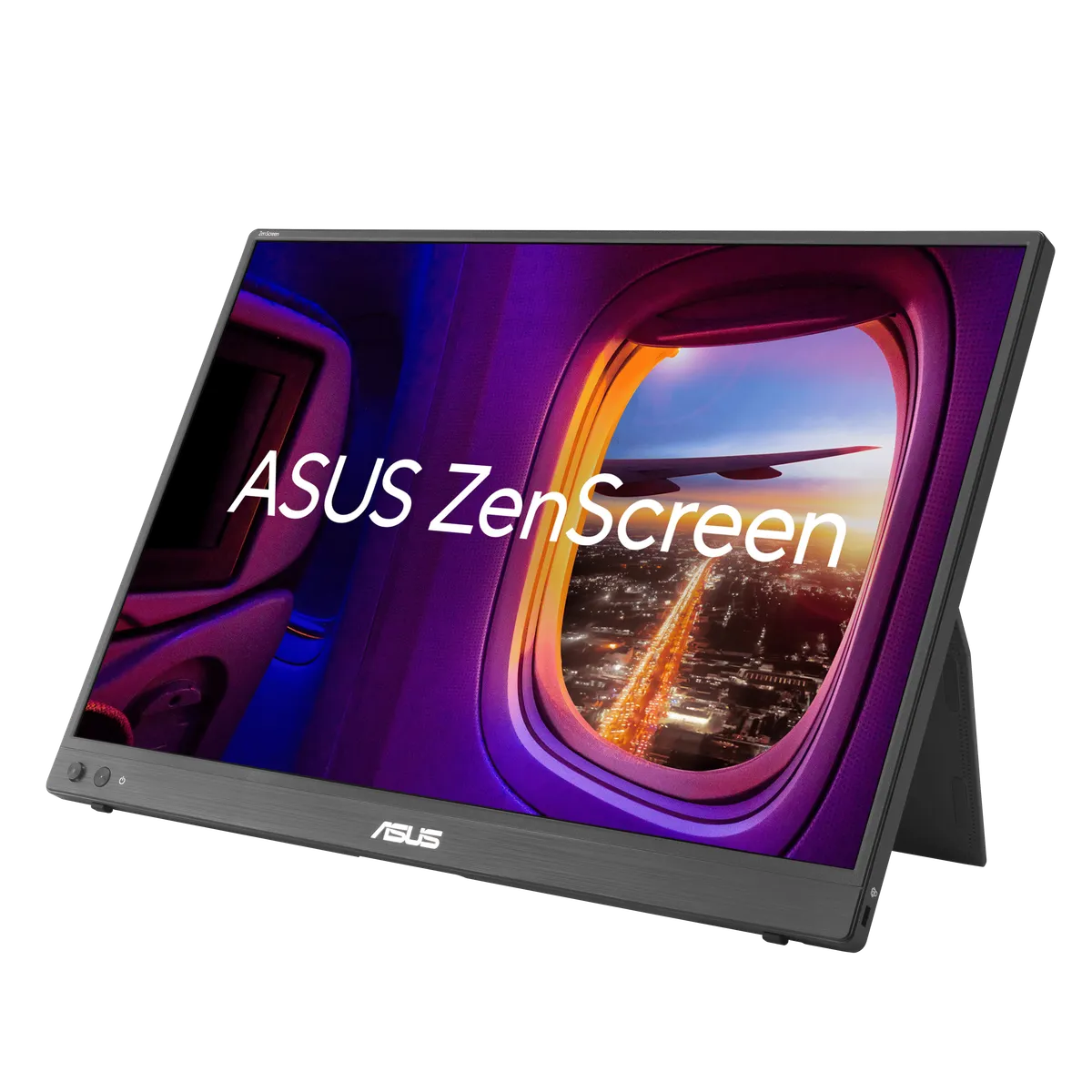

ASUS ZenScreen MB16FC
Price TBC
Compatibility Data
Monitor Resolution1920x1200
Monitor Refresh Rate Hz75
Monitor Panel TypeIPS
Monitor Aspect Ratio16:10
Monitor Response Time Ms5
Monitor CurvedNo
Model: 34656
Technical Specifications17 specs
General
Model
ZenScreen MB16FC
Display
- Panel Size (inch) : 16
- Aspect Ratio : 16:10
- Display Viewing Area (H x V) : 344.68 x 215.42mm
- Display Surface : Anti-Glare
- Backlight Type : LED
- Panel Type : IPS
- Viewing Angle (CR≧10, H/V) : 178°/ 178°
- Pixel Pitch : 0.179mm
- Resolution : 1920x1200
- Brightness (Typ.) : 300cd/㎡
- Contrast Ratio (Typ.) : 1000:1
- Display Colors : 16.7M
- Response Time : 5ms(GTG)
- Refresh Rate (Max) : 75Hz
- Flicker-free : Yes
Features
- Trace Free Technology : Yes
- SPLENDID Technology : Yes
- Color Temp. Selection : Yes (4 modes)
- Auto Rotation:Yes, supported by DisplayWidget Center
- QuickFit : Yes (Photo/Alighment Grid)
- HDCP : Yes, 1.4
- DisplayWidget : Yes, DisplayWidget Center
- Low Blue Light : Yes
- Power Pass-through : Max. 65W
Audio
Speaker : No

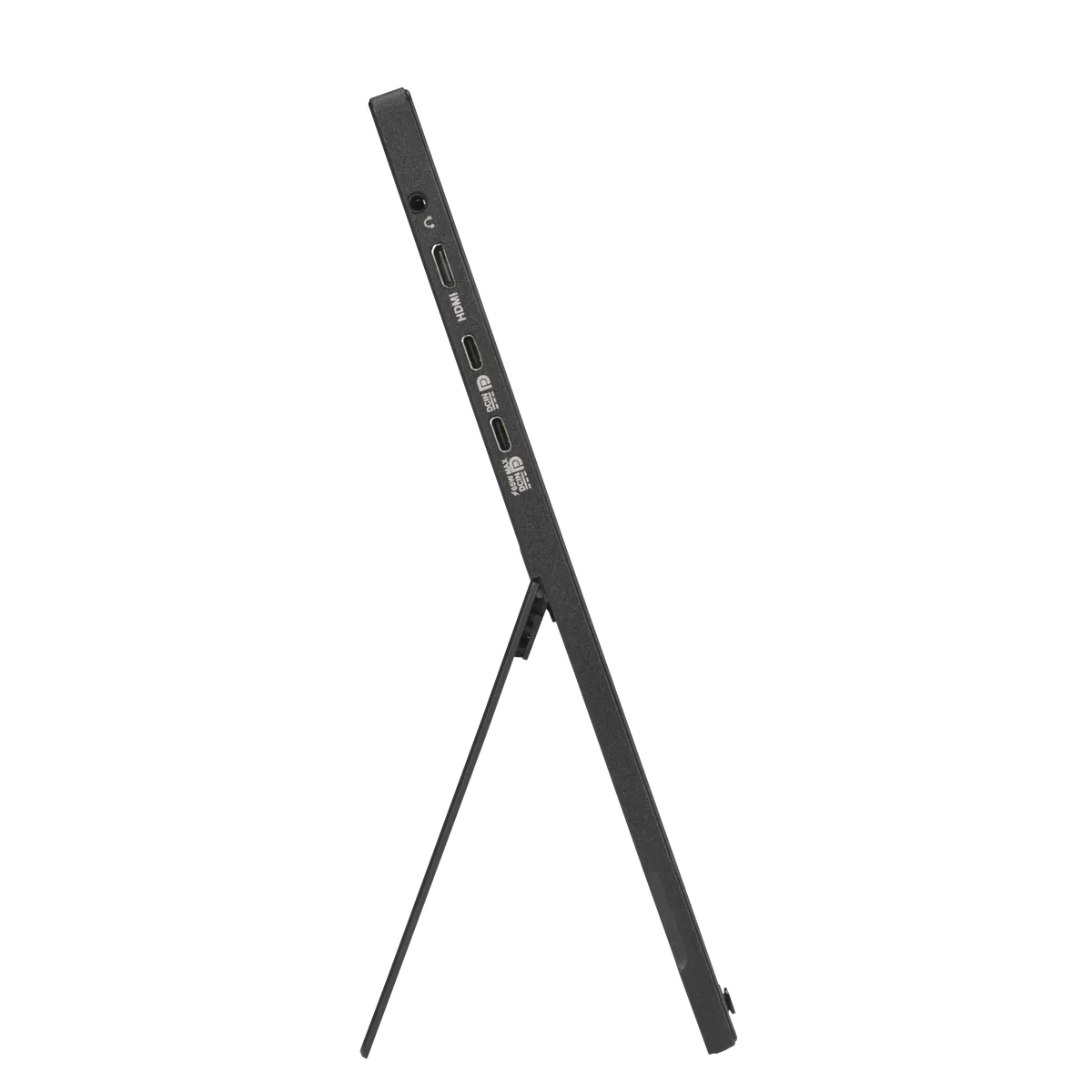

I O Ports
- USB-C x 2 (DP Alt Mode)
- Mini HDMI x 1
- Earphone Jack : Yes
Signal Frequency
- Digital Signal Frequency : USB-C: 30~100KHZ (H) / 59~75Hz(V)
- Mini HDMI: 30~100KHZ (H) / 59~75Hz(V)
Power Consumption
- Power Consumption : ≤5.62W
- Power Saving Mode : <0.5W
- Power Off Mode : <0.3W
- Voltage : 100-240V, 50/60Hz
Mechanical Design
- Height Adjustment : No
- Kensington Lock : Yes
- 1/4" Tripod Socket : Yes
Dimensions Esti
- Phys. Dimension (W x H x D) : 35.8 x 24.6 x 1.1 cm (14.09" x 9.69" x 0.43")
- Box Dimension (W x H x D) : 44.3 x 31.8 x 9.0 cm (17.44" x 12.52" x 3.54")
Weight Esti
- Net Weight : 0.90 kg (1.98 lbs)
- Gross Weight : 2.00 kg (4.41 lbs)
- 1.90 kg (4.19 lbs)
Accessories Vary By Regions
- ZenScreen sleeve
- Warranty Card
- USB-C cable
- Quick start guide
- Power adapter
- Mini HDMI to HDMI cable
Certificate
- FSC MIX
- TÜV Low Blue Light
- TÜV Flicker-free
- Energy Star
Note
*Box weight may vary from regions
Physical Dimensions
Length Mm
358
Width Mm
246
Height Mm
11
Weight G
900
