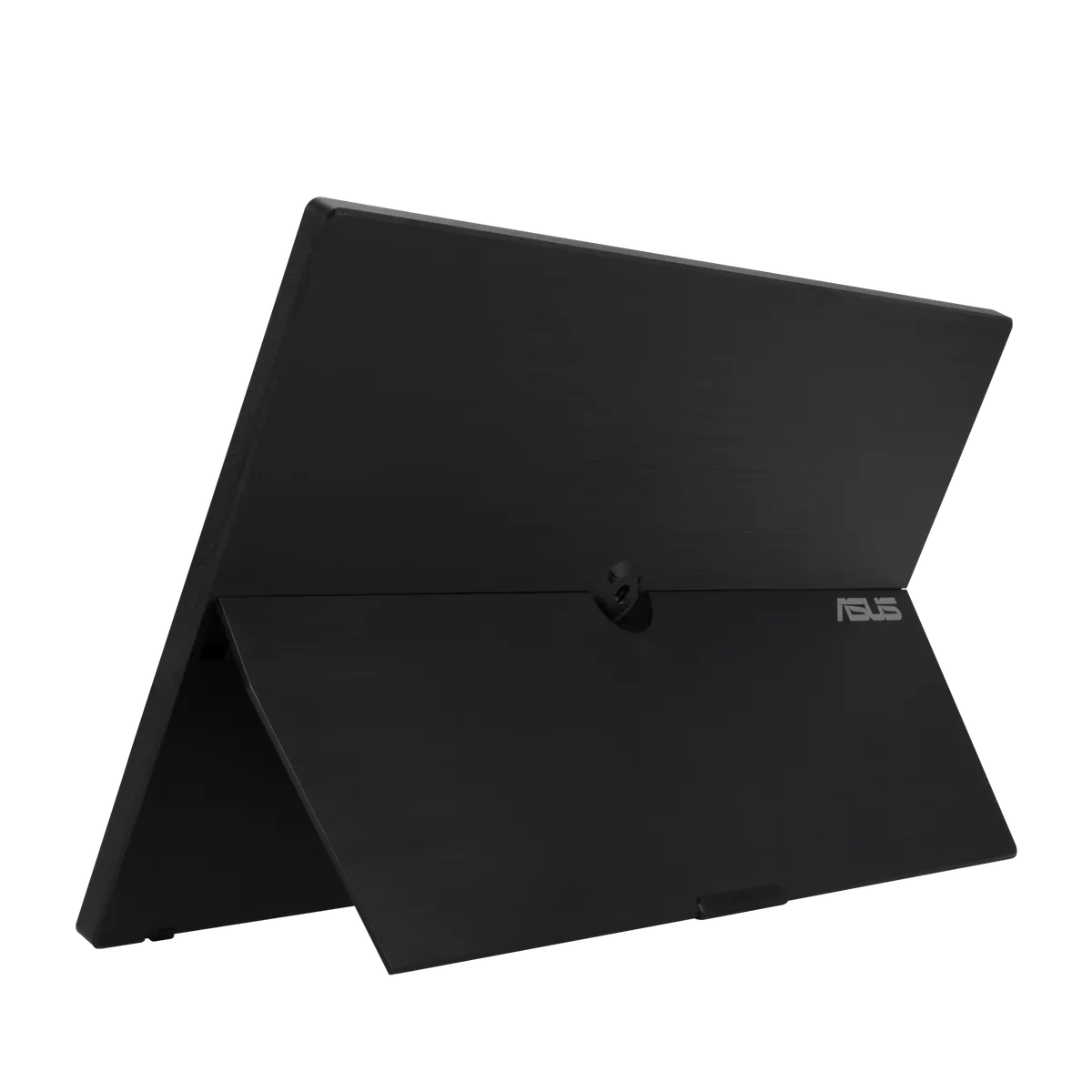

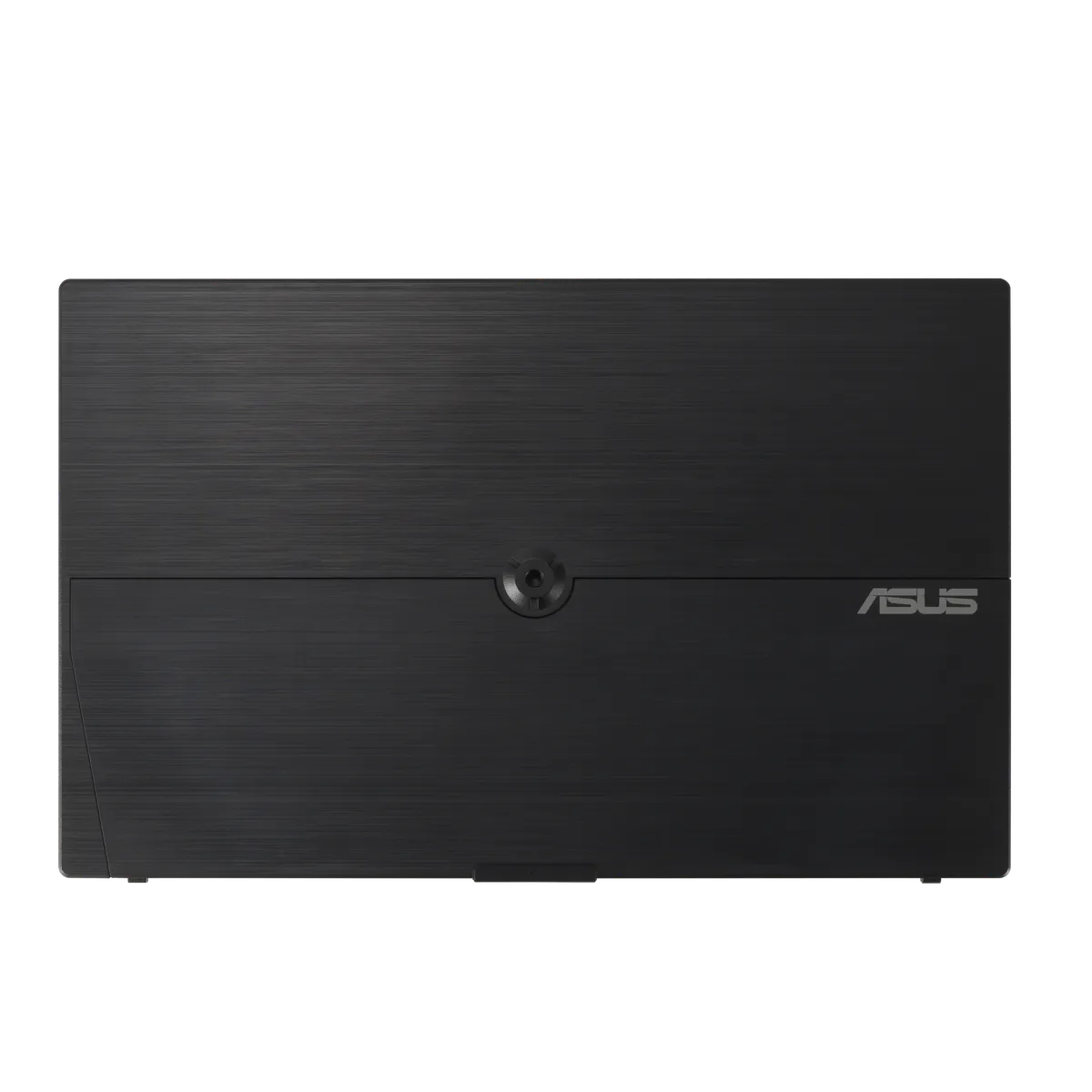

ASUS ZenScreen MB16ACV
Quick Specs
Resolution1920x1080
Refresh60 Hz
PanelIPS
Response5 ms
Model: 15369
About this monitors
Experience productivity on the go with the ASUS ZenScreen MB16ACV portable USB monitor. Enjoy a 15.6" Full HD IPS display, ultraslim design, and hybrid-signal solution. Perfect for laptop users.
Technical Specifications16 specs
General
Model
ZenScreen MB16ACV
Display
- Panel Size (inch) : 15.6
- Aspect Ratio : 16:9
- Display Viewing Area (H x V) : 344.16 x 193.59 mm
- Display Surface : Anti-Glare
- Backlight Type : LED
- Panel Type : IPS
- Viewing Angle (CR≧10, H/V) : 178°/ 178°
- Pixel Pitch : 0.179mm
- Resolution : 1920x1080
- Brightness (Typ.) : 250cd/㎡
- Contrast Ratio (Typ.) : 800:1
- Display Colors : 260K
- Response Time : 5ms(GTG)
- Refresh Rate (Max) : 60Hz
- Flicker-free : Yes
Features
- Trace Free Technology : Yes
- SPLENDID Technology : Yes
- Color Temp. Selection : Yes (4 modes)
- GamePlus : Yes
- QuickFit : Yes (Photo/Alighment Grid)
- HDCP : Yes
- DisplayWidget : Yes
- Low Blue Light : Yes
Audio
Speaker : No
I O Ports
USB-C x 1 (DP Alt Mode & USB 3.2)
Signal Frequency
- Digital Signal Frequency : DisplayPort: 31~75 KHz (H) / 60Hz (V)
- Analog Signal Frequency : NA
Power Consumption
- Power Consumption : 6.64 W
- Power Saving Mode : <0.5W
- Power Off Mode : <0.3W
- Voltage : DC: 5V, 3A
Mechanical Design
- Tilt : Yes (+15° ~ +35°)
- Height Adjustment : No
- 1/4" Tripod Socket : Yes
- Antibacterial treatment : Yes
Dimensions Esti
- Phys. Dimension (W x H x D) : 35.8 x 22.5 x 1.0 cm (14.09" x 8.86" x 0.39")
- Box Dimension (W x H x D) : 43.30 x 28.30 x 8.20 cm (17.05" x 11.14" x 3.23")
Weight Esti
- Net Weight : 0.9 kg (1.98 lbs)
- Gross Weight : 1.7 kg (3.75 lbs)
Accessories Vary By Regions

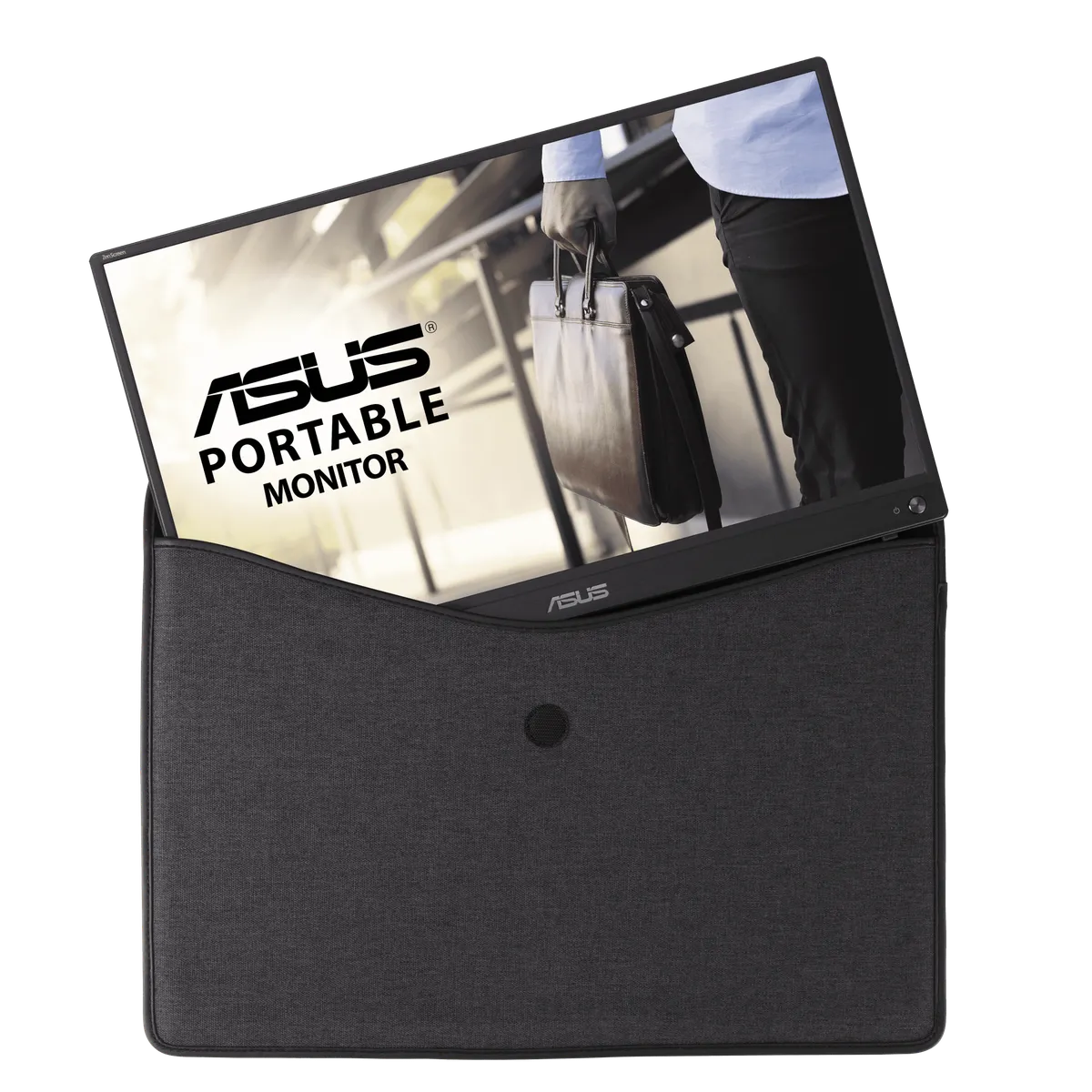

- ZenScreen sleeve
- Warranty Card
- USB-C to A cable
- USB-C cable
- Quick start guide
Certificate
- TÜV Low Blue Light
- TÜV Flicker-free
Physical Dimensions
Length Mm
358
Width Mm
225
Height Mm
10
Weight G
900
