MonitorsAsus

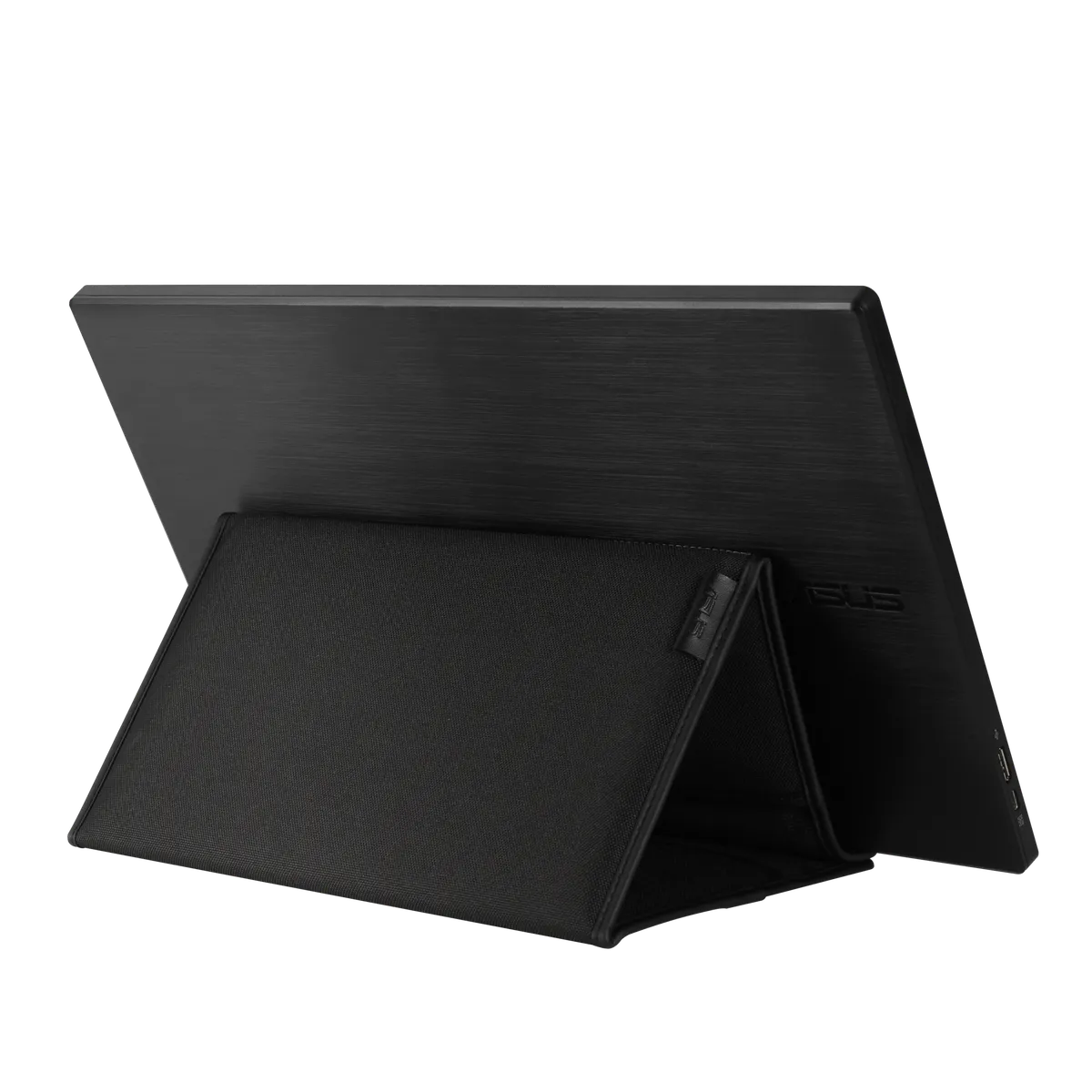

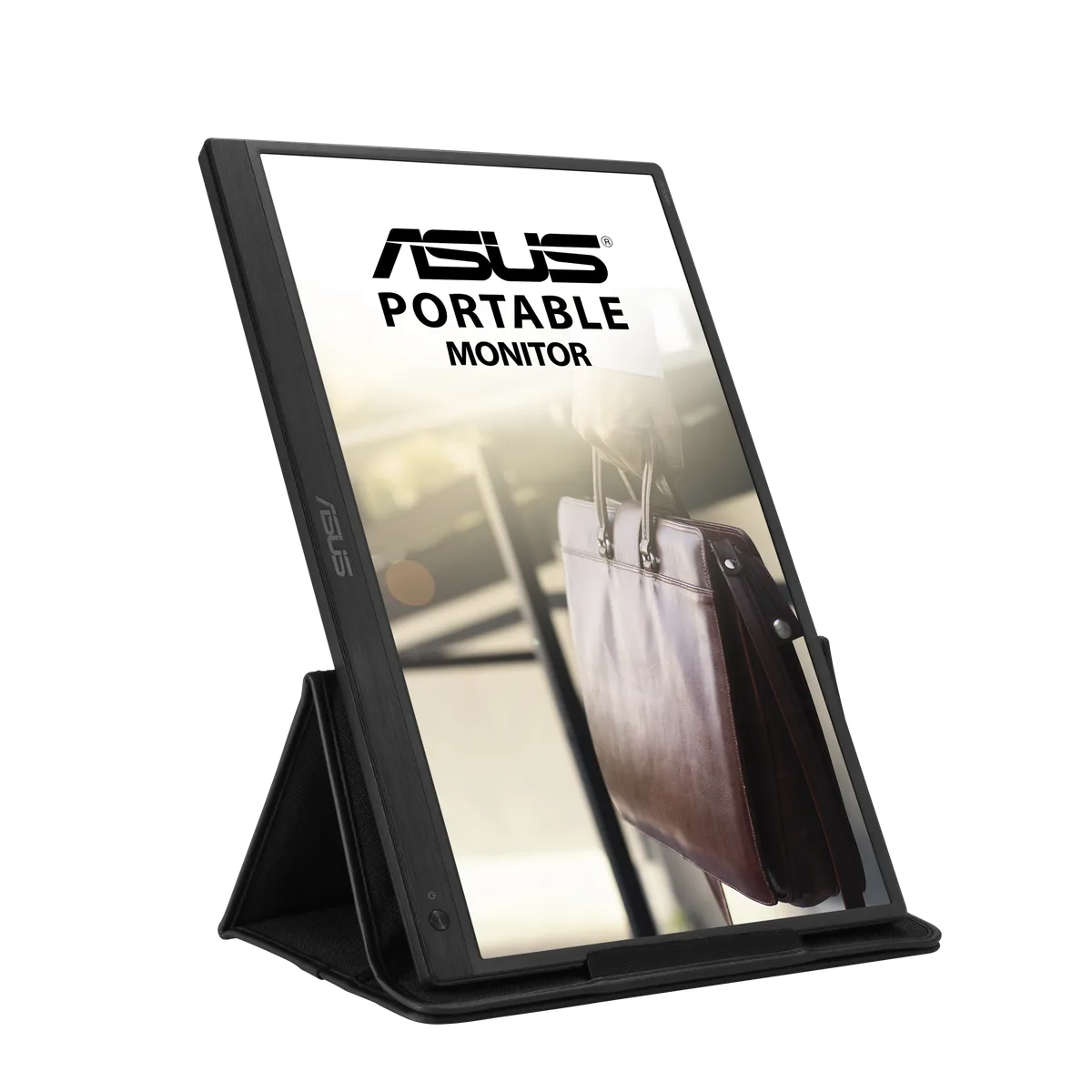

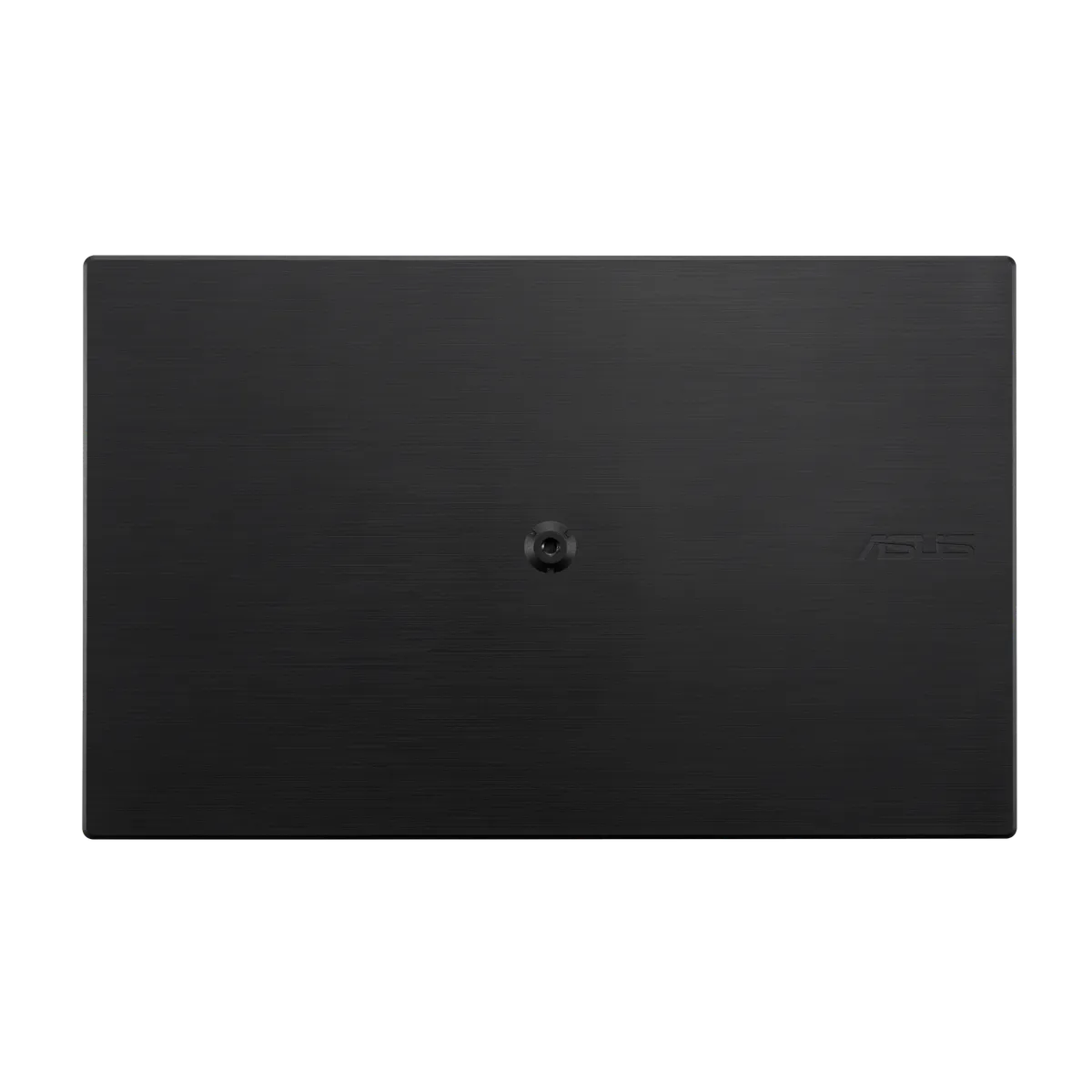

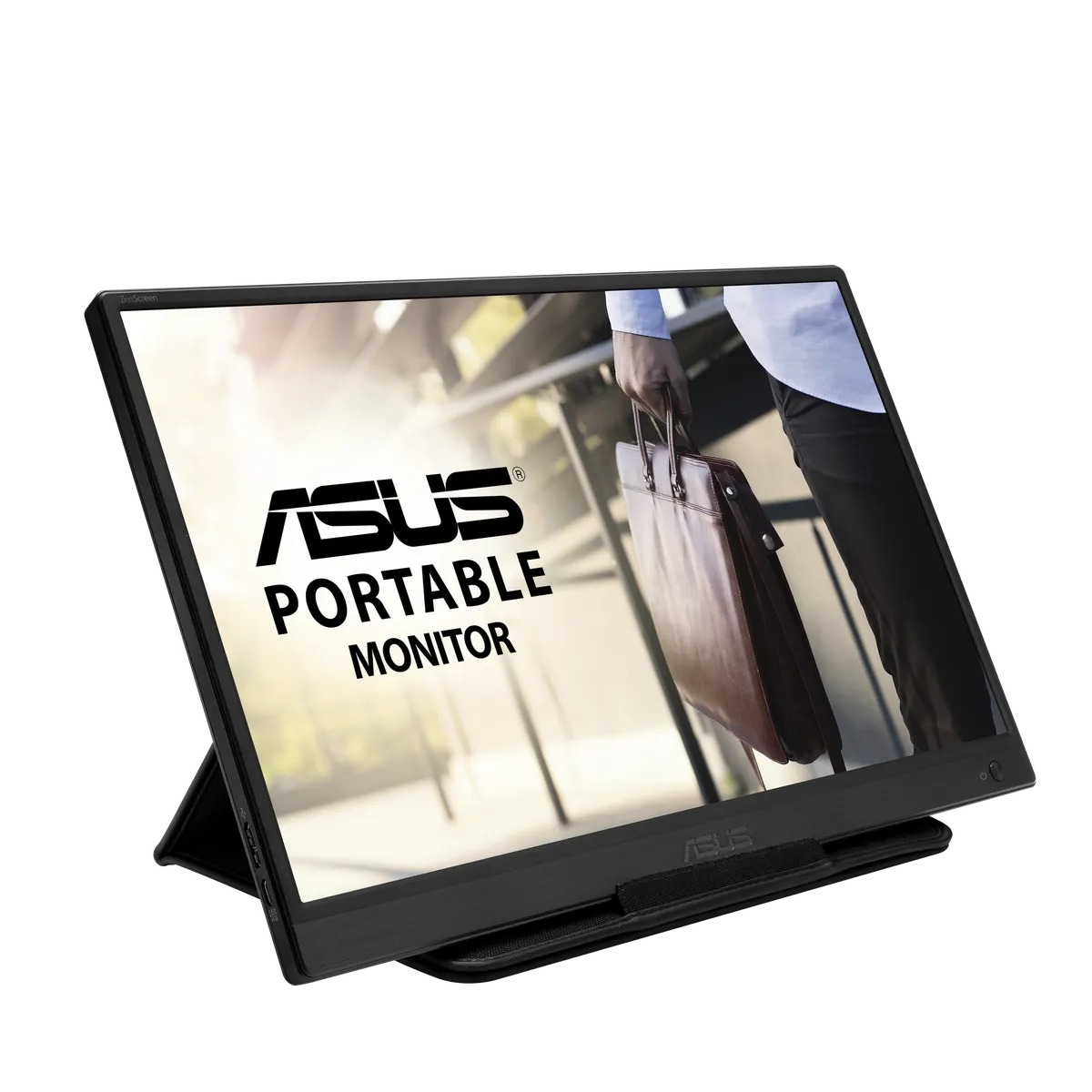

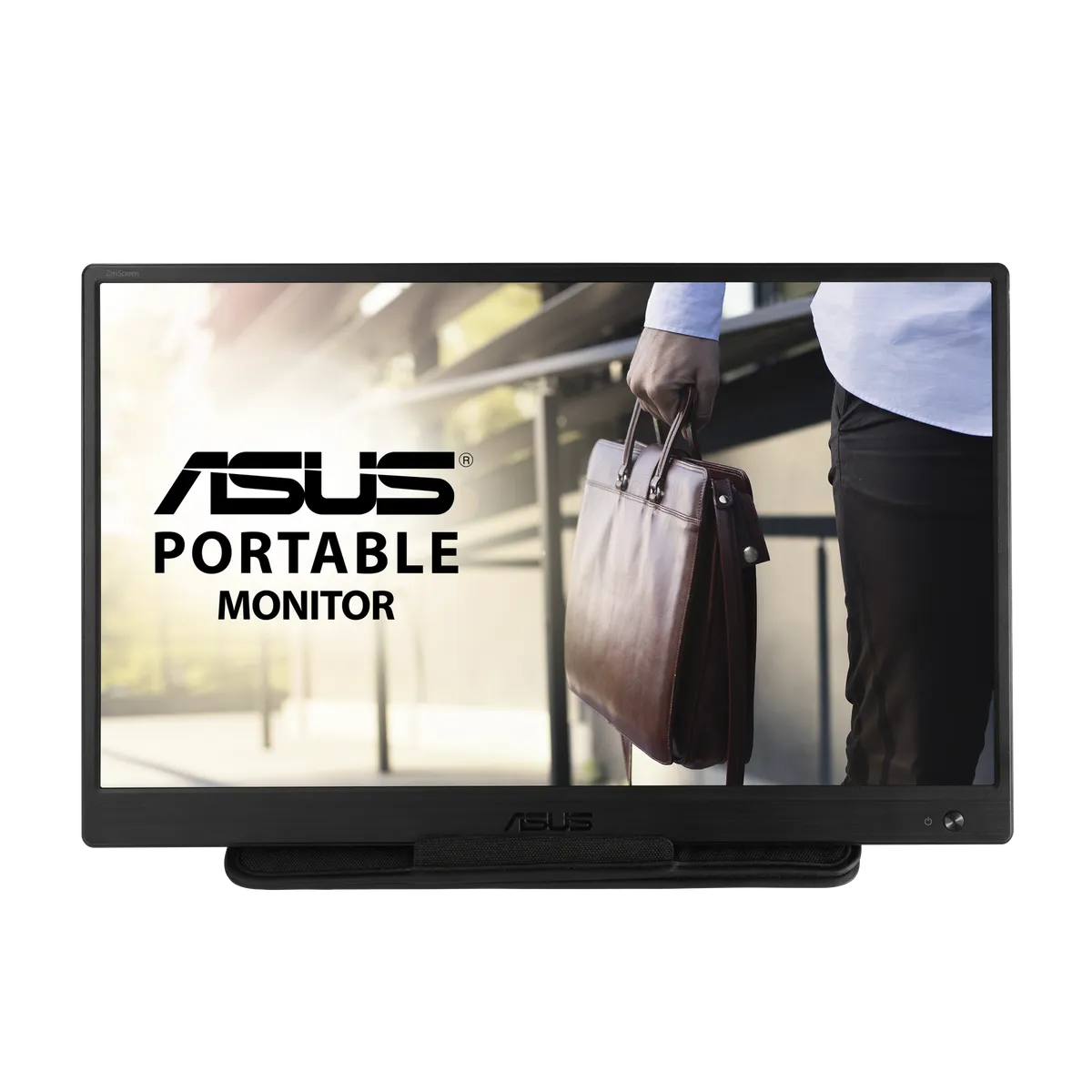

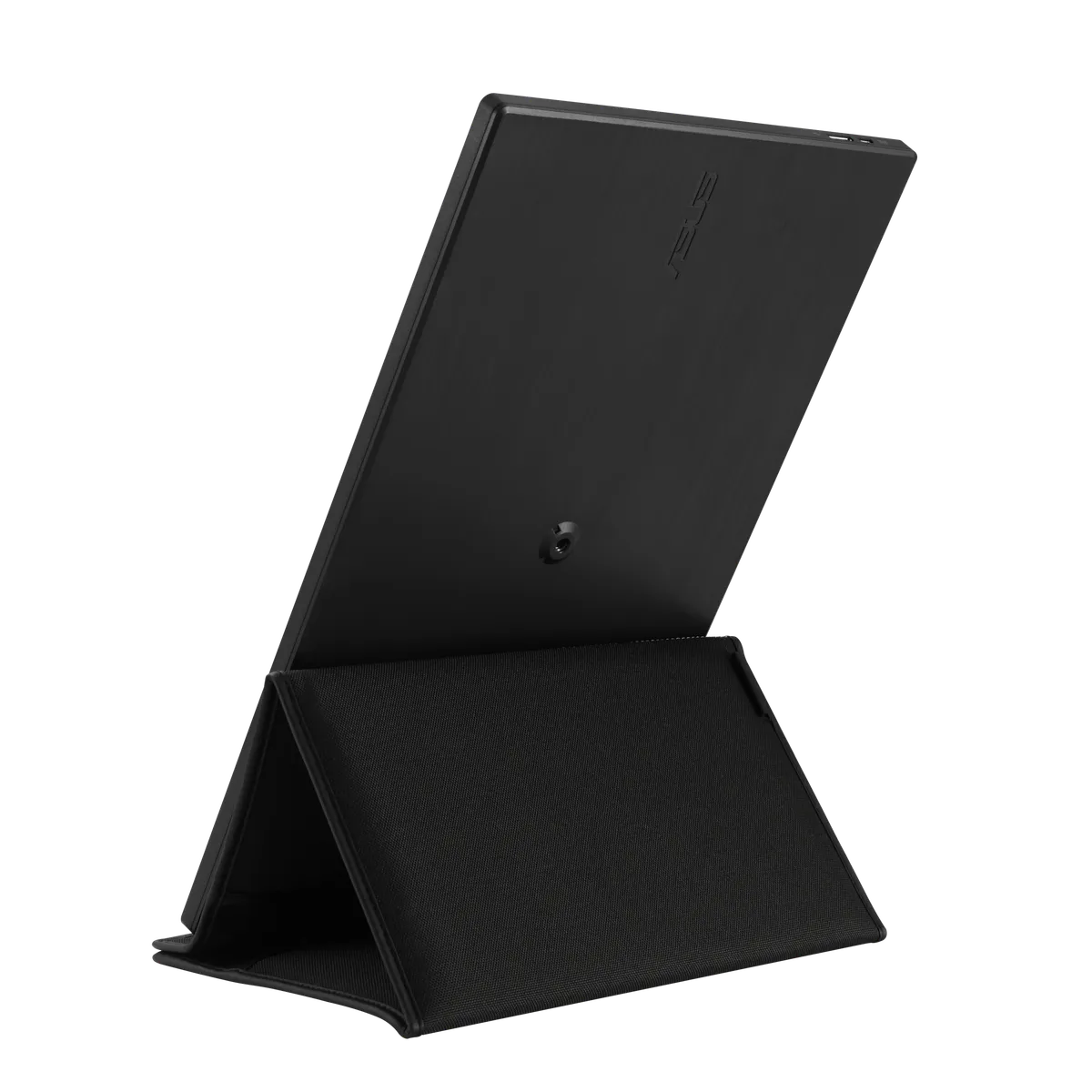

ASUS ZenScreen MB165B
Price TBC
Compatibility Data
Monitor Resolution1366x768
Monitor Refresh Rate Hz60
Monitor Panel TypeTN
Monitor Aspect Ratio16:9
Monitor Response Time Ms10
Monitor CurvedNo
Model: 16903
Technical Specifications16 specs
General
Model
ZenScreen MB165B
Display
- Panel Size (inch) : 15.6
- Aspect Ratio : 16:9
- Display Viewing Area (H x V) : 344.23*193.54mm
- Display Surface : Anti-Glare
- Backlight Type : LED
- Panel Type : TN
- Viewing Angle (CR≧10, H/V) : 90°/ 65°
- Pixel Pitch : 0.252mm
- Resolution : 1366x768 (WXGA )
- Brightness (Typ.) : 220cd/㎡
- Contrast Ratio (Typ.) : 500:1
- Display Colors : 260K
- Response Time : 10ms(Tr+Tf)
- Refresh Rate (Max) : 60Hz
- Flicker-free : No
Features
- HDCP : Yes
- DisplayWidget : Yes
Audio
Speaker : No
I O Ports
USB 3.2 (Signal) : x 1
Battery
Battery : NA
Power Consumption
- Power Consumption : 4.88 W
- Power Saving Mode : <0.5W
- Power Off Mode : <0.3W
- Voltage : DC: 5V, 3A
Mechanical Design
- Height Adjustment : No
- 1/4" Tripod Socket : Yes
Dimensions Esti
- Phys. Dimension without Stand (W x H x D) : 36.01 x 22.50 x 1.18 cm (14.18" x 8.86" x 0.46")
- Box Dimension (W x H x D) : 43.40 x 29.00 x 7.60 cm (17.09" x 11.42" x 2.99")
Weight Esti
- Net Weight without Stand : 0.78 kg (1.72 lbs)
- Gross Weight : 1.65 kg (3.64 lbs)
Accessories Vary By Regions
- ZenScreen sleeve
- Warranty Card
- USB 3.2 cable
- Quick start guide
Note
For auto rotation/brightness/contrast adjustment functions, please go to product page, find "support" tab to download and install latest DisplayWidget tool. * DisplayWidget is working under Windows OS only.
Physical Dimensions
Length Mm
360.1
Width Mm
225
Height Mm
11.8
Weight G
780
