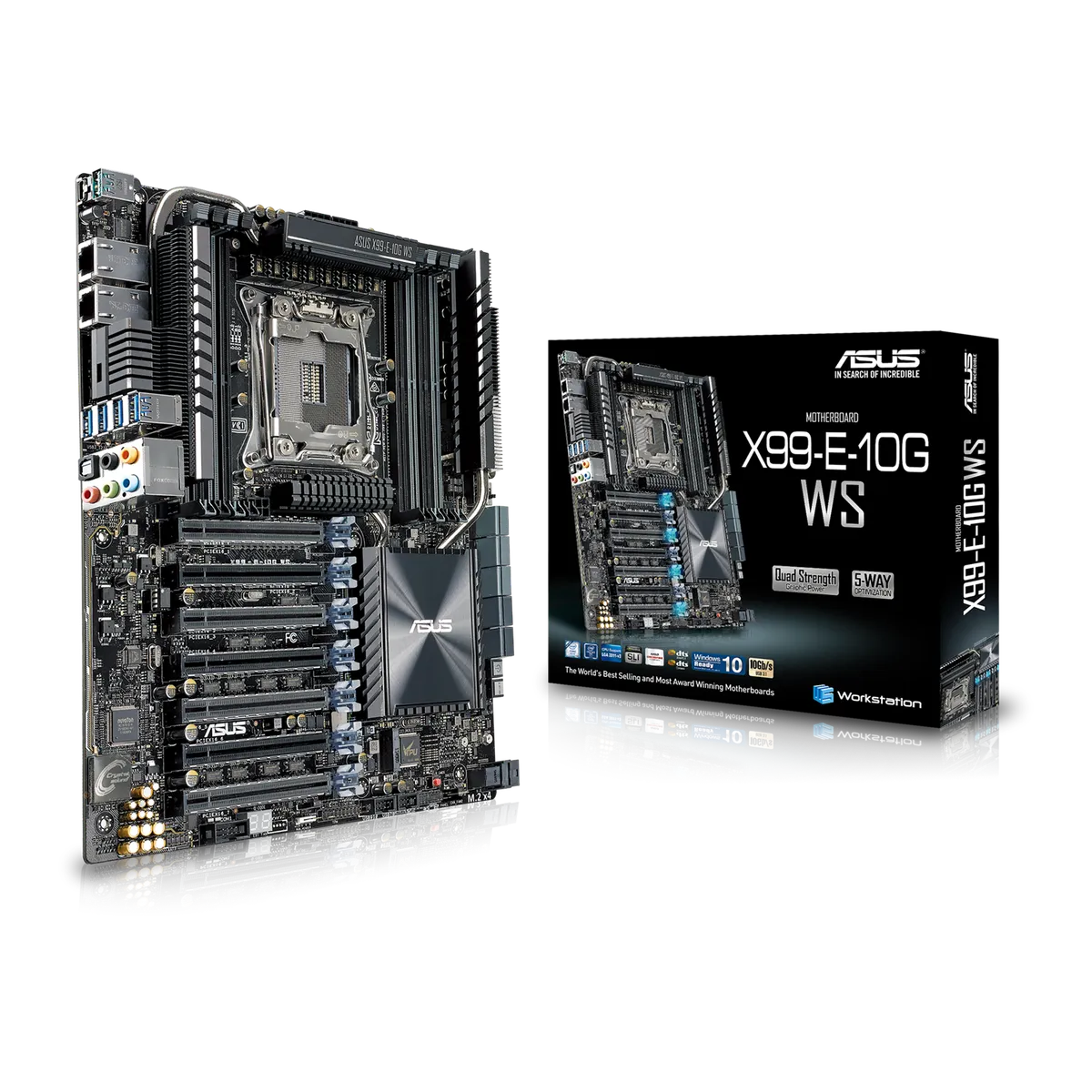

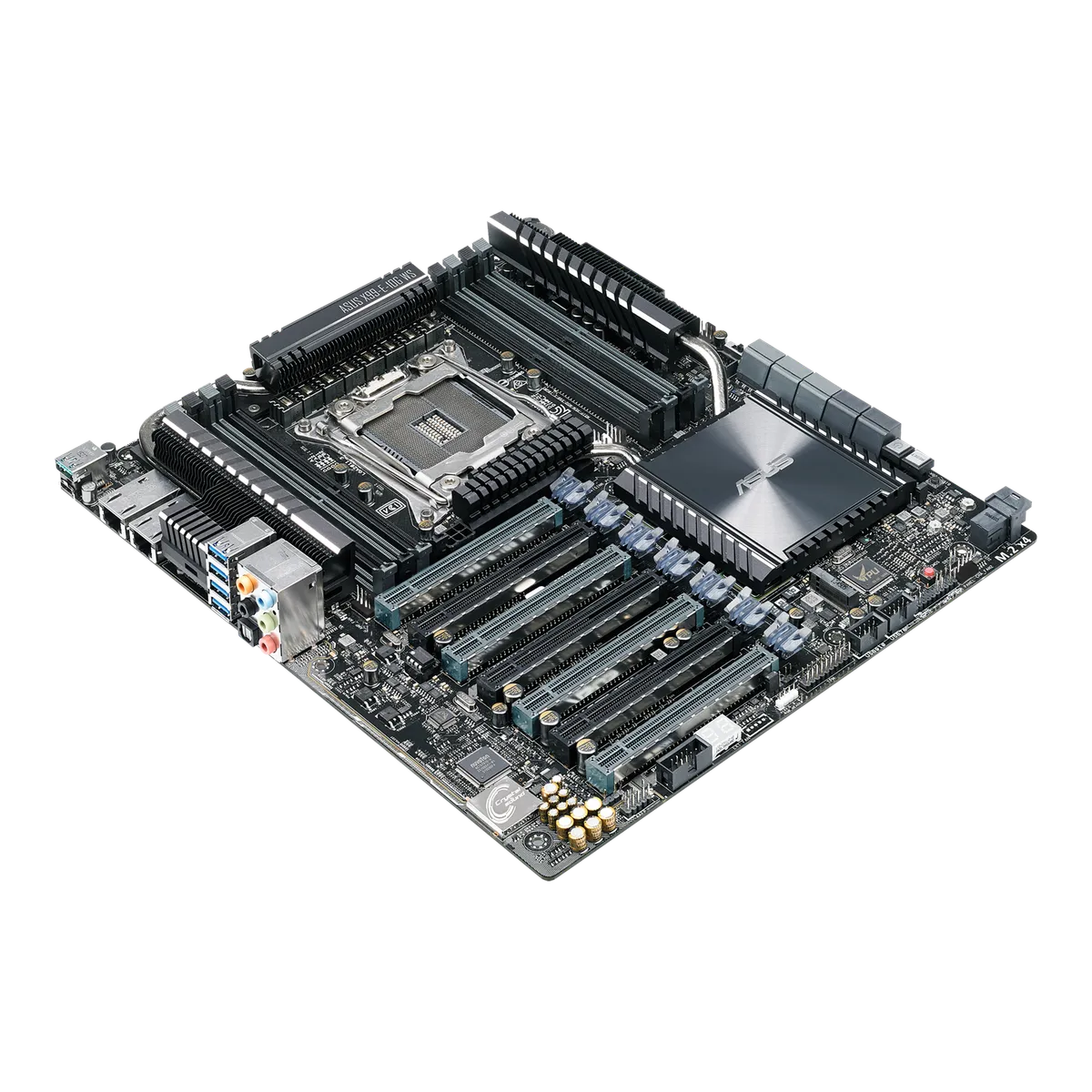

ASUS X99-E-10G WS

Name: ASUS X99-E-10G WS
Brand: Asus
SKU: 8822

Check Price

Quick Specs

ChipsetIntel® X99

MemoryDDR4

Form FactorCEB

M.2 Slots1

Model: 8822

About this motherboards

ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, or 3D rendering. Featuring expandable graphics, storage, impressive connectivity and reliability, Pro Workstation motherboards are the ideal solution for creative professionals and IT administrators.

Technical Specifications25 specs

General

Model

X99-E-10G WS

Cpu

Build in Intel® Socket 2011-v3 Core™ i7/Core™ i7 X-Series Processors,Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v3 product family,Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v3 product family,Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v4 product family,Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v4 product family,Supports Intel® Turbo Boost Max Technology 3.0,* The Intel® Turbo Boost Technology 3.0 Support Depends on the CPU types.,Supports Intel® 14nm CPU,* Refer to
www.asus.com
for CPU support list

Chipset

Intel® X99

Memory

8 x DIMM, Max. 128GB, DDR4 3333(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/ 2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
1
,8 x DIMM, Max. 128GB, DDR4 2400/2133 MHz ECC, Un-buffered Memory
2
,8 x DIMM, Max. 128GB, DDR4 2400/2133 MHz ECC, Register Memory
2
,Quad Channel Memory Architecture,Supports Intel® Extreme Memory Profile (XMP),* Hyper DIMM support is subject to the physical characteristics of individual CPUs.,* Refer to
www.asus.com

Multi Gpu Support

Supports NVIDIA® 4-Way SLI™ Technology,Supports AMD 4-Way CrossFireX Technology

Expansion Slots

7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/ x16/x16/x16 or seven x16/x8/x8/ x8/x8/x8/x8)

Storage

Intel® X99 chipset :
3
,1 x U.2 connector
4
,,1 x M.2 x4 Socket 3
4
, , with M Key, type 2260/2280 storage devices support (PCIE mode),10 x SATA 6Gb/s port(s)
5
,Intel® Rapid Storage Technology supports
6

Lan

Intel® X550-AT2 10, 2 x Gigabit LAN ports

Audio

Realtek® ALC11508-Channel High Definition Audio CODEC featuring Crystal Sound 3,- High quality112dBSNR stereo playback output(Line-out at rear)and104dBSNR stereo playback input(Line-in),- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound,- DTS Studio Sound,- BD Audio Layer Content Protection,- Audio amplifier: Provides the highest-quality sound for headphone and speakers,- DTS Connect,- Power pre-regulator: Reduces power input noise to ensure consistent performance,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
,- Optical S/PDIF out port(s) at back panel,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Unique de-pop circuit: Reduces start-up popping noise to audio outputs,Separate layer for left and right track, ensuring both sound deliver equal quality

Usb Ports

8 x USB 3.1 Gen 1 port(s) (4 at back panel, )
Intel® X99 chipset :
ASMedia® USB 3.1 controller :
,2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-C
TM
),4 x USB 2.0/1.1 port(s) (4 at mid-board)

Workstation Feature

7 x PCIe x 16 slot(s),ASUS PIKE SAS upgrade kit(Optional),ProCool Power Connector

Special Features

- Industry leading Digital 8 Phase Power Design,- Industry leading Digital 4 Phase DRAM Power Design,- CPU Power Utility,- DRAM Power Utility,- USB 3.1 Boost
Media Streamer
,- Push Notice,- Disk Unlocker,- Ai Charger+,- ASUS USB BIOS Flashback
®
ASUS TPU :
,- Auto Tuning,- MemOK!,- Precision Tweaker 2,- ASUS O.C. Tuner,- ASUS Q-LED (CPU, VGA, Boot Device LED)
ASUS Digital Power Design :
,- Crystal Sound 3
Special Memory O.C. Design
M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)
,- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App,- ASUS CrashFree BIOS,- ASUS EZ Flash
Turbo APP
,- GPU Boost,- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface,- ASUS Q-Connector,- ASUS Q-Code
5-Way Optimization by Dual Intelligent Processors 5
ASUS EPU :
,- EPU
ASUS Exclusive Features
:,- AI Suite 3,- Turbo LAN
ASUS EZ DIY :
,- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
,- ASUS Q-Slot,- ASUS Q-DIMM

Back I O Ports

2 x Intel 10G LAN (BASE-T) Ports,2 x USB 3.1 Type-A + USB Type-C
TM
,4 x USB 3.1 Gen 1 (blue),1 x Optical S/PDIF out,5 x Audio jack(s)

Internal I O

1 x M.2 Socket 3 for M Key, type 2260/2280 devices,2 x Chassis Fan connector(s) (4 x -pin),1 x DRCT header(s),1 x SLI/CFX switch (2/3-WAY adjustments),1 x 3-pin CHASSIS(Chassis intrusion) connector,1 x 6-pin EATX 12V_1 Power connector(s),10 x SATA 6Gb/s connector(s),2 x 8-pin EATX 12V Power connector,2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin),1 x RGB Header(s),1 x EZ XMP switch,1 x High AMP Fan Header,1 x MemOK! button(s),1 x System panel(s) (Q-Connector),1 x CPU OV,1 x Front panel connector(s),1 x Water Pump header (4-pin),1 x TPM connector(s),1 x Power-on button(s),1 x Reset button(s),1 x T_Sensor Connector,2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x CPU OPT Fan connector(s) (1 x 4-pin),1 x S/ PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x COM port header,1 x U.2 Connector (support U.2 NVMe device)

Accessories

10 x SATA 6Gb/s cable(s),1 x Q-connector(s) (2 in 1),1 x SLI bridge(s),1 x COM port cable(s),1 x 3-Way SLI bridge(s),1 x 4-Way SLI bridge(s),1 x 2-port USB 2.0 module(s),1 x Extension Cable for RGB strips (80 cm),User´s manual,I/O Shield,1 x Supporting DVD

Bios

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS
ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log
F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.

Manageability

WfM 2.0, DMI 2.7, WOL by PME, PXE

Support Disc

Drivers、ASUS Utilities、EZ Update 、Anti-virus software (OEM version)

Operating System

Windows® 8.1 64-bit,Windows® 7 64-bit

Form Factor

CEB Form Factor,12 inch x 10.5 inch ( 30.5 cm x 26.7 cm )

Environment

Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)

Note

*1 When installing Intel® Socket 2011-v3 Core™ i7/i7 X-Series Processors
*2 When installing Intel® Xeon® E5-2600/1600 v4/v3 Processor
*3 Intel® X99 Express Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 14 support
*4 Support on 40 Lane CPU
*5 10 x SATA 6.0 Gb/s ports* (6 x gray, 4 x black)
*6 These functions will work depending on the CPU installed
