ASUS WS C621E SAGE

Name: ASUS WS C621E SAGE
Brand: Asus
SKU: 9603

Check Price

Quick Specs

ChipsetBuild in Intel® C621

SocketLGA 3647

MemoryDDR4

Form FactorEEB

M.2 Slots1

Model: 9603

About this motherboards

Experience ASUS WS C621E SAGE, a high-performance Intel® C621 motherboard. Quad-strength graphics, 12 DDR4 slots, and superb connectivity. Enhance your tech life!

Technical Specifications21 specs

General

Model

WS C621E SAGE

Cpu

Dual Intel® Socket P (LGA 3647) for Intel® 1st and 2nd Xeon® Scalable Processors Family (205W),* Refer to
www.asus.com
for CPU support list

Chipset

Build in Intel® C621

Memory

12 x DIMM, Max. 1536GB, DDR4 2933/2666/2400 MHz RDIMM, LR-DIMM Memory,* Please refer to ASUS AVL for the latest update.,* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.

Graphic

VGA port(Optional),- Supports VGA with max. resolution 1920 x 1200 @ 60 Hz,Aspeed AST2500 with 64MB VRAM,Integrated Graphics Processor

Multi Gpu Support

Supports NVIDIA® 4-Way SLI™ Technology
1
,Supports AMD 4-Way CrossFireX Technology
1

Expansion Slots

3 x PCIe 3.0 x16 (x16 mode),2 x PCIe 3.0 x16 (x8 mode),2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)

Storage

4 x U.2 connector,,1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)
Intel® C621 Chipset :
ASMedia® SATA 6Gb/s controller :
,2 x SATA 6Gb/s port(s),,Support Raid 0, 1, 5, 10,8 x SATA 6Gb/s port(s)

Lan

Intel® I210-AT, 2 x Gigabit LAN Controller(s)

Audio

Realtek® S1220A7.1-Channel High Definition Audio CODEC
2
,- High qualitySNR stereo playback outputand113dBSNR recording input(Line-in),- DTS Connect,- Power pre-regulator reduces power input noise to ensure consistent performance,- DTS Headphone:X,- Supports up to 32-Bit/192kHz playback,- Impedance sense for front and rear headphone outputs,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking,- Front panel audio connector (AAFP)
Audio Feature :
,- Optical S/PDIF out port(s) at back panel,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Unique de-pop circuit: Reduces start-up popping noise to audio outputs

Usb Ports

2 x USB port(s) (2 at back panel, , Type-A + USB Type-C
TM
),8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board)
Intel® C621 Chipset :
,4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)
ASMedia® USB 3.1 Gen 2 controller :

Workstation Feature

USB BIOS Flashback
®
,ASUS PIKE SAS upgrade kit
3
,ProCool Power Connector

Special Features

- Industry leading Digital 7 + 1 Phase CPU Power Design,- Front Panel USB 3.0 Support
ASUS Digital Power Design :
,- Industry leading Digital 2 Phase DRAM Power Design
M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)
Gamer´s Guardian:
,- ASUS Q-Code,- Digi+ VRM,- SafeSlot
ASUS Exclusive Features
:
ASUS Q-Design :
,- ASUS Q-Shield,- ASUS Q-DIMM

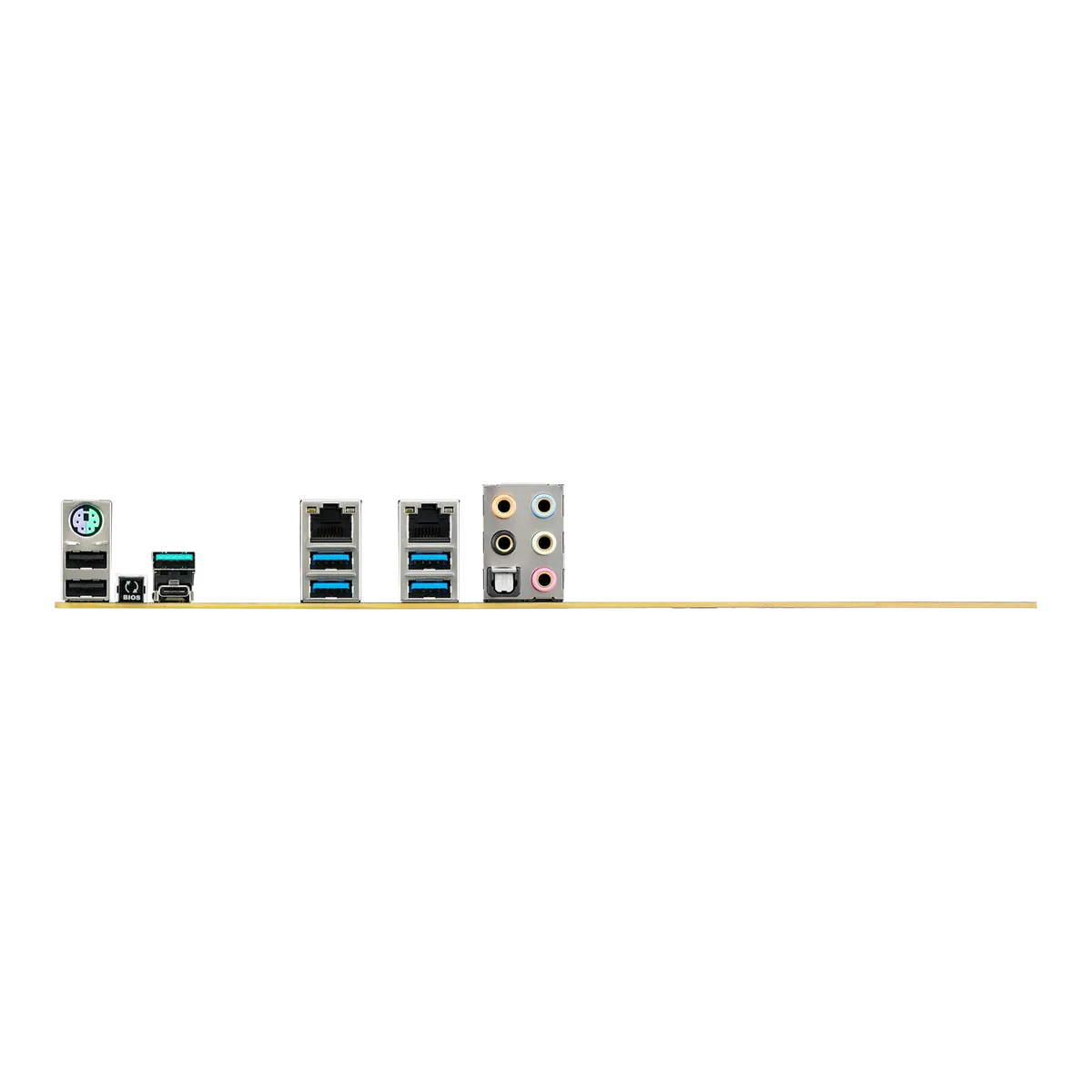

Back I O Ports

2 x USB 3.1 Gen 2
4
,4 x USB 3.1 Gen 1,4 x USB 2.0,1 x 8-channel Audio I/O,1 x USB BIOS Flashback
®
Button(s),1 x PS/2 keyboard/mouse combo port(s),2 x LAN (RJ45) port(s),1 x Optical S/PDIF out

Internal I O

10 x SATA 6Gb/s connector(s),2 x CPU Fan connector(s) (2 x 4-pin),7 x Chassis Fan connector(s)
5
,2 x 8-pin EATX 12V Power connector,1 x SMBus header(s),1 x 6-pin EATX 12V_3 Power connector,4 x U.2 Connector (support U.2 NVMe device),1 x VGA connector(s),1 x AUX panel header(s),1 x M.2 Socket 3,1 x VROC_HW_Key,2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s),1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s),1 x System panel connector,1 x TPM header,1 x COM port(s) connector(s),1 x 24-pin EATX Power connector(s),1 x Front panel audio connector(s) (AAFP)

Form Factor

12 inch x 13 inch ( 30.5 cm x 33 cm ),EEB Form Factor

Environment

Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)

Note

* Dual Intel® Socket P/LGA 3647 (Square)
*1 Actual number of multi-graphic support differes per Vendors´ graphic cards. Please check with vendor beforehand.
*2 Due to limitation in HDA bandwidth, 32-Bit/192kHz is not supported for 8-channel audio. 32-Bit/192kHz is only available under Windows 10
*3 Please check AVL list for supported add on card
*4 1 x Type A, 1 x Type C
*5 5 x Front, 2 x Rear
*6 The Baseboard Management Card (BMC) should be purchased separately
