ASUS WS C422 PRO/SE
Quick Specs
ChipsetBuild in Intel® C422
MemoryDDR4
Form FactorATX
M.2 Slots2
Model: 9837
About this motherboards
Experience top-tier tech with WS C422 PRO/SE motherboard, boasting Intel® Xeon® power, ECC memory & next-gen transfer speeds for ultimate performance.
Technical Specifications23 specs
General
Model
WS C422 PRO/SE
Cpu
Supports Intel® Turbo Boost Max Technology 2.0,Intel® Socket 2066 Processors,Supports Intel® 14nm CPU,* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Build in Intel® C422
Memory
- 8 x DIMM, Max. 512GB, DDR4 2666/2400/2133 MHz RDIMM, LR-DIMM Memory
- 1
- ,Quad Channel Memory Architecture
Graphic
ASPEED AST2500 64MB,VGA output support : Header port
Multi Gpu Support
Supports NVIDIA® 3-Way SLI™ Technology,Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots
- 2 x PCIe 3.0 x16 (x16 mode),1 x PCIe 3.0 x4 (x4 mode),2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
- 48-Lane CPU-
Storage
- 1 x M.2 x4 Socket 3
- 2
- , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode),1 x M.2 x4 Socket 3
- 3
- , with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode),1 x U.2 connector
- 2
- ,Intel® Rapid Storage Technology Enterprise supports,Intel® Virtual RAID (VROC) support for CPU RAID,6 x SATA 6Gb/s port(s),Support Raid 0, 1, 5, 10
Lan
Intel® I210-AT, 2 x Gigabit LAN Controller(s)
Audio
- - High quality120dBSNR stereo playback output(Line-out at rear)and113dBSNR recording input(Line-in),- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking,Realtek® ALC S1220A8-Channel High Definition Audio CODEC featuring Crystal Sound 3,- DTS Connect,- Power pre-regulator reduces power input noise to ensure consistent performance,- DTS Headphone:X,- Supports up to 32-Bit/192kHz playback
- 4
- ,- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers,- Impedance sense for front and rear headphone outputs
- Audio Feature :
- ,- Optical S/PDIF out port(s) at back panel,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Unique de-pop circuit: Reduces start-up popping noise to audio outputs,Separate layer for left and right track, ensuring both sound deliver equal quality
Usb Ports
- 6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
- Intel® C422 Chipset :
- ,2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-C
- TM
- )
- ASMedia® USB 3.1 Gen 2 controller :
- ,1 x USB 3.1 Gen 2 front panel connector port(s),6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board)
Workstation Feature
ASMB9-iKVM for KVM-over-Internet,ASUS Control Center (ACC)
Special Features
- - Ai Charger+,- CPU Power: Digital 8-phase power design
- DIGI + Power Control :
- ,- DRAM Power: Digital 2-phase power design,- ASUS USB BIOS Flashback
- ®
- ,Asus Control Center (ACC) IT management software supported
- Intel® Virtual RAID on CPU (VROC) ready
- Thunderbolt 3 support
- ,- MemOK!
- M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)
- ,- Onboard Button : Power/Reset,- Stylish Fanless Design with M.2 Heat-sink solution,- Aura Addressable Strip Header(s),- Aura Lighting Effects Synchronization with compatible ASUS ROG devices,- ASUS Q-Code
- ASUS 5X Protection III :
- - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention,- ASUS ESD Guards - Enhanced ESD protection
- AURA :
- ,- Aura RGB Strip Headers
- ASUS Exclusive Features
- :,- Turbo LAN
- ASUS Quiet Thermal Solution
- :
- ASUS EZ DIY :
- ASUS Q-Design :
- ,- ASUS Q-Shield,- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED),- ASUS Q-Slot,- ASUS Q-DIMM

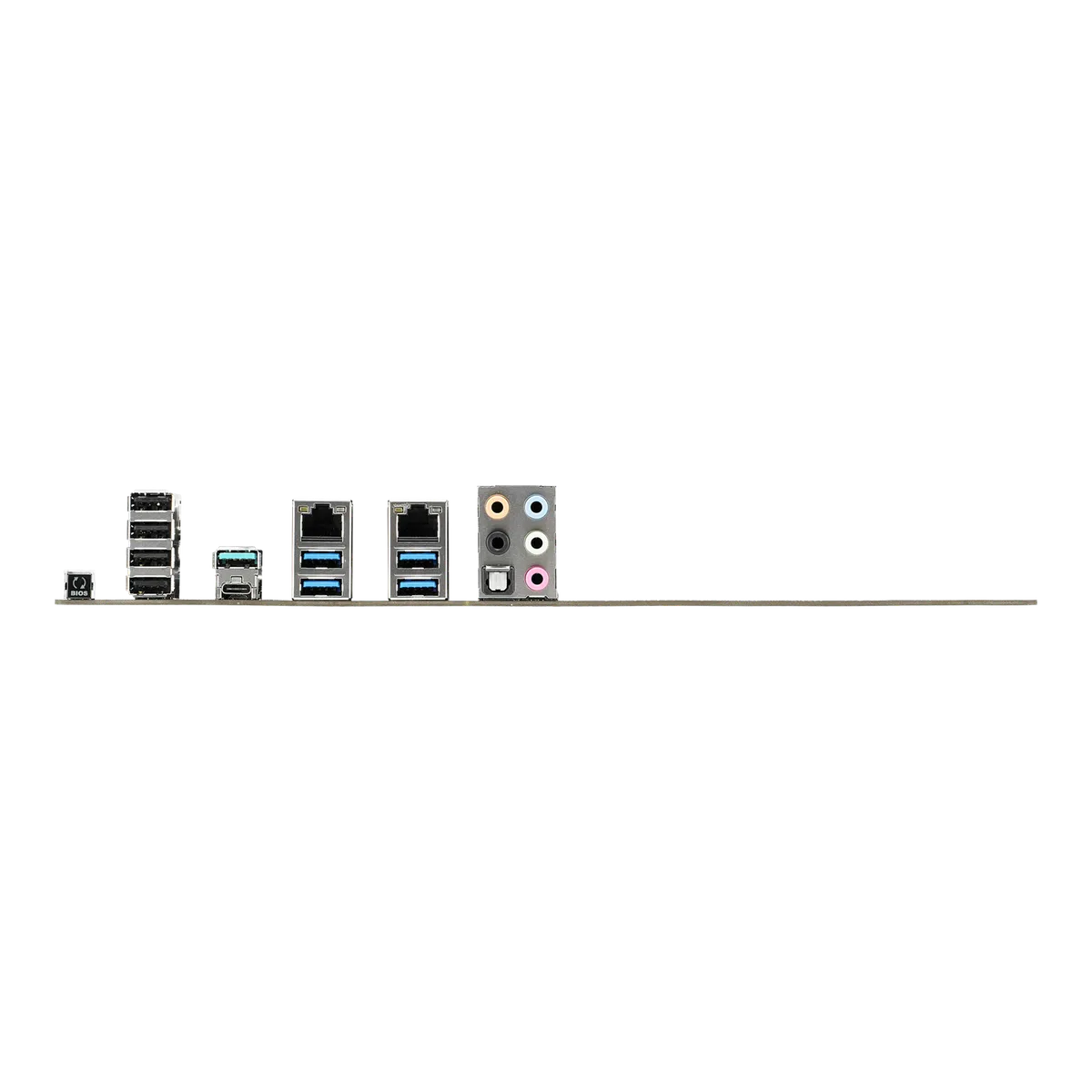

Back I O Ports
- 4 x USB 2.0 (one port can be switched to USB BIOS Flashback
- ®
- ),2 x USB 3.1 Gen 2 Type-A + USB Type-C
- TM
- ,,1 x 8-channel Audio I/O,1 x USB BIOS Flashback
- ®
- Button(s),2 x LAN (RJ45) port(s),4 x USB 3.1 Gen 1 (blue),1 x Optical S/PDIF out
Internal I O
1 x Aura RGB Strip Headers,2 x CPU Fan connector(s),1 x U.2 connector,3 x System panel connector,1 x Front fan,1 x Rear fan,1 x Aspeed VGA header,1 x PUMP Fan connector,1x 6-pin ATX 12V Power connector,2 x 8-pin ATX 12V Power connector(s),1 x CPU_OV jumper,1 x MemOK! button(s),1 x Thunderbolt header(s),1 x Aura Addressable Strip Header(s),1 x VROC_HW_Key,1 x USB 3.1 Gen 2 front panel connector,1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s),1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode),1 x 5-pin EXT_FAN(Extension Fan) connector,1 x Power-on button(s),1 x Reset button(s),1 x AAFP connector,1 x Thermal sensor connector(s),1 x M.2 Socket 3 with M key, type 2242/2260/
2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x TPM header,6 x SATA 6Gb/s connector(s),1 x AIO_PUMP connector,1 x 24-pin EATX Power connector(s),1 x COM port header
Bios
- CrashFree BIOS 3
- EZ Flash3
- F11 EZ Tuning Wizard
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ),ATX Form Factor
Weight
- Color Box(3-in-1)
- Net Weight: 4.86kg
- Gross Weight: 7.49kg
- Bulk Pack(5-in-1)
- Net Weight: 7.2kg
- Gross Weight: 8.9kg
Note
- *1 Memory capacity supported depends on both CPU installed and Memory
- *2 Bandwidth is shared between M.2_2 and U.2.
- *3 SATA Bandwidth is shared between M.2_1 and SATA6G_1
- *4 Due to limitations in HAD bandwidth, 32-Bit/192kHz is not supported for 8-channel audio. 32-Bit/192kHz is only available under Windows® 10
Physical Dimensions
Length Mm
304.8
Width Mm
243.8
Height Mm
774.7
Weight G
4860
