MonitorsAsus
ASUS VZ22EHE
Quick Specs
Resolution1920x1080
Refresh75 Hz
PanelIPS
Response1 ms
Model: 22482
About this monitors
ASUS VZ22EHE Eye Care Monitor – 21.45 inch Full HD (1920 x 1080), IPS, 75Hz, Adaptive-Sync/FreeSync™, HDMI, Low blue light, Flicker free, Ultra-slim. ASUS VZ22EHE has a ultra-slim profile that measures a mere 6.5mm at its thinnest point. Its frameless design makes it perfect for almost-seamless multi-display setups that give you an even greater degree of immersion. An advanced high-performance IPS panel gives you an wide 178° viewing angles. In addition, ASUS Eye Care technology ensures a comfortable viewing experience.
Technical Specifications16 specs
General
Model
VZ22EHE
Display
- Panel Size (inch) : 21.45
- Aspect Ratio : 16:9
- Display Viewing Area (H x V) : 478.66 x 260.28
- Display Surface : Anti-Glare
- Backlight Type : LED
- Panel Type : IPS
- Viewing Angle (CR≧10, H/V) : 178°/ 178°
- Pixel Pitch : 0.249mm
- Resolution : 1920x1080
- Brightness (Typ.) : 250cd/㎡
- Contrast Ratio (Typ.) : 1000:1
- Display Colors : 16.7M
- Response Time : 1ms MPRT
- Refresh Rate (Max) : 75Hz
- Flicker-free : Yes
Features
- Trace Free Technology : Yes
- SPLENDID Technology : Yes
- Color Temp. Selection : Yes (3 modes)
- Color Adjustment : 6-axis adjustment (R,G,B,C,M,Y)
- GamePlus : Yes
- QuickFit : Yes
- HDCP : Yes, 1.4
- VRR Technology : Yes (Adaptive-Sync)
- Low Blue Light : Yes
- Eye Care+ Technology : Yes
Audio
Speaker : No

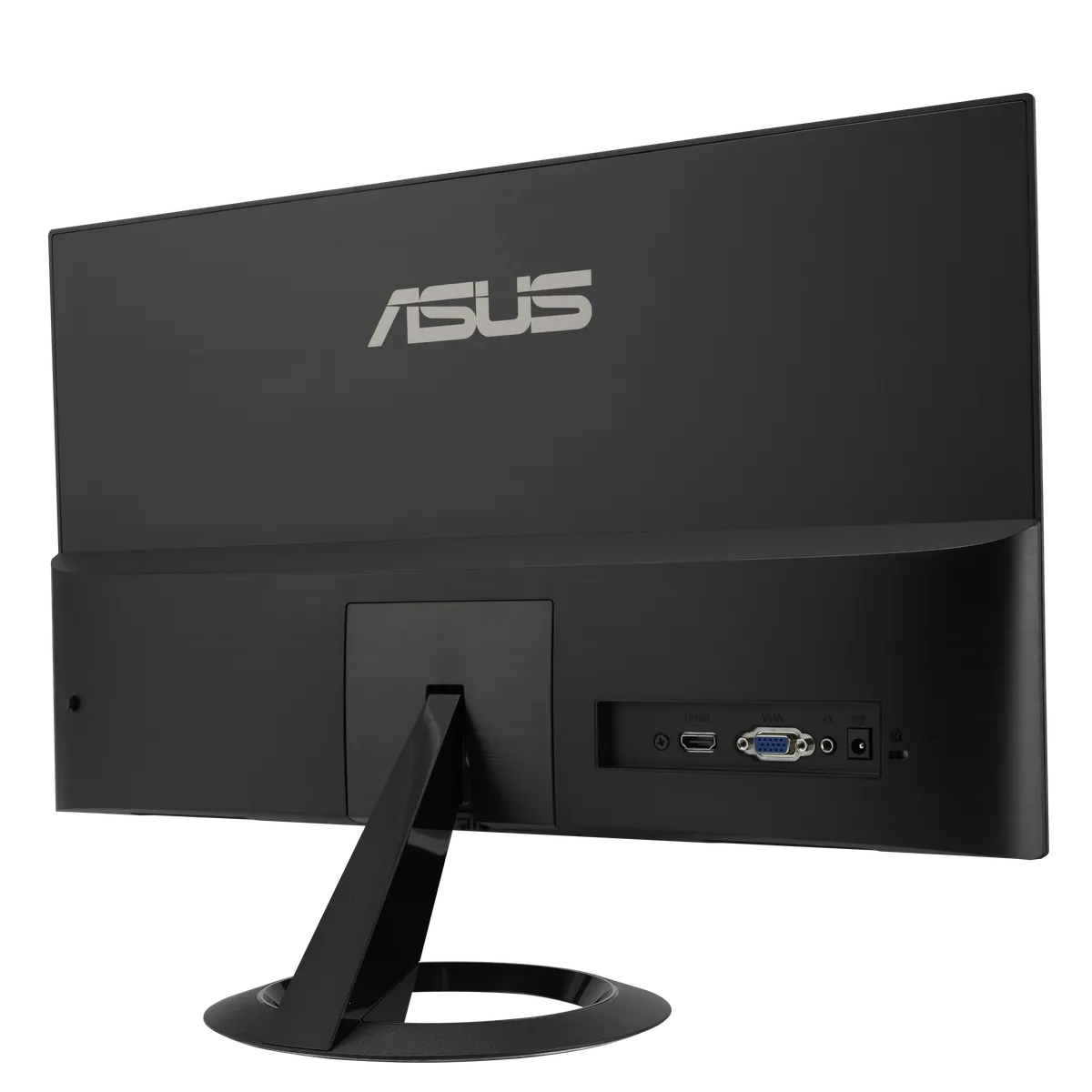

I O Ports
- HDMI(v1.4) x 1
- VGA x 1
- Earphone Jack : Yes
Signal Frequency
- Digital Signal Frequency : 24~83 KHz (H) / 48~75 Hz (V)
- Analog Signal Frequency : 24~83 KHz (H) / 48~75 Hz (V)
Power Consumption
- Power Consumption : <17 W
- Power Saving Mode : < 0.5 W
- Power Off Mode : <0.3W
- Voltage : 100-240V, 50/60Hz
Mechanical Design
- Tilt : Yes (+23° ~ -5°)
- Height Adjustment : No
- VESA Wall Mounting : 75x75mm
Dimensions Esti
- Phys. Dimension (W x H x D) : 49.60 x 35.90 x 19.30 cm (19.53" x 14.13" x 7.60")
- Phys. Dimension without Stand (W x H x D) : 49.60 x 28.30 x 3.80 cm (19.53" x 11.14" x 1.50")
- Box Dimension (W x H x D) : 56.40 x 35.90 x 11.70 cm (22.20" x 14.13" x 4.61")
Weight Esti
- Net Weight : 2.3 kg (5.07 lbs)
- Net Weight without Stand : 1.95 kg (4.30 lbs)
- Gross Weight : 3.5 kg (7.72 lbs)
Accessories Vary By Regions
- Warranty Card
- Quick start guide
- Power cord
- Power adapter
- HDMI cable
Certificate
Energy Star
Physical Dimensions
Length Mm
496
Width Mm
359
Height Mm
193
Weight G
2300
