About this motherboards

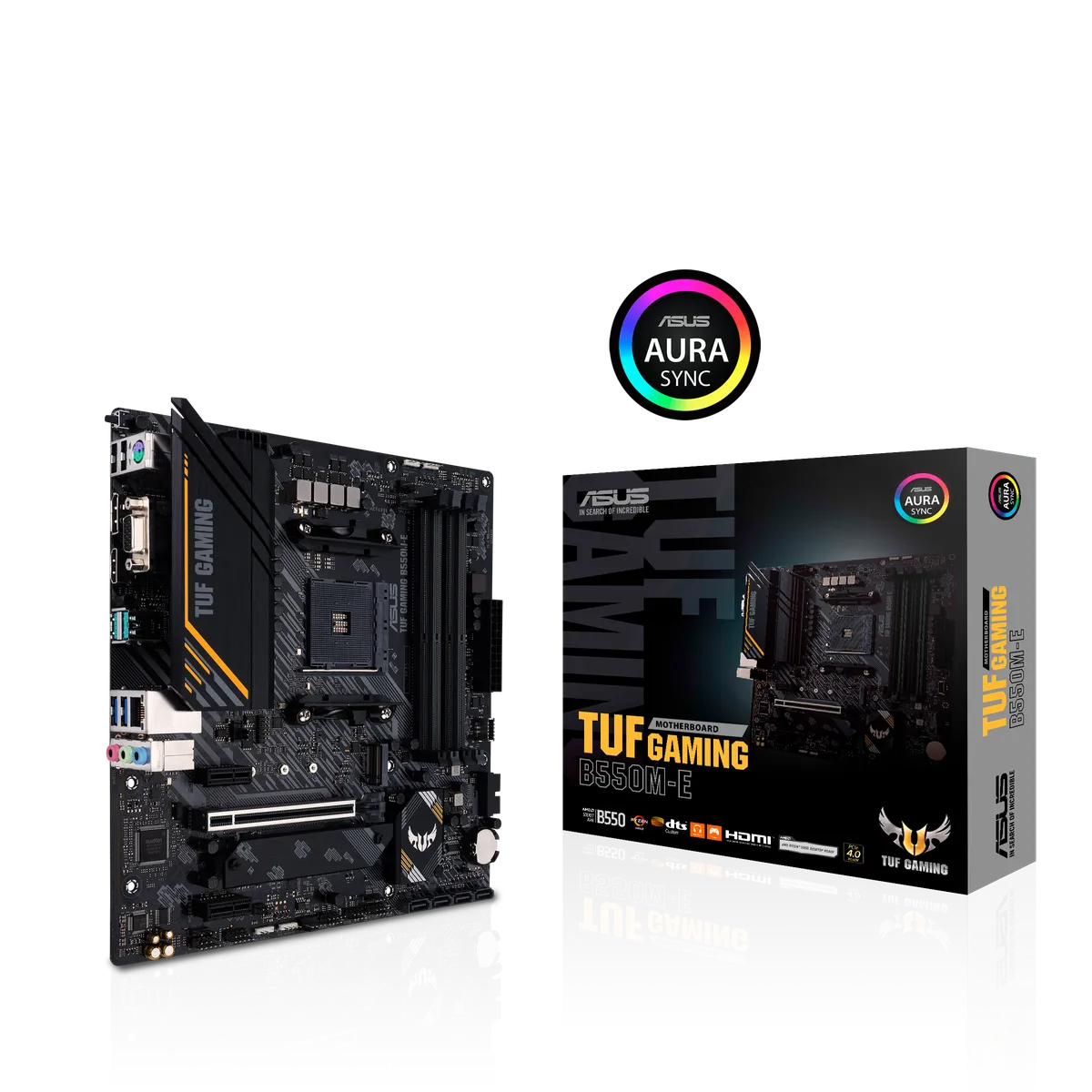

TUF Gaming motherboards are built to survive and thrive on every battlefield. TUF GAMING B550M-E is an AMD AM4 mATX gaming motherboard with 64 Gbps M.2, 1 Gb Ethernet, HDMI, DisplayPort, D-Sub, USB 3.2 Gen 2 Type A, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, and Aura Sync.
Technical Specifications16 specs
General
Model
TUF GAMING B550M-E
Cpu
-
Memory
- Memory Channels:4DDR4 (Dual channel), Max Memory Size:128GB
- AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
- 4 x DIMM, Max. 128GB, DDR4 4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/ 3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/ 3333(OC)/3200/3000/2933/2800/ 2666/2400/2133 MHz, Un-buffered Memory
- AMD Ryzen™ 4000 G-Series Desktop Processors
- 4 x DIMM, Max. 128GB, DDR4 4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/ 4266(OC)/4200(OC)/4133(OC)/4100(OC)/4000(OC)/ 3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/ 3333(OC)/3200/3000/2933/2800/ 2666/2400/2133 MHz, Un-buffered Memory
- Dual Channel Memory Architecture
- ECC memory (ECC mode) support varies by CPU.
- .
Graphics
1 x HDMI 2.1
Storage
- AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
- AMD Ryzen™ 4000 G-Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- AMD B550 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
- Support RAID 0, 1, 10
Ethernet
TUF LANGuard
Usb
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x USB 3.2 Gen 1 connector (supports USB Type C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
- Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Audio Shielding
- - Premium Japanese audio capacitors
- - Dedicated audio PCB layers
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I O Ports
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x D-Sub port
- 1 x HDMI™ port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x BIOS FlashBack™ button
- 1 x PS/2 Keyboard/Mouse combo port
Internal I O
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 2 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 2 x AURA Addressable Gen 2 headers
- 2 x AURA RGB headers
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
Special Features
Y
Software Features
- ASUS Exclusive Software
- Armoury Crate
- - AURA Creator
- - AURA Sync
- AI Suite 3
- - Performance and Power Saving Utility
- TurboV EVO
- EPU
- DIGI+ VRM
- Fan Xpert 2+
- - EZ update
- TUF GAMING CPU-Z
- AI Charger
- ASUS Turbo LAN
- DAEMON Tools
- DTS Custom for GAMING Headsets
- Norton Anti-virus software (Free Trial version)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
Bios
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x I/O Shield
- 1 x M.2 Rubber package
- 1 x M.2 SSD screw package
- 1 x TUF Gaming sticker
- Installation Media
- 1 x Support DVD
- Documentation
- 1 x TUF Certification card
- 1 x User manual
Operating System
Windows® 10 64-bit
