Graphics CardsAsus

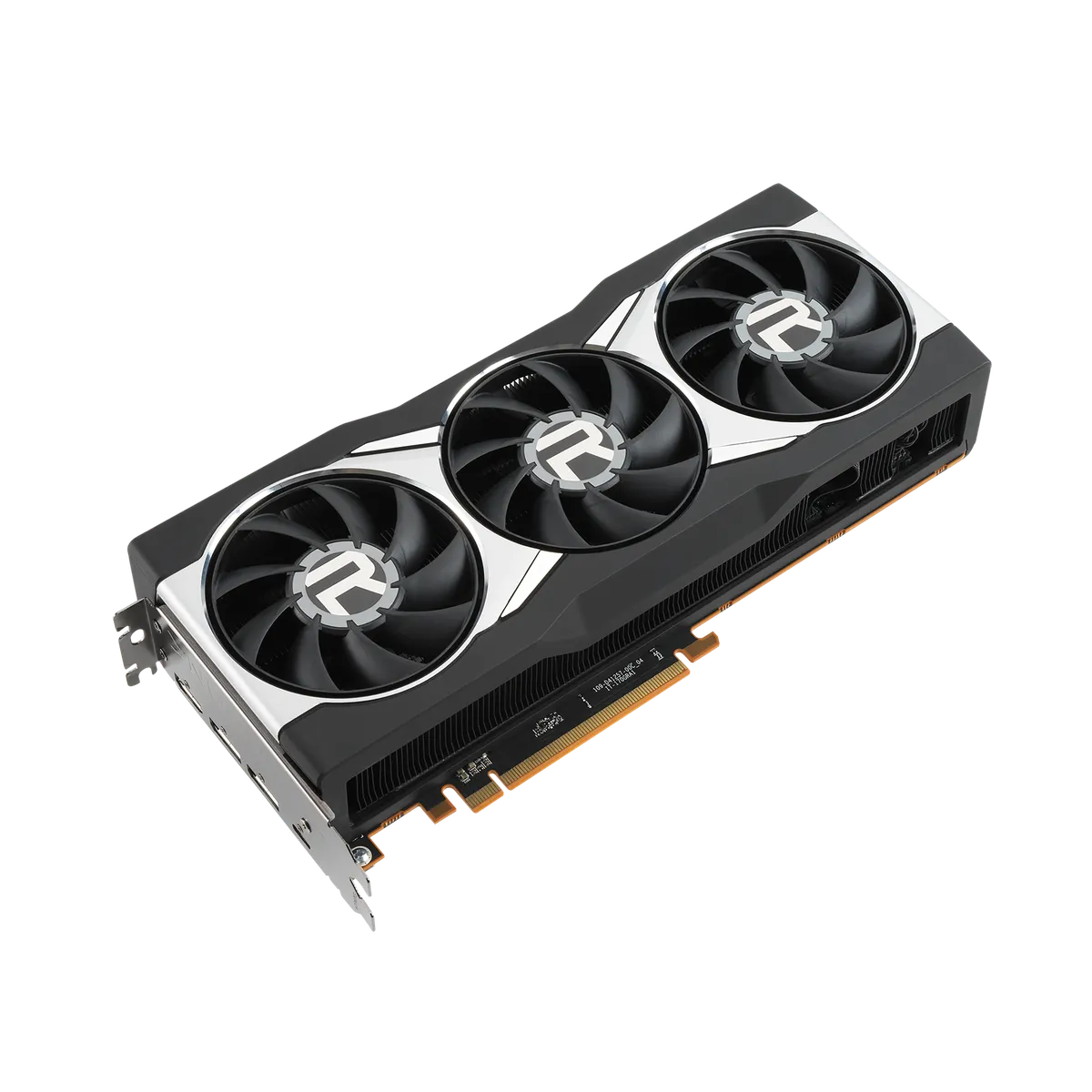

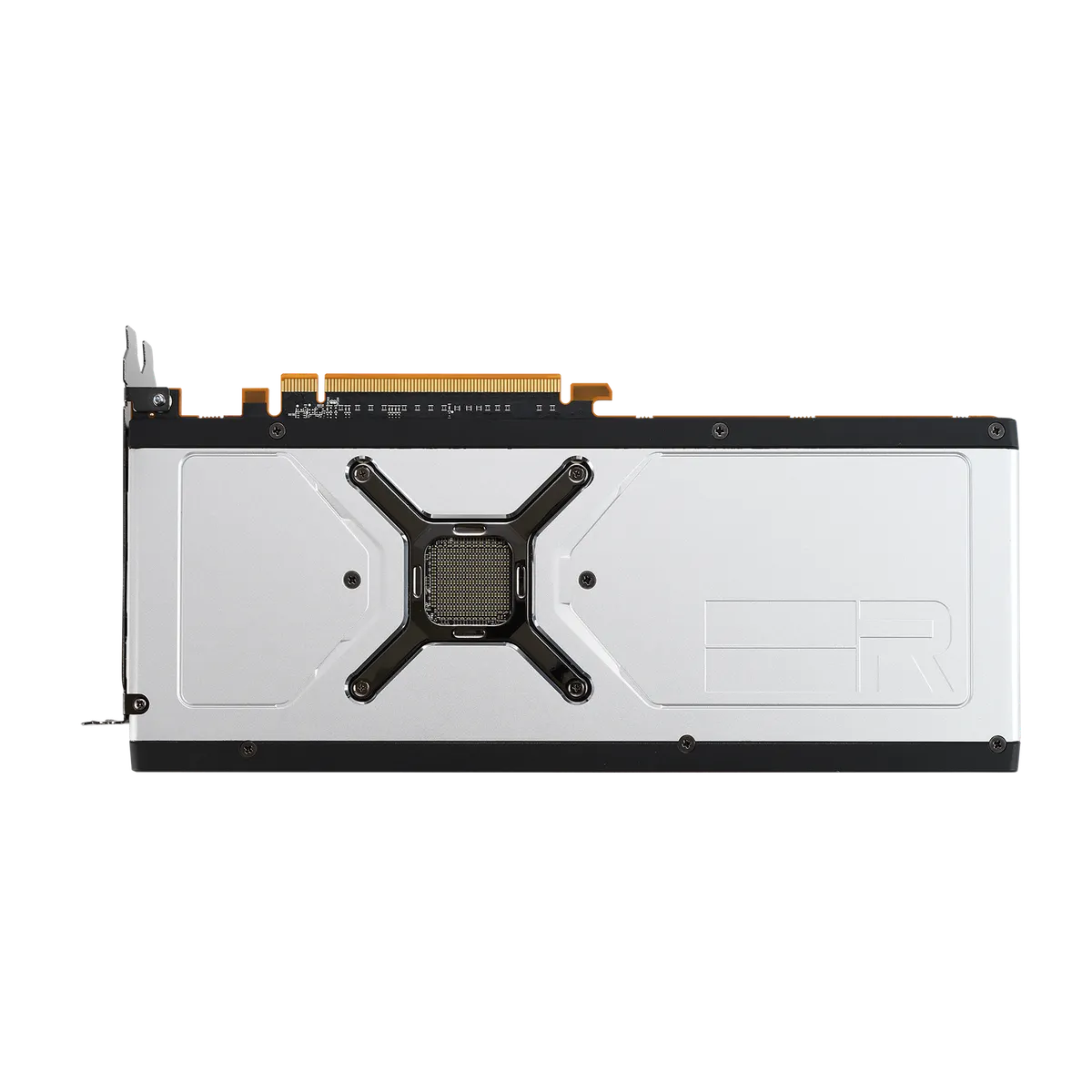

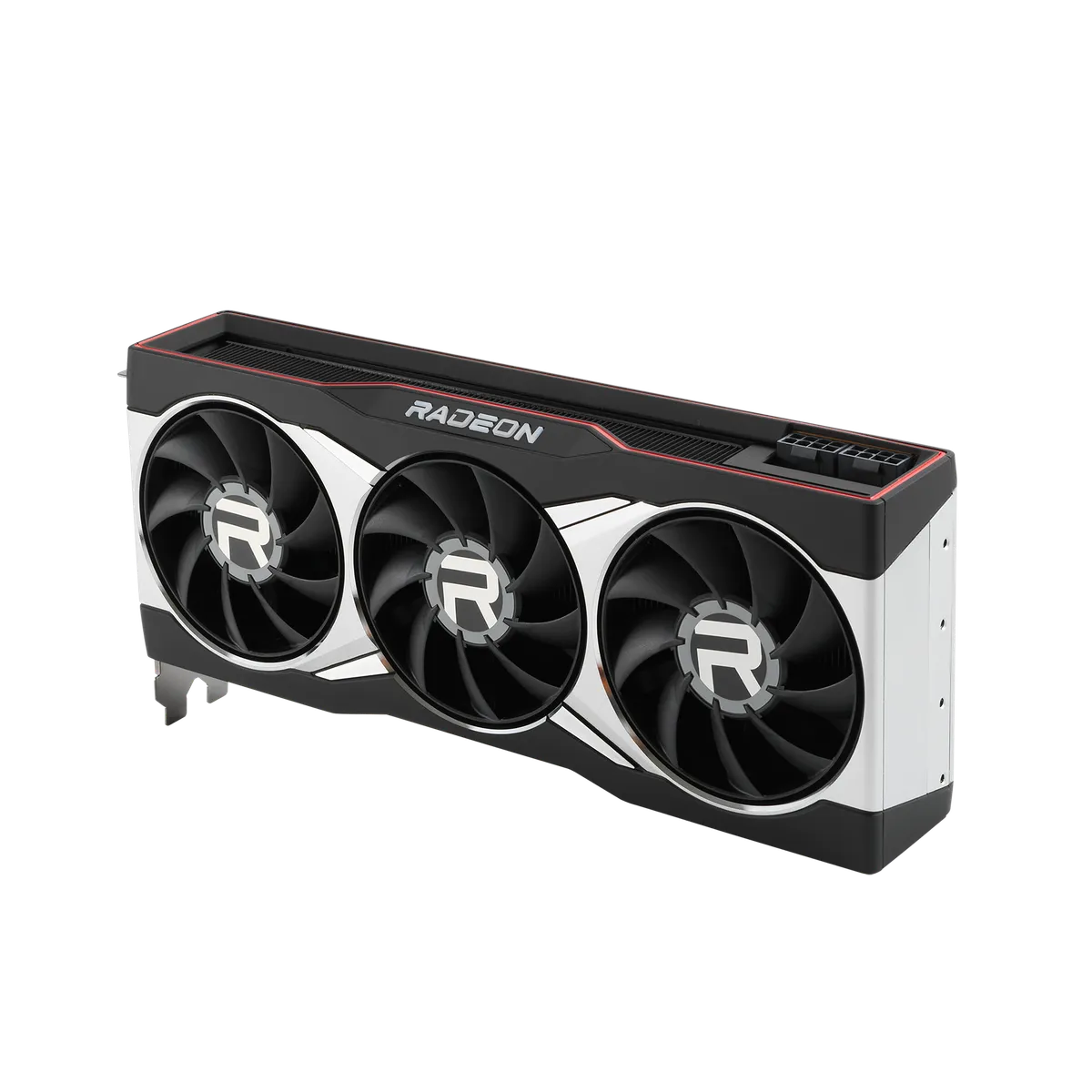

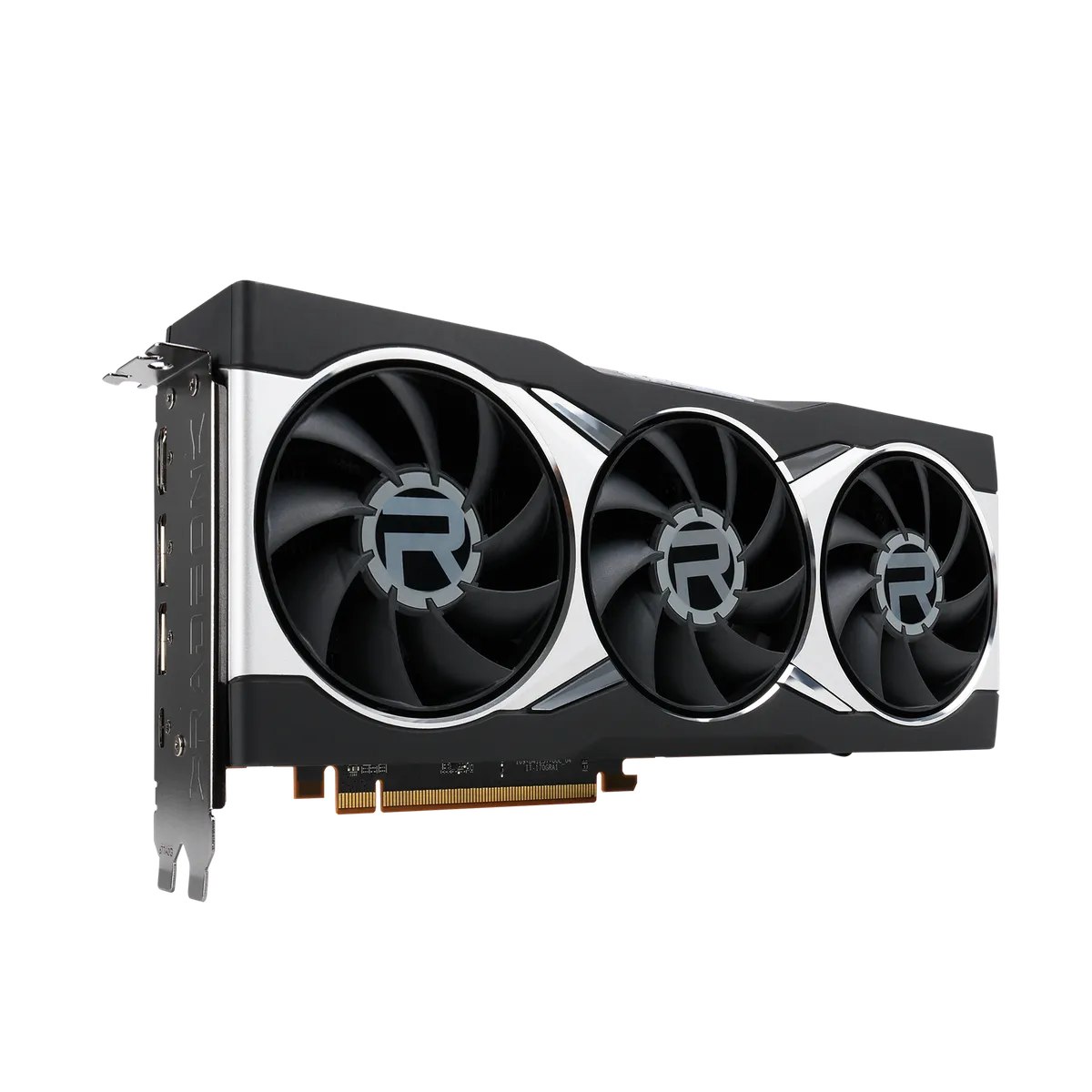

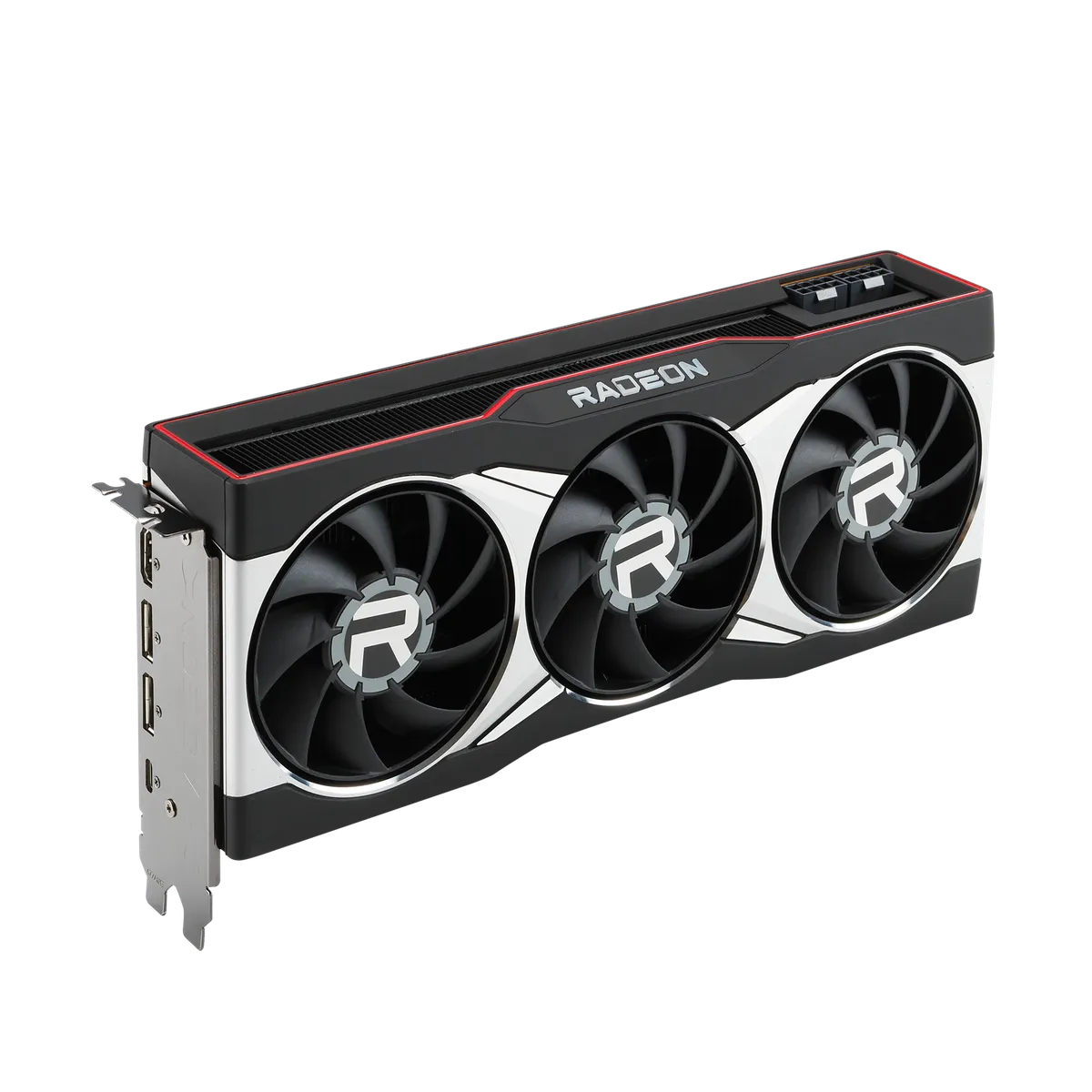

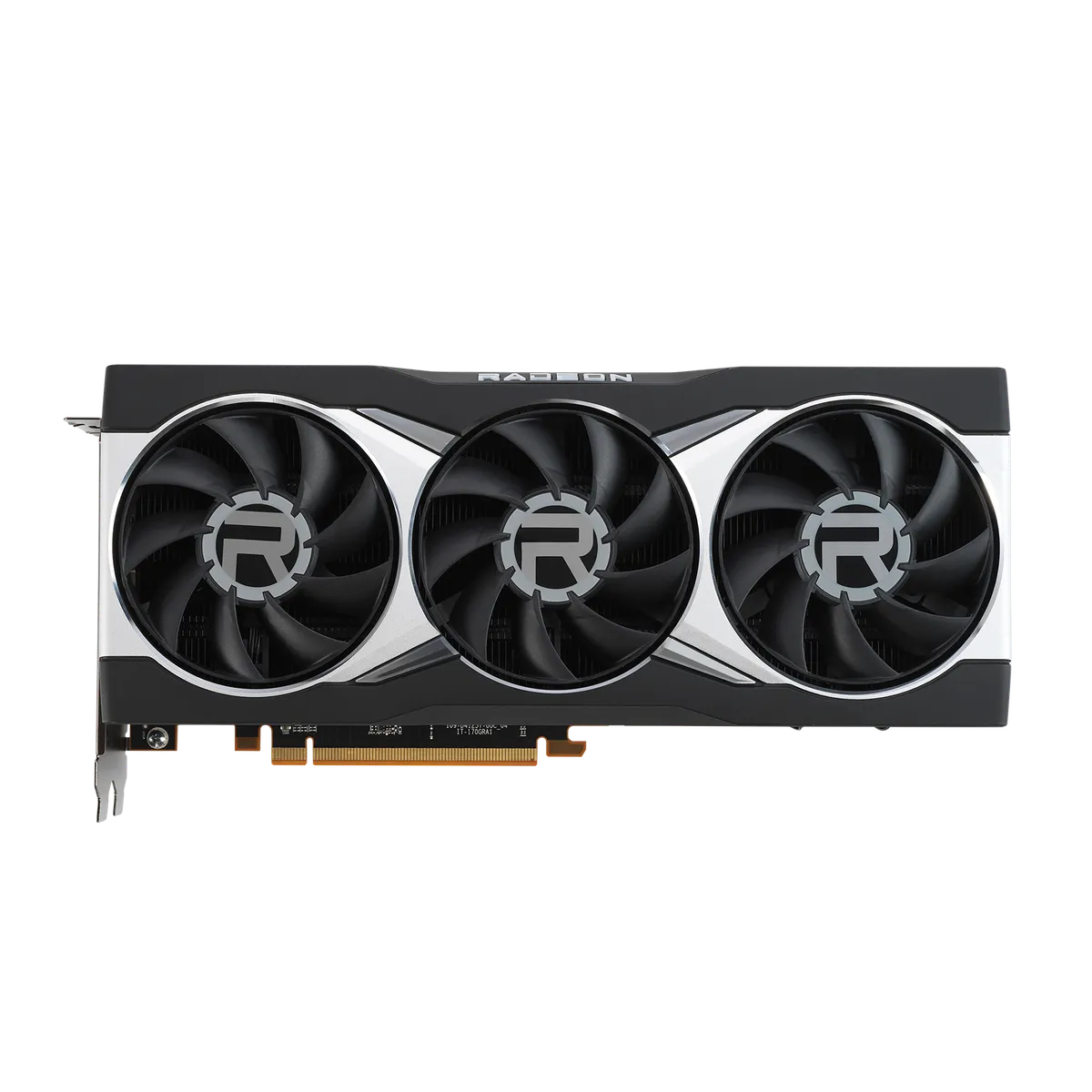

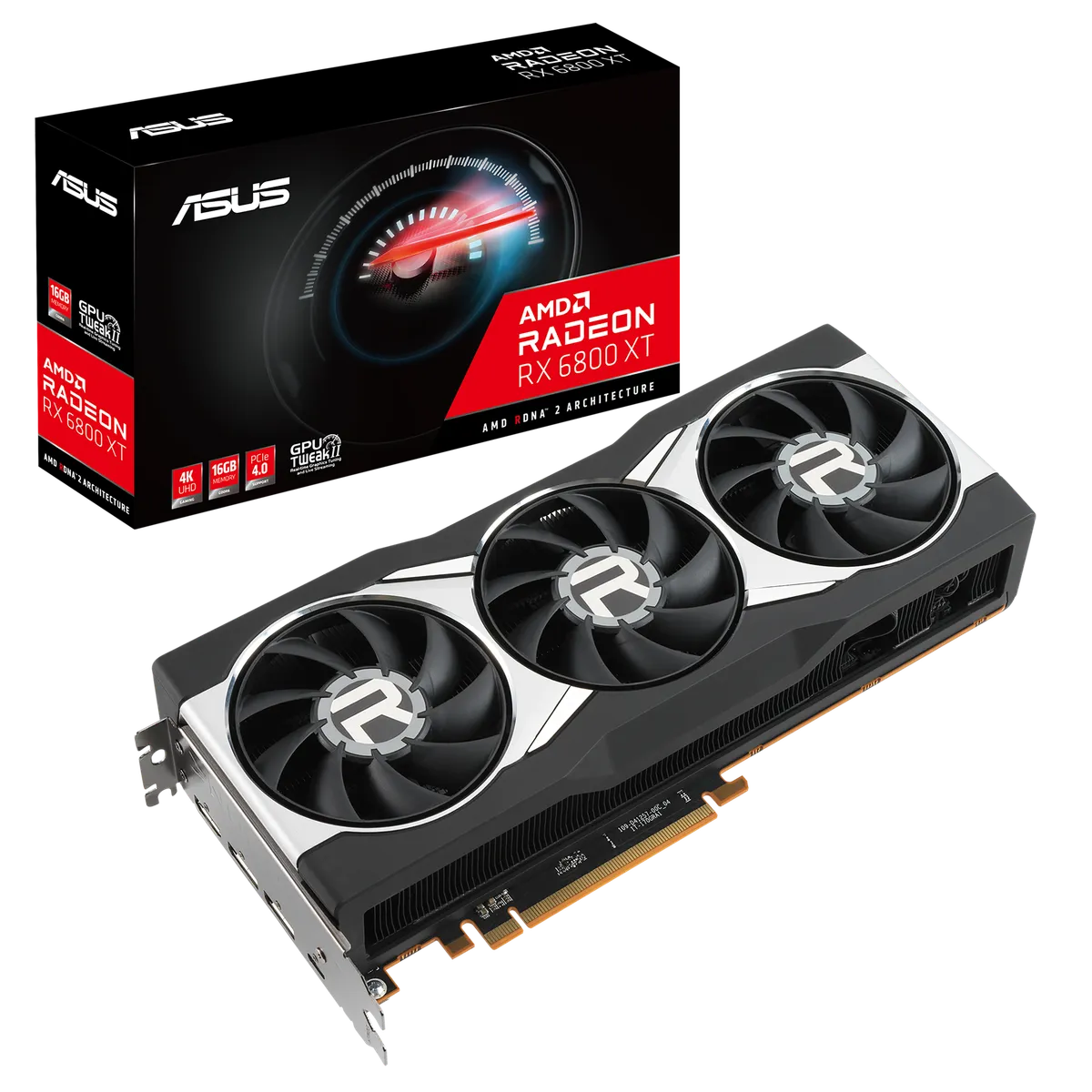

ASUS RX6800XT-16G
MPN: 15241
Key specifications
ChipsetRX 6800 XT
VRAM16 GB
Memory typeGDDR6
Length266.7 mm
Slot width2.5
Min PSU750 W
Best indexed price
Price unavailable
Retailer offers
Amazon UKSearch link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
266.7mm length — check your case's max GPU clearance.
750W minimum PSU recommended by manufacturer.
Full Specifications23 fields
General
Model
ASUS Radeon™ RX 6800 XT
Graphic Engine
AMD Radeon RX 6800 XT
Bus Standard
PCI Express 4.0
Opengl
OpenGL®4.6
Memory Size
16GB GDDR6
Engine Clock
- Up to 2250 MHz (Boost Clock)
- Up to 2015 MHz (Game Clock)
Stream Processors
4608
Memory Speed
16 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320

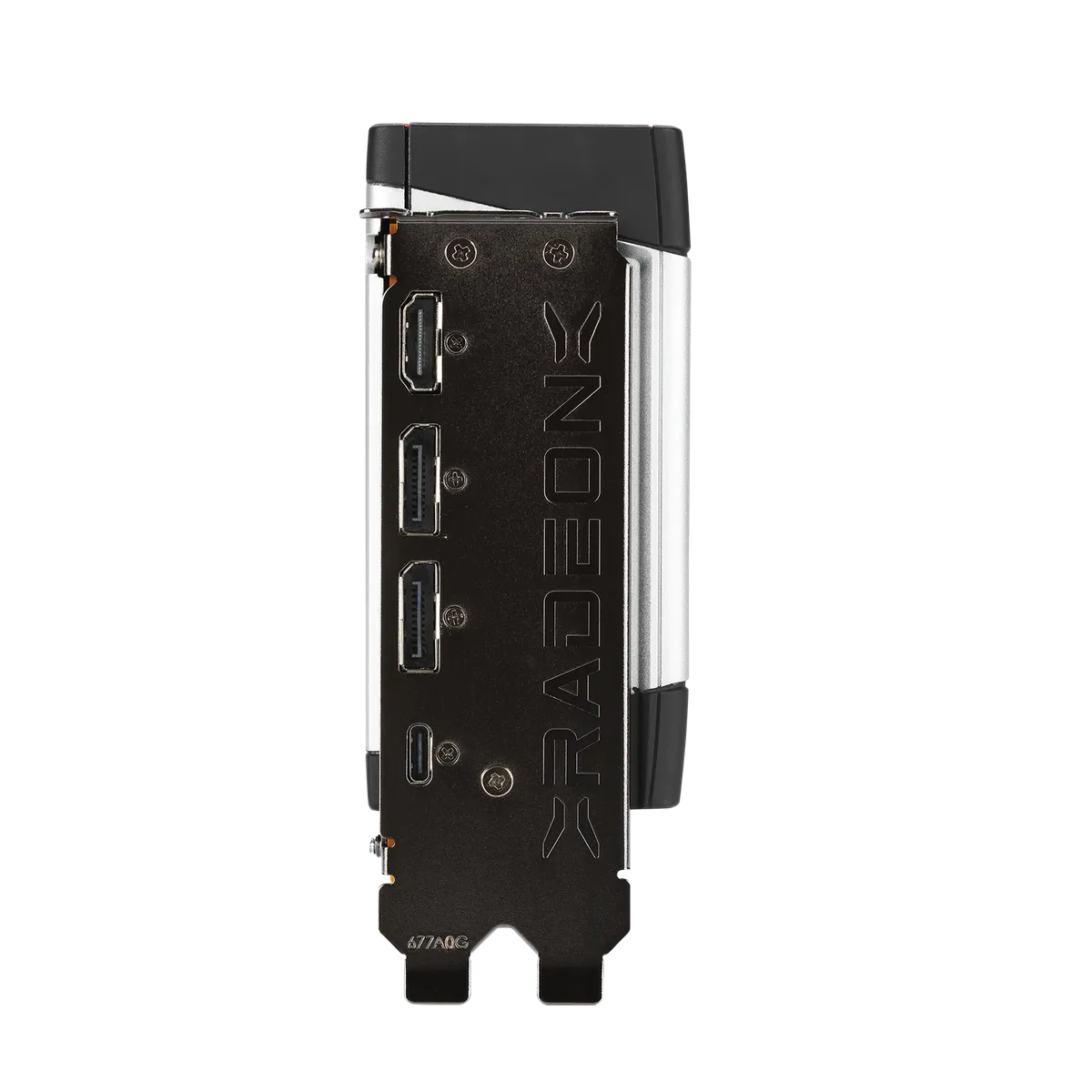

Interface
Yes x 1 (Native HDMI 2.1), Yes x 2 (Native DisplayPort 1.4a), Yes x 1 (USB Type-C), HDCP Support Yes (2.3)
Maximum Display Support
4
Nvlink Crossfire Support
Yes
Accessories
- 1 x ROG Sticker
- 1 x Speedsetup manual
Software
ASUS GPU Tweak II & Drivers: please download all software from the support site.
Dimensions
- 10.5 " x 4.72 " x 1.565 " Inch
- 26.67 x 11.98 x 4.98 Centimeter
Recommended Psu
750W

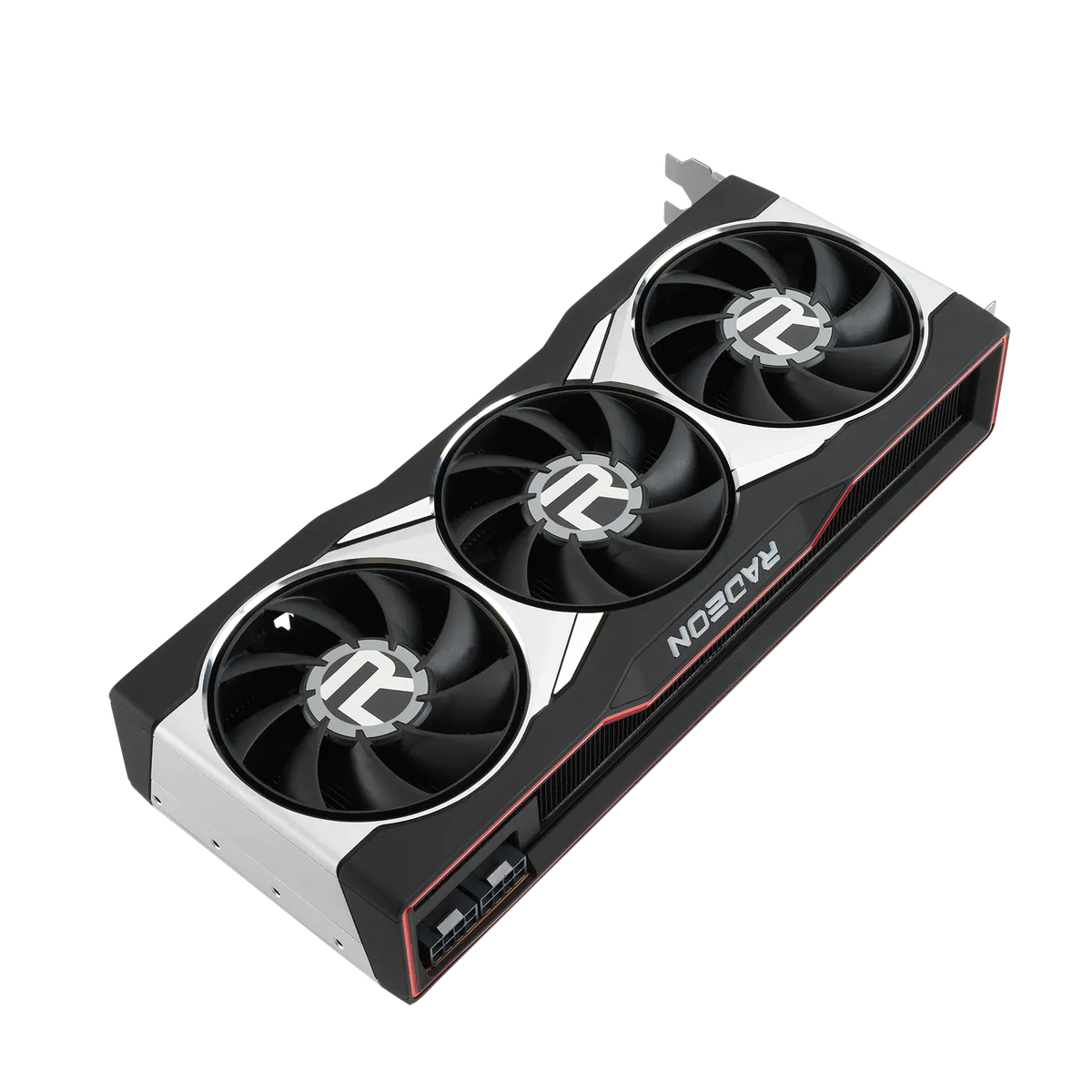

Power Connectors
2 x 8-pin
Slot
2.5 Slot
Note
- * Crossfire Support - Yes for DirecX® 12 and Vulkan®
- * ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
- * ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
Physical Dimensions
Length Mm
266.7
Width Mm
119.9
Height Mm
39.8
