Graphics CardsAsus

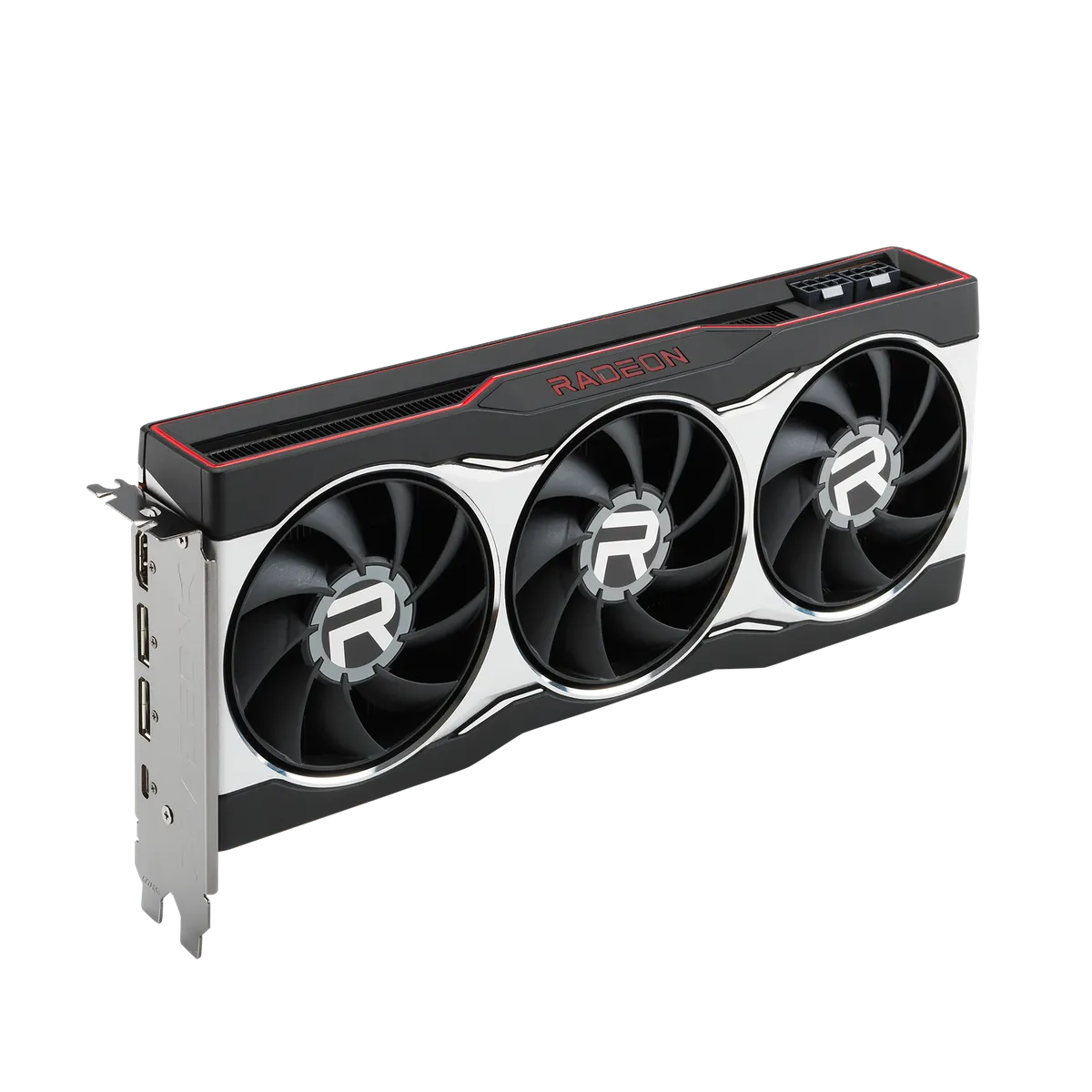

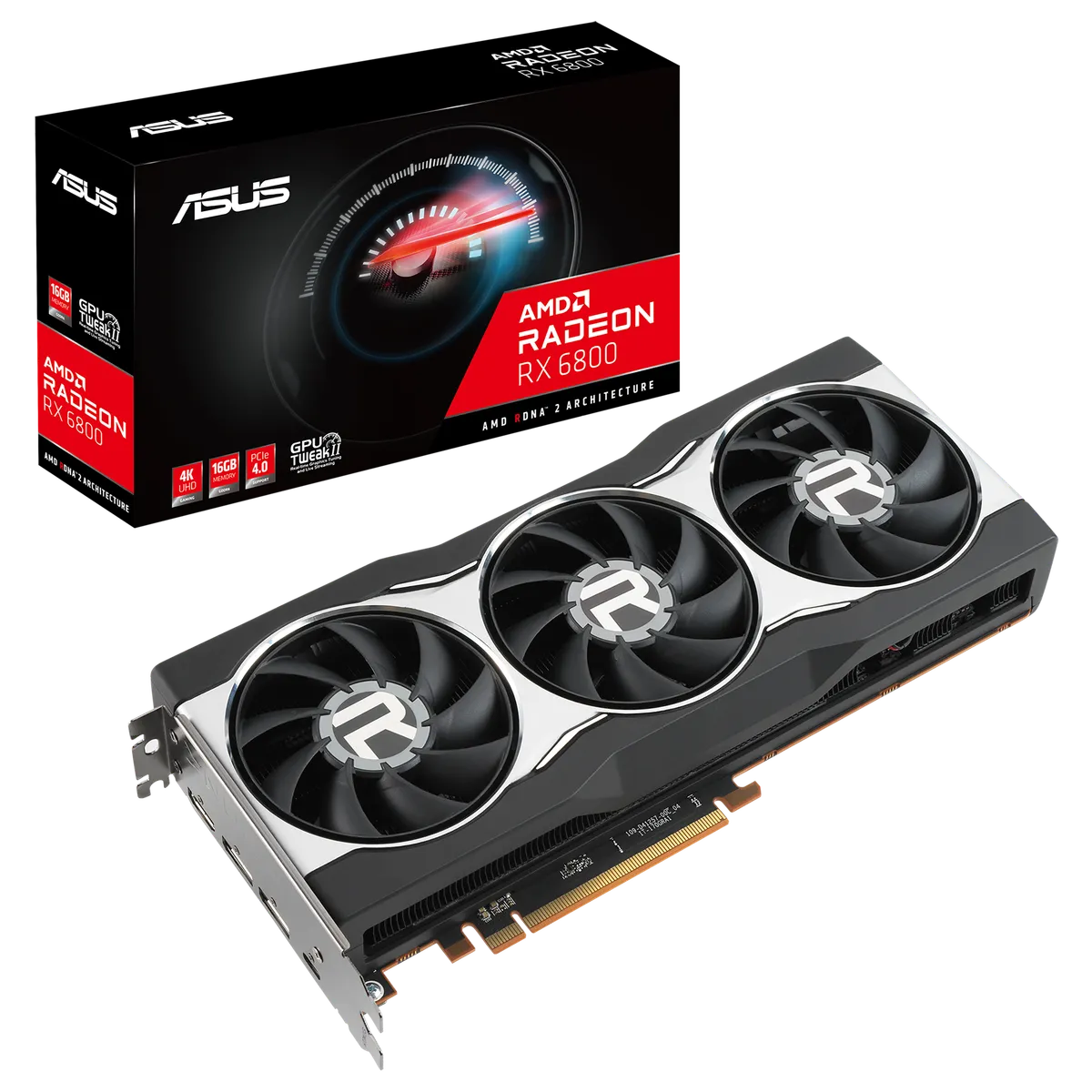

ASUS RX6800-16G
Quick Specs
ChipsetRX 6800
VRAM16 GB
MemoryGDDR6
Length266.7 mm
Min PSU650 W
Model: 15242
About this graphics cards
The ASUS Radeon™ RX 6800 16GB GDDR6 graphics card, powered by the AMD RDNA™ 2 architecture, featuring 72 enhanced Compute Units, 128 MB of all-new AMD Infinity Cache and 16GB of dedicated GDDR6 memory, is engineered to deliver ultra-high frame rates and serious 4K resolution gaming.
Technical Specifications23 specs
General
Model
ASUS Radeon™ RX 6800
Graphic Engine
AMD Radeon RX 6800
Bus Standard
PCI Express 4.0
Opengl
OpenGL®4.6
Memory Size
16GB GDDR6
Engine Clock
- Up to 2105 MHz (Boost Clock)
- Up to 1815 MHz (Game Clock)
Stream Processors
3840
Memory Speed
16 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1), Yes x 2 (Native DisplayPort 1.4a), Yes x 1 (USB Type-C), HDCP Support Yes (2.3)
Maximum Display Support
4
Nvlink Crossfire Support
Yes
Accessories
- 1 x ROG Sticker
- 1 x Speedsetup manual
Software
ASUS GPU Tweak II & Drivers: please download all software from the support site.
Dimensions
- 10.5 " x 4.72 " x 1.56 " Inch
- 26.67 x 11.975 x 3.98 Centimeter
Recommended Psu
650W
Power Connectors
2 x 8-pin
Slot
2 Slot
Note
- * Crossfire Support - Yes for DirecX® 12 and Vulkan®
- * ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
- * ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
Physical Dimensions
Length Mm
266.7
Width Mm
119.9
Height Mm
39.6
