About this cases

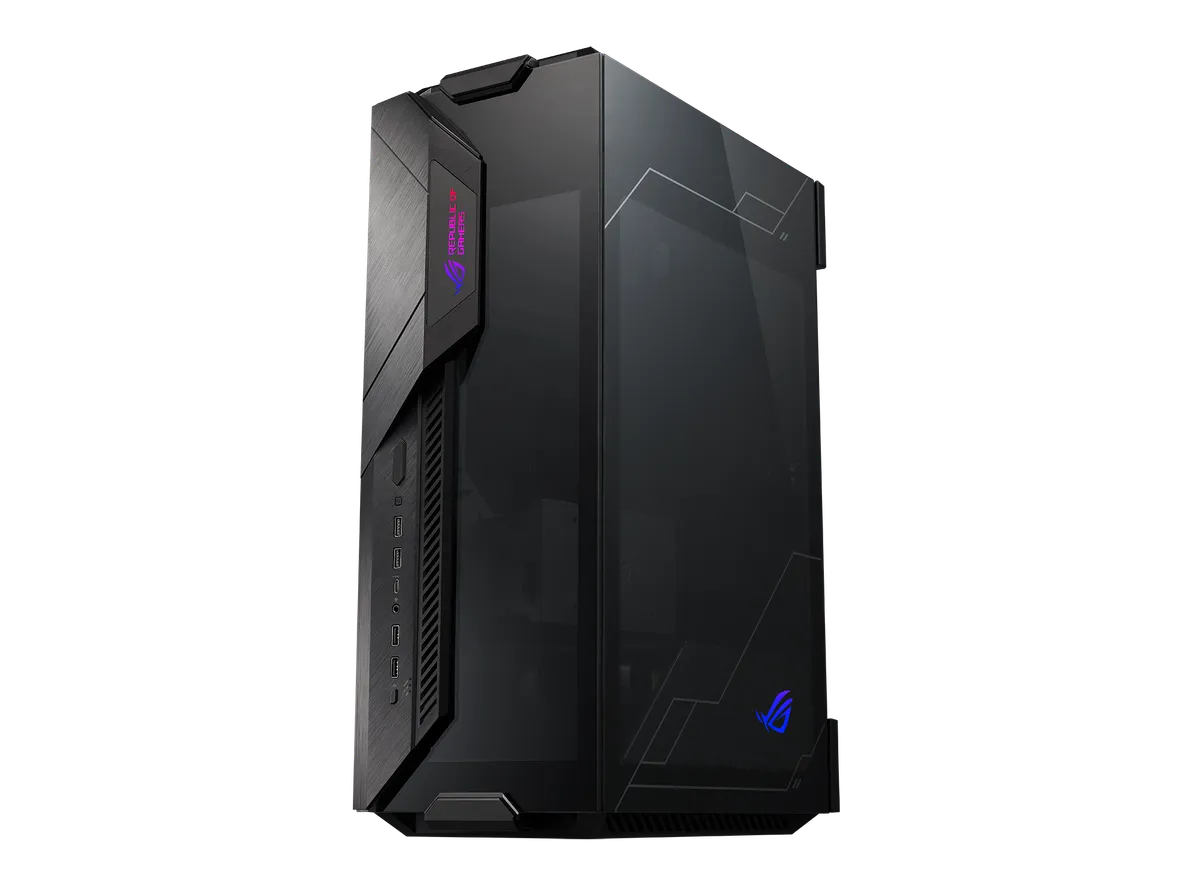

ROG Z11 Mini-ITX gaming case features a patented 11° tilt design and optimized airflow for maximum thermal performance with dual orientation
Technical Specifications27 specs
Physical Dimensions
Length Mm
250
Width Mm
565
Height Mm
591
Weight G
18000
Technical Specifications
Case Size
Mid Tower
Motherboard Support
- EATX (12"x10.9")
- ATX
- Micro-ATX
- Mini-ITX
Drive Bays
- 4 x 2.5" Bay
- 2 x 2.5"/3.5" Combo Bay
Expansion Slots
- 8
- 2 (additional vertical)
Front I O Port
- 1 x headphone / Microphone
- 2 x USB 3.2 Gen 2x2 Type C
- 4 x USB 3.2Gen1
Tempered Glass
- Front Side
- Left Side
- Right Side
Radiator Support Front
- 120 mm
- 140 mm
- 240 mm
- 280 mm
- 360 mm
- 420 mm
Radiator Support Top
- 120 mm
- 140 mm
- 240 mm
- 280 mm
- 360 mm
Radiator Support Rear
- 120 mm
- 140 mm
Cooling Support Front
- 3 x 120 mm
- 3 x 140 mm
Cooling Support Top
- 3 x 120 mm
- 2 x 140 mm
Cooling Support Rear
- 1 x 120 mm
- 1 x 140 mm
Pre Installed Fans Front
- 3 x 140 mm
- PWM
Pre Installed Fans Rear
1 x 140 mm
Maximum Cpu Cooler Height
190 mm
Max Gpu Length
450 mm
Maximum Psu Length
220 mm
Removable Dust Filters
- Front
- Top
- Bottom
Maximum Cable Management Space
33 mm
Dimensions
250 x 565 x 591 mm
Weight
18Kg
Aura Sync
ARGB
Accessory
Extension Hub Support PWM Fan x 6, ARGB LED Strip x 6
