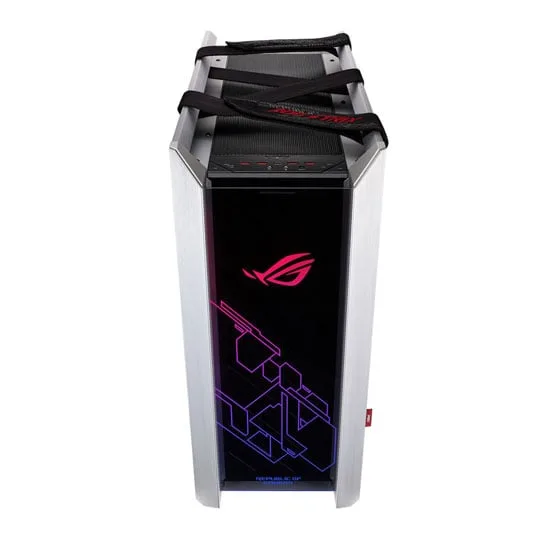

ASUS ROG Strix Helios White Edition Aluminium Glass Midi PC Gaming Case
Model: 90DC0023-B39000
Technical Specifications41 specs
Additional Information
Model Number
90DC0023-B39000
Gtin
4718017105002
Chassis Physical Specifications
Colour
White
Chassis Construction Materials
Aluminium / Steel / Tempered Glass
Dimensions
250 x 591 x 565 (WxHxD mm)
Weight
18 kg (Approx)
Package Type
-
Please Note
-
Clearances
Max Cooler Height
190 mm
Max Gpu Length
450 mm
Cable Routing Space
33 mm mm
Core Chassis Specifications
Edition
ROG Strix Helios White Edition
Case Form Factor
Mid Tower
Motherboard Form Factor
ATX
E-ATX (Upto 12" x 10.9")
MicroATX
Mini-ITX
Back Connect Compatible
No
Fans & Filters
Fan Bays
7 x 120mm / 6x 140mm
Fans Included
4 x 140mm
Fan Controller Hub
Front Panel Fan Controller
Dust Filters
Bottom
Front
Top
I/O, Bays & Expansion
Front Side Top Panel I O
1 x Fan Controller Button(s)
1 x Headphone Out
1 x LED Control Button
1 x Mic In
1 x Power Button
1 x Reset Button
4 x USB 3.1 Gen1 Type-A
1 x USB 3.1 Gen2 Type-C
Drive Bays
4 x 2.5" Internal
2 x 2.5"/ 3.5" Internal
Standard Expansion Slots
8
Vertical Expansion Slots
2
LED Lighting Functionality
Led Lighting
Yes
Led Lighting Emitters
Front Panel Addressable RGB LED Lighting
Led Lighting Colour
RGB
Led Lighting Support Control
Compatible with ASUS AURA Sync
Control via Compatible Motherboard D-RGB Header
Control via Inc. Controller/Hub (Buttons/Switches)
Liquid Cooling Support
Front Radiator Compatibility
1 x 120/140/240/280/360/
420mm
Top Radiator Compatibility
1 x 120/140/240/280/360mm
Bottom Radiator Compatibility
-
Rear Radiator Compatibility
1 x 120/140mm
Side Radiator Compatibility
-
Power Supply Compatibility
Psu Included
No
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
ATX
Psu Mounting Location
Bottom Mount, Rear
Max Psu Length
220 mm
Side Panels
Window S
Yes
Window Configuration
1 x Alternate Side
1 x Front
1 x Main Side
Window Construction
Tempered Glass (Tinted)
