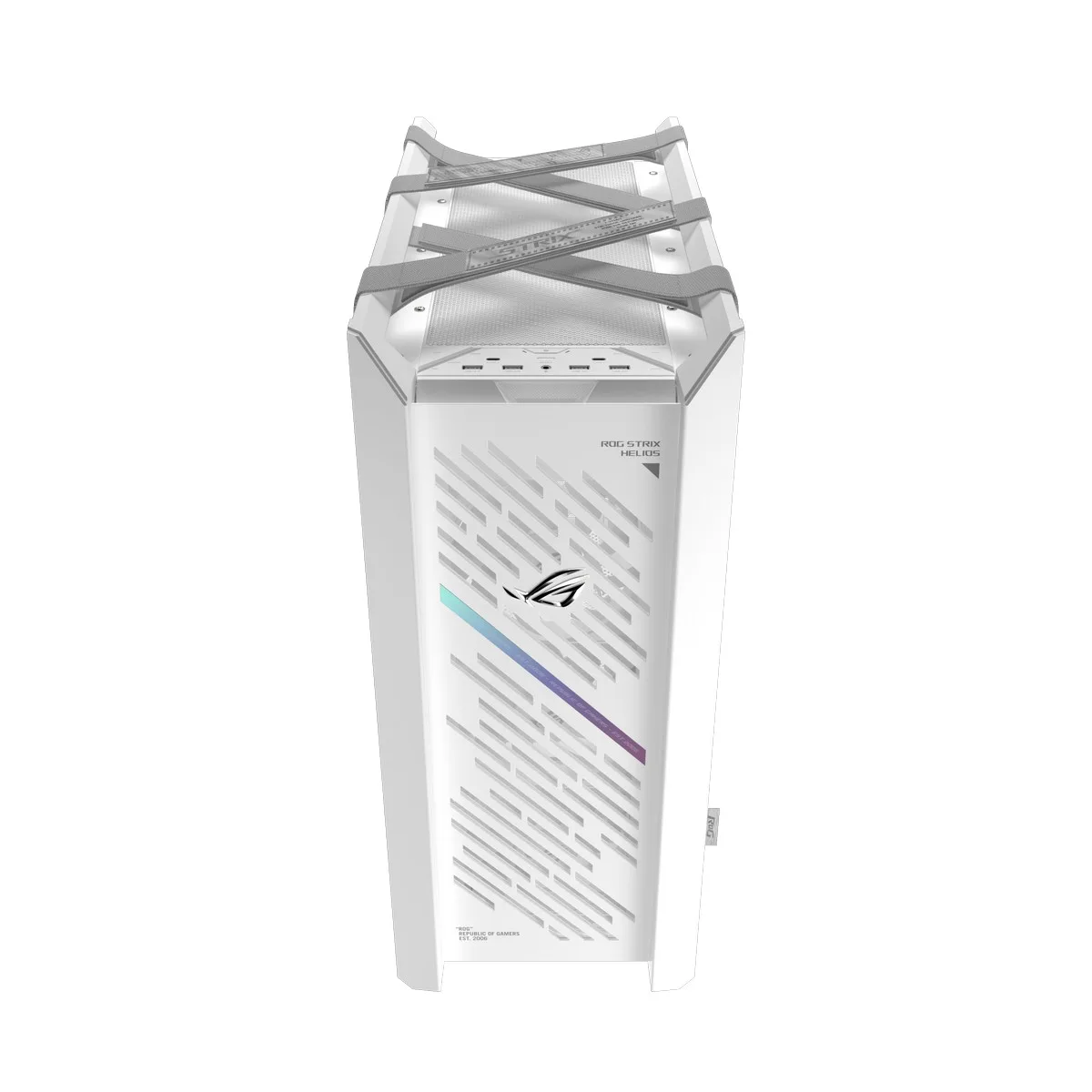

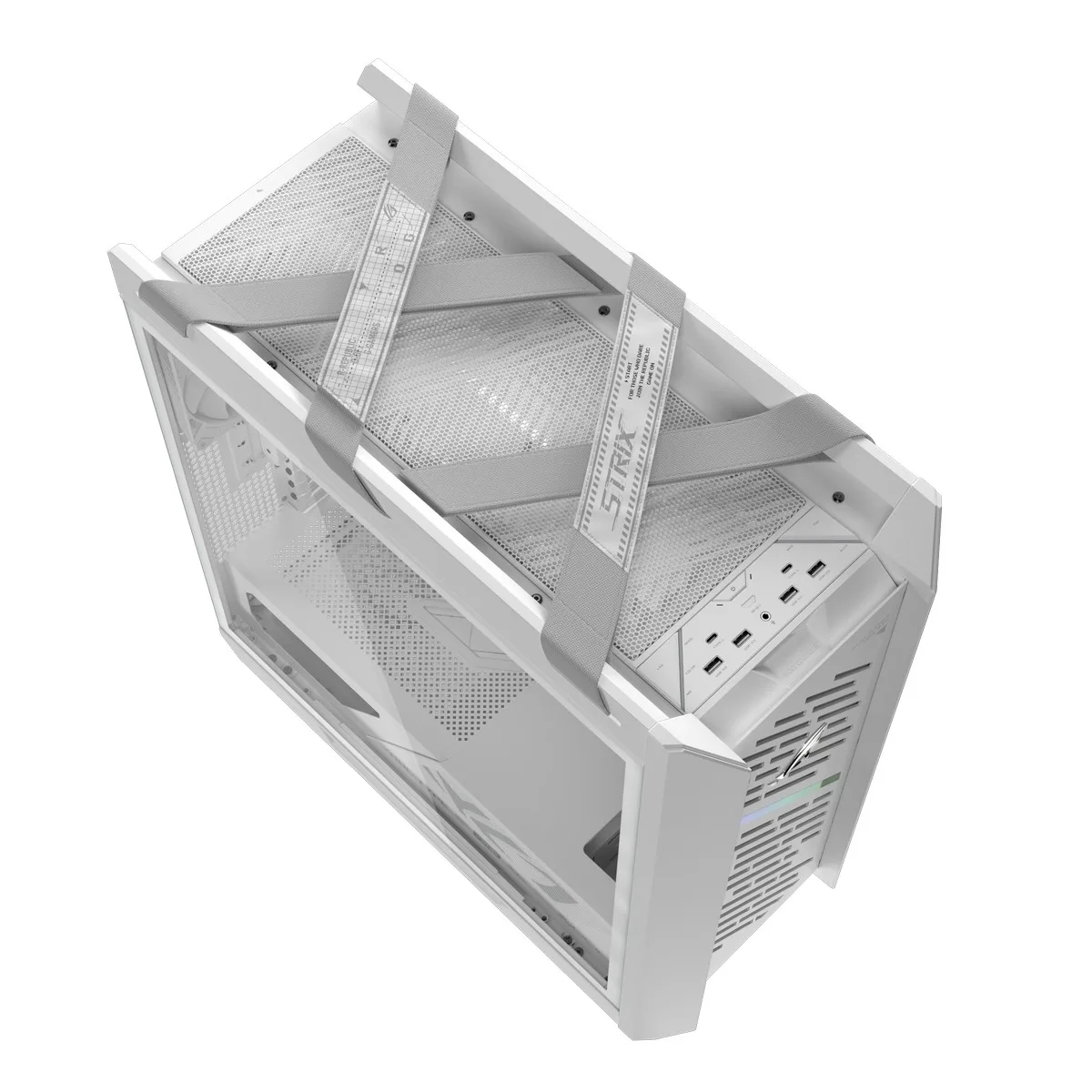

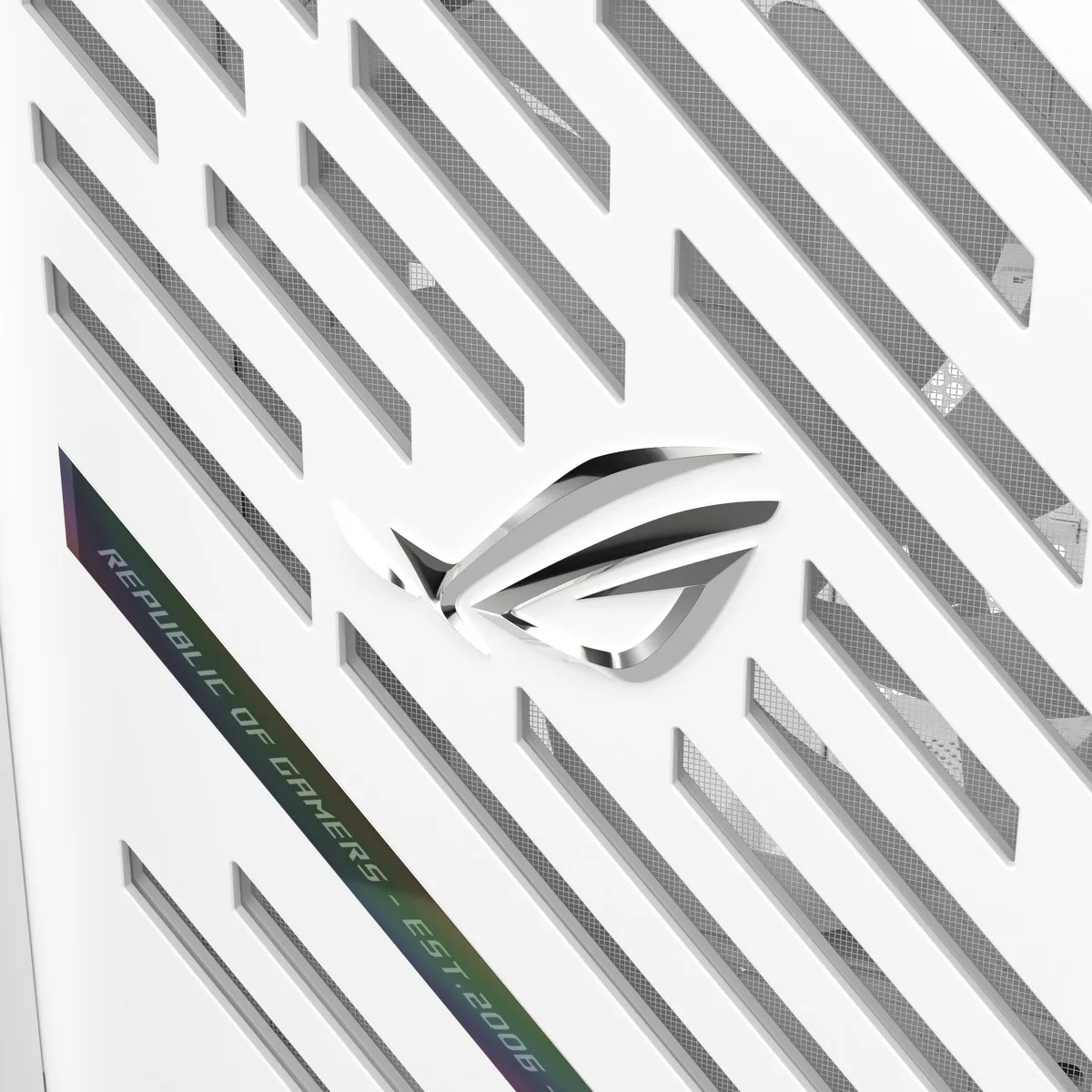

ASUS ROG STRIX Helios II GX601S Gaming Case - White
MPN: 90DC00W3-B39000
Key specifications
Max GPU450.0 mm
Max Cooler190.0 mm
Max PSU220.0 mm
Form factorUnknown
Best indexed price
Price unavailable
Retailer offers
Amazon UKProduct link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 450.0mm GPU clearance.
Supports up to 190.0mm CPU cooler height.
Full Specifications49 fields
Additional Contents
Included Fans
4x 140 mm
Additional Information
Model Number
90DC00W3-B39000
Gtin
4711636061247
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
Yes
Colour
Primary Colour
White
Dimensions
Length Depth
565 mm
Width
250 mm
Height
591 mm
Weight
18 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
6
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
Yes
Fan Support
Max Number Of Fans
7
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
190 mm
Max Gpu Length
450 mm
Max Psu Length Depth
220 mm
Lighting
Lighting Rgb
Yes
Rgb Controller
Yes
Materials
Materials
Steel, Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, ITX
Max Motherboard Format
E-ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Max Radiator Compatibility
1x Single (120 mm), 1x Triple (360 mm), 1x Triple (420 mm)
