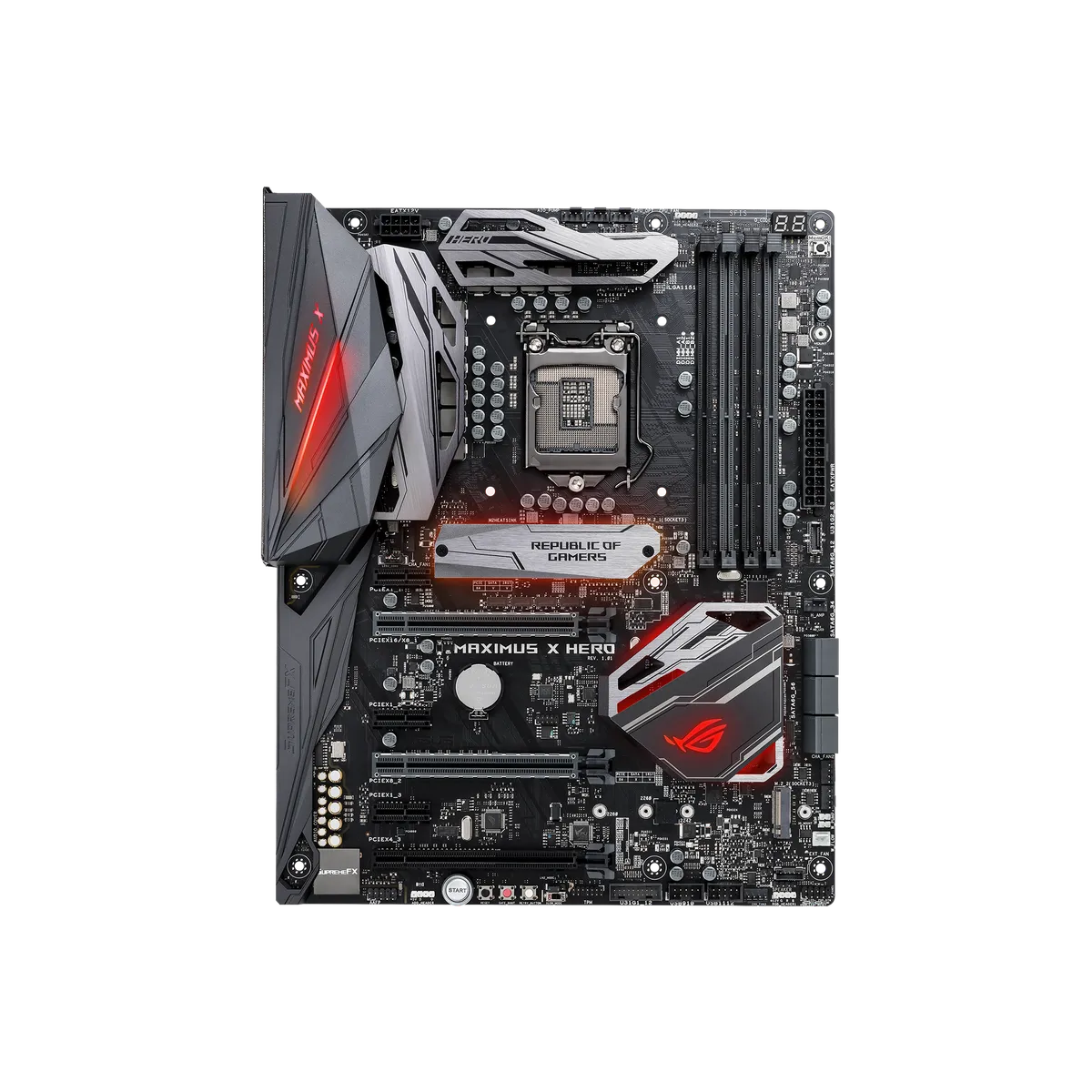

ASUS ROG MAXIMUS X HERO
Quick Specs
ChipsetIntel® Z490
MemoryDDR4
Form FactorATX
M.2 Slots4
About this motherboards
ROG Maximus X Hero Z370ATX motherboard with Aura Sync, SupremeFX, Dual M.2, Intel LAN, Optane compatibility, VR functionality, M.2 heatsink and USB 3.1 Gen 2.
Technical Specifications25 specs
Physical Dimensions
Length Mm
304.8
Width Mm
241.3
Height Mm
774.7
Technical Specifications
Cpu
- Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
- Supports Intel® 14nm CPU
Chipset
Intel® Z490
Memory
- 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/ 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/ 3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/ 3000(O.C.)/2933/2800/2666/2400/ 2133 MHz Non-ECC, Un-buffered Memory
- OptiMem III
- Supports Intel® Extreme Memory Profile (XMP)
- Dual Channel Memory Architecture
Graphic
- 1 x HDMI 1.4b
- *Graphics specifications may vary between CPU types.
- Integrated Graphics Processor
Multi Gpu Support
- Supports AMD 2-Way CrossFireX Technology
- Supports NVIDIA® 2-Way SLI® Technology
- Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots
- 2 x PCIe 3.0 x16 (x16 or dual x8) *1
- 1 x PCIe 3.0 x16 (x4 mode) *2
- Intel® 10th Gen Processors
- Intel® Z490 Chipset
- 3 x PCIe 3.0 x1
Storage
- 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
- 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*4
- 1 x M.2_3 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
- Intel® Z490 Chipset :
- 6 x SATA 6Gb/s port(s)
- Support Raid 0, 1, 5, 10
- Intel® Optane™ Memory Ready
Lan
- Intel® I219-V 1Gb Ethernet
- Marvell® AQtion AQC111C 5Gb Ethernet
- ASUS LANGuard
Wireless Data Network
- Intel® Wi-Fi 6 AX201
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ ax) support 1024QAM/OFDMA/MU-MIMO
- Supports up to 2.4Gbps max data rate
- Supports CNVI interface
- Supports dual band frequency 2.4/5 GHz
- Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth
- Bluetooth v5.1
- *BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio
- ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220*6
- - Premium Japanese audio capacitors
- - Audio Cover
- - Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- - ESS™ ES9023 DAC + RC4580 OP AMP
- - SupremeFX Shielding™ Technology
- - Supports up to 32-Bit/192kHz playback
- - Gold-plated jacks
- - Impedance sense for front and rear headphone outputs
- - High quality120dBSNR stereo playback outputand113dBSNR recording input
- Audio Feature :
- - Optical S/PDIF out port(s) at back panel
Usb Ports
- 4 x USB 3.2 Gen 2 port(s)(3 + Type-A +1 + USB Type-C®)
- 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
- Front USB Port ( Total 7 )
- Rear USB Port ( Total 10 )
- 2 x USB 2.0 port(s)(2 x Type-A)
- 2 x USB 3.2 Gen 1 port(s)
- 4 x USB 2.0 port(s)
- 1 x USB 3.2 Gen 2 front panel connector port(s)
Software Features
[ROG Exclusive Software]- Mem Tweakit- RAMCache III- ROG CPU-Z- GameFirst VI- Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III- DTS® Sound Unbound - Overwolf - BullGuard Internet Security (1-year full version) [ASUS Exclusive Software]Armoury Crate- Aura Creator- Aura SyncAI Suite 3- 5-way Optimization with AI Overclocking: TPU, EPU, Digi+ Power Control, Fan Xpert 4, Turbo app- EZ updateAI Charger WinRAR[UEFI BIOS]AI Overclocking GuideASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeFlexKey
Asus Special Features
ROG Extreme OC kit- FlexKey button- ReTry button- Start buttonExtreme Engine Digi+- 10K Black Metallic Capacitors- MicroFine Alloy Choke ASUS Q-Design - ASUS Q-Code- ASUS Q-Connector- ASUS Q-DIMM- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- ASUS Q-SlotASUS Thermal Solution- Aluminum M.2 heatsink coverASUS EZ DIY- BIOS Flashback™ button- Clear CMOS button- Procool II- Pre-mounted I/O shield- SafeSlotAURA Sync- Standard RGB headers- Addressable Gen 2 RGB headers
Back I O Ports
- 1 x Marvell® AQtion AQC111C 5Gb Ethernet
- 1 x Intel® I219-V 1Gb Ethernet
- 4 x USB 3.2 Gen 2
- 4 x USB 3.2 Gen 1
- 1 x USB BIOS FlashBack™ Button(s)
- 1 x Clear CMOS button(s)
- 5 x Gold-plated audio jacks
- 1 x ASUS Wi-Fi Module
- 1 x HDMI
- 2 x USB 2.0
- 1 x Optical S/PDIF out
Internal I O
- 3 x M.2 Socket 3
- 1 x FlexKey button
- 1 x USB 3.2 Gen 1 front panel TypeC™ connector
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
- 1 x Thunderbolt header(s)
- 1 x H_AMP fan connector
- 1 x W_IN header
- 1 x W_OUT header
- 1 x W_FLOW header
- 1 x ReTry button
- 1 x Start button
- 1 x W_PUMP+ connector
- 1 x AAFP connector
- 2 x Aura RGB Strip Headers
- 2 x Addressable Gen 2 header(s)
- 1 x Thermal sensor connector(s)
- 1 x System panel connector
- 1 x CPU Fan connector(s)
- 1 x CPU OPT Fan connector(s)
- 3 x Chassis Fan connector(s)
- 1 x AIO_PUMP connector
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 6 x SATA 6Gb/s connector(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x 4-pin ATX 12V Power connector(s)
- 1 x Speaker connector
Accessories
- 2 x M.2 SSD screw package(s)
- 2 x M.2 Rubber Package(s)
- 1 ROG key chain
- Addressable LED extension cable
- 1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
- 1 x ROG logo plate sticker
- 1 x ROG big sticker
- 1 x Q-Connector
- 1 x Wi-Fi Antenna(s)
- 1 x Extension Cable for RGB strips (80 cm)
- 1 x ROG Thank you card
- 4 x SATA 6Gb/s cable(s)
- User´s manual
- 1 x Supporting DVD
Bios
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows® 10 64-bit
Form Factor
- 12 inch x 9.5 inch ( 30.5 cm x 24.4 cm )
- ATX Form Factor
Note
*1 Support PCIe bifurcation for RAID on CPU function. *2 The PCIEX16_3 shares bandwidth wih M.2_2. The PCIEX16_3 will be disabled when M.2_2 runs x4 mode. *3 When M.2_1 is operating in SATA mode, SATA6G_2 will be disabled.*4 M.2_2 shares bandwidth with PCIEX16_3. When M.2_2 runs x4 mode, PCIEX16_3 will be disabled. When M.2_2 runs x2 mode, PCIEX16_3 runs x1 mode.*5 M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is populated SATA6G_56 will be disabled.*6 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 7.1 Surround Sound audio.
