Technical Specifications90 specs
Additional Contents
Included Fans
4x 140 mm
Additional Information
Model Number
90DC00F3-B39000
Gtin
4711387173244
Case
Case Type
Full Tower
Case Features
I O Position
Front
Side Panel
with window
Front Door
No
Cable Management
Yes
Filters Included
Yes
Noise Dampening
No
Mainboard Slide Tray
No
Remote Included
No
Transport System
No
Chassis Physical Specifications
Colour
White
Chassis Construction Materials
Steel
Dimensions
268 x 639 x 659 (WxHxD mm)
Package Type
-
Please Note
-
Clearances
Cable Routing Space
-
Colour
Primary Colour
White
Secondary Colour
Transparent
Fan Main Colour Frame
White
Fan Main Colour Rotor
White
Connectivity
Card Reader
No
Core Chassis Specifications
Edition

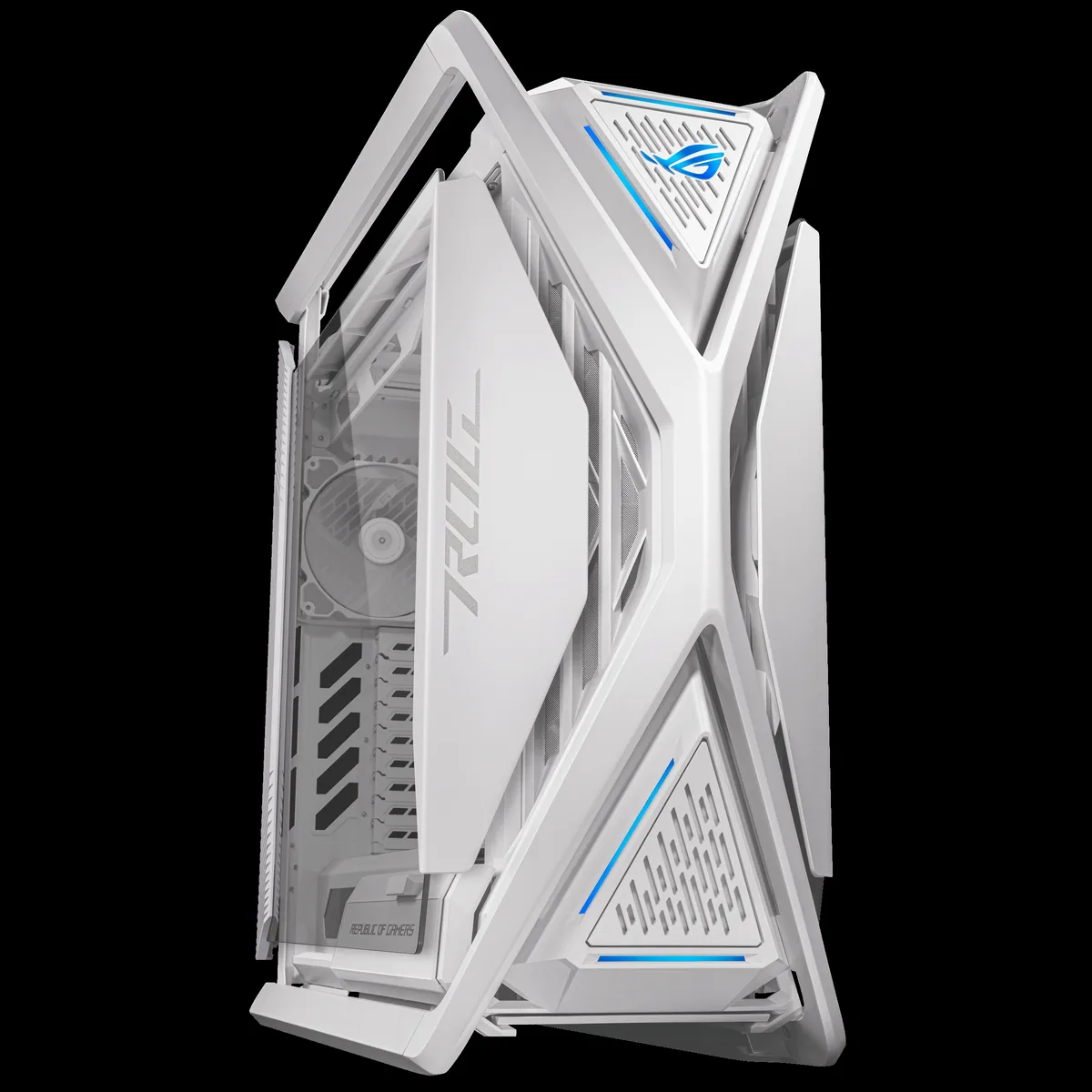

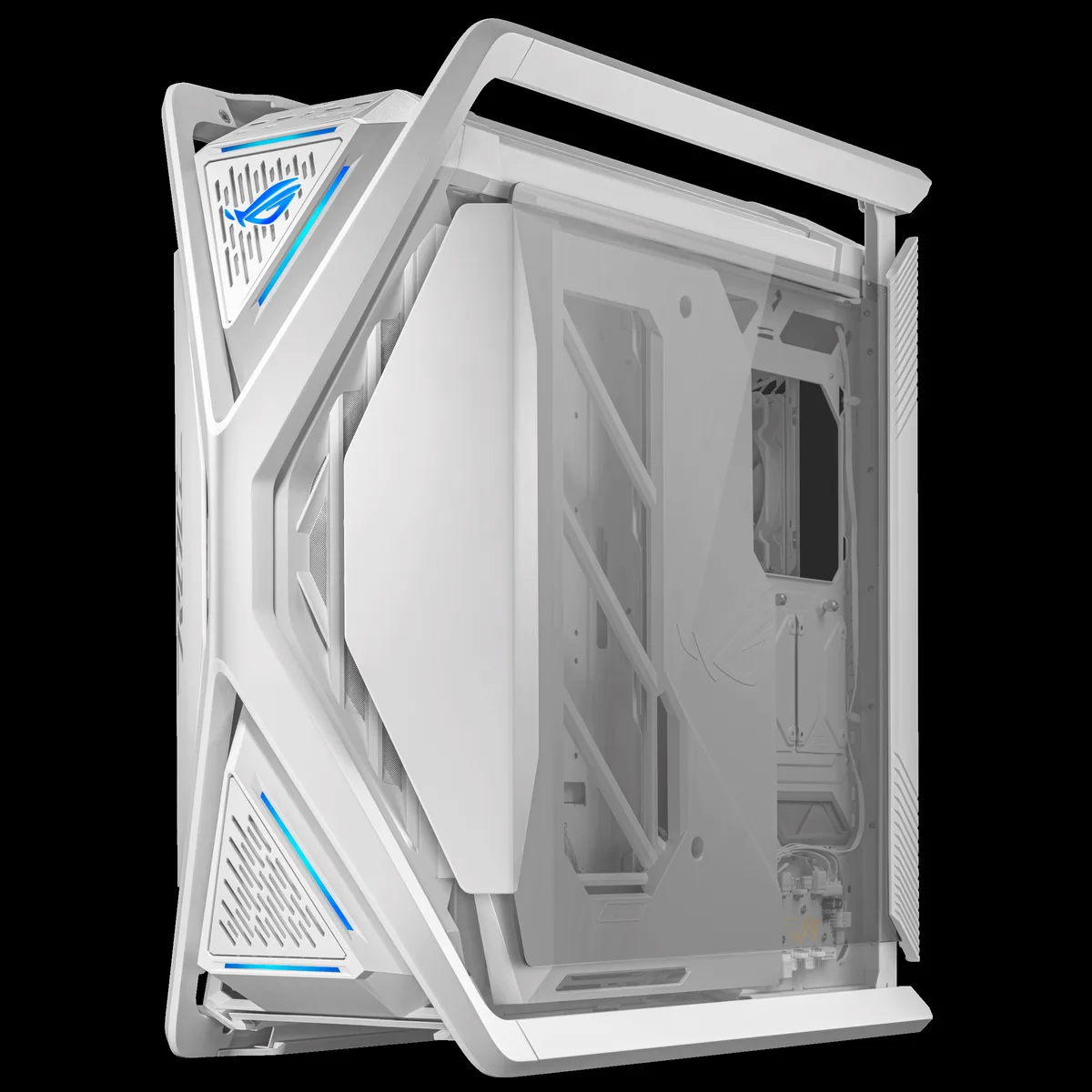

ASUS ROG Hyperion GR701 White
Case Form Factor
Full Tower
Motherboard Form Factor
ATX
E-ATX
MicroATX
Mini-ITX
Back Connect Compatible
No
Dimensions
Length Depth
268 mm
Width
639 mm
Height
659 mm
Weight
20.8 kg
Display
Display Included
No
Drive Bays
2 5 Inch Internal Drive Bay
5
3 5 Inch Internal Drive Bay
2
1x 3 5 1x 2 5 Inch Internal Drive Bays Combined
2
Hot Swap Drive Bays
No

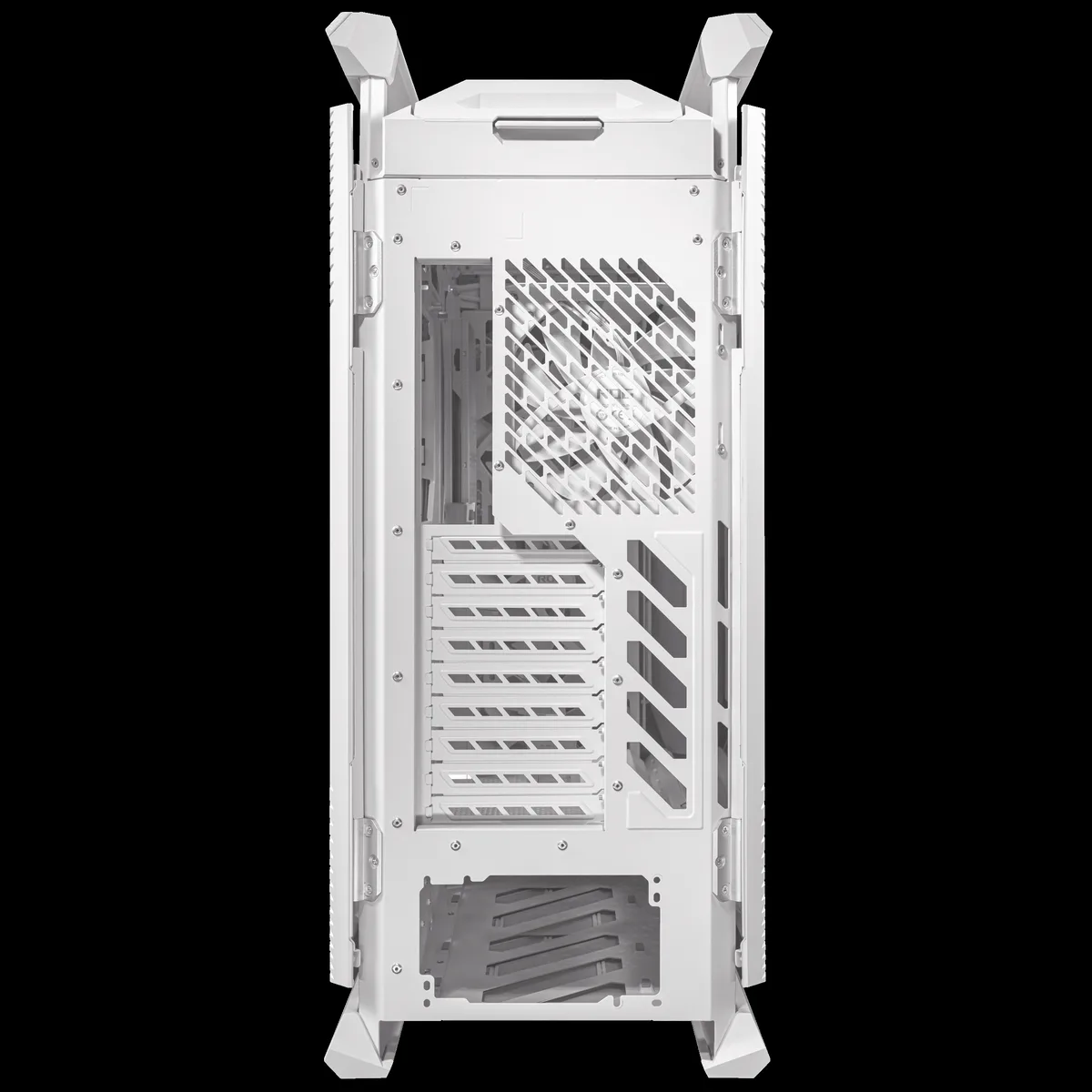

Expansion Slots
Expansion Slots Pci Slots
12
Pci Slot Allocation
9 + 3
External Ports
Usb4 Gen 2x2 External Type C
1
Usb 3 2 External Type C
1
Usb 3 1 External Type C
1
Usb 3 0 External Type A
4
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fans & Filters
Fan Bays
7 x 120mm / 7x 140mm
Fans Included
4 x 140mm

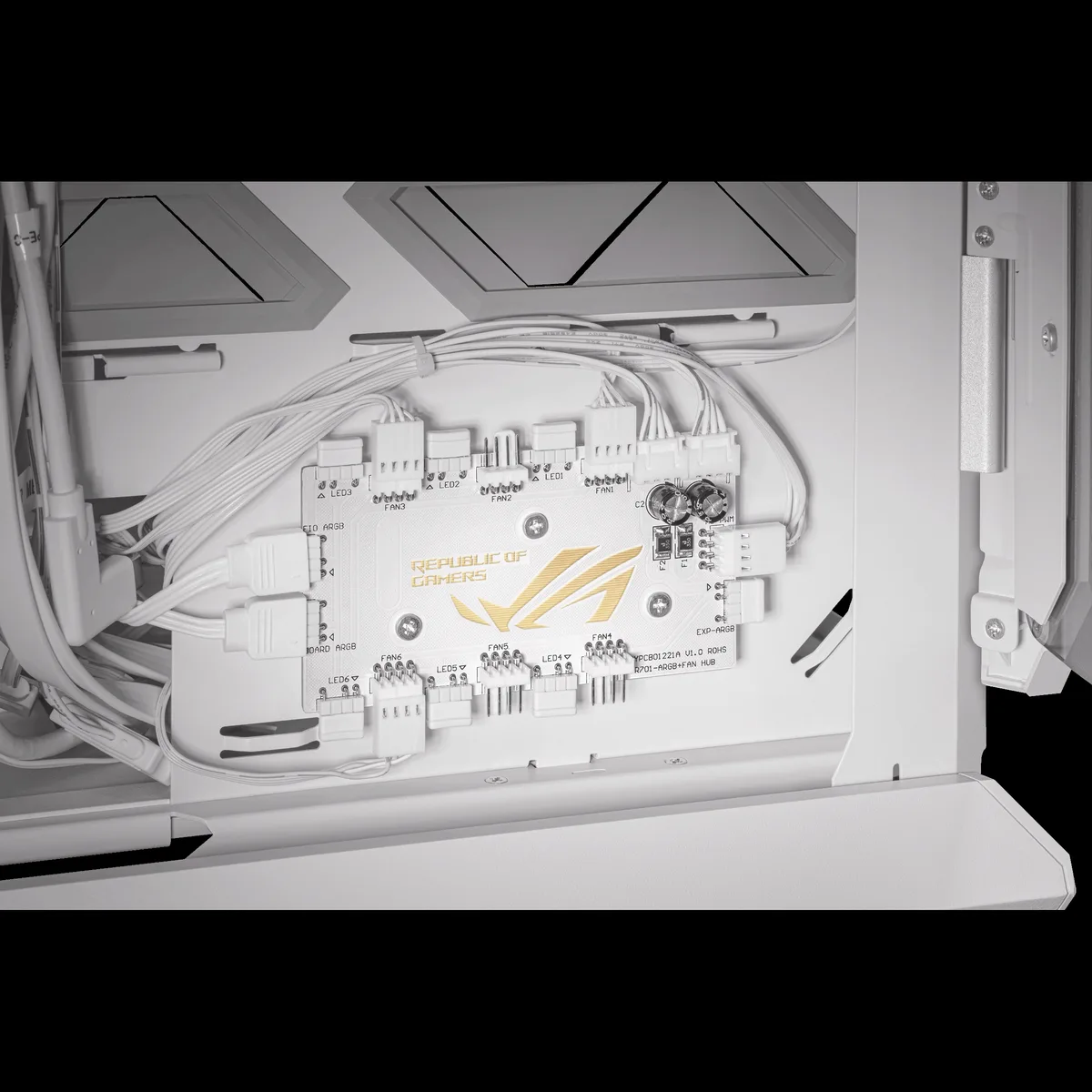

Fan Controller Hub
-
Dust Filters
Bottom
Front
Top
Fan Support
120 Mm Fans
7
140 Mm Fans
7
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
190 mm
Max Gpu Length
460 mm
Max Psu Length Depth
240 mm
I/O, Bays & Expansion

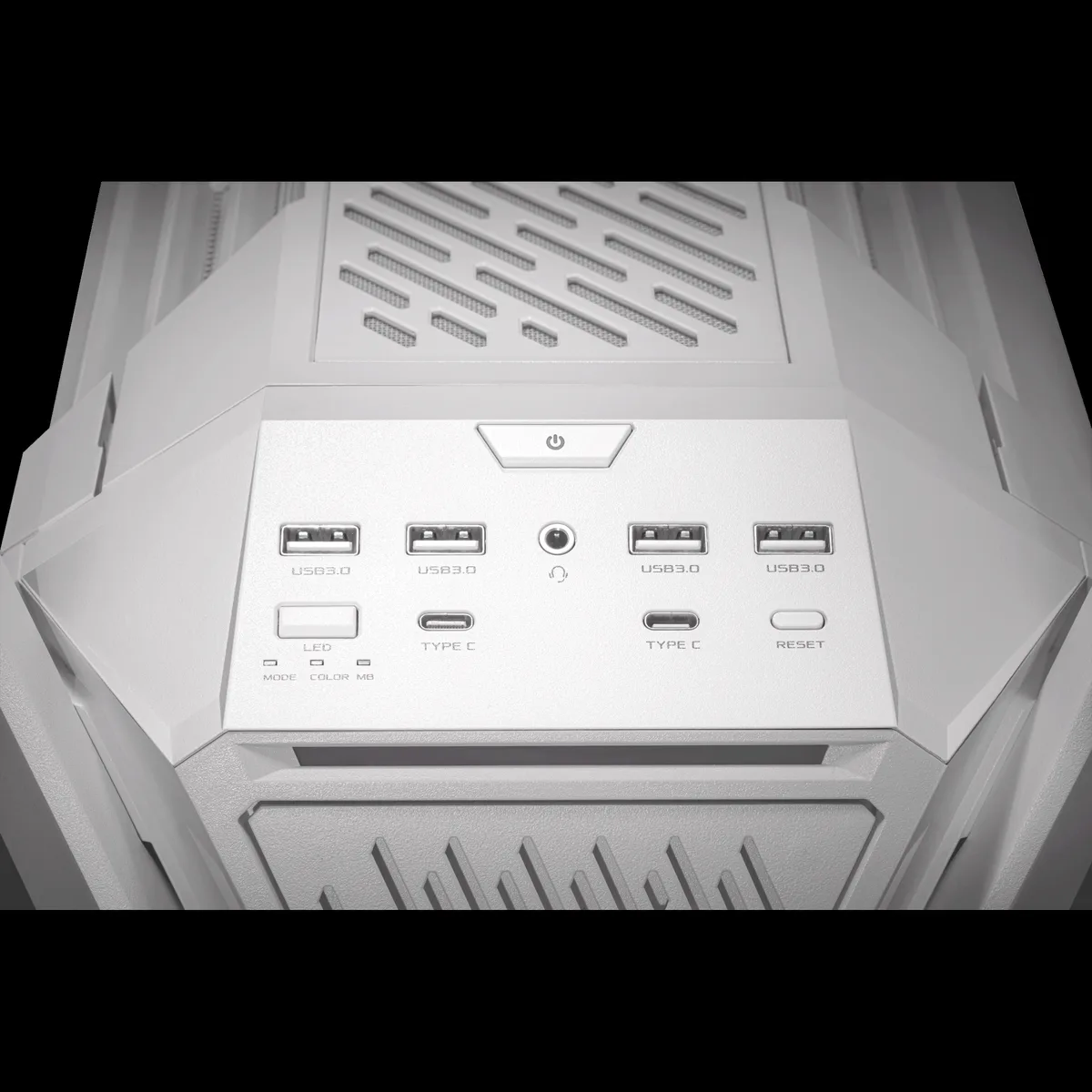

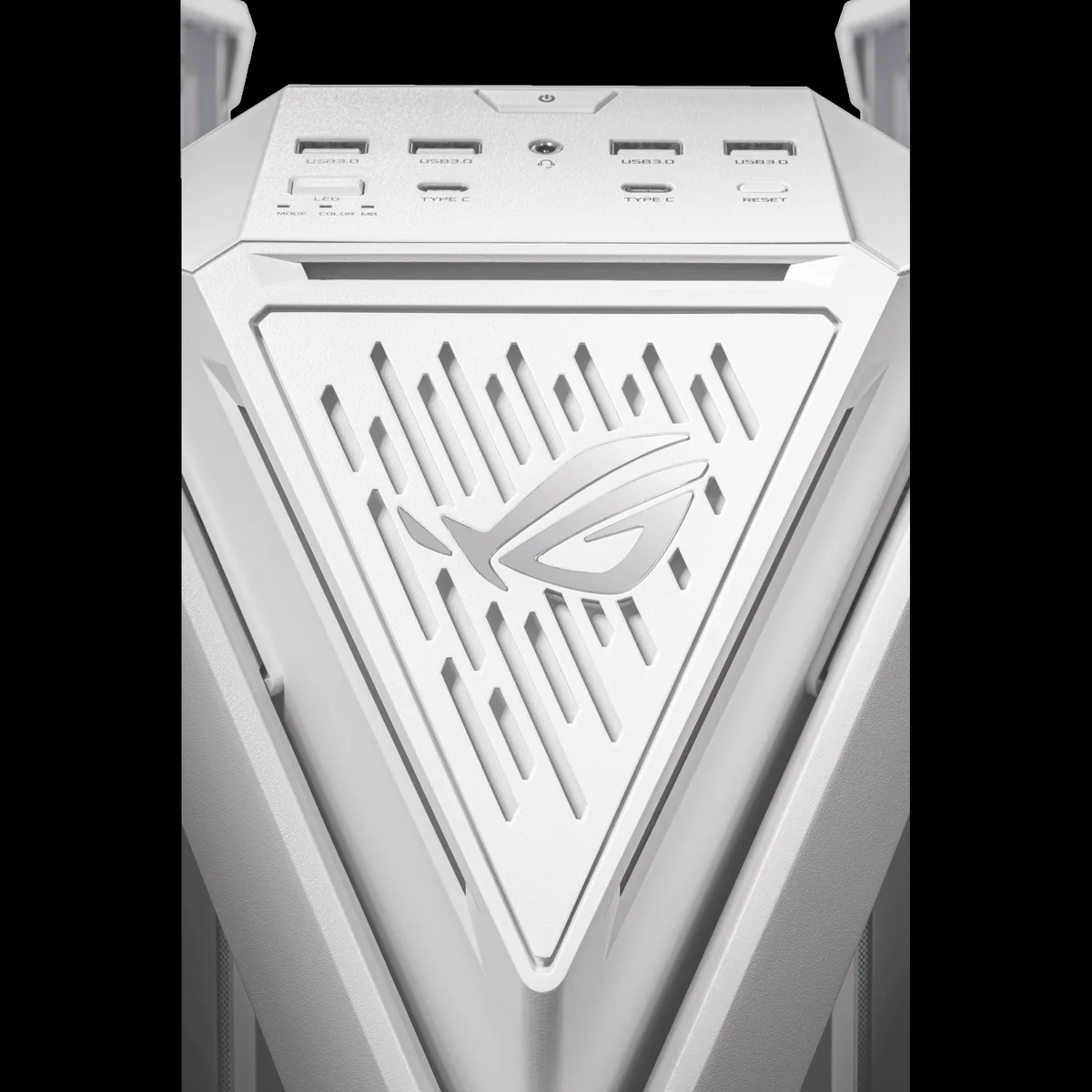

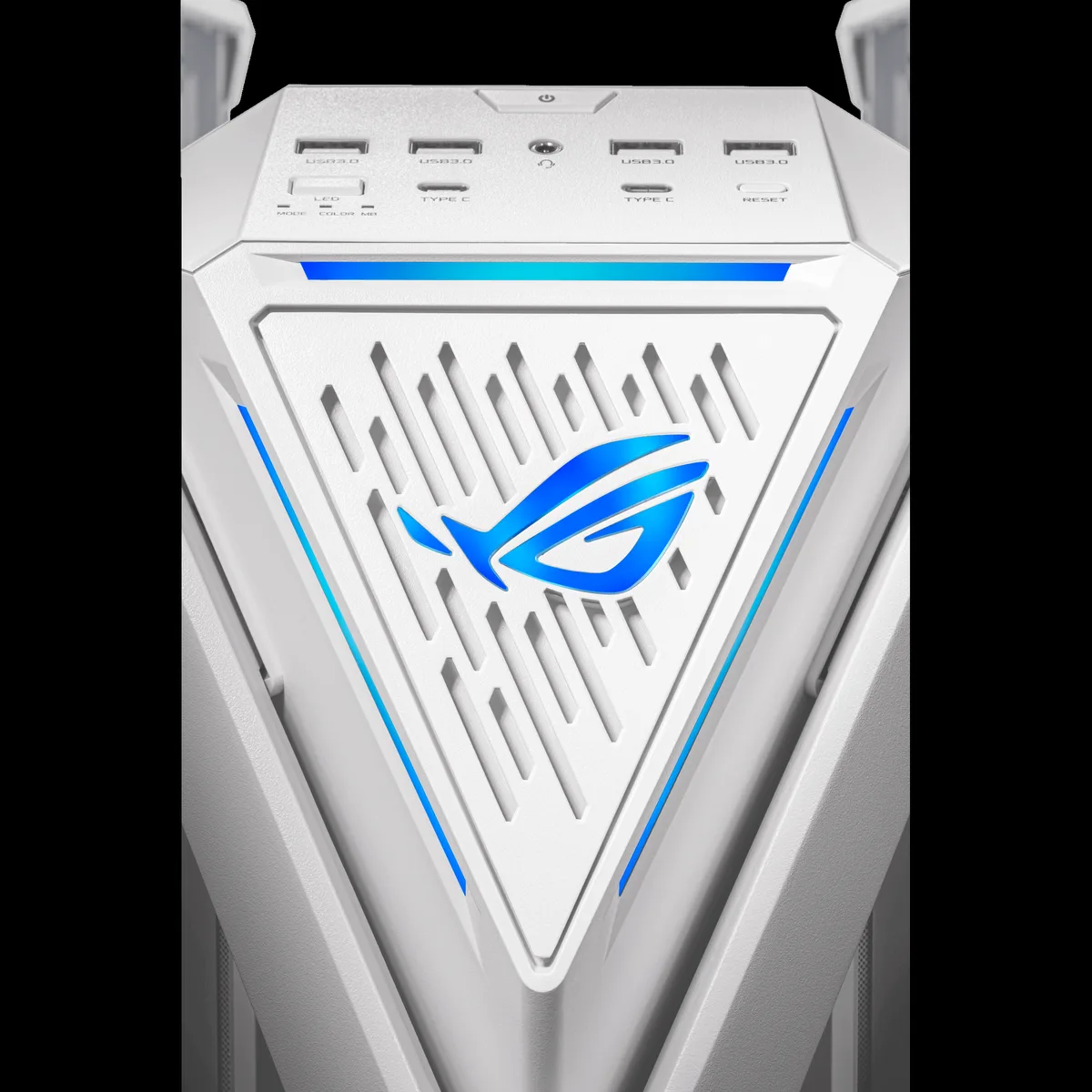

Front Side Top Panel I O
1 x Headphone/Mic Combo
1 x LED Control Button
1 x Reset Button
4 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-C
1 x USB 4.0 Type-C

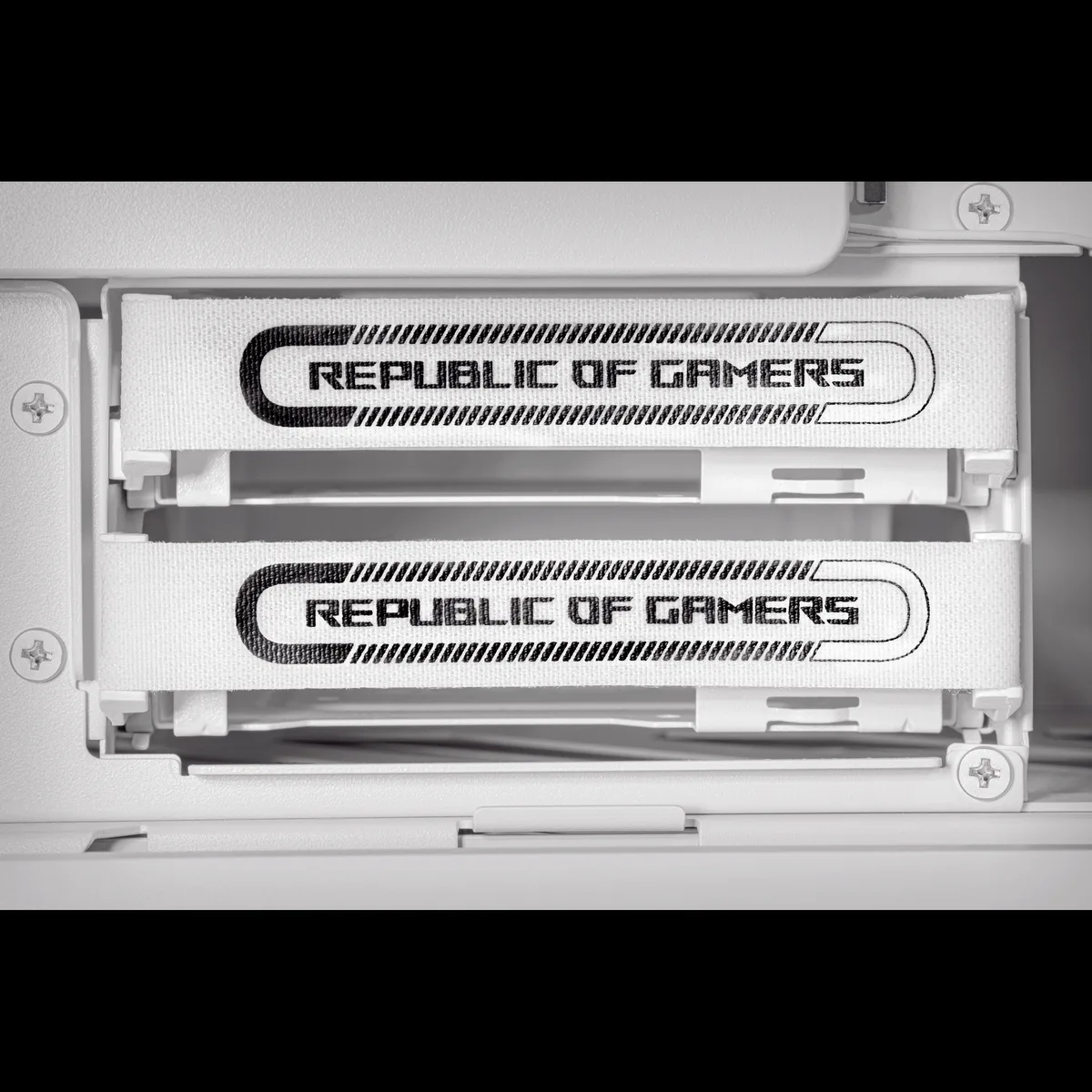

Drive Bays
5 x 2.5" Internal
2 x 2.5"/ 3.5" Internal
Standard Expansion Slots
9

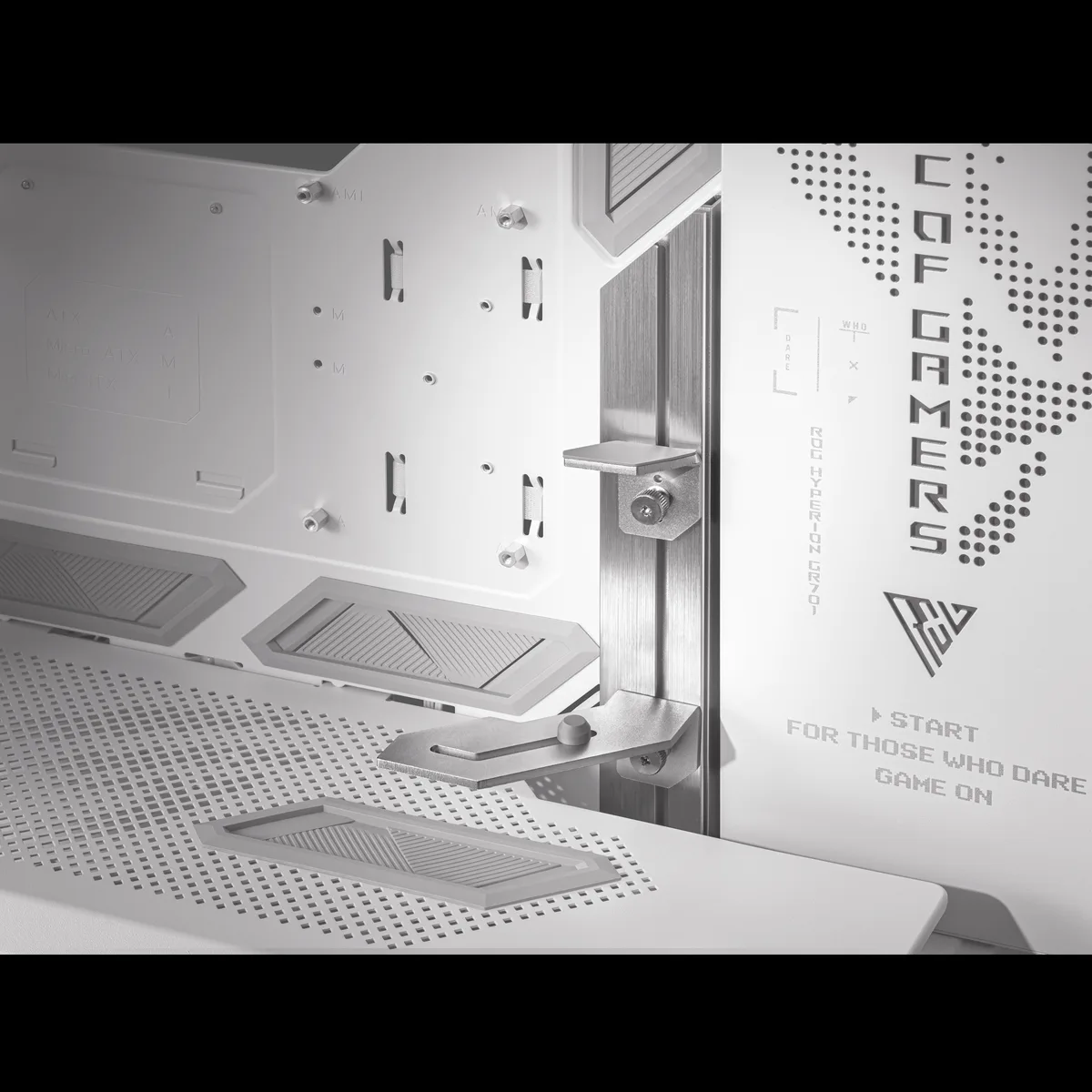

Vertical Expansion Slots
3
LED Lighting Functionality
Led Lighting
No
Led Lighting Emitters
Front Panel Accent Lighting
Led Lighting Colour
RGB
Led Lighting Support Control
Compatible with ASUS AURA Sync
Lighting
Lighting Rgb
Yes
Fan Rgb Control
Yes
Lighting Colour
RGB
Lighting Compatibility
ASUS Aura Sync
Liquid Cooling Support
Front Radiator Compatibility
1 x 360/420mm
Top Radiator Compatibility
1 x 360/420mm
Bottom Radiator Compatibility
-
Rear Radiator Compatibility
1 x 140mm
Side Radiator Compatibility
-
Materials
Materials
Plastic, Aluminium, Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Power Supply Compatibility
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
ATX
Psu Mounting Location
-
Max Psu Length
240 mm
Product Series
Product Series Family
ROG
Radiator Support
Max Radiator Compatibility
1x Single (140 mm), 2x Triple (420 mm)
Side Panels
Window S
Yes
Window Configuration
1 x Main Side
Window Construction
Tempered Glass
