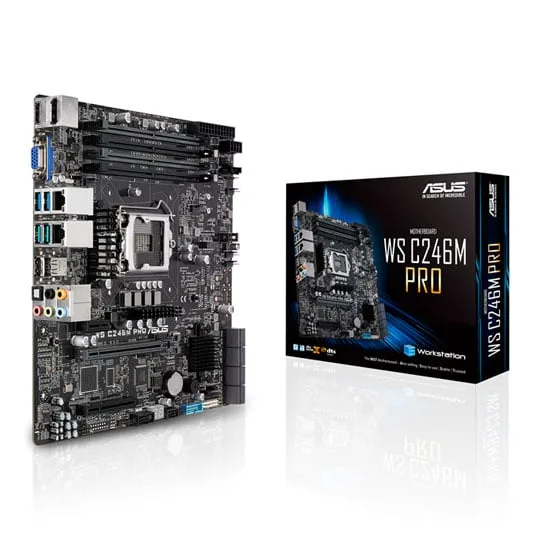

ASUS Rack Optimised WS C246M PRO Intel Xeon E Micro ATX Motherboard
MPN: 90SW00E0-M0EAY0
Key specifications
SocketLGA 1151
Form factormATX
ChipsetIntel C246
Memory typeDDR4
M.2 slots1
Max Memory64 GB
Full Specifications31 fields
Additional Information
Model Number
90SW00E0-M0EAY0
Gtin
4712900981636
Additional Specifications
Water Cooled
No
Cooling
-
Qpi Speed
N/A
Dimensions
244 x 244 mm
Note
-
Core Specifications
Edition
WS C246M PRO
Form Factor
MicroATX
Socket
1151
Chipset
Intel C246
External Connectivity
Network Interface Type
Dual Wired Gigabit LAN (10/100/1000)
Network Chip Modules
1 x Intel® I210AT (Gigabit LAN)
1 x Intel® I219LM (Gigabit LAN)

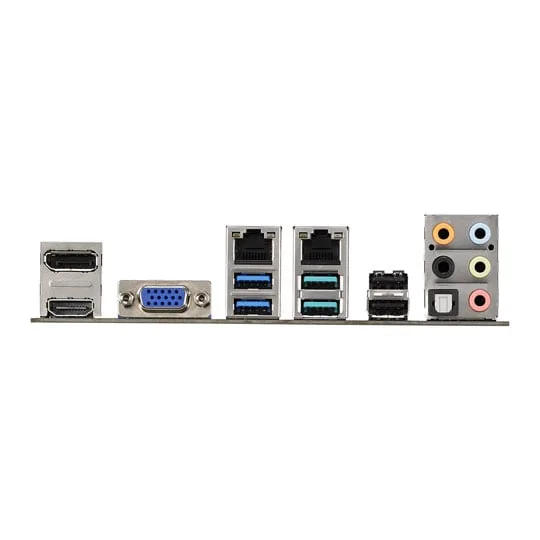

Rear I O Connectors
1 x Center/Subwoofer Speaker Out
1 x D-Sub (VGA) Out
1 x DisplayPort 1.2
1 x HDMI
1 x Line In
1 x Line Out
1 x Mic-In
1 x Rear Speaker Out
2 x RJ-45
1 x S/PDIF-Out (Optical)
2 x USB 2.0
2 x USB 3.1 Gen1 Type-A
2 x USB 3.1 Gen2 Type-A
Graphics Support
Primary Gpu Interface
PCIe 3.0 (x16)
Nvidia Sli Support
Not Supported
Amd Crossfire Support
Not Supported
Integrated Graphics
-
On Board Graphics Connectors
D-Sub (VGA)
DisplayPort 1.2
HDMI
Internal Connectivity
Expansion Slots
1 x M.2, 22-30/42/60/80, PCIe Gen3/SATA
1 x PCIe 2.0 x1
1 x PCIe 2.0 x8 (x4 Bandwidth)
1 x PCIe 3.0 x16
Sata Support
SATA3
Raid Support Via
SATA
Storage Mode Support
NVMe Boot (via M.2 PCIe Slot)
NVMe Boot (via PCIe 3.0 Slot)
RAID 0 (SATA 0~7 ONLY)
RAID 1 (SATA 0~7 ONLY)
RAID 10 (SATA 0~7 ONLY)
RAID 5 (SATA 0~7 ONLY)
Internal I O
1 x 2-Digit debug code LED
1 x 24-pin (Power)
1 x 4-pin CPU Fan Connector
3 x 4-pin Front Fan Connector
1 x 4-pin Rear Fan Connector
1 x 8-pin (Power)
1 x Auxiliary Panel Header
1 x Chassis Intrusion connector
1 x Front Panel Audio Header
1 x Front Panel Connector
1 x Power button
1 x PSU SMB Header
1 x S/PDIF-Out Header
8 x SATA III - 6Gb/s
1 x Serial (COM) Header
1 x SGPIO header
1 x SMBus header
1 x TPM Header
2 x USB 2.0 Header
1 x USB 3.1 Gen1 Header
RAM Memory Support
Memory Type
DDR4
Memory Channel
Dual (2)
Memory Type Ecc
ECC/Non-ECC
Memory Type R U
UDIMM (Unbuffered)
Memory Speed Mhz
DDR4 - 2133
DDR4 - 2400
DDR4 - 2666
Max Memory Capacity
64GB (4x16GB)
General
Audio
7.1 Channel HD Audio
Best indexed price
£243.30GBP
Indexed 24 May 2026 — verify at retailer
