ASUS Q170M-C
MotherboardsAsus

ASUS Q170M-C

Price TBC

Compatibility Data

ChipsetIntel® Q170
Memory TypeDDR4
Form FactorATX
Model: 8019

Technical Specifications23 specs

General

Model
Q170M-C
Cpu
  • Intel® for 6
  • th
  • Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors,Supports Intel® 14nm CPU,Supports Intel® Turbo Boost Technology 2.0,* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.,* Refer to
  • www.asus.com
  • for CPU support list
Chipset
Intel® Q170
Memory
  • 4 x DIMM, Max. 64GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory,* The maximum memory frequency supported varies by processor.,Supports Intel® Extreme Memory Profile (XMP),* Hyper DIMM support is subject to the physical characteristics of individual CPUs.,* Refer to
  • www.asus.com
Graphic
Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports,Maximum shared memory of 1024 MB,- Supports HDMI with max. resolution 4096 x 2160 @ 24Hz / 2560 x 1600 @ 60Hz,- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz,Supports up to 3 displays simultaneously,Integrated Graphics Processor- Intel® HD Graphics support,Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™,- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz,- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Expansion Slots
1 x PCI,1 x PCIe 3.0/2.0 x1,1 x PCIe 3.0/2.0 x16 (x16 mode),1 x PCIe 3.0/2.0 x16 (max at x4 mode)
Storage
  • Intel® Q170 chipset :
  • ,6 x SATA 6Gb/s port(s), gray,,Support Raid 0, 1, 5, 10
Lan
Intel® I219LM, 1 x Gigabit LAN Controller(s)
Audio
  • Realtek® ALC8877.1-Channel High Definition Audio CODEC
  • 1
  • ,- Supports : Jack-detection, Front Panel Jack-retasking
Usb Ports
  • 10 x USB 3.1 Gen 1 port(s) (6 at back panel, blue, 4 at mid-board)
  • Intel® Q170 chipset :
  • ,4 x USB 2.0/1.1 port(s) (2 at back panel, black, 2 at mid-board)
Special Features
  • Media Streamer
  • ,- Mobo Connect,- Push Notice
  • ASUS 5X Protection II :
  • - ASUS LANGuard - 2.5X higher surge tolerance,- ASUS Overvoltage Protection - World-class circuit-protecting power design,- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits,- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability,- ASUS ESD Guards - Electrostatic discharge protection,- Anti-Surge
  • TPM IC Onboard
  • ,- ASUS Fan Xpert 2+
  • ASUS Exclusive Features
  • :,- AI Suite 3,- Ai Charger
  • ASUS Quiet Thermal Solution
  • :,- Stylish Fanless Design Heat-sink solution
  • ASUS EZ DIY :
  • ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode
  • ASUS Q-Design :
  • ,- ASUS Q-Slot,- ASUS Q-DIMM
Operating System Support
  • Windows® 7 , 32bit/64bit
  • 2
  • ,Windows® 10 , 64bit,Windows® 8.1 , 64bit
Back I O Ports
6 x USB 3.1 Gen 1 (blue),1 x DVI-D,1 x D-Sub,1 x DisplayPort,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s),1 x PS/2 keyboard (purple),1 x PS/2 mouse (green)
Internal I O
  • 1 x MONO out header
  • 3
  • ,1 x DIS ME jumper,2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s),1 x LPT header,2 x COM port(s) connector(s),2 x Chassis Fan connector(s) (2 x 4-pin),1 x Chassis Intrusion connector(s),1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s),1 x Internal speaker connector(s),6 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s)

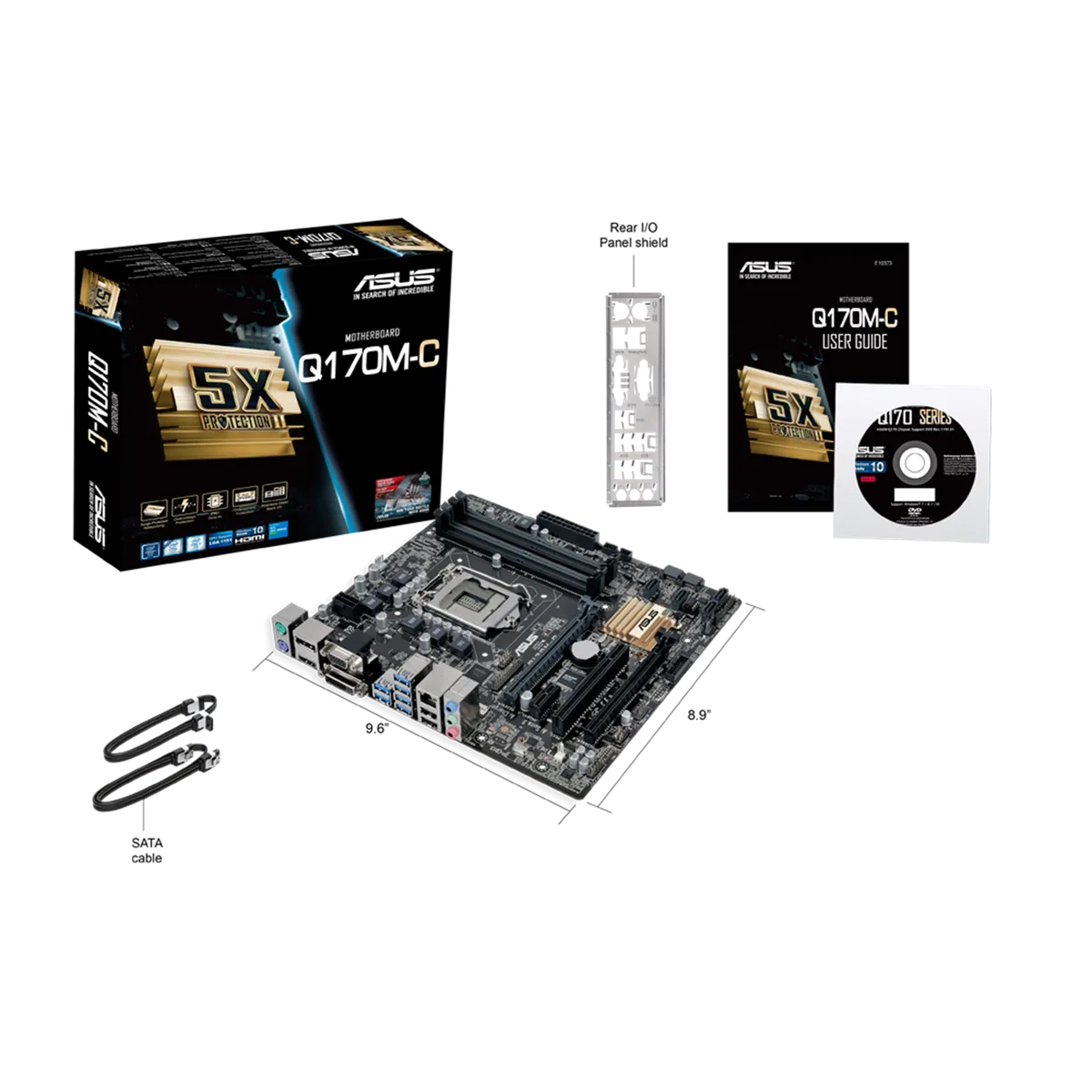

Accessories
User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x Supporting DVD
Bios
  • 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS
  • ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc
  • Drivers
  • ASUS Utilities
  • ASUS EZ Update
  • Anti-virus software (OEM version)
Form Factor
9.6 inch x 8.9 inch ( 24.4 cm x 22.6 cm ),uATX Form Factor
Note
  • *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
  • *2: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.
  • *3: Use with amplified speaker is suggested.

Physical Dimensions

Length Mm
243.8
Width Mm
226.1
Height Mm
619.8
