ASUS ProArt Display PA169CDV
Quick Specs
Size16"
Resolution3840x2160
Refresh60 Hz
PanelIPS
Response10 ms
Model: 22269
About this monitors
ASUS ProArt Display PA169CDV is a 15.6-inch, 10-bit, 4K UHD pen display featuring Wacom EMR technology and bundled ProArt Pen for smooth drawing experiences.
Technical Specifications16 specs
General
Model
ProArt Display PA169CDV
Display
- Panel Size (inch) : 15.6
- Pixels Per Inch (PPI) : 282
- Aspect Ratio : 16:9
- Display Viewing Area (H x V) : 345.60 ×194.40 mm
- Display Surface : AGAF (Anti-Glare, Anti-FingerPrint)
- Backlight Type : LED
- Panel Type : IPS
- Viewing Angle (CR≧10, H/V) : 178°/ 178°
- Pixel Pitch : 0.092mm
- Resolution : 3840x2160
- Color Space (sRGB) : 100%
- Color Space (Adobe RGB) : 92%
- Color Space (DCI-P3) : 88%
- Brightness (HDR, Peak) : 500 cd/㎡
- Brightness (Typ.) : 450cd/㎡
- Contrast Ratio (HDR, Max) : 15,000:1
- Contrast Ratio (Typ.) : 1200:1
- Display Colors : 1073.7M (10 bit)
- Response Time : 10ms(GTG)
- Refresh Rate (Max) : 60Hz
- HDR (High Dynamic Range) Support : HDR10
- Touch : Yes, Projective Capacitive 10-point Touch
- Stylus Support : Yes, Wacom EMR Technology ProArt Pen (Feel by Wacom)
- Protection Glass : Yes
- Flicker-free : Yes
- LCD ZBD Warranty : Yes(3 yr)
Features
- ProArt Preset : User mode2
- User mode1
- HDR
- Reading
- Scenery
- Rec.709
- DCI-P3
- Adobe RGB
- sRGB
- Standard
- Color Temp. Selection : Yes (5 modes)
- Color Adjustment : RGB Tuning (Gain / Offset)
- Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6)
- Color Accuracy : △E< 2
- ProArt Palette : Yes
- QuickFit Plus : Yes
- PIP / PBP Technology : Yes
- HDCP : Yes, 2.2
- Low Blue Light : Yes
Audio
Speaker : Yes(1Wx2)
I O Ports
- USB-C x 1 (DP Alt Mode)
- HDMI(v2.0) x 1
- USB-C Power Delivery : 15W
Signal Frequency
- Digital Signal Frequency : HDMI: 29~160 KHz (H) / 40~60Hz (V)
- USB-C: 29~160 KHz (H) / 40~60Hz (V)
Power Consumption
- Power Consumption : <15W
- Power Saving Mode : <0.5W
- Power Off Mode : <0.3W
- Voltage : 100-240V, 50/60Hz
Mechanical Design

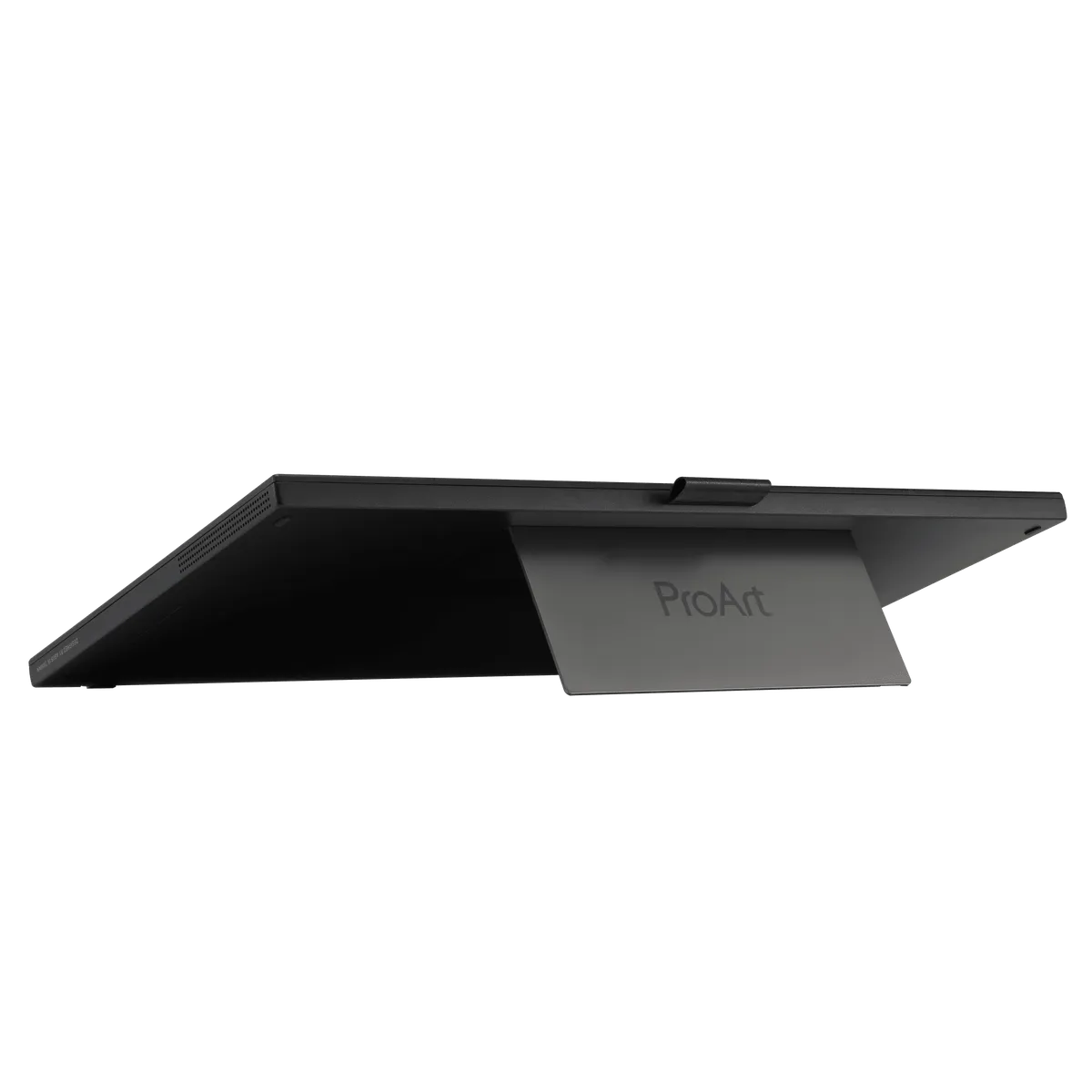

- Tilt : Yes (Upper Stand: 17°, Lower Stand: 54° ~ 75°)
- Pivot : Yes (0° ~ 90° Clockwise)
- Height Adjustment : No
- 1/4" Tripod Socket : Yes
Dimensions Esti
- Phys. Dimension (W x H x D) : 37.0 x 23.7 x 1.2 cm (14.57" x 9.33" x 0.47")
- Box Dimension (W x H x D) : 53.90 x 10.75 x 32.30 cm (21.22" x 4.23" x 12.72")
Weight Esti
- Net Weight : 1.07 kg (2.36 lbs)
- Gross Weight : 2.95 kg (6.50 lbs)
Accessories Vary By Regions
- Welcome Card
- Warranty Card
- USB-C cable
- Quick start guide
- ProArt Carry Bag

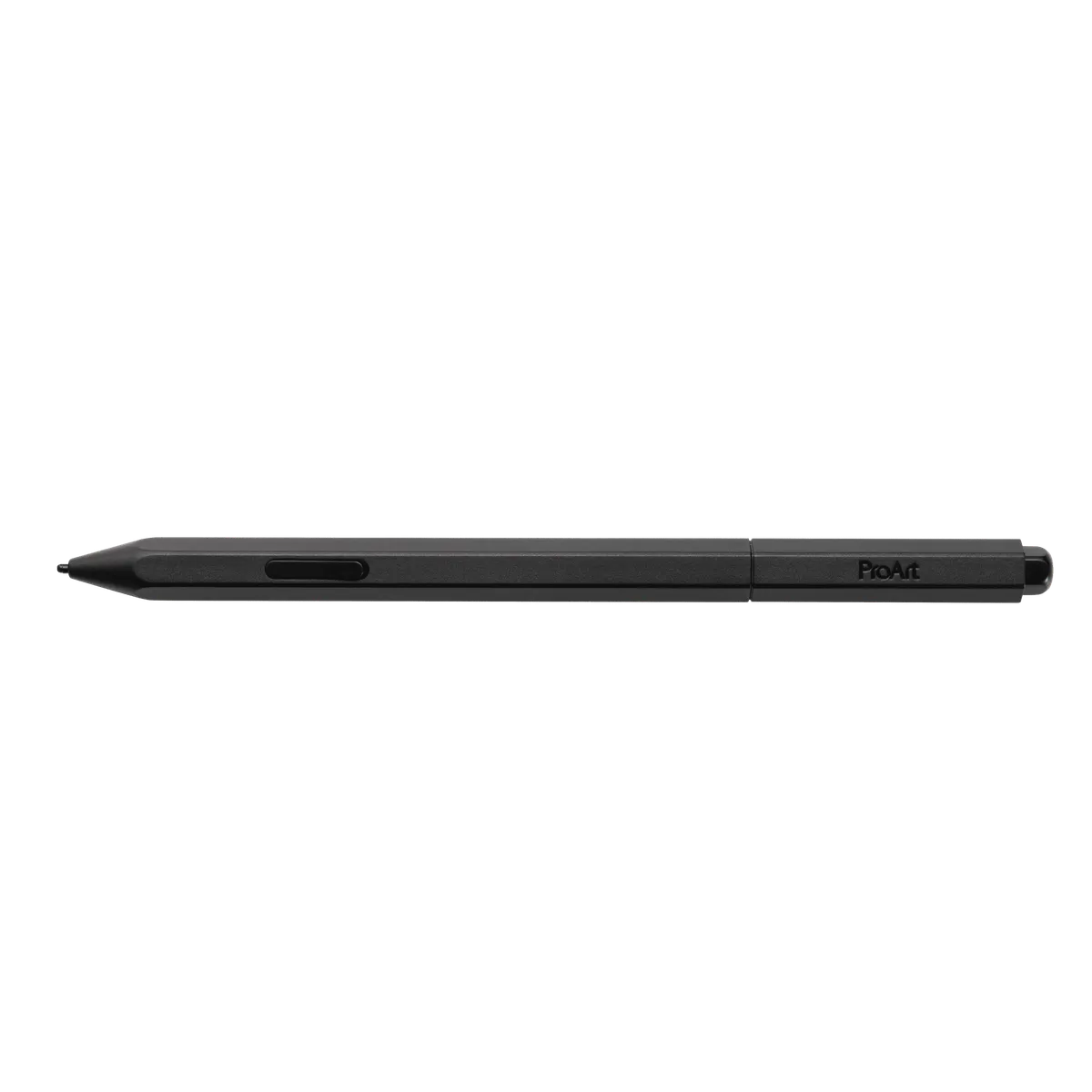

- ProArt Pen (Wacom EMR)
- Power adapter
- HDMI cable
- Color pre-calibration report
Certificate
- Pantone Validated
- Calman Verified
- VESA DisplayHDR 400
- TÜV Low Blue Light
- TÜV Flicker-free
- Energy Star
Physical Dimensions
Length Mm
370
Width Mm
237
Height Mm
12
Weight G
1070
