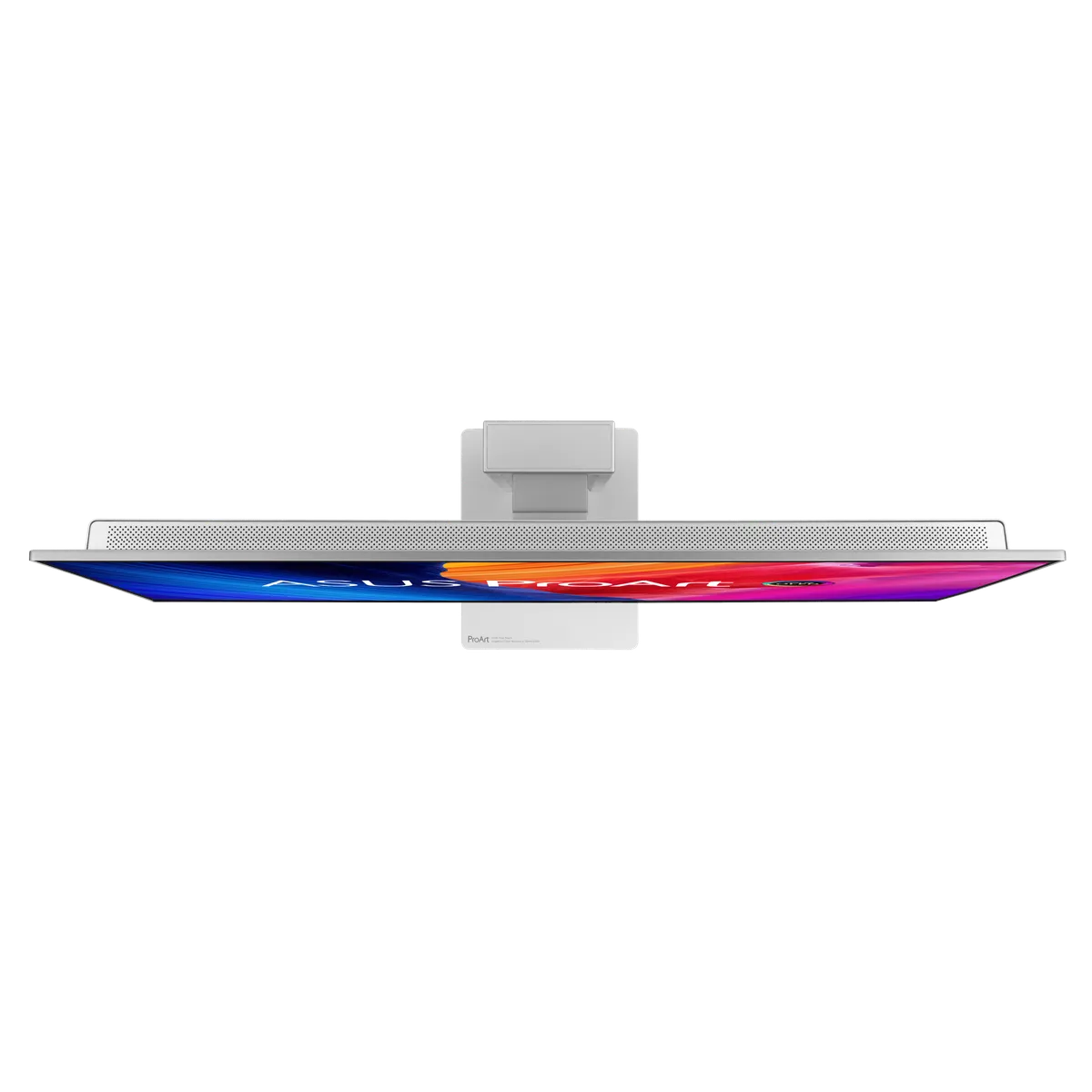

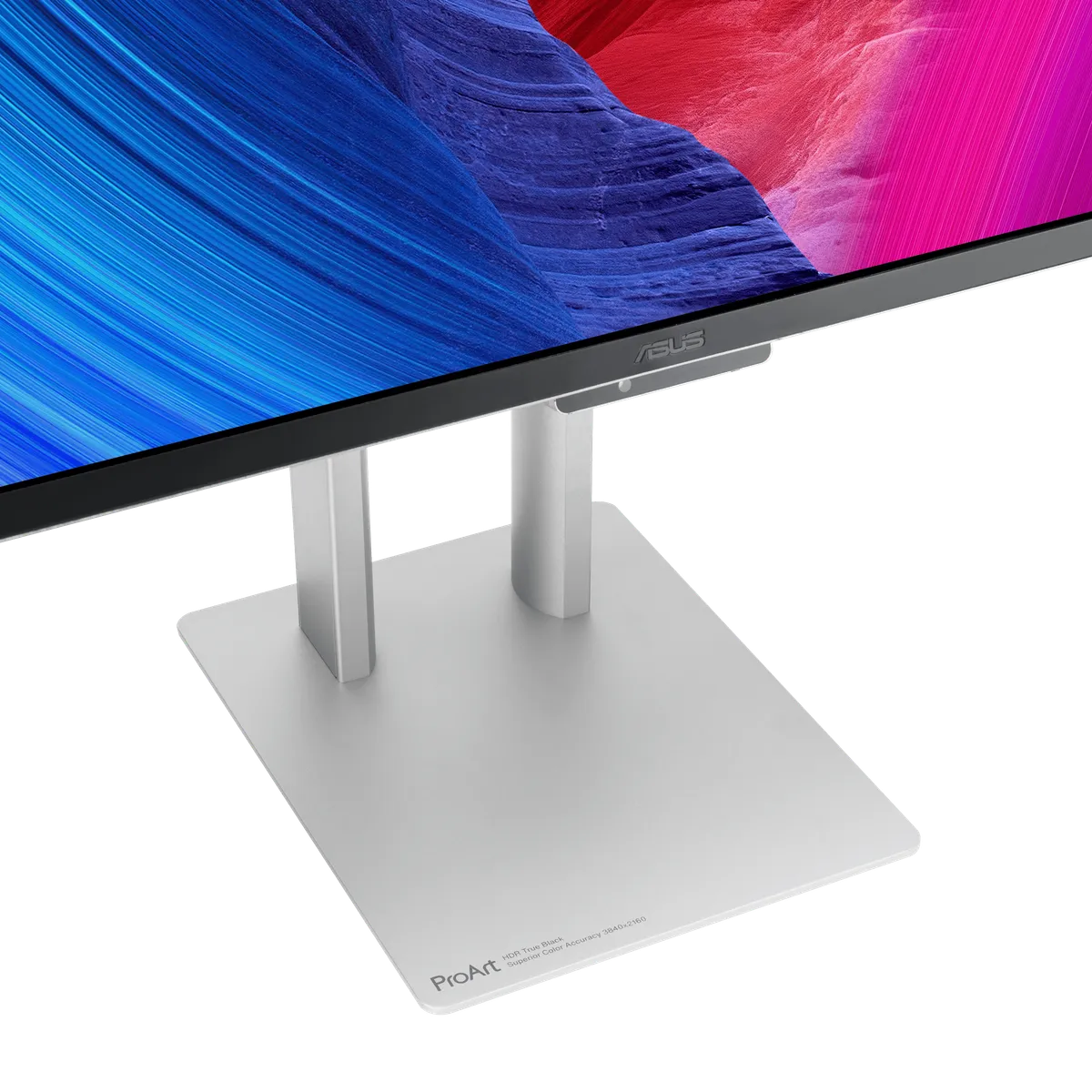

ASUS ProArt Display OLED PA32UCDM
Quick Specs
Size32"
Resolution3840x2160
Refresh240 Hz
PanelQD-OLED
Response0.1 ms
Model: 30818
About this monitors
ASUS ProArt Display OLED PA32UCDM: 31.5" 4K UHD, 240 Hz, 1000 nits, true 10-bit color, HDR, dual Thunderbolt 4, ergonomic, optimal color accuracy.
Technical Specifications17 specs
General
Model
ProArt Display OLED PA32UCDM
Display
- Panel Size (inch) : 31.5
- Pixels Per Inch (PPI) : 140
- Aspect Ratio : 16:9
- Display Viewing Area (H x V) : 699.48 x 394.73 mm
- Display Surface : Anti-Reflection
- Panel Type : QD-OLED
- Viewing Angle (CR≧10, H/V) : 178°/ 178°
- Pixel Pitch : 0.182mm
- Resolution : 3840x2160
- Color Space (sRGB) : 100%
- Color Space (DCI-P3) : 99%
- Brightness (HDR, Peak) : 1,000 cd/㎡
- Brightness (Typ.) : 250cd/㎡
- Contrast Ratio (HDR, Max) : 1,500,000:1
- Contrast Ratio (Typ.) : 1,500,000:1
- Display Colors : 1073.7M (10 bit)
- Response Time : 0.1ms(GTG)
- Refresh Rate (Max) : 240Hz
- HDR (High Dynamic Range) Support : Dolby Vision
- HLG
- HDR10
- Flicker-free : Yes
- ASUS OLED Care : Yes
Features
- ProArt Preset : User mode3
- User mode2
- User mode1
- Dolby Vision
- HDR_HLG DCI
- HDR_HLG_BT.2020
- HDR_PQ_BT.2020
- HDR_PQ DCI
- Rec.709
- DICOM
- BT.2020
- DCI-P3
- Adobe RGB
- sRGB
- Native
- Color Temp. Selection : Yes (5 modes)
- Color Adjustment : RGB Tuning (Gain / Offset)
- Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6)
- Color Accuracy : △E< 1
- ASUS ProArt Hardware Calibration : Yes
- ProArt Palette : Yes
- QuickFit Plus : Yes
- PIP / PBP Technology : Yes
- HDCP : Yes, 2.3
- VRR Technology : Yes (Adaptive-Sync)
- HDR Preview : Yes
- DisplayWidget : Yes, DisplayWidget Center
- Low Blue Light : Yes
- Multiple HDR Mode : Yes
Audio
Speaker : Yes(3Wx2)

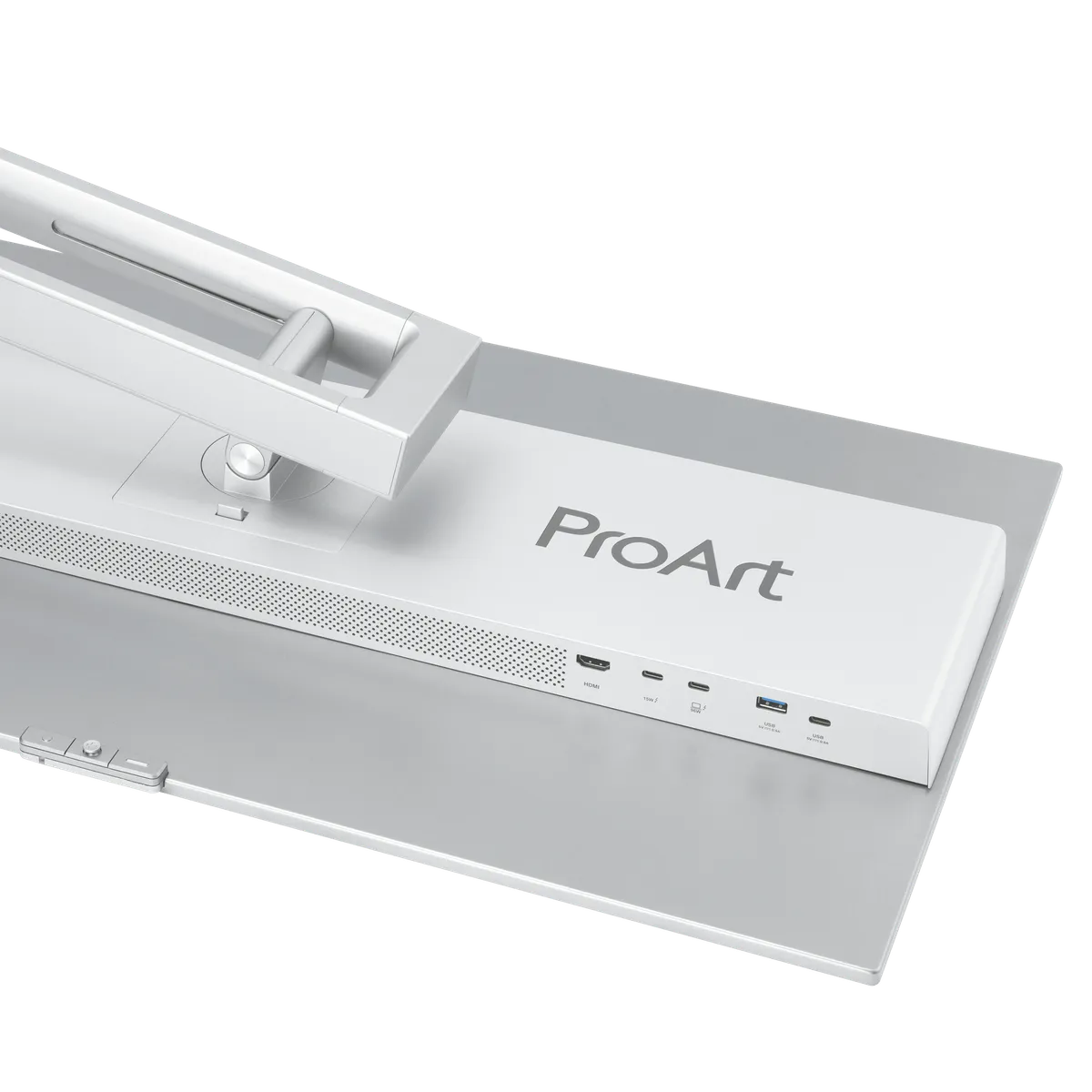

I O Ports
- Thunderbolt 4 x 2 (Daisy Chain)
- HDMI(v2.1) x 1 (FRL)
- USB Hub : 1x USB 3.2 Gen 2 Type-C
- 1x USB 3.2 Gen 2 Type-A
- USB-C Power Delivery : 96W
Signal Frequency
- Digital Signal Frequency : HDMI: 15~583 KHz (H) / 48~240 Hz (V)
- Thunderbolt USB-C: 15~583 KHz (H) / 48~240 Hz (V)
Power Consumption
- Power Consumption : <32W
- Power Saving Mode : <0.5W
- Power Off Mode : <0.3W
- Voltage : 100-240V, 50/60Hz
Mechanical Design

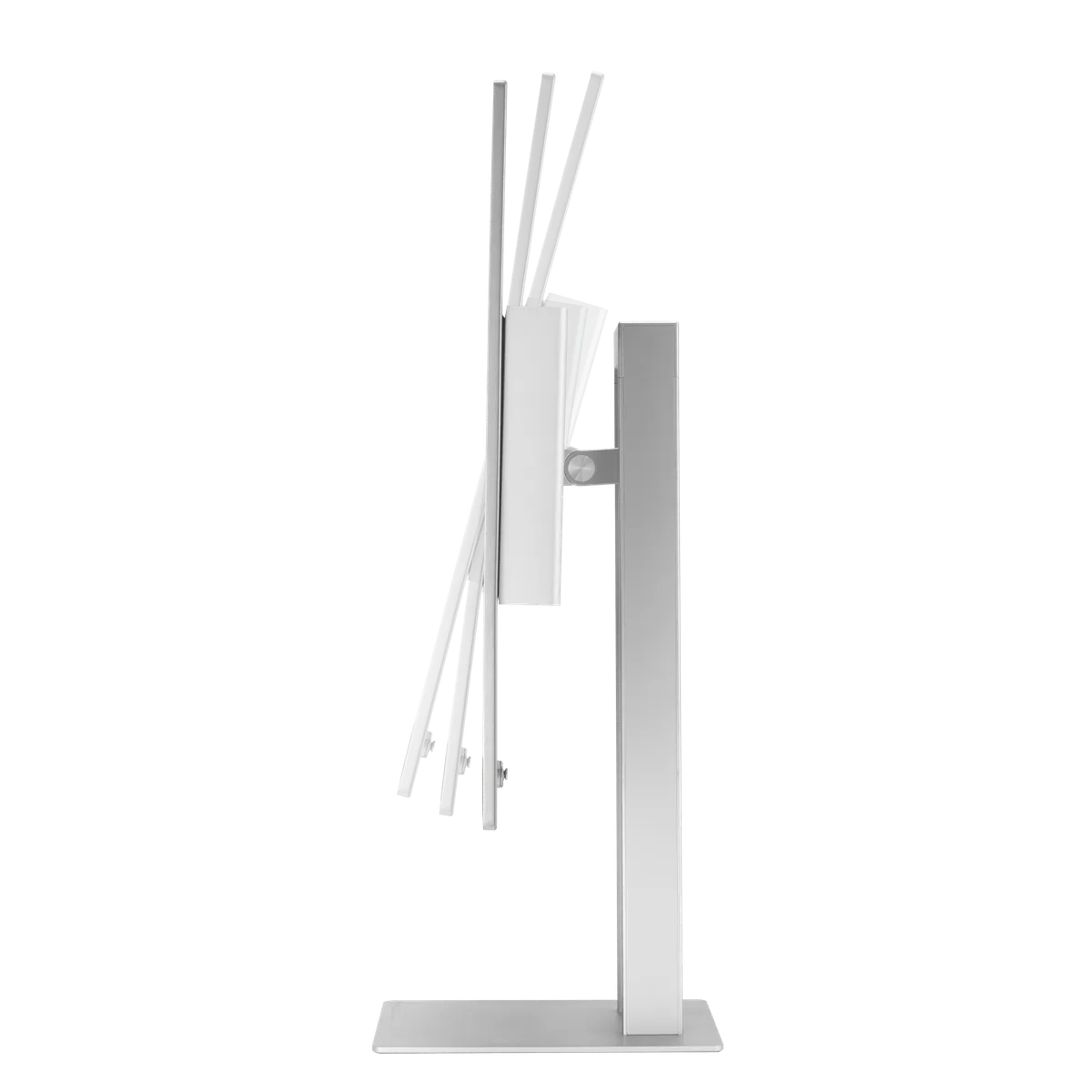

- Tilt : Yes (+20° ~ -5°)

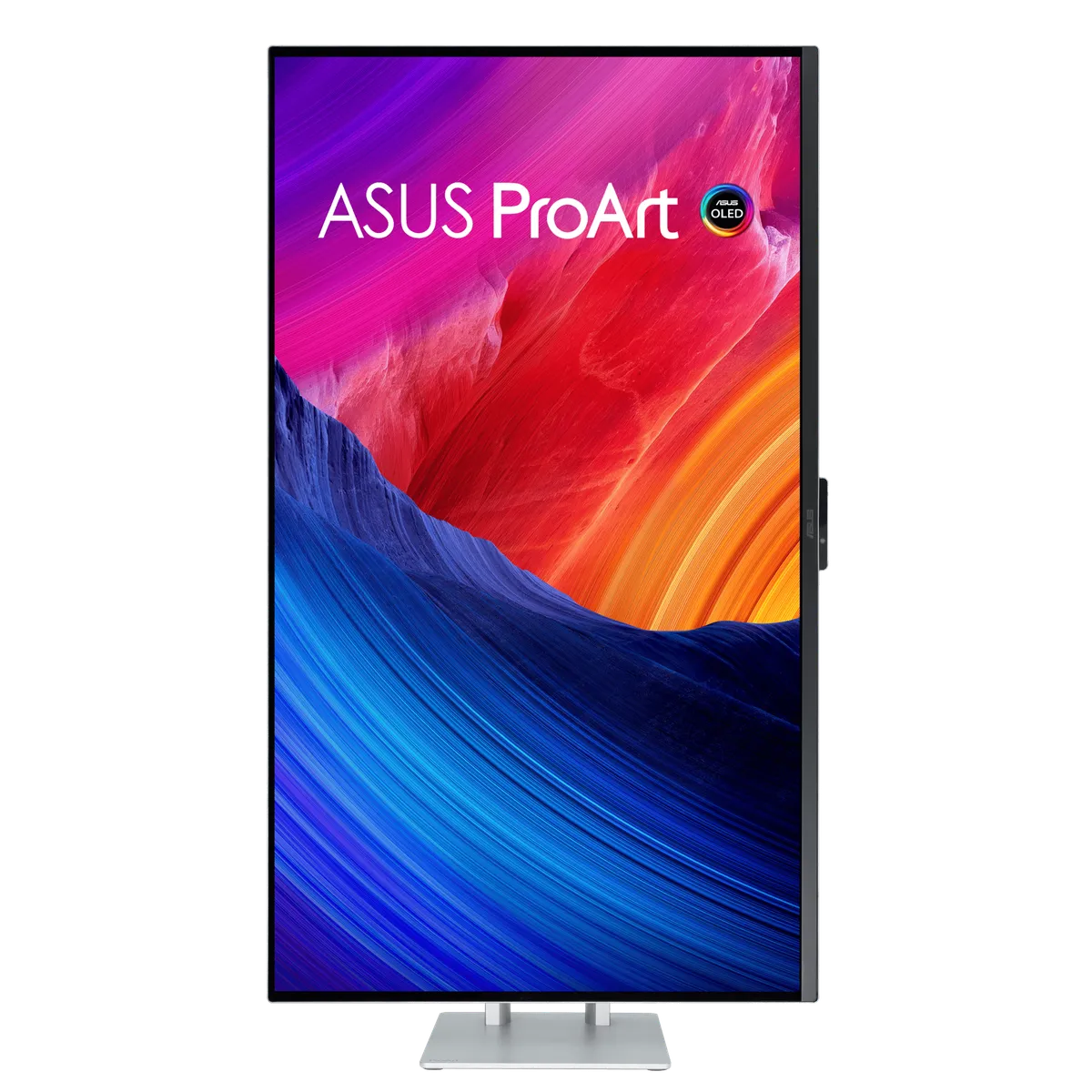

- Pivot : Yes (+90° ~ -90°)
- Height Adjustment : 0~130mm
- Ambient Light Sensor : Yes
- Proximity Sensor : Yes
- VESA Wall Mounting : 100x100mm
- Kensington Lock : Yes
Dimensions Esti
- Phys. Dimension (W x H x D) : 71.73 x 60.25 x 22.80 cm (28.24" x 23.72" x 8.98")
- Phys. Dimension without Stand (W x H x D) : 71.73 x 42.23 x 4.24 cm (28.24" x 16.63" x 1.67")
- Box Dimension (W x H x D) : 82.0 x 57.7 x 28.2 cm (32.28" x 22.72" x 11.10")
Weight Esti
- Net Weight : 9.0 kg (19.84 lbs)
- Net Weight without Stand : 6.5 kg (14.33 lbs)
- Gross Weight : 16.6 kg (36.60 lbs)
Accessories Vary By Regions
- Welcome Card
- Warranty Card
- USB-C to A cable
- Thunderbolt™ 4 Cable
- Quick start guide
- Quick release stand
- Power cord
- HDMI Ultra High Speed Cable
- Color pre-calibration report
Certificate
- Mac Compliance
- FSC MIX
- Calman Ready
- VESA DisplayHDR 400 True Black
- TÜV Low Blue Light
- TÜV Flicker-free
- Energy Star
Warranty
3 years (including panel burn-in)
Physical Dimensions
Length Mm
717.3
Width Mm
602.5
Height Mm
228
Weight G
9000
