ASUS ProArt B660-CREATOR D4
£505.52
Quick Specs
ChipsetIntel | ® | B660 Chipset
SocketLGA 1700
MemoryDDR4
Form FactorATX
M.2 Slots7
Model: 20350
About this motherboards
ProArt B660-CREATOR D4 leverages Intel® 12th Gen CPUs for productivity like 3D renders and 4K/8K video editing via PCIe® 5.0, dual LAN ports and three M.2 slots
Technical Specifications24 specs
General
Model
ProArt B660-CREATOR D4
News Updates
- Please visit our
- GLOBAL website
- to check and download the latest updates.
Cpu
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
- Supports Intel
- ®
- 10 nm CPU
- Supports Intel
- ®
- Turbo Boost Technology 2.0 and Intel
- ®
- Turbo Boost Max Technology 3.0
- ** Intel
- ®
- Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
- Intel
- ®
- B660 Chipset
Memory
- 4 x DIMM, Max. 128GB, DDR4
- 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/ 4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/ 3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/ 3000/2933/2800/2666/2400/ 2133 Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem II
Graphics
- 1 x HDMI® port
- 1 x USB Type-C port supports DisplayPort output
- 1 x DP IN that will have output through USB Type-C port
- * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- ** Support 4K@60Hz as specified in HDMI 2.1.
- *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution.
- **** A DisplayPort to DisplayPort cable is required for the USB Type-C® port at the back panel to output DisplayPort signal.
Expansion Slots
- Intel® 14th & 13th & 12th Gen Processors
- 1 x PCIe 5.0/4.0/3.0 x16 slot
- Intel® B660 Chipset
- 1 x PCIe 3.0 x16 slot (supports x4 mode)
- 1 x PCIe 3.0 x1 slot
- * Supports Intel® Optane Memory H Series on PCH-attached PCIE slot
- ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled.
Storage
- Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports
- Intel® 14th & 13th & 12th Gen Processors
- M.2_1 slot (Key M), type 2242/2260/2280/22110
- - Intel
- ®
- 13th & 12th Gen processors support PCIe 4.0 x4 mode.
- Intel
- ®
- B660 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- * Intel
- ®
- Rapid Storage Technology supports SATA RAID 0/1/5/10.
- ** Intel
- ®
- Rapid Storage Technology supports Intel
- ®
- Optane Memory H Series on PCH attached M.2 slots.
- *** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot.
Ethernet
- 1 x Realtek 2.5Gb Ethernet
- 1 x Intel® 1Gb Ethernet
- ASUS LANGuard
Wireless Bluetooth
- M.2 slot only (Key E, PCIe)
- *Wi-Fi module is sold separately.
Usb
- Rear USB (Total 9 ports)
- 1 x USB 3.2 Gen 2 Type-C® port (shared with DisplayPort graphic output)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with 60W PD/QC4+)
- 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Power pre-regulator reduces power input noise to ensure consistent performance
- - Premium audio capacitors
- - Dedicated audio PCB layers
- - Audio cover
- - Unique de-pop circuit
- * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

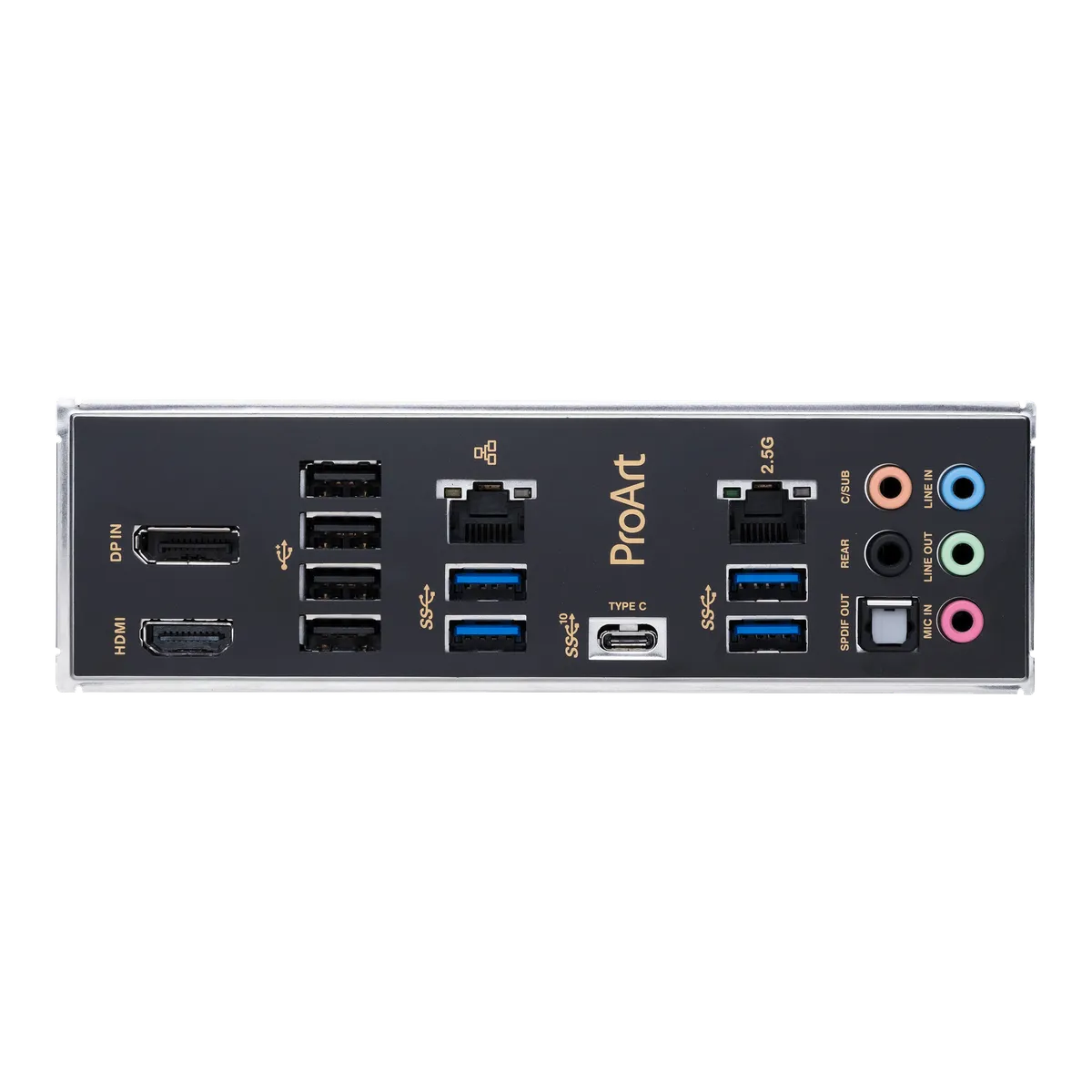

Back Panel I O Ports
- 1 x USB Type-C® port supports USB 3.2 Gen2 and DisplayPort output
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort (Input only)
- 1 x HDMI® port
- 1 x Realtek 2.5Gb Ethernet port
- 1 x Intel® 1Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
Internal I O
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- Storage related
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with 60W PD/QC4+)
- 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x AURA RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x M.2 slot (Key E)
- 1 x SPI TPM header (14-1pin)
- 1 x 20-5 pin System Panel header
- 1 x Thermal Sensor header
- 1 x Thunderbolt™ header
Special Features
- ASUS 5X PROTECTION III
- - DIGI+ VRM (- Digital power design with DrMOS)
- - Enhanced DRAM Overcurrent Protection
- - ESD Guards
- - LANGuard
- - Overvoltage Protection
- - SafeSlot
- - Stainless-Steel Back I/O
- ASUS Q-Design
- - M.2 Q-Latch
- - Q-Connector
- - Q-DIMM
- - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- - Q-Slot
- ASUS Thermal Solution
- - Flexible M.2 heatsink
- - VRM heatsink design
- ASUS EZ DIY
- - ProCool
- - Pre-mounted I/O shield
- AURA Sync
- - AURA RGB header
- - Addressable Gen 2 headers
Software Features
- ASUS Exclusive Software
- Armoury Crate
- - AURA Creator
- - AURA Sync
- - Fan Xpert 4
- - Two-Way AI Noise Cancelation
- AI Suite 3
- - Performance And Power Saving Utility
- EPU
- DIGI+ VRM
- Turbo app
- ASUS CPU-Z
- IT Management software supported
- - ASUS Control Center Express(ACCE)
- ProArt Creator Hub
- CreationFirst
- Norton Anti-virus software (Free Trial version)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
Bios
128 Mb
Manageability
WOL by PME, PXE
Accessories
- Cables
- 1 x DisplayPort cable
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 3 x M.2 rubber packages
- 1 x M.2 SSD Screw Package
- 1 x Q-connector
- Installation Media
- 1 x Support DVD
- Documentation
- 1 x ACC Express Activation Key Card
- 1 x User guide
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Physical Dimensions
Length Mm
304.8
Width Mm
243.8
Height Mm
774.7
